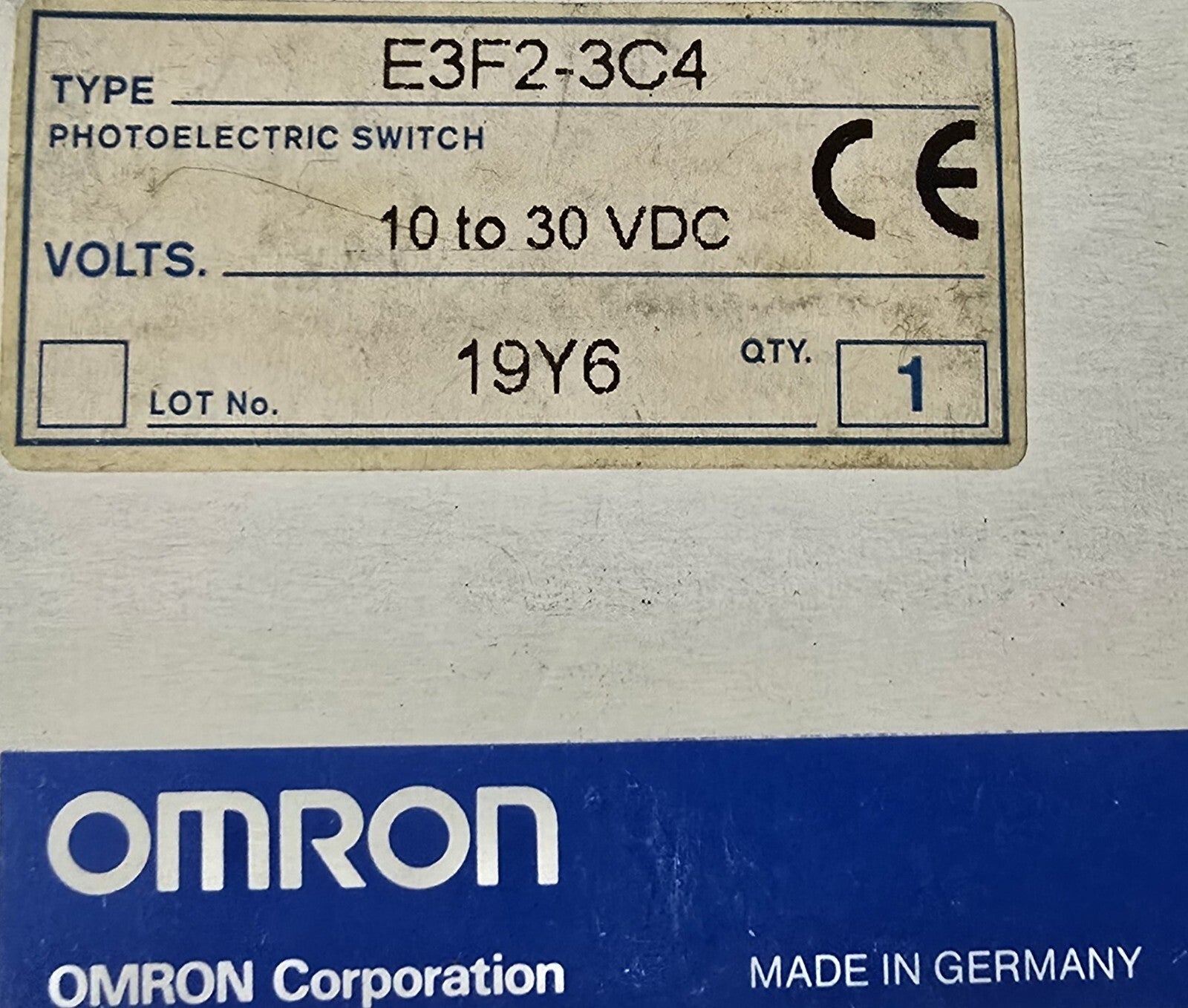

OMRON E3F2-3C4 Photoelectric Sensor Switch

Omron E3F2-3C4 Photoelectric Sensor – Through-Beam, 3 m Sensing Distance, NPN Output, M18 Cylindrical Housing

Enhance your industrial automation setup with the Omron E3F2-3C4 photoelectric sensor. Engineered for durability and precision, this sensor is ideal for demanding environments where reliability is paramount.

🔧 Key Features:

• Model: E3F2-3C4

• Sensing Method: Through-beam

• Sensing Distance: 3 m (typical 4 m)

• Output Configuration: NPN open collector

• Operation Modes: Light-ON / Dark-ON (selectable via wiring)

• Operating Voltage: 10 to 30 VDC (including 10% ripple)

• Current Consumption: Emitter: 25 mA max.; Receiver: 20 mA max.

• Response Time: ON: 2.5 ms max.; OFF: 2.5 ms max.

• Housing Material: ABS resin

• Protection Rating: IP67 – suitable for harsh environments

• Connection Type: Pre-wired with 2-meter cable

• Operating Temperature Range: -25°C to +55°C

• Indicators: Emitter: Power ON (red LED); Receiver: Light incident (red LED)

• Mounting Style: M18 cylindrical, axial mounting

• Weight: Approximately 110 grams

📌 Brand: Omron
🌏 Country of Manufacture: Japan
📦 HS Code: 8541.40
