OMRON DRT1-TS04T DeviceNet, Analog Input, 4 Channel, 0 to 10V DC or 4 to 20mA

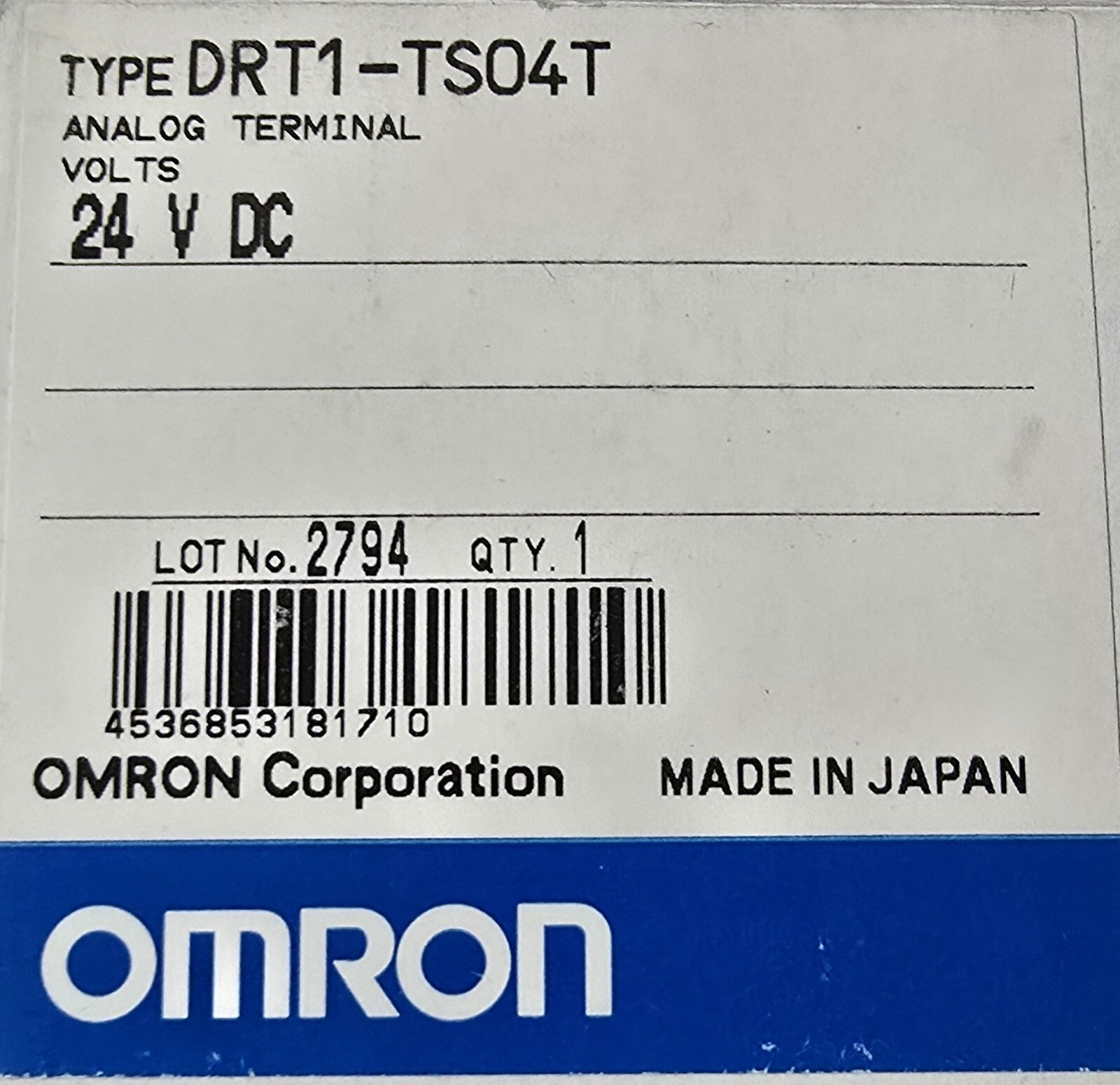

Omron DRT1-TS04T Temperature Input Module – 4-Channel Thermocouple Input, DeviceNet, DIN Rail Mount

Enhance your industrial automation setup with the Omron DRT1-TS04T Temperature Input Module. Designed for accuracy and reliability, this unit is built to perform in demanding environments where precision measurement is critical.

🔧 Key Features

• Model: DRT1-TS04T

• Type: Temperature Input Module

• Number of Inputs: 4 thermocouple inputs

• Supported Thermocouple Types: R, S, K, J, T, B, L

• Input Range: Selectable via rotary switch or DeviceNet Configurator

• Accuracy: ±0.3% of reading or ±1 °C (whichever is greater)

• Conversion Cycle: 250 ms for 4 channels

• Data Format: Binary (4-digit hexadecimal)

⚡ Electrical & Power

• Power Supply Voltage: 20.4 to 26.4 VDC

• Current Consumption: 80 mA max. (internal), 50 mA max. (I/O interface)

🌡 Environmental & Mechanical

• Operating Temperature Range: –10 °C to +55 °C

• Storage Temperature Range: –25 °C to +65 °C

• Ambient Humidity: 25% to 85% (non-condensing)

• Vibration Resistance: 10 to 150 Hz, 0.7 mm amplitude or 50 m/s²

• Shock Resistance: 150 m/s²

• Isolation: Photocoupler isolation between inputs and communication lines

• Mounting Style: DIN Rail

• Protection Rating: IP20

📐 Dimensions & Weight

• Weight: Approx. 210 g

📦 Brand Information

• Brand: Omron

• Country of Manufacture: Japan

✅ High-accuracy thermocouple input module designed for DeviceNet networks and robust automation systems.
