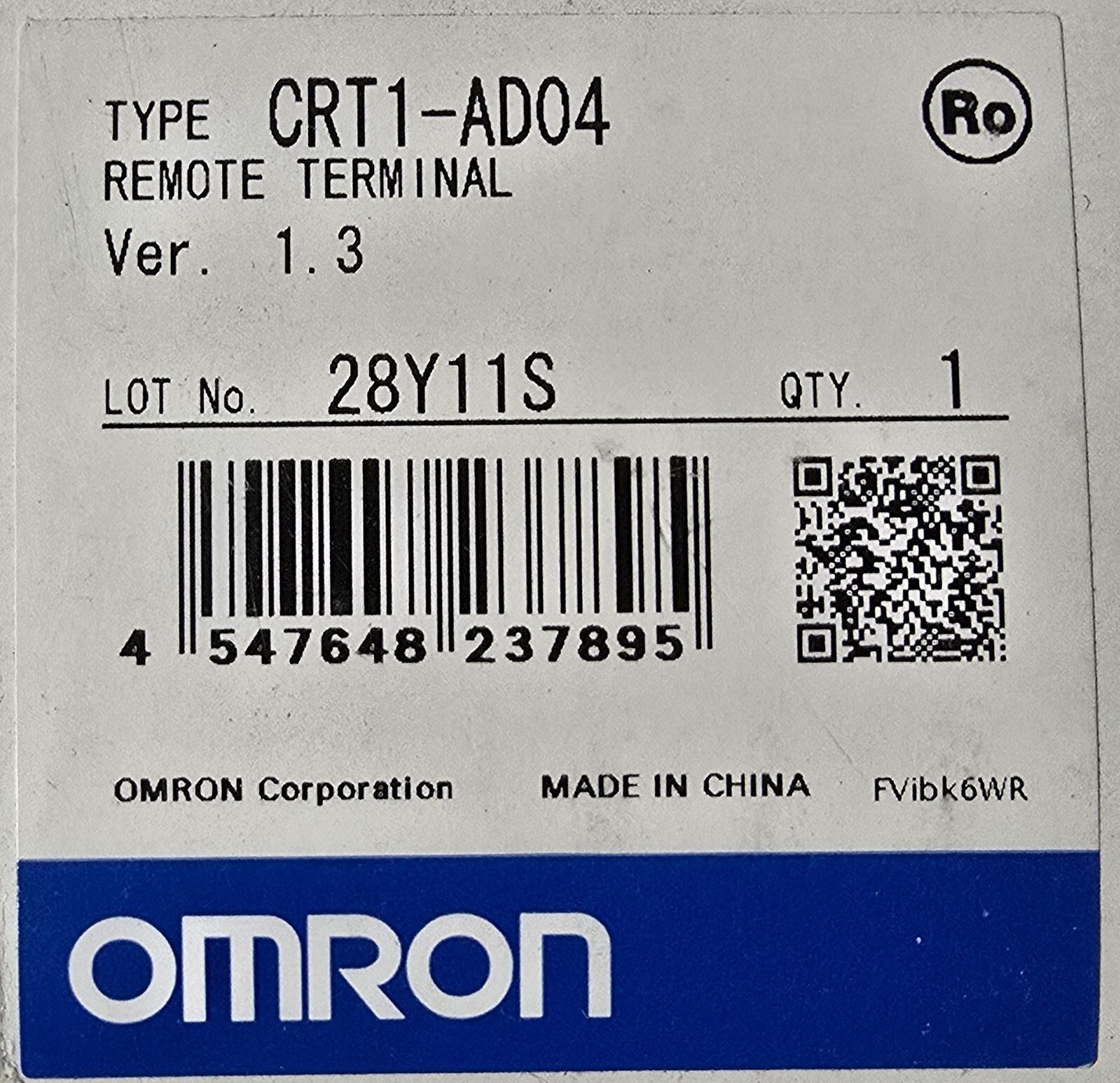

OMRON CRT1-ADO4 CompoNet, 4 x analog inputs, V & mA, res 1:6000, screw

General Performance

• Communications supply voltage: 14 to 26.4 VDC

• I/O supply voltage (sensor power): 20.4 to 26.4 VDC (24 VDC –15%/+10%)

• Noise immunity: IEC 61000-4-4, 2 kV (power line)

• Vibration resistance: 10–60 Hz, 0.7 mm DA; 60–150 Hz, 50 m/s² in X, Y, Z for 80 min each

• Shock resistance: 150 m/s² (3 times per direction, 6 axes)

• Dielectric strength: 500 VAC (between isolated circuits)

• Insulation resistance: ≥ 20 MΩ (between isolated circuits)

• Operating temperature: –10 °C to +55 °C

• Storage temperature: –25 °C to +65 °C

• Operating humidity: 25% to 85% RH, non-condensing

• Wiring torque: M3 screws, 0.5 Nm

CRT1-AD04 Analog Input Module

• Number of channels: 4 analog inputs

• Input signal ranges: 0 to 5 V, 1 to 5 V, 0 to 10 V, –10 to 10 V, 0 to 20 mA, 4 to 20 mA

• Maximum input: ±15 V or ±30 mA

• Input impedance: ≥ 1 MΩ (voltage), approx. 250 Ω (current)

• Resolution: 1/6000 full scale

• Accuracy at 25 °C: ±0.3% FS (voltage), ±0.4% FS (current)

• Accuracy –10 °C to +55 °C: ±0.6% FS (voltage), ±0.8% FS (current)

• Conversion cycle: 1 ms per point

• Isolation: Photocoupler between input and communications, no isolation between channels

• Power consumption: up to 110 mA at 24 VDC

• Weight: approx. 153 g

• Mounting: DIN rail or bracket / M4 screw
