nVent 561157 ERIFLEX ERICO SBF630 Power Distribution Block UL 545A 1000V (NEW)

Title: ERICO nVent ERIFLEX 561157 SBF630 Power Distribution Block 545A 1000V AC/DC IP20 (NEW In Box)

Brand: nVent ERIFLEX
Model: 561157 (SBF630)
Part Number: 561157
Description: nVent ERIFLEX SBF630 Power Distribution Block rated for 545 A at 1000 V AC / 1500 V DC. Compact and modular design with tinned copper conductors and halogen-free insulating housing for safe and reliable power distribution. Provides connection between cables or Flexibar bars in switchboards and industrial control panels. UL and IEC approved for use in high-current applications up to 100 kA SCCR.

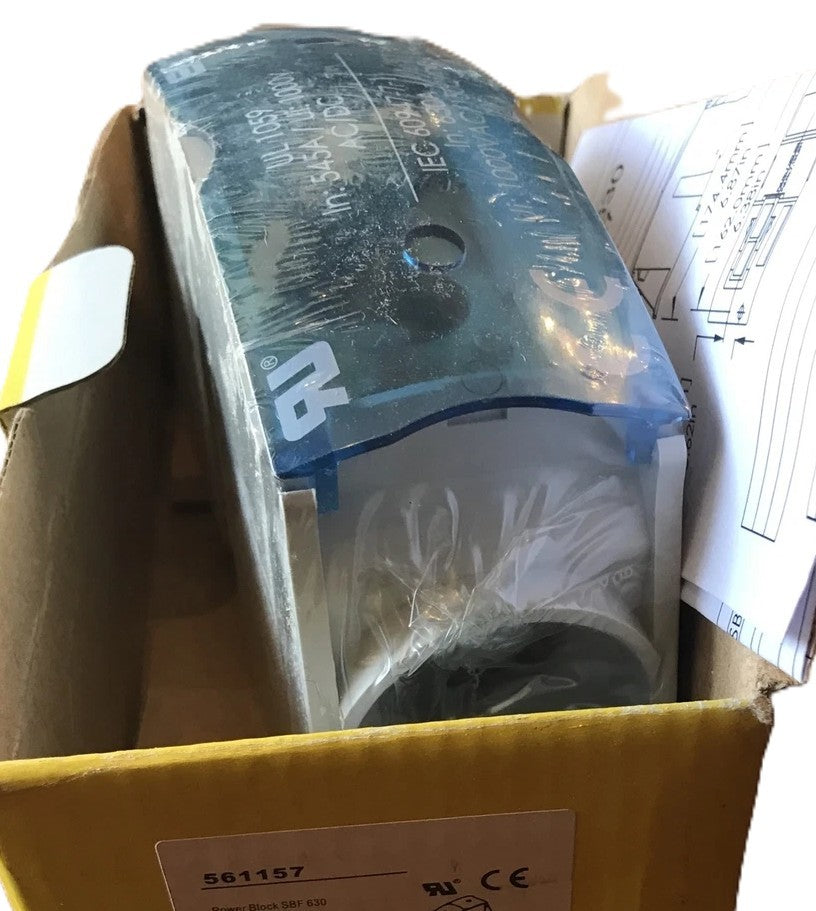

Condition: New (In Box)
Current Rating: 545 A (IEC) / 800 A max for Flexibar
Voltage Rating: 1000 V AC / 1500 V DC
Short-Circuit Rating: 100 kA SCCR (IEC / UL)
Peak Current (Ipk): 51 kA
Connection Type: Cable to Flexibar / Power Braid
Conductor Size: 400–1000 kcmil (≈ 240–500 mm²)
Material: Tinned Copper with Thermoplastic Housing (UL 94 V-0)
Mounting: DIN Rail or Panel Mount
Protection Class: IP20

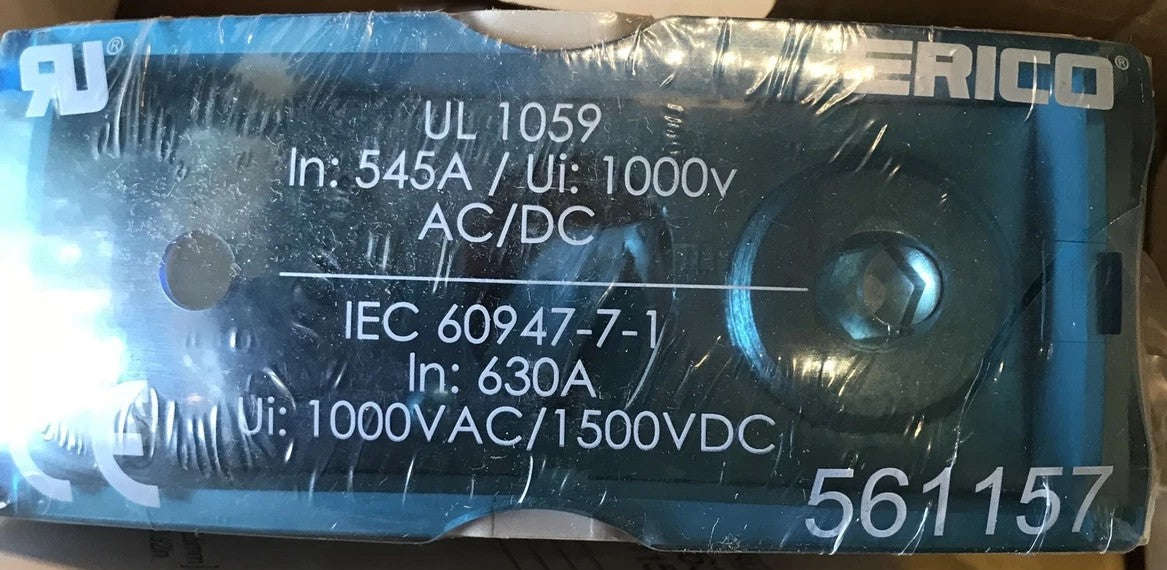

Certifications: UL 1059, CSA C22.2 No. 158, IEC 60947-7-1
Dimensions: 160 × 60 × 50 mm (approx.)
Weight: 1.6 kg
UPC: 782856790440
EAN: 8711893137378
Country of Origin: France
HS Code: 8536.90.00
