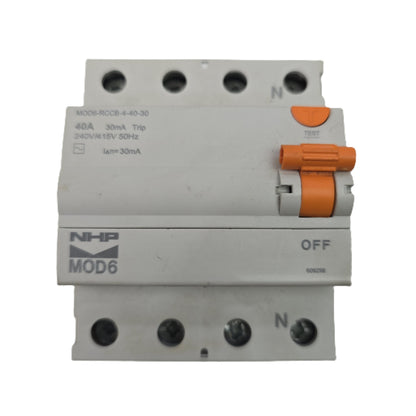

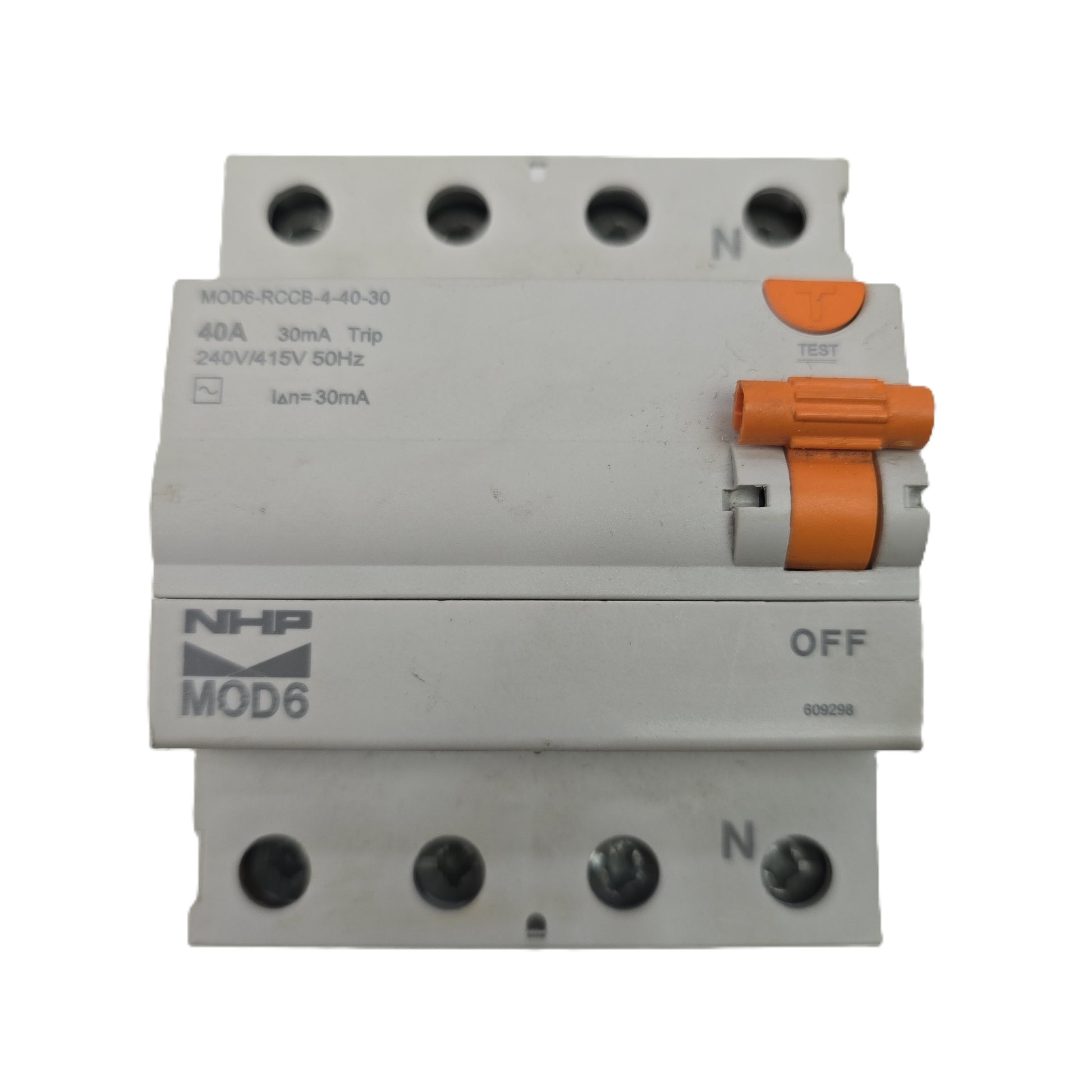

NHP-Terasaki MOD6-RCCB-4-40-30 RCCB 4-Pole 40A 30mA Type AC (Spares Stock)

The NHP Terasaki MOD6-RCCB-4-40-30 is a four-pole residual current circuit breaker (RCCB) from the NHP MOD6 Din-Safe range. It provides residual current (earth leakage) protection with a rated sensitivity of 30mA and a rated current of 40A, and is designed for mounting on standard 35mm DIN rail within distribution boards and switchboards.

This is a residual current device only and does not provide overcurrent protection, so it must be used in conjunction with upstream or downstream circuit protection. The device is a Type AC unit rated for 240V/415V 50Hz operation and is manufactured to IEC 61008. It carries a test button for periodic verification of tripping operation.

Specifications

• Brand: NHP Terasaki
• Part number: MOD6-RCCB-4-40-30

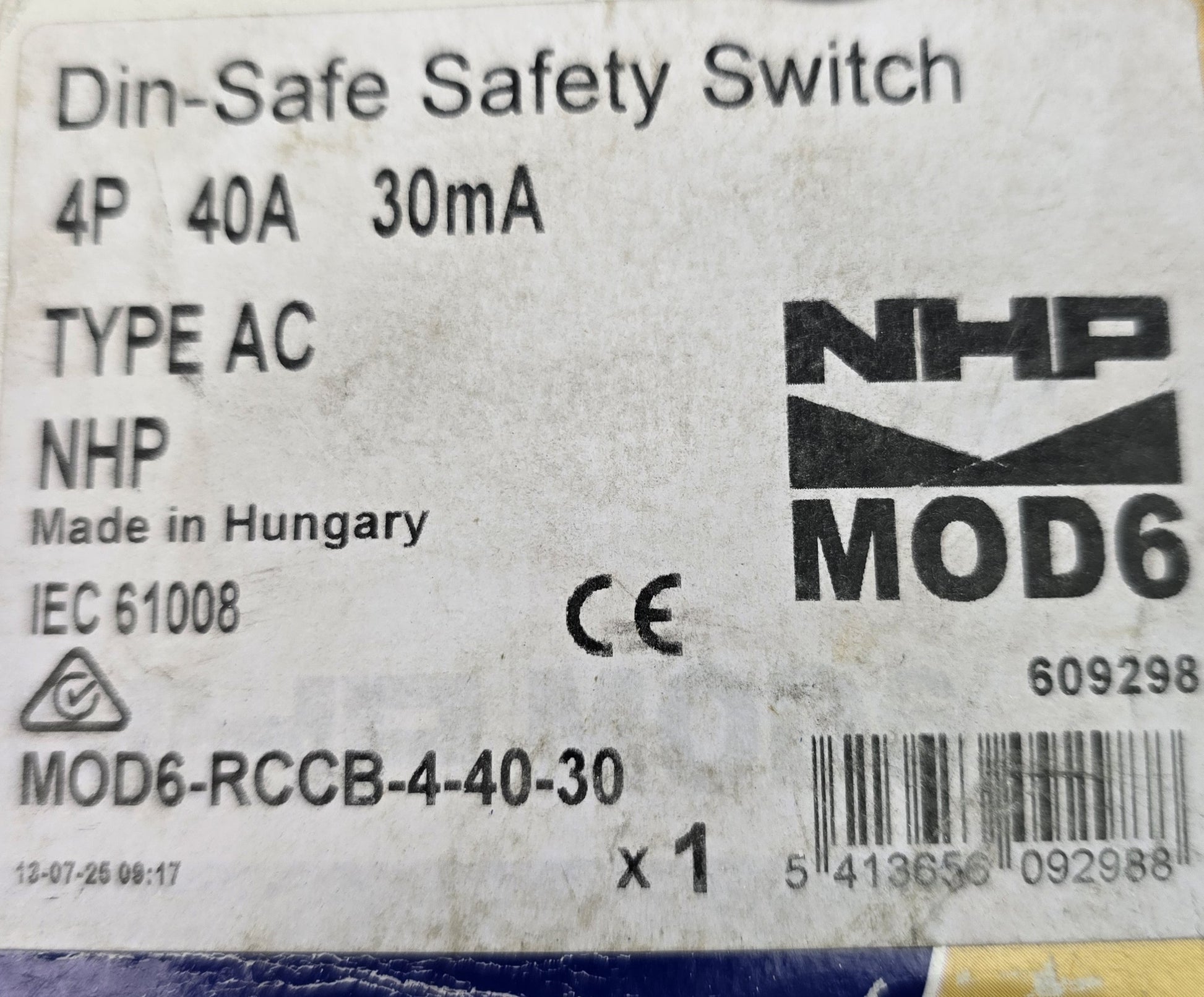

• Catalogue code: MOD6RCCB44030 (order code 609298)
• Type: Residual current circuit breaker (RCCB), residual current only
• Poles: 4-pole (3P+N)
• Rated current: 40A
• Rated residual sensitivity: 30mA (IDn = 30mA)
• Tripping type: Type AC
• Rated voltage: 240V/415V, 50Hz
• Standard: IEC 61008
• Series: MOD6 (6kA)

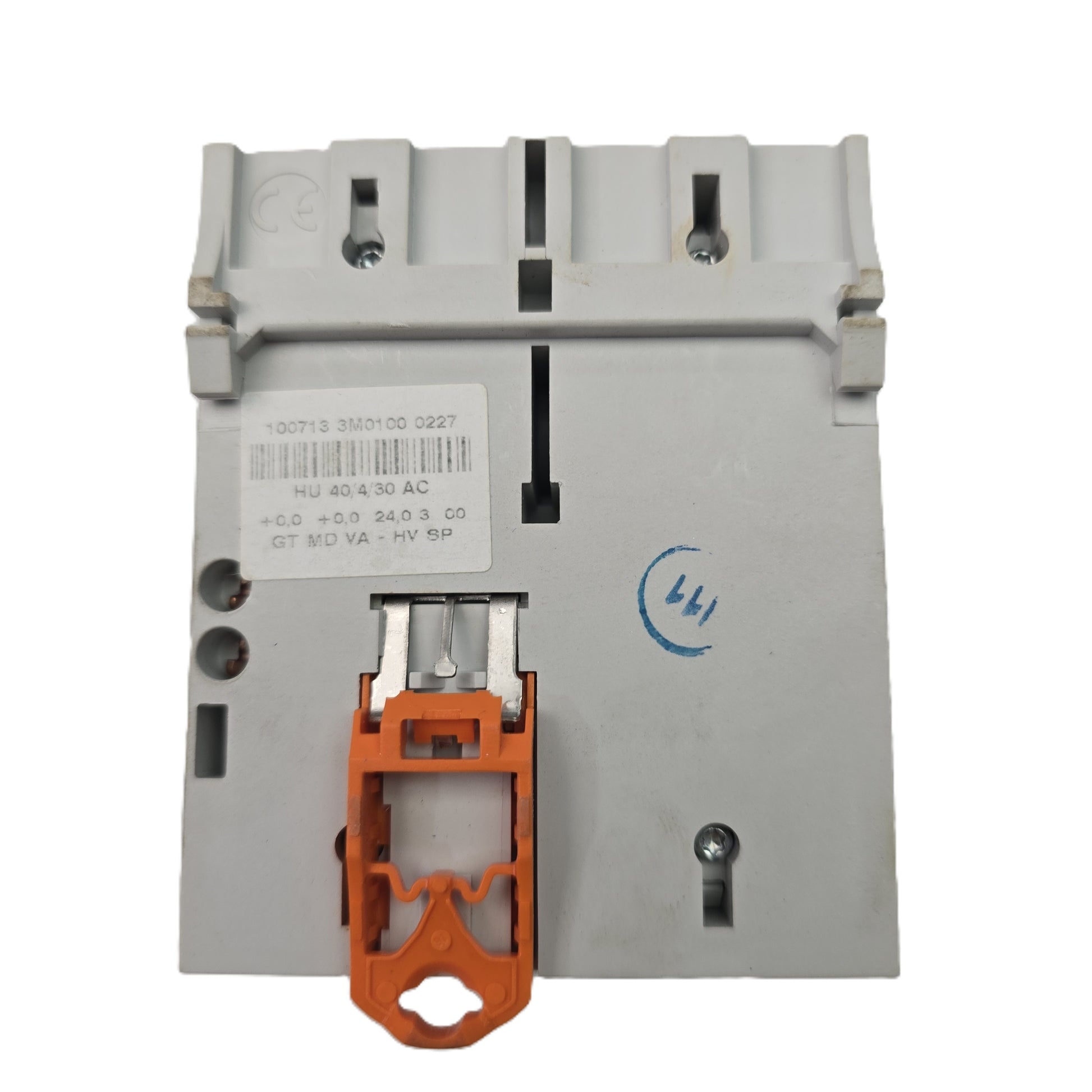

• Mounting: 35mm DIN rail
• Country of origin: Hungary

Key Features

• Four-pole residual current protection for three-phase and neutral circuits
• 30mA sensitivity suited to personnel and additional earth leakage protection
• Type AC operation for sinusoidal residual currents
• Integrated test button for periodic tripping verification
• Compact modular design for DIN rail switchboard mounting
• Manufactured to IEC 61008

Typical Applications

• Residential, commercial and industrial switchboards
• Three-phase distribution circuits requiring earth leakage protection
• Final subcircuit protection where a separate overcurrent device is fitted
• Retrofit and maintenance of existing NHP MOD6 installations

Package Includes

• 1 x NHP Terasaki MOD6-RCCB-4-40-30 residual current circuit breaker

Additional Information

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
