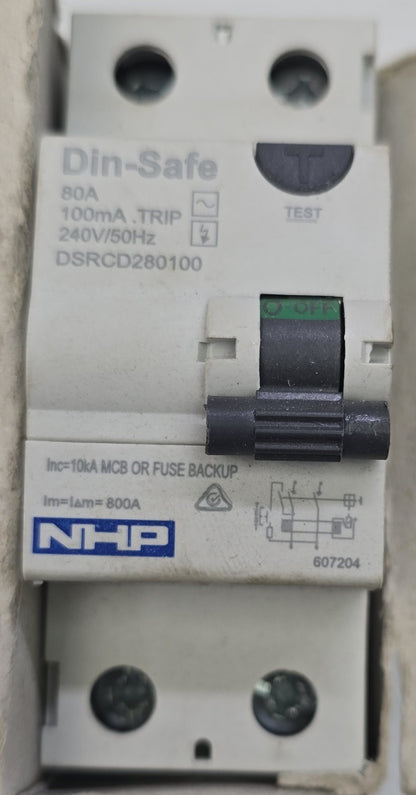

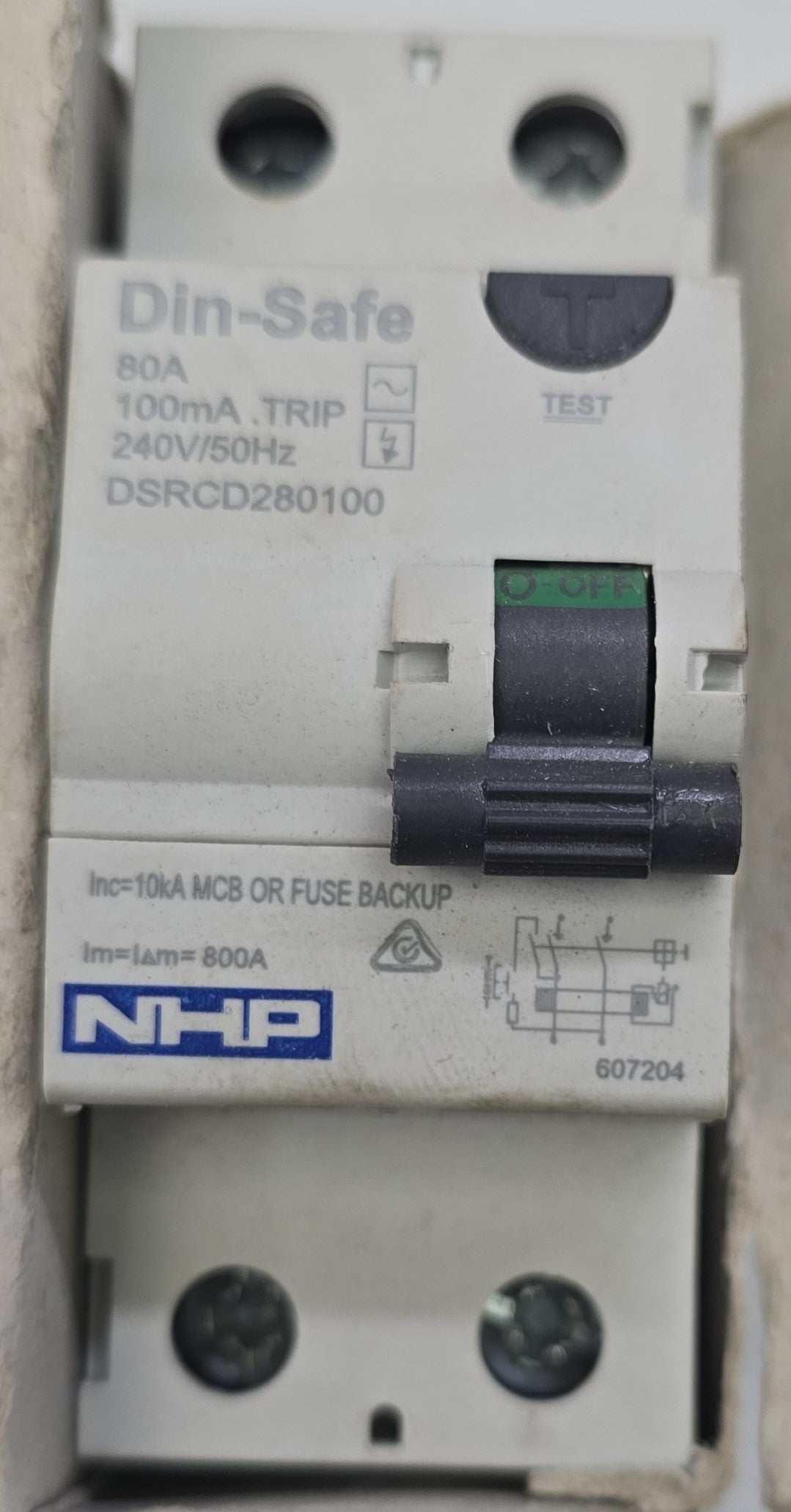

NHP-Terasaki DSRCD280100 Din-Safe RCCB 2 Pole 80A 100mA Type AC (Spares Stock)

The NHP-Terasaki DSRCD280100 is a Din-Safe residual current circuit breaker (RCCB), also known as a safety switch, rated at 80A with 100mA residual sensitivity. It is a 2 pole device that switches both the active and neutral conductors, and is designed for 35mm DIN-rail mounting in a switchboard.

This unit is a Type AC device rated 240V 50Hz, built to IEC 61008 and marked with a conditional short-circuit rating of 10kA when backed by an MCB or fuse. It provides earth leakage protection against sinusoidal AC residual currents in domestic, commercial and industrial distribution boards.

Specifications

• Brand: NHP (Terasaki)
• Part number: DSRCD280100
• Series: Din-Safe DIN-T RCCB
• Device type: Residual current circuit breaker (RCCB / safety switch)
• Poles: 2 pole (active and neutral)
• Rated current: 80A
• Rated residual operating current: 100mA
• RCD type: Type AC
• Rated voltage: 240V AC, 50Hz
• Rated making and breaking capacity (Im / IdeltaM): 800A
• Conditional short-circuit rating (Inc): 10kA with MCB or fuse backup
• Standard: IEC 61008
• Mounting: 35mm DIN rail
• Width: 2 modules
• Country of origin: Hungary

Key Features

• Earth leakage protection against sinusoidal AC residual currents
• 100mA sensitivity suited to fire protection and equipment isolation duties
• 80A rating suitable for use as a main switch or sub-main protection
• Test button for verifying correct tripping operation
• Compact 2 module DIN-rail format for standard switchboards
• Manufactured to IEC 61008

Typical Applications

• Switchboard main switch and sub-main protection
• Domestic, commercial and industrial distribution boards
• Circuits requiring 100mA residual current protection
• Retrofit and maintenance of existing NHP Din-Safe installations

Package Includes

• 1 x NHP-Terasaki DSRCD280100 Din-Safe RCCB safety switch

Additional Information

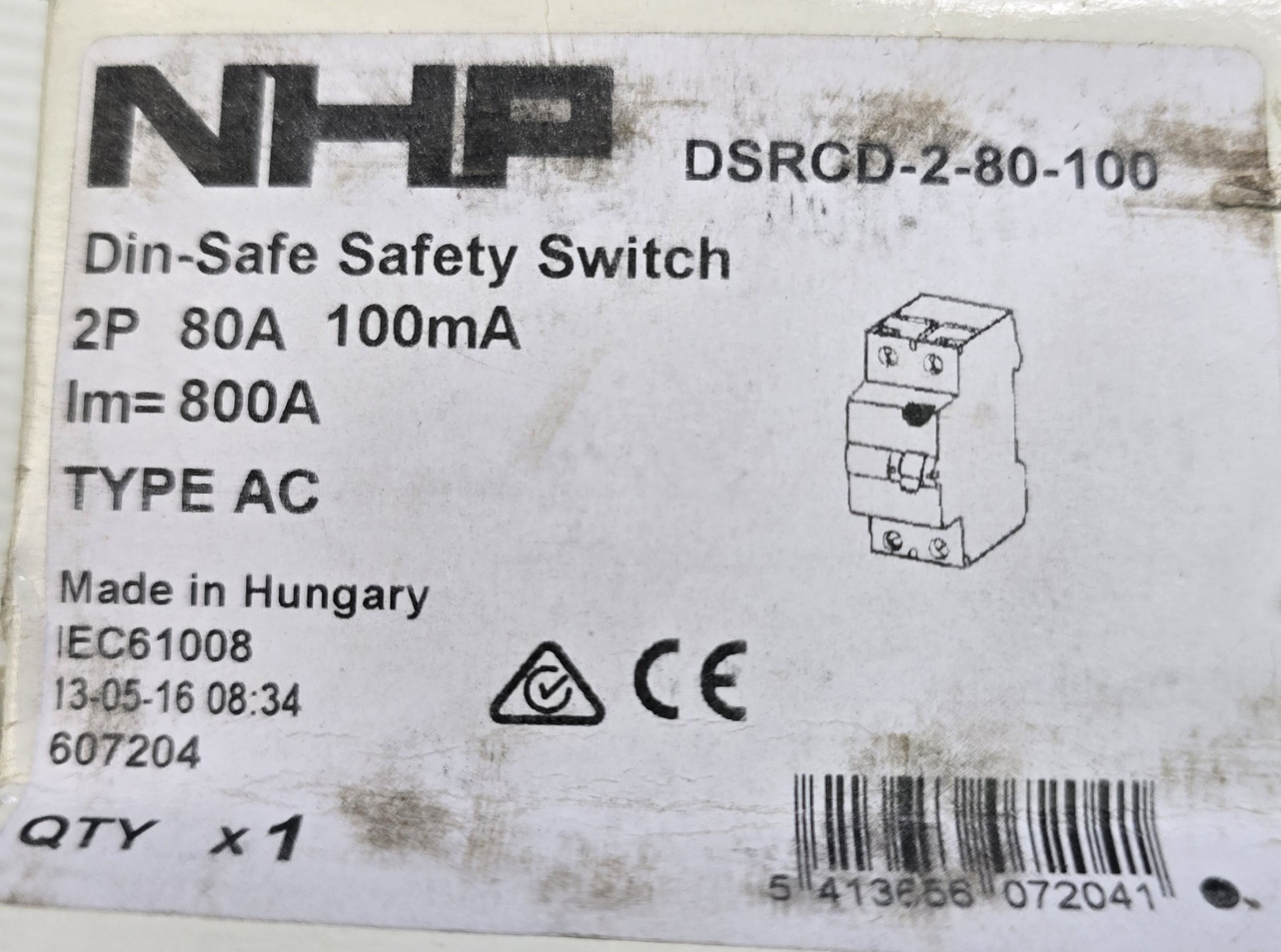

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
