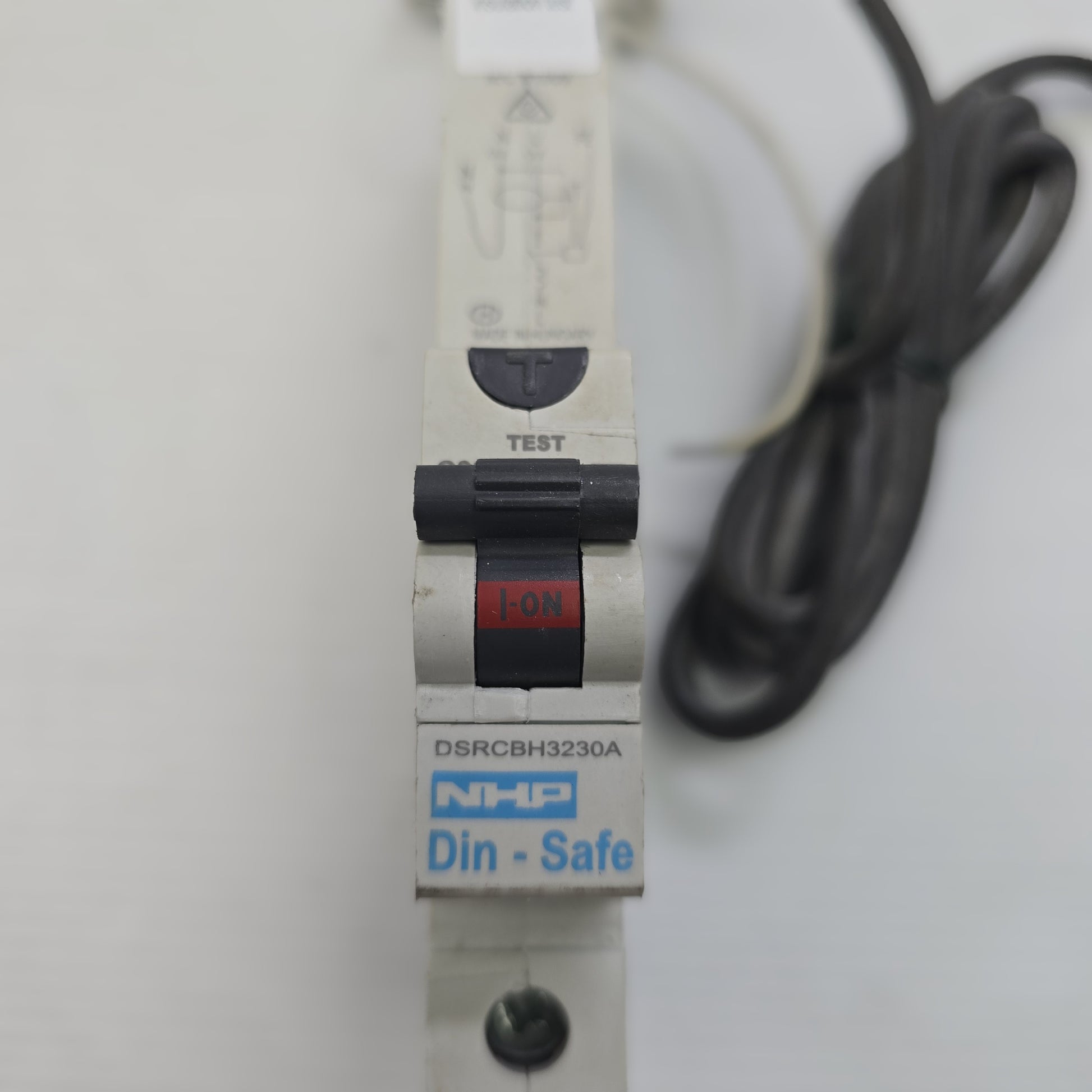

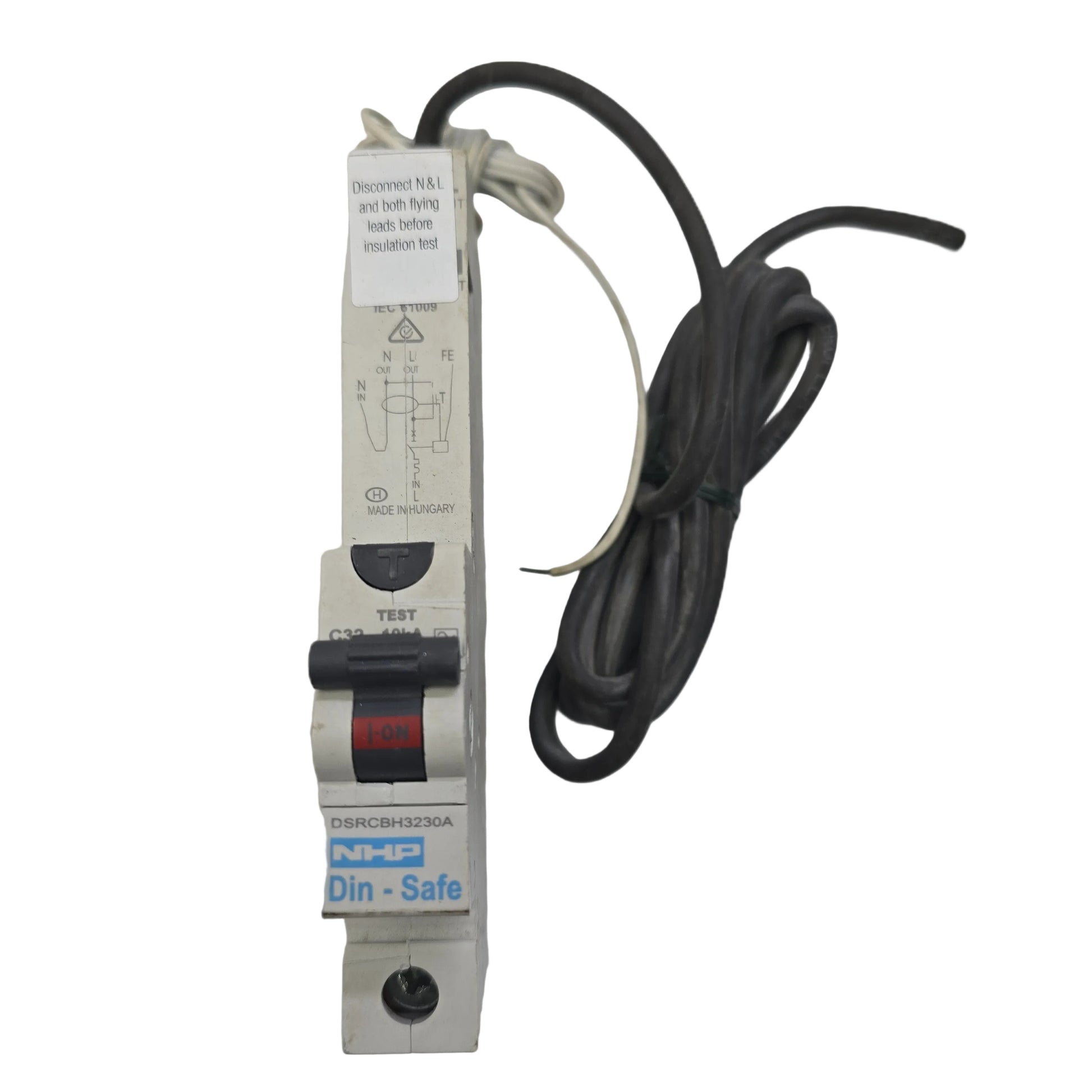

NHP-Terasaki DSRCBH3230A RCBO 32A 1P+N 30mA Type A C Curve 10kA (Spares Stock)

The NHP Terasaki DSRCBH3230A is a Din-Safe residual current breaker with overcurrent protection (RCBO) that combines earth leakage protection and overcurrent protection in a single DIN-rail mounted device. It is rated at 32A with a C tripping curve, a 30mA residual current sensitivity and a Type A residual current classification, providing protection against both alternating and pulsating direct residual currents.

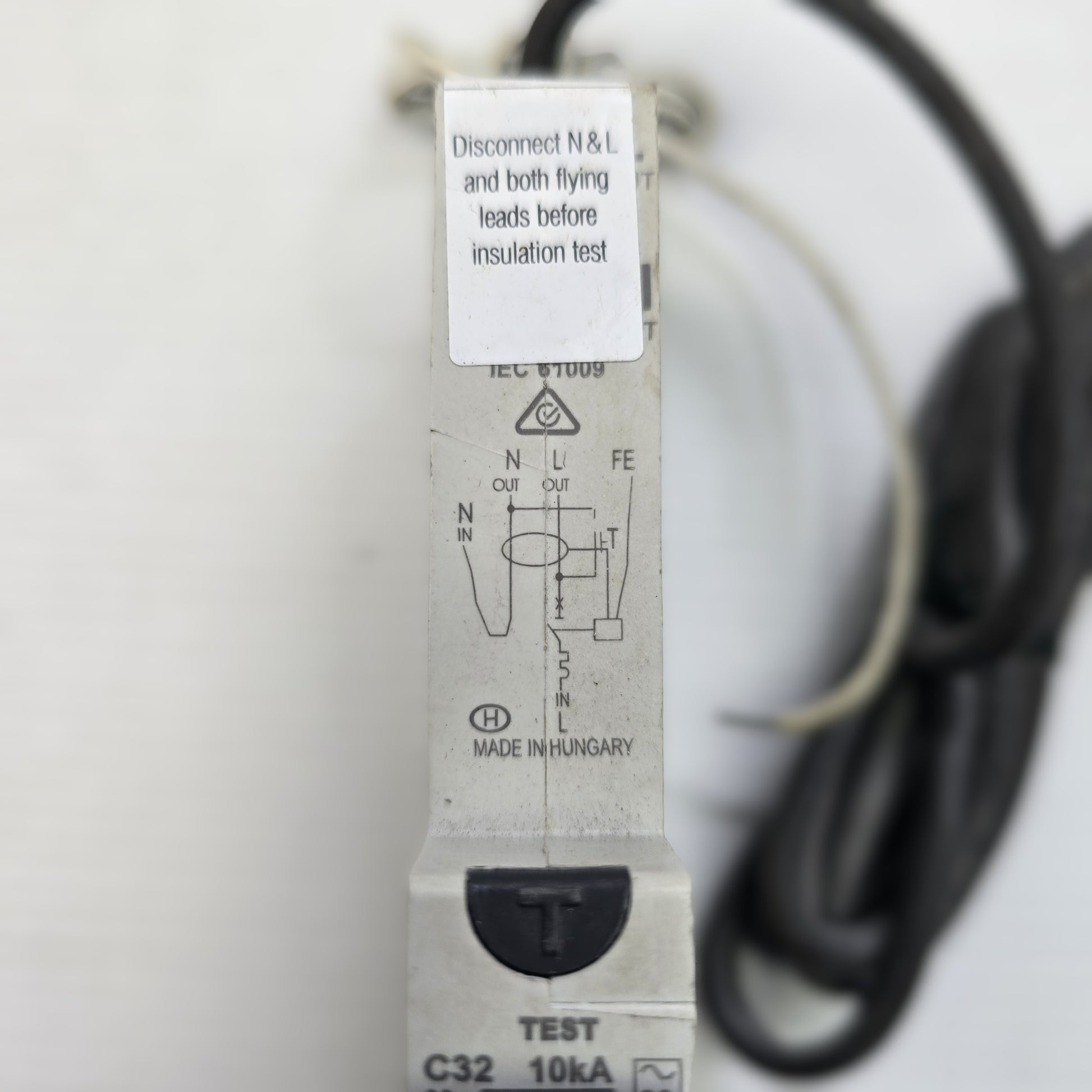

This is a single pole plus neutral (1P+N) longbody unit with flying leads, built to IEC 61009 and offering a 10kA short circuit breaking capacity for use on 230/240V AC final subcircuits. A front test button allows periodic verification of the residual current mechanism.

Specifications

• Brand: NHP Terasaki
• Range: Din-Safe (Din-T)
• Part number: DSRCBH3230A
• Device type: RCBO (combined RCD and overcurrent protection)
• Standard: IEC 61009
• Poles: 1P+N (single pole plus neutral)
• Rated current: 32A
• Tripping curve: C
• Residual current sensitivity: 30mA
• Residual current type: Type A
• Breaking capacity: 10kA
• Rated voltage: 230/240V AC

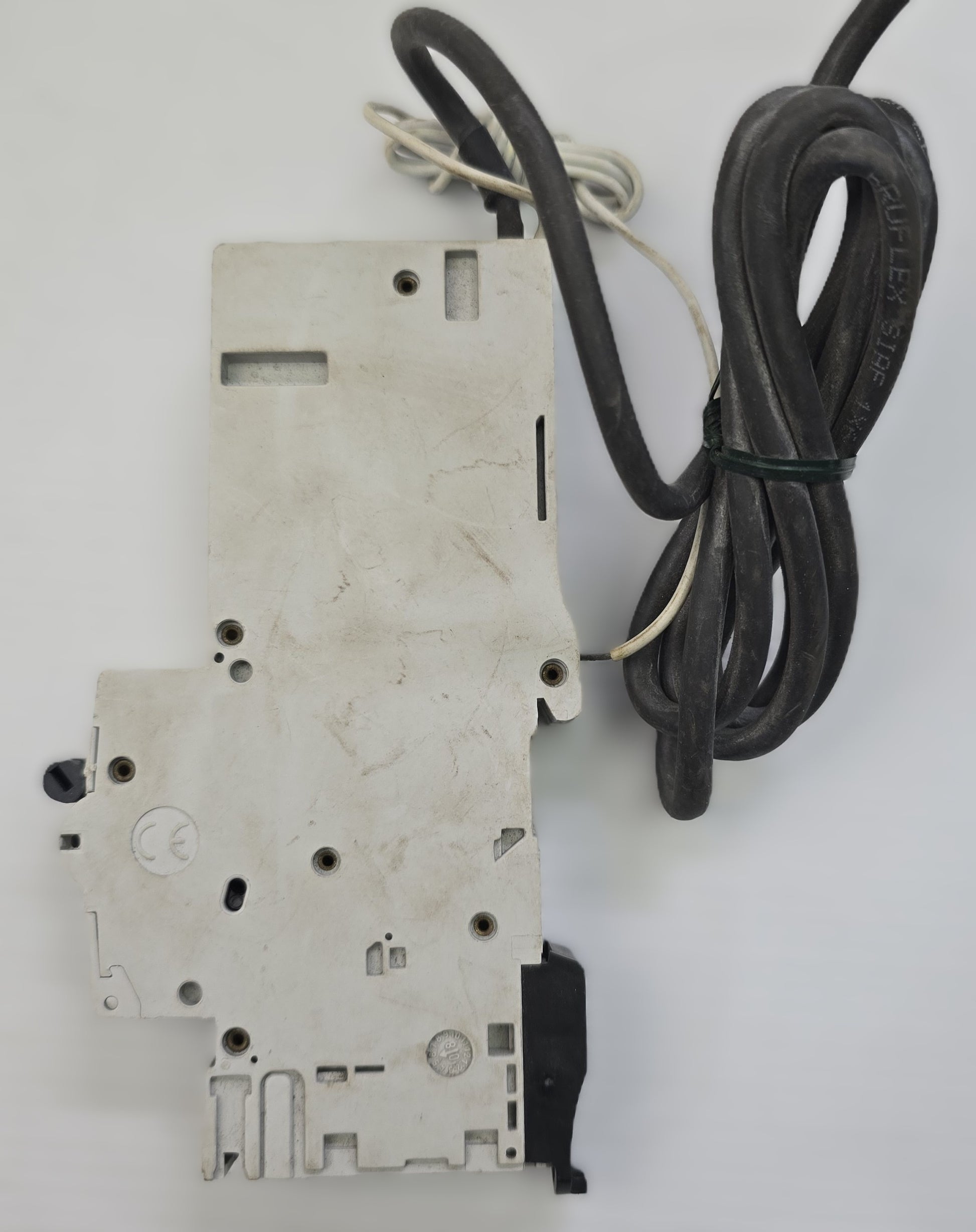

• Construction: Longbody with flying leads
• Mounting: DIN rail
• Country of origin: Hungary

Key Features

• Combined earth leakage and overcurrent protection in one device
• Type A residual current detection for alternating and pulsating DC residual currents
• 10kA short circuit breaking capacity
• C curve suited to general and moderate inrush loads
• Front mounted test button for periodic testing
• DIN-rail mounting for standard distribution boards

Typical Applications

• Final subcircuit protection in switchboards and distribution boards
• Socket outlet and lighting circuits requiring earth leakage protection
• Residential, commercial and light industrial installations
• Circuits requiring Type A residual current protection

Package Includes

• 2 x NHP Terasaki DSRCBH3230A RCBO units

Additional Information

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
