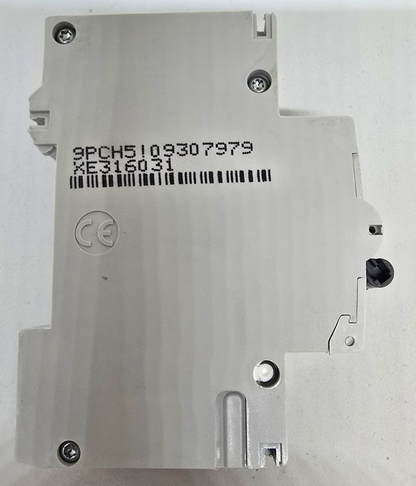

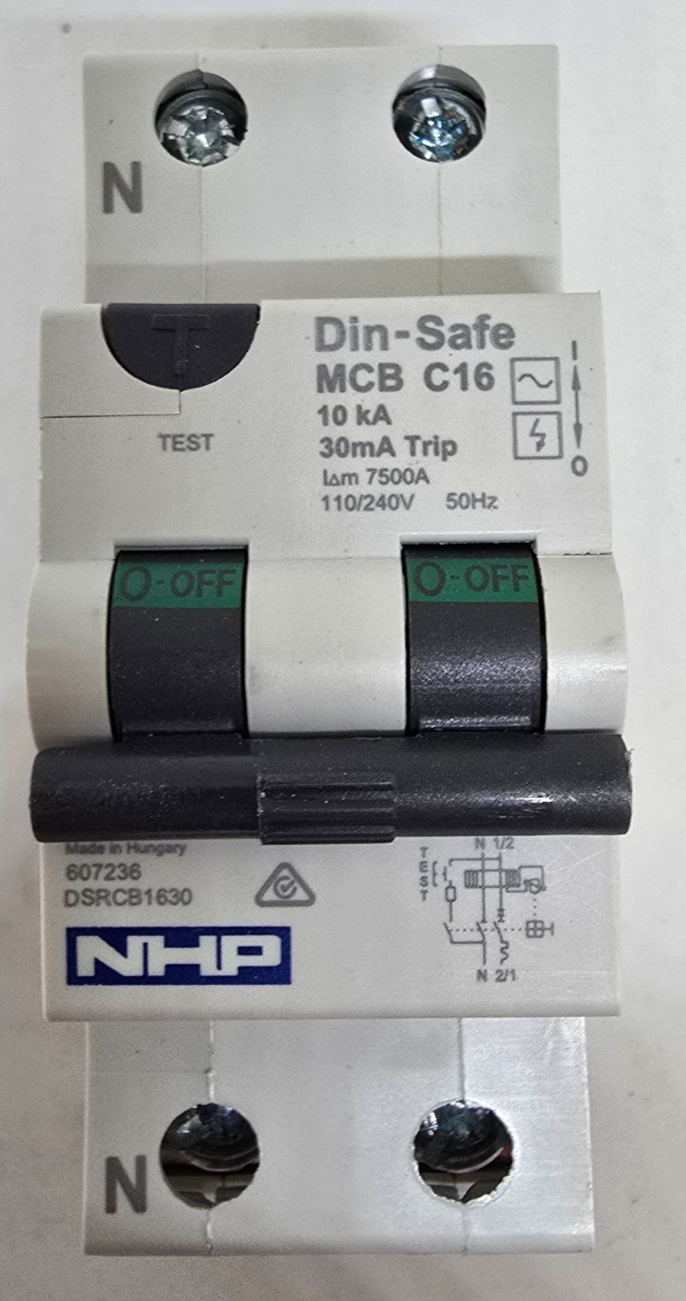

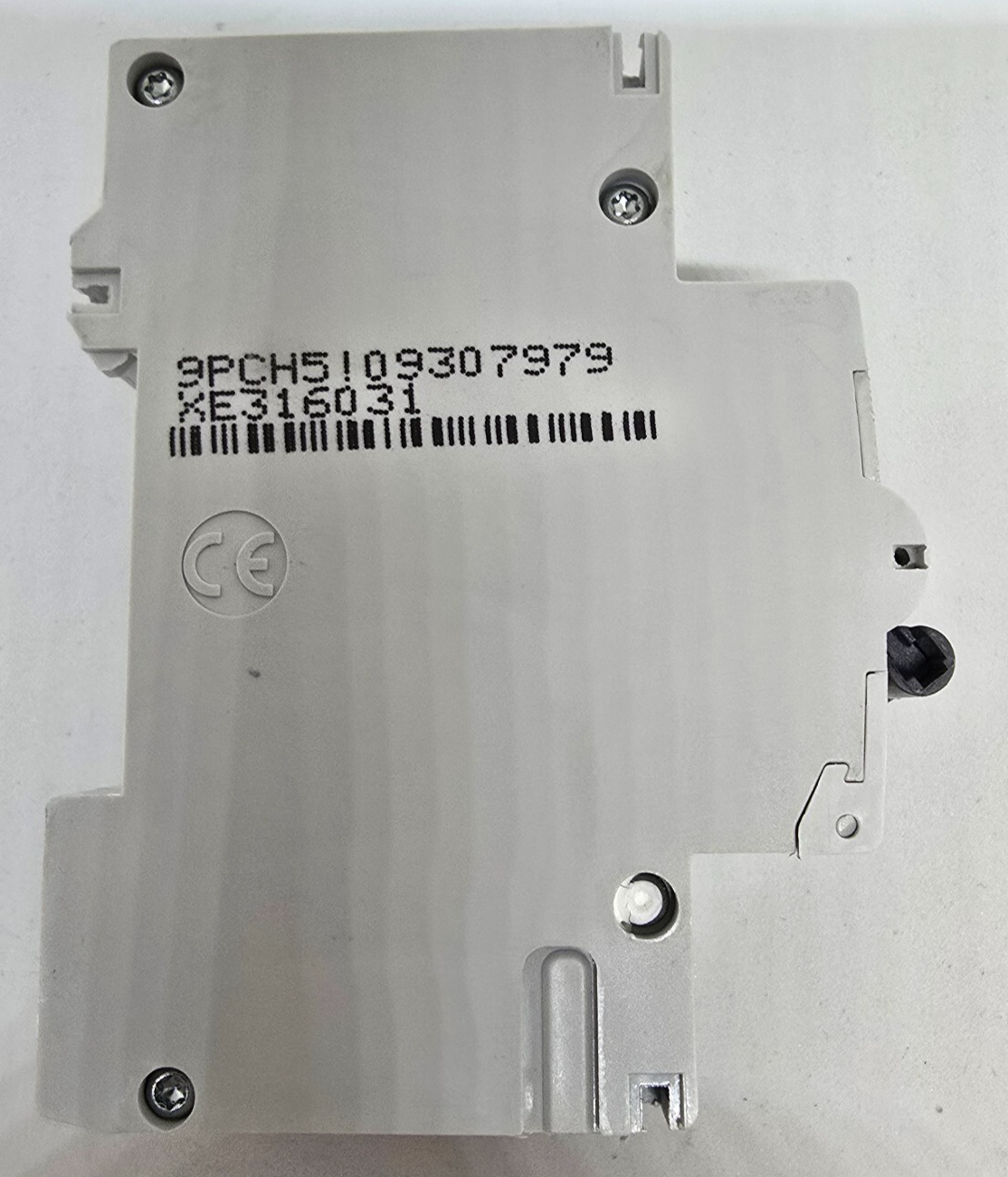

NHP Terasaki DSRCB1630 DIN-T RCD w/ Overcurrent 10kA 16A 1+N C Curve 30mA TypeA

Brand: NHP Terasaki
Model / Part Number: DSRCB1630
Description: The NHP Terasaki DSRCB1630 is a DIN-rail mounted Type A RCBO (Residual Current Circuit Breaker with Overcurrent Protection) designed for reliable protection of electrical circuits. Rated at 16A, 240V AC, and 30mA sensitivity, this compact device provides combined protection against earth leakage, overloads, and short circuits. Featuring a C-curve tripping characteristic and 10kA breaking capacity, it ensures dependable operation for both residential and commercial applications. Its robust design and compliance with international standards make it ideal for safeguarding personnel and equipment from electrical faults.

Range: Terasaki DIN-T Series
Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
Number of Poles: 1P + N
Rated Current: 16 A
Rated Voltage: 240 V AC
Rated Residual Operating Current (IΔn): 30 mA
Tripping Curve: Type C
RCD Type: Type A (sensitive to AC and pulsating DC residual currents)
Rated Short-Circuit Breaking Capacity: 10 kA
Frequency: 50 / 60 Hz
Mounting Type: DIN Rail (standard 35mm)
Terminal Capacity: 25 mm² solid / 16 mm² stranded cable
Protection Function: Overload, short-circuit, and residual current protection
Trip Indicator: Visual mechanical trip indicator window
Operating Temperature: -25°C to +55°C
Housing Material: Flame-retardant thermoplastic (self-extinguishing)
Protection Rating: IP20 (finger-safe with terminal covers installed)
Standards Compliance: IEC/EN 61009-1, AS/NZS 61009.1
Applications: Residential, commercial, and industrial circuit protection
Condition: New
Country of Origin: Japan
HS Code: 85362090 (Automatic circuit breakers for a voltage not exceeding 1000V)
