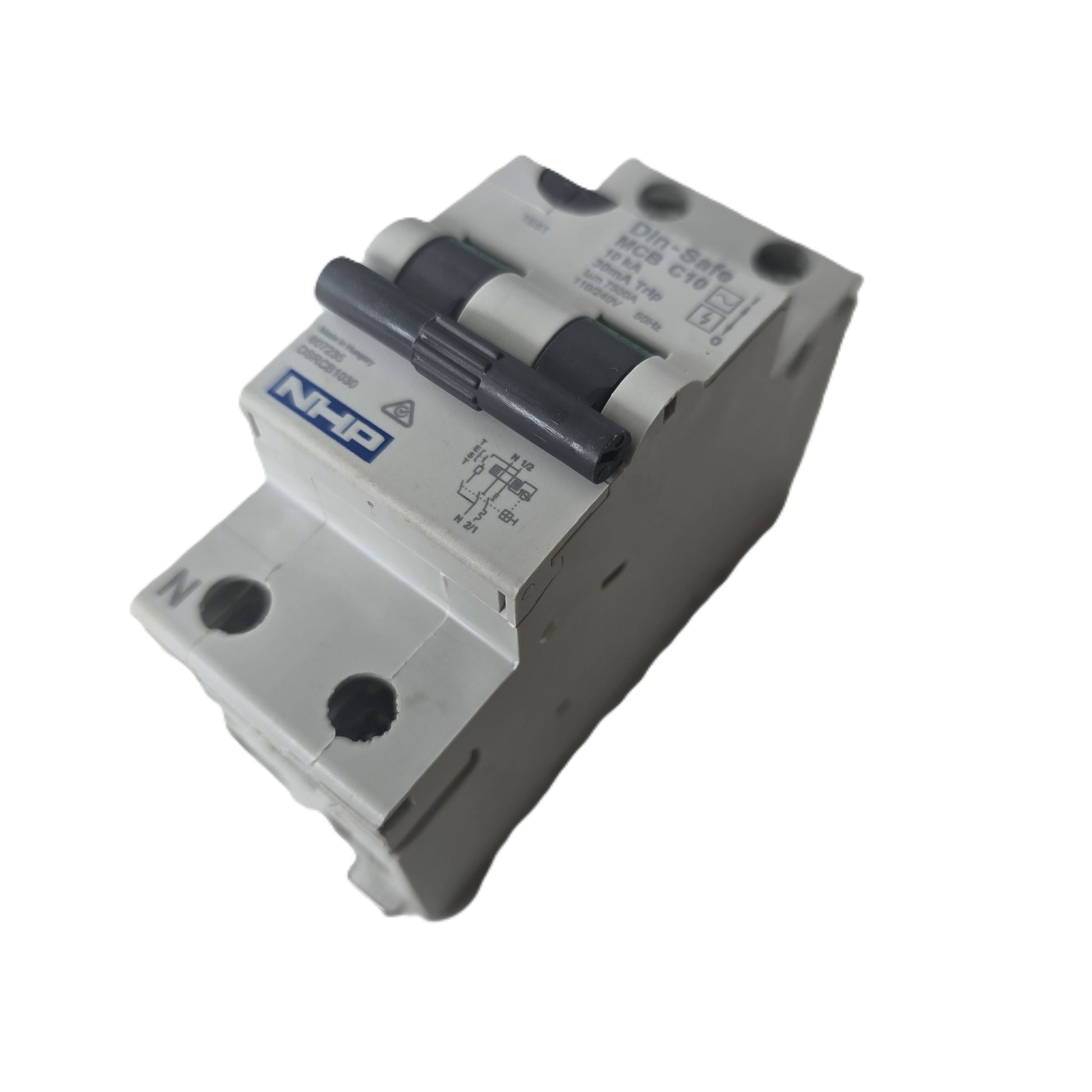

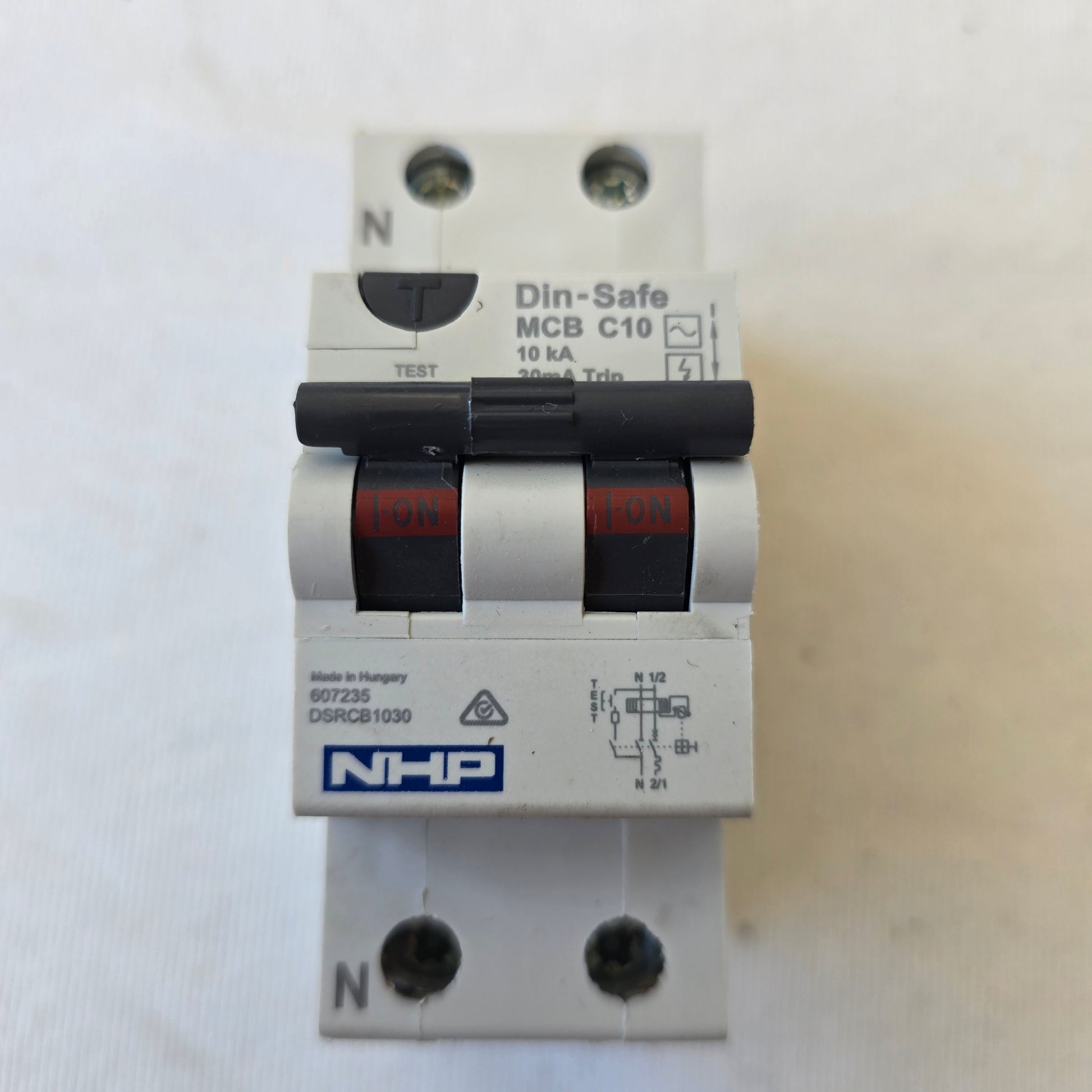

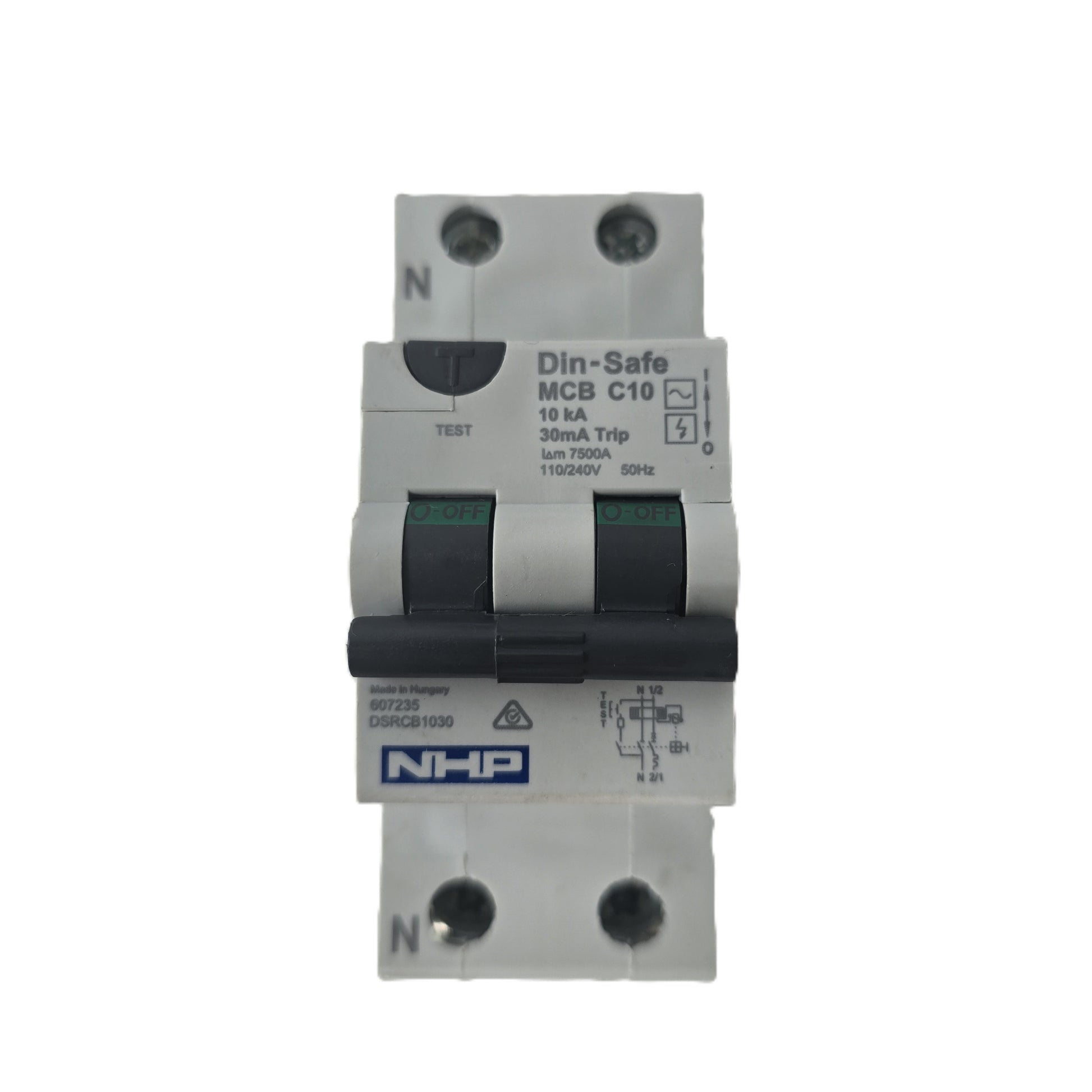

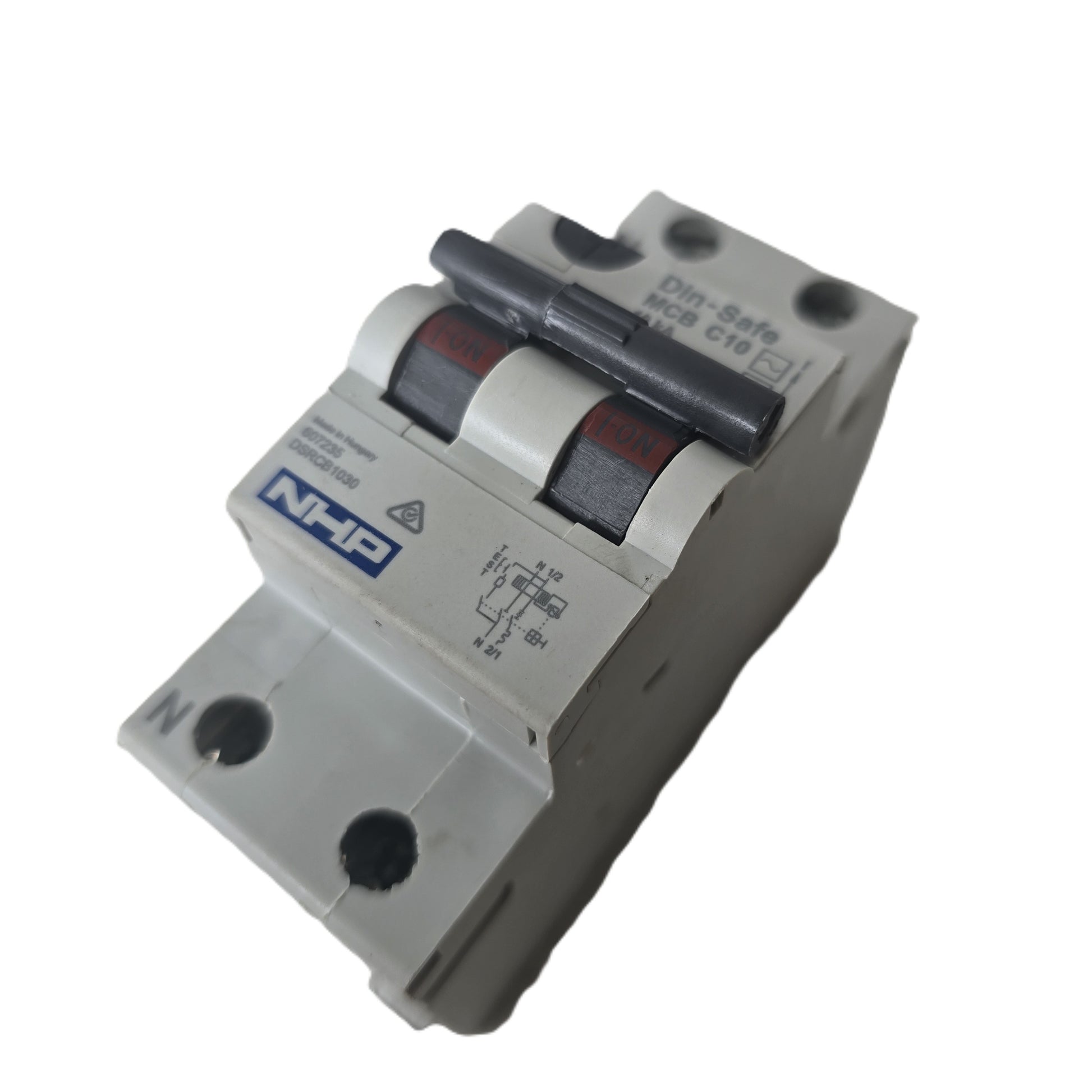

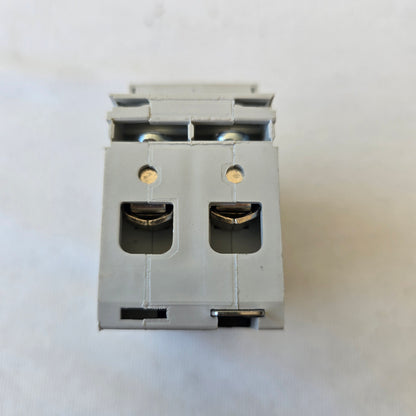

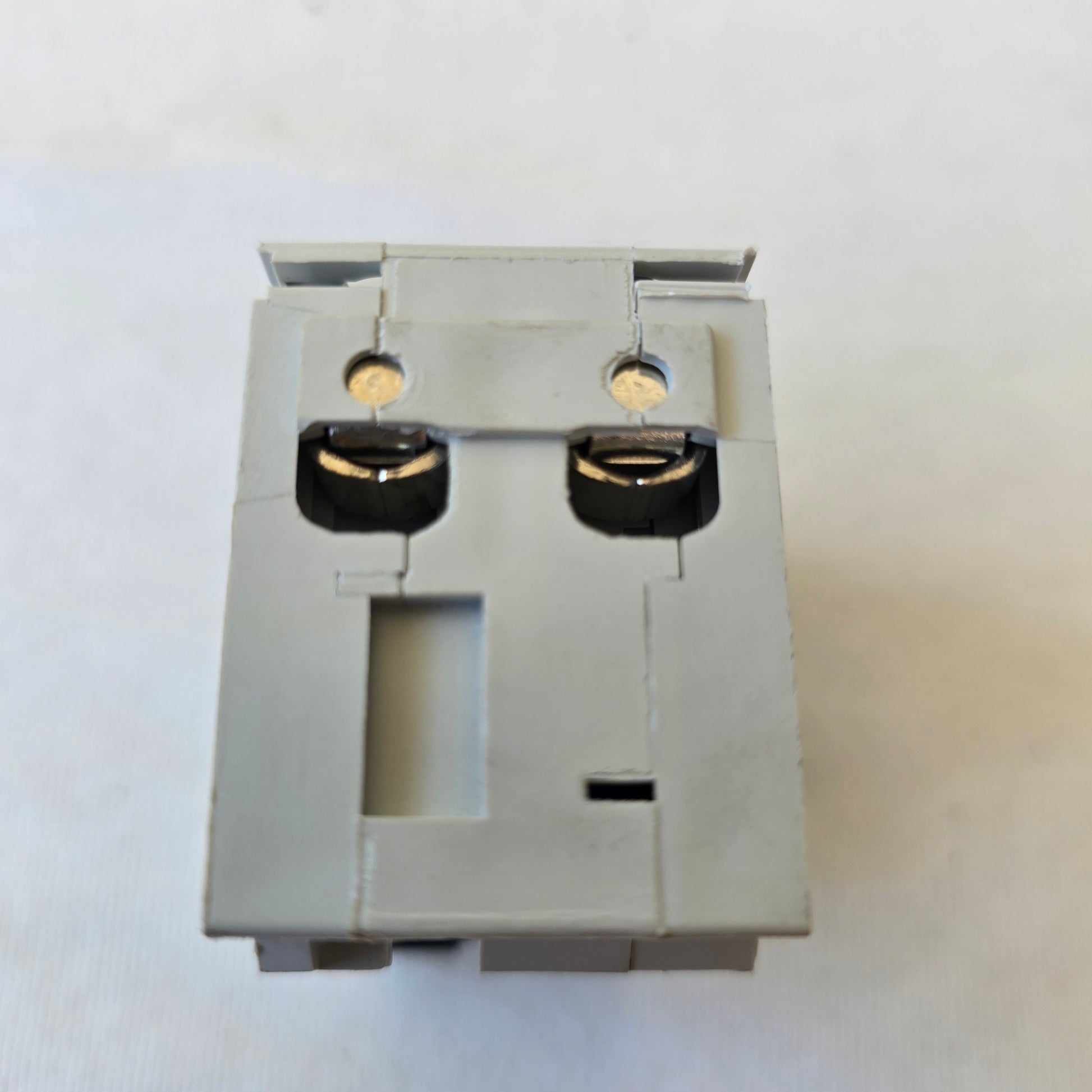

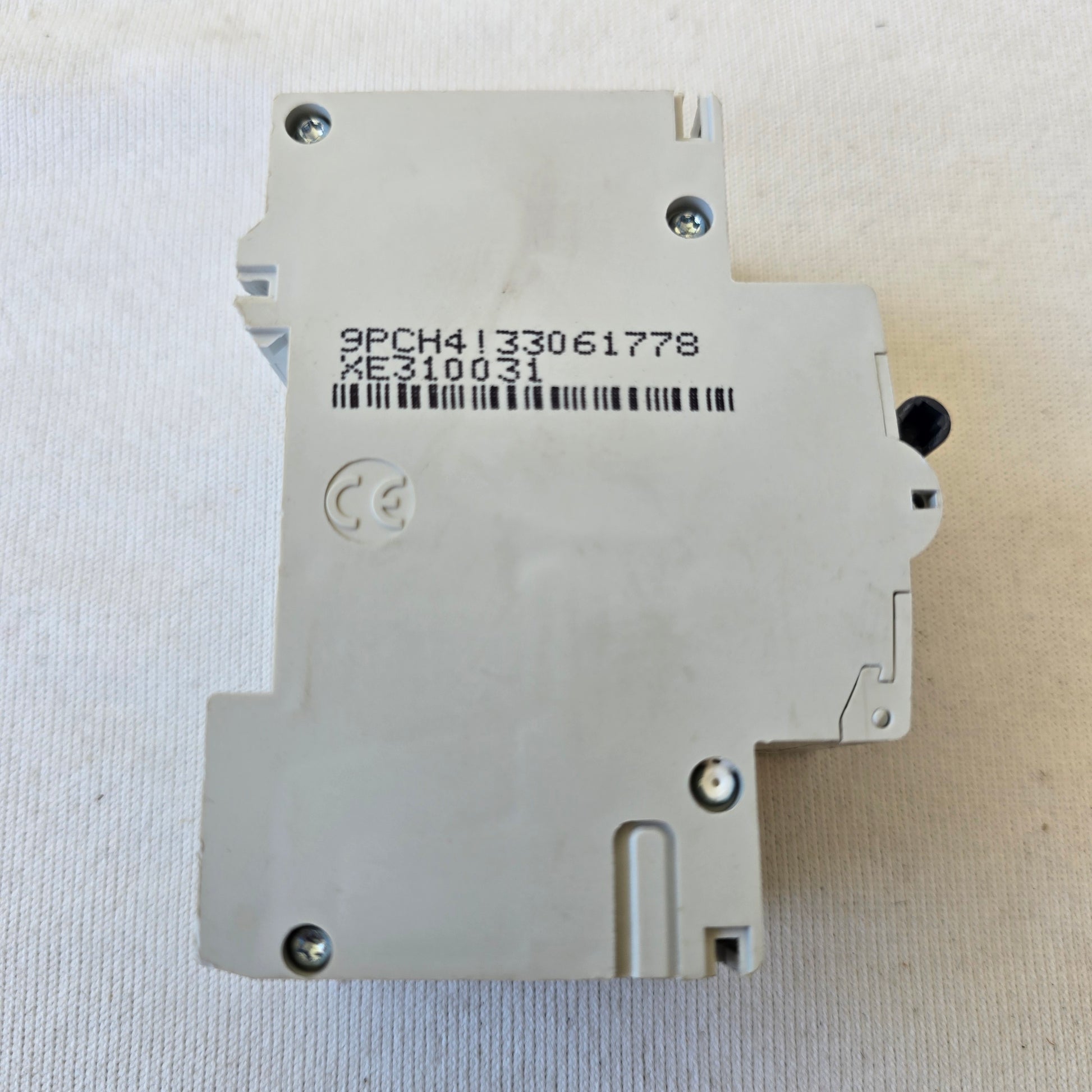

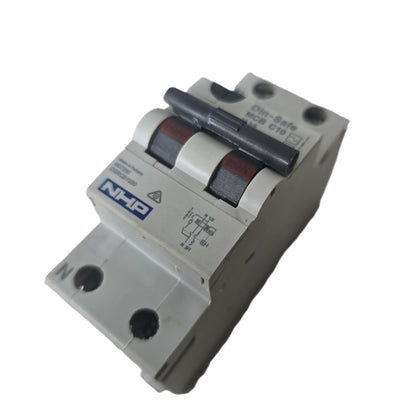

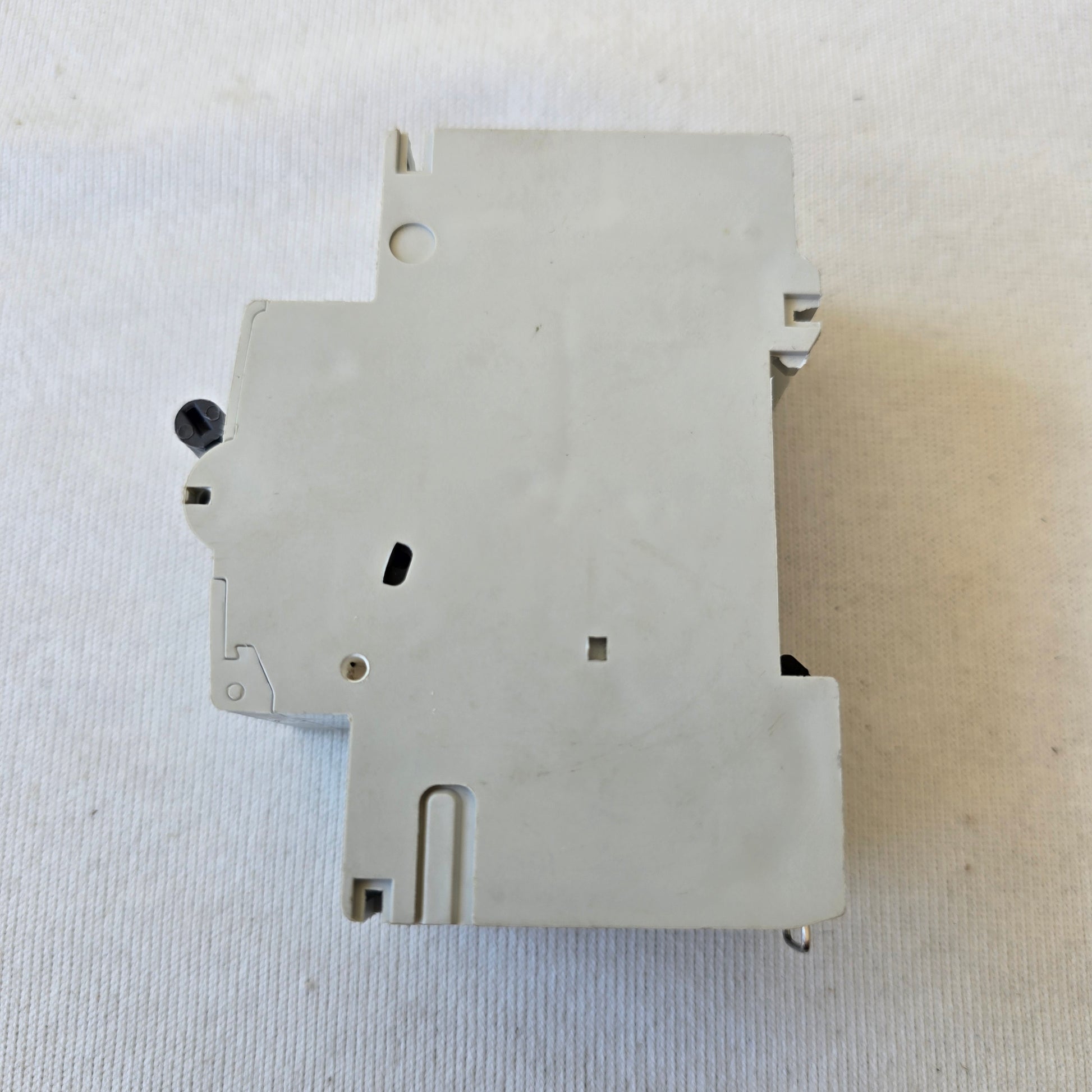

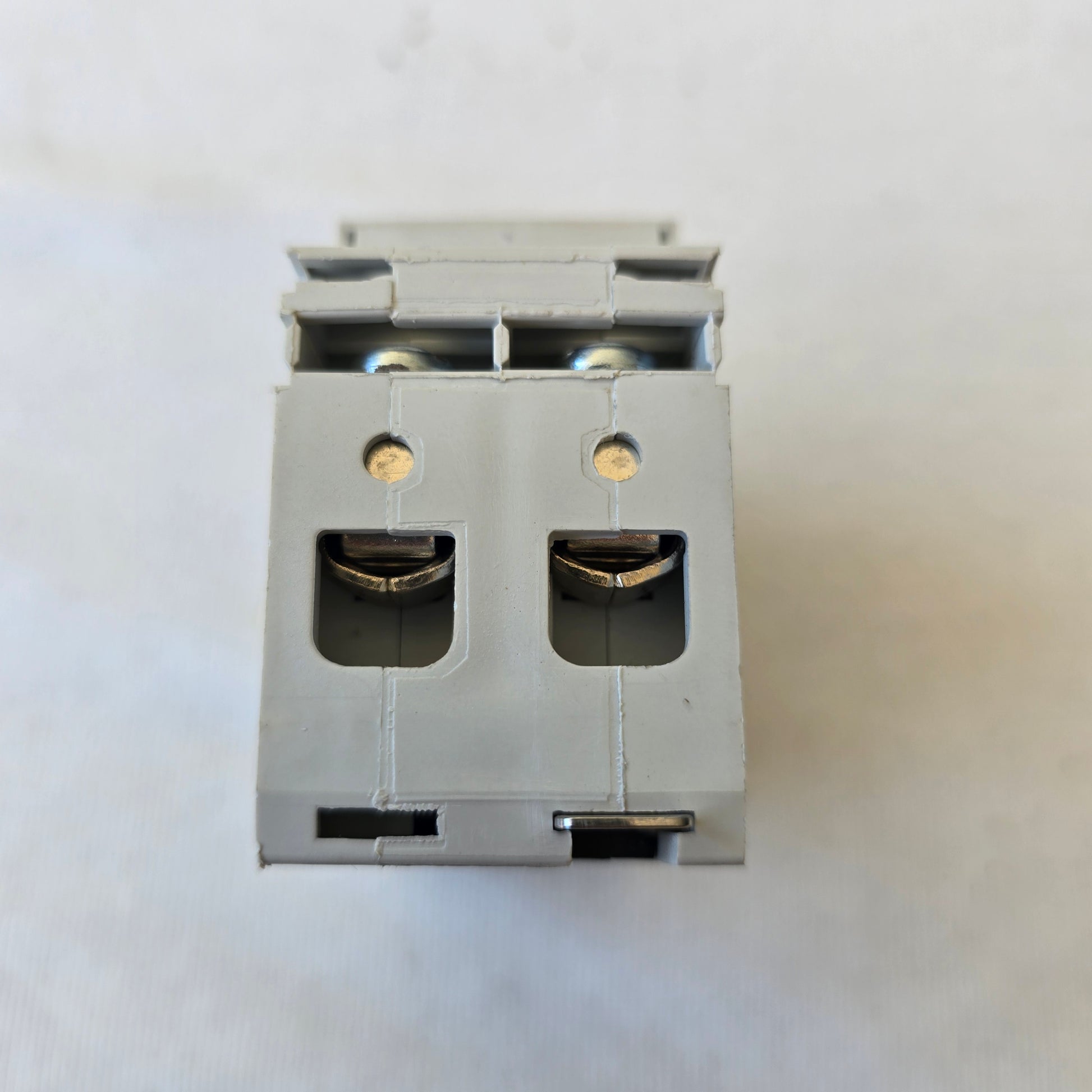

The NHP Din-Safe DSRCB1030 is a residual current circuit breaker with overcurrent protection (RCBO) that combines miniature circuit breaker and residual current device functions in a single 1P+N module. It provides overload and short-circuit protection together with earth leakage protection, and is designed for mounting on 35mm DIN rail within switchboards and distribution boards. The device carries a rated current of 10A with a C tripping curve and a rated residual operating current of 30mA.
This unit is rated for a short-circuit breaking capacity of 10kA and operates at 110/240V AC, 50Hz. It is a Type AC residual current device with a rated residual making and breaking capacity (IΔm) of 7500A, and includes a front test button for periodic verification of the residual current function. The item is offered as spares stock and is supplied as pictured.
Specifications
Brand: NHP Terasaki (branded NHP Din-Safe)
Model: Din-Safe MCB C10 RCBO

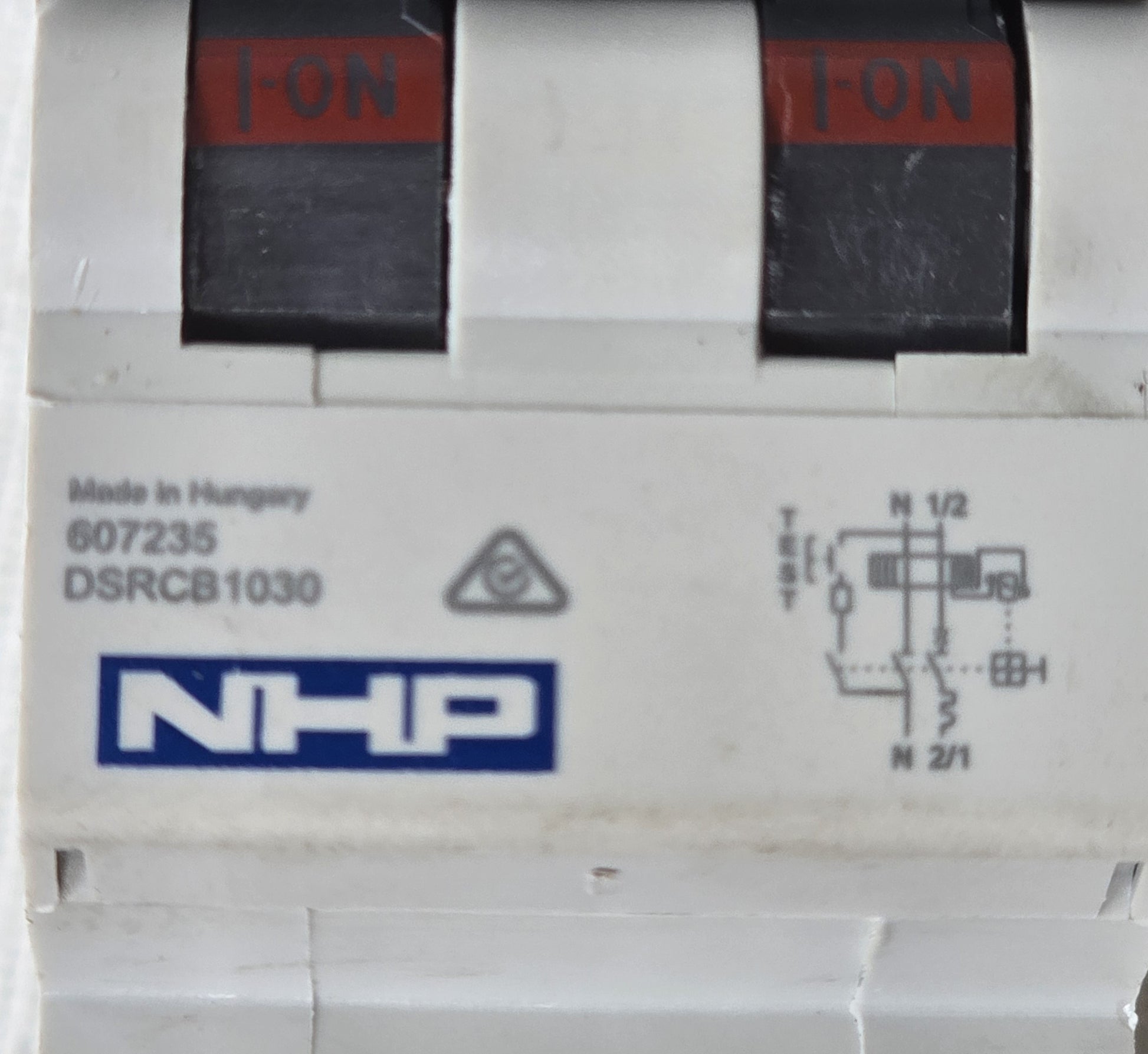

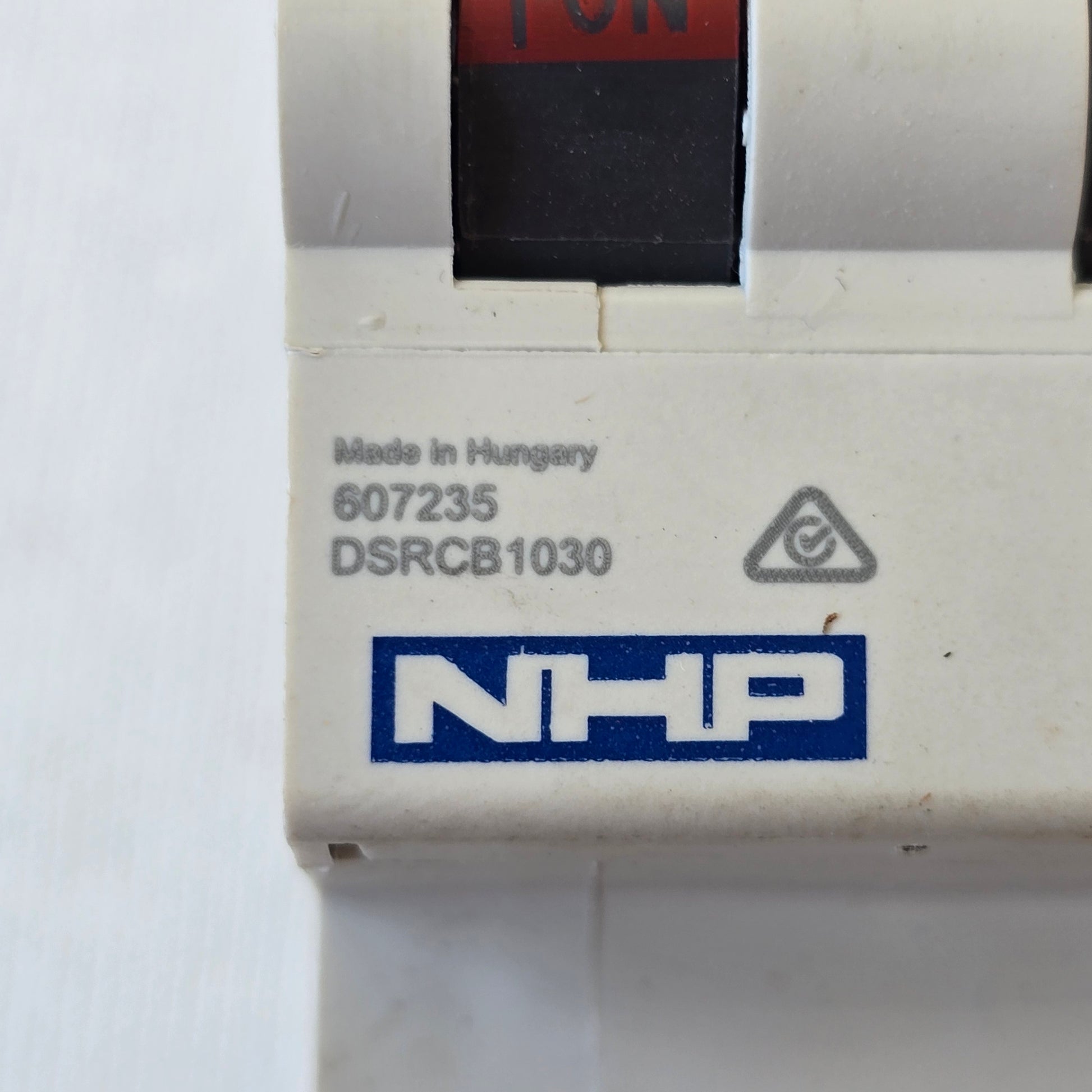

Part Number: DSRCB1030
Alt Part Number: 607235
Product Type: RCBO (residual current circuit breaker with overcurrent protection)
Poles: 1P+N
Rated Current: 10A
Tripping Curve: C
Rated Residual Current: 30mA
RCD Type: AC
Rated Short-Circuit Breaking Capacity: 10kA
Rated Residual Making/Breaking Capacity (IΔm): 7500A
Rated Voltage: 110/240V AC
Frequency: 50Hz
Module Width: 36mm (2 modules)
Mounting: 35mm DIN rail
Country of Origin: Hungary
Condition: Spares Stock (new old stock)
Key Features
- Combined overcurrent and earth leakage protection in one device
- 1P+N configuration with switched neutral
- 10A rated current with C curve characteristic
- 30mA Type AC residual current tripping
- 10kA rated short-circuit breaking capacity
- Integrated test button for residual current function
- 35mm DIN rail mounting
Typical Applications
- Final subcircuit protection in switchboards and distribution boards
- Socket outlet and lighting circuit protection
- Residential, commercial and light industrial installations
- Circuits requiring combined overcurrent and earth leakage protection
Package Includes
- 1 x NHP Din-Safe DSRCB1030 RCBO
Additional Information
The item is new old stock and the packaging may show minor shelf wear from storage.
Shipping from Sydney, Australia.
