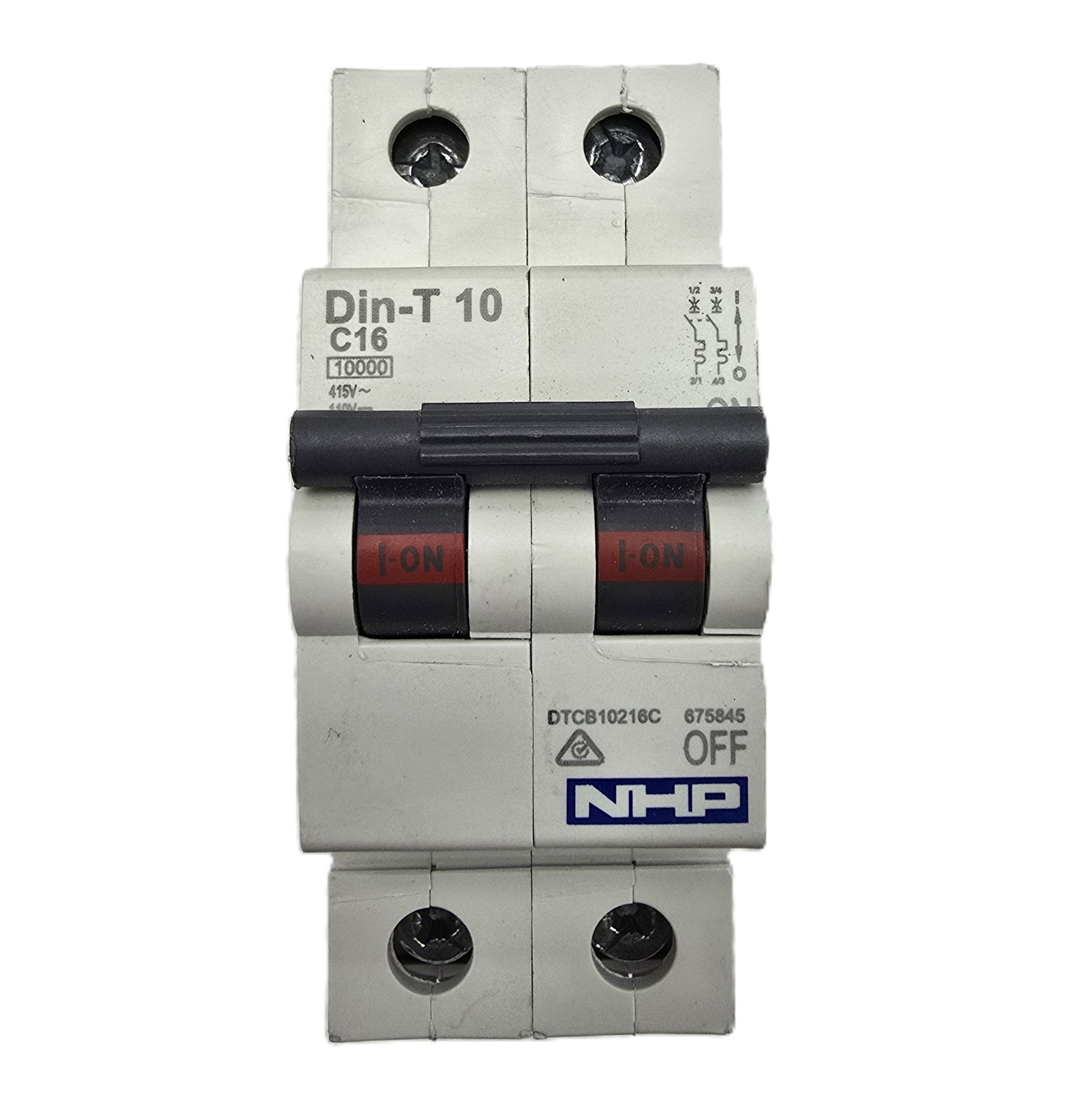

NHP DTCB10216C Circuit Breaker – 2 Positions, Brand New

2-Pole 16A C-Curve MCB, 415 V, 10 kA Icn / 15 kA Icu, IP40 – 2-Module, 50–60 Hz

Item specifics

• Condition: Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable)

• Brand: NHP

• Model: DTCB10216C

• MPN: DTCB10216C

• Number of Positions: 2

• Operating Temperature: −20 °C

• Type: Circuit Breaker

Category

Business & Industrial → Electrical Equipment & Supplies → Circuit Breakers & Disconnectors → Circuit Breakers

Item specifics

• Type: Miniature Circuit Breaker (MCB)

• Current Rating: 16 A

• Number of Poles: 2

• Trip Curve: C

• Rated Voltage: 415 V

• Frequency: 50–60 Hz

• Voltage Type: AC/DC

• Max Operating Voltage (Ue): 440 V

• Rated Insulation Voltage (Ui): 440 V

• Impulse Withstand (Uimp): 6 kV

• Breaking Capacity (Icn) @ 230 VAC (AS/NZS 60898): 10 kA

• Breaking Capacity (Icn) @ 400 VAC (AS/NZS 60898): 10 kA

• Breaking Capacity (Icu) @ 230 VAC (AS/NZS 60947-2): 15 kA

• Breaking Capacity (Icu) @ 400 VAC (AS/NZS 60947-2): 15 kA

• Concurrently Switching Neutral: Yes

• IP Rating: IP40

• Height: 86 mm

• Width: 36 mm (2 modular spacings)

• Depth: 76 mm

• Weight: 0.24 kg

• Service Voltage Ub (AC/DC): 12 V

• Nominal Operating Voltage Un (DC): 110 V

• Pollution Degree: 3

• Rated Ambient (no derating): 30 °C

• Operating Ambient Temperature: Not specified

Technical description

• Component type: Miniature circuit breaker (MCB)

• Performance: C-curve tripping, 16 A, two-pole protection for AC/DC systems at 50–60 Hz.

• Ratings: Up to 440 V operating/insulation, 6 kV impulse withstand.

• Fault capacity: 10 kA Icn (AS/NZS 60898) and 15 kA Icu (AS/NZS 60947-2) at 230/400 VAC.

• Construction: IP40 enclosure class; neutral conductor switched concurrently.

• Size/weight: 86×36×76 mm (H×W×D), 0.24 kg; width equals 2 modular units.

• Wiring: Accepts solid conductors 1–35 mm² and multi-wire 1–25 mm².
