Newmar DST-FB DC Distribution Panel 8 GMT Fuse 8 Breaker Dual Bus (NEW In Box)

The Newmar DST-FB is a two rack unit DC distribution panel that provides sixteen protected outputs across two isolated buses. Bus A feeds eight GMT fuse positions and bus B feeds eight plug in magnetic hydraulic circuit breaker positions, with each bus rated at 100 amps maximum. Newmar, trading as Newmar Powering the Network, builds DC power products for telecommunications, marine and industrial sites, and the DST series is its rackmount distribution range.

The panel operates at 12, 24 or 48 volts DC with either positive or negative ground, up to a maximum of 65 volts DC. Each bus has a green power on indicator and a red fault indicator that lights on a blown fuse or tripped breaker, and each bus provides its own Form C alarm contact set for remote monitoring. Connections are made at rear access barrier terminal blocks and threaded bus studs, and 19 inch rack mounting brackets are supplied.

Specifications

Brand: Newmar

Model: DST-FB DC Distribution Panel

Part Number: DST-FB

Alternate Part Number: 405-5555-0

Product Type: Rackmount DC distribution panel, fuse and breaker

Rack Height: 2 RU, 19 inch rack brackets included

Operating Voltage: 12, 24 or 48 V DC, positive or negative ground

Maximum Voltage: 65 V DC

Bus A: 100 A maximum, 8 GMT fuse positions, 15 A maximum per position

Bus B: 100 A maximum, 8 plug in circuit breaker positions, 30 A maximum per position

GMT Fuse Values: 1, 3, 5, 7.5, 10 and 15 A

Breaker Values: 5, 10, 15, 20, 25 and 30 A magnetic hydraulic

Indicators: Green power on per bus, red fault per protected circuit

Alarm Contacts: Form C normally open and normally closed, separate per bus, 1 A at 125 V AC or 5 A at 30 V DC

Connections: Rear access barrier terminal blocks, single hole lugs, 50 in lb torque on quarter inch hardware

Panel Dimensions: 432 mm wide, 298 mm deep, 89 mm high, 483 mm wide with rack brackets fitted

Panel Weight: 2.49 kg without breakers or fuses fitted

Country of Manufacture: United States

Condition: New in box

Key Features

• Two isolated 100 A buses in a single 2 RU panel
• Eight GMT fuse positions and eight circuit breaker positions
• Per circuit fault indication
• Independent Form C alarm contacts for each bus
• Suits 12, 24 or 48 V DC, positive or negative ground
• Rear access barrier terminal blocks
• Made in the United States

Typical Applications

• DC distribution in telecommunications and radio racks
• 48 V DC plant distribution to multiple loads
• Marine and vehicle DC power distribution
• Sites requiring both fused and breaker protected branches in one panel

Package Includes

• One Newmar DST-FB distribution panel
• 19 inch rack mounting brackets
• Accessory hardware bag as packed
• Original carton and moulded foam end caps
• GMT fuses and circuit breakers are not included, see the note below

Additional Information

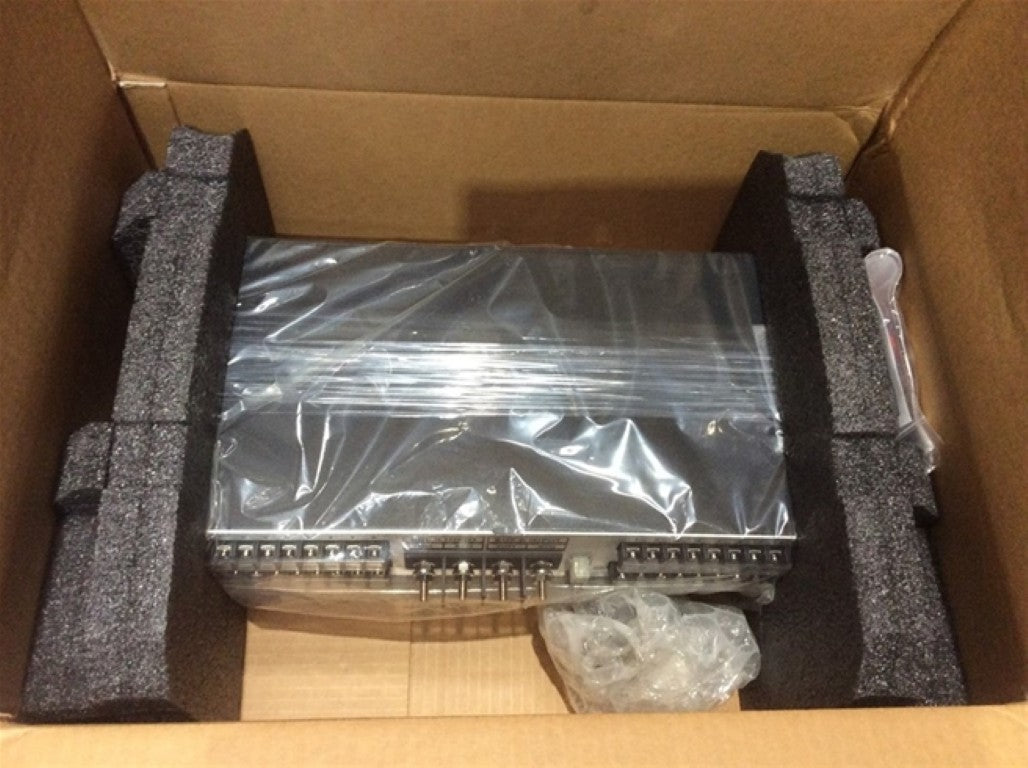

Please read this before ordering. Newmar supplies GMT fuses and plug in circuit breakers separately from the panel, and the part number suffix on this unit indicates an unpopulated configuration. Buyers should assume no fuses and no breakers are fitted and budget for them separately. The photographs show the panel rear face.

The serial number on the manufacturer label has been obscured with marker pen. This does not affect operation but is noted here for transparency.

This is a DC only panel with a 65 volt DC maximum. Despite the 19 inch rackmount format it is not suitable for AC mains distribution.

The DST-FB is a legacy Newmar model and does not appear in current Newmar product listings. The installation manual remains available from Newmar.

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
