NEE CS-3021 Isolator Splitter 2-Way RF Signal Splitter/Isolator (NEW)

NEE CS-3021 Isolator Splitter 2-Way RF Signal Splitter/Isolator

Brand: NEE
Model: CS-3021
Type: RF Isolator Splitter
Function: Signal Isolation and Splitting for RF/Coax Systems

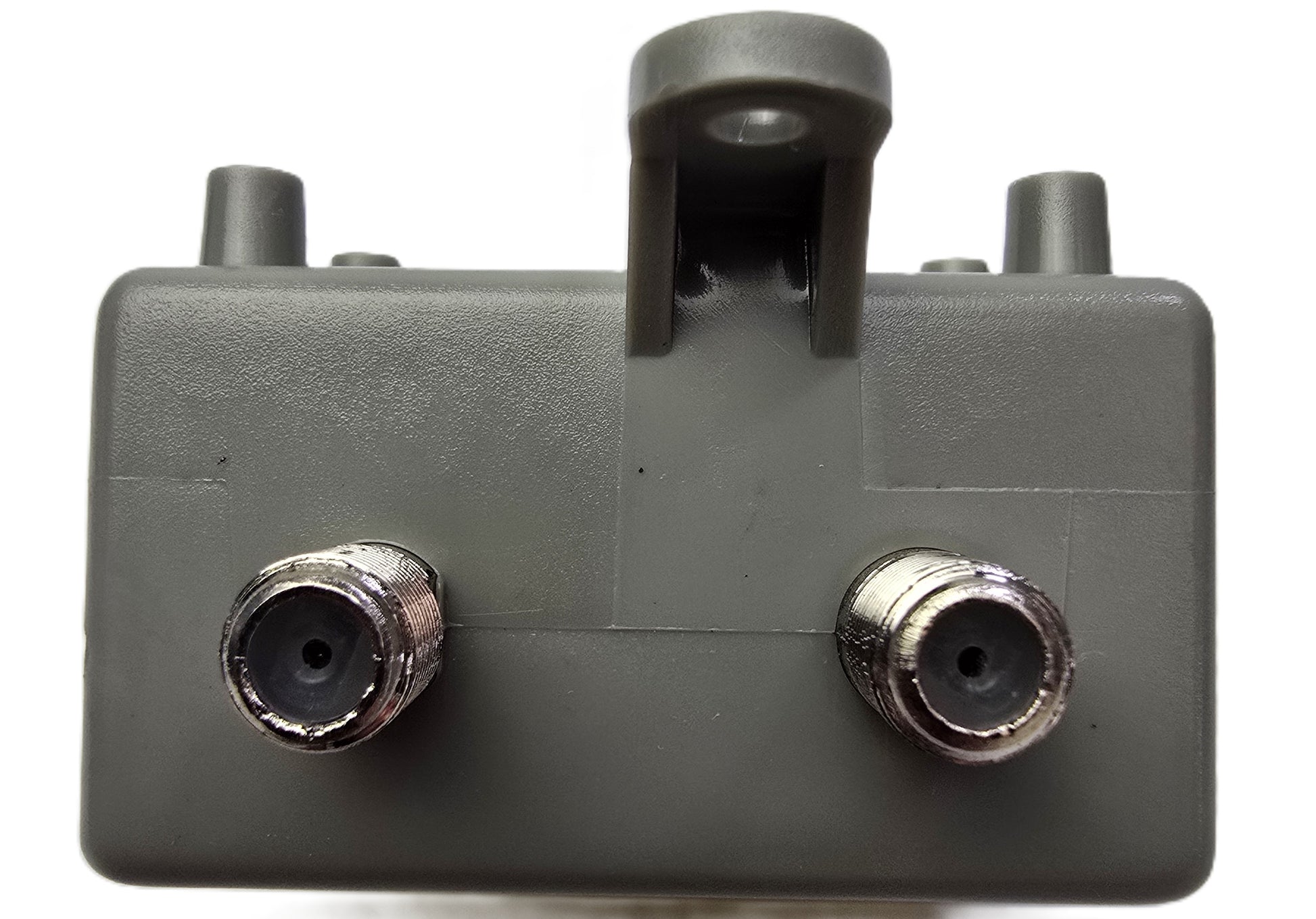

Ports: 1 Input, 2 Output (F-Type Connectors)
Frequency Range: DC to 2150 MHz (typical for satellite/cable applications)
Impedance: 75 Ω
Power Passing: DC pass on input (non-power passing outputs)

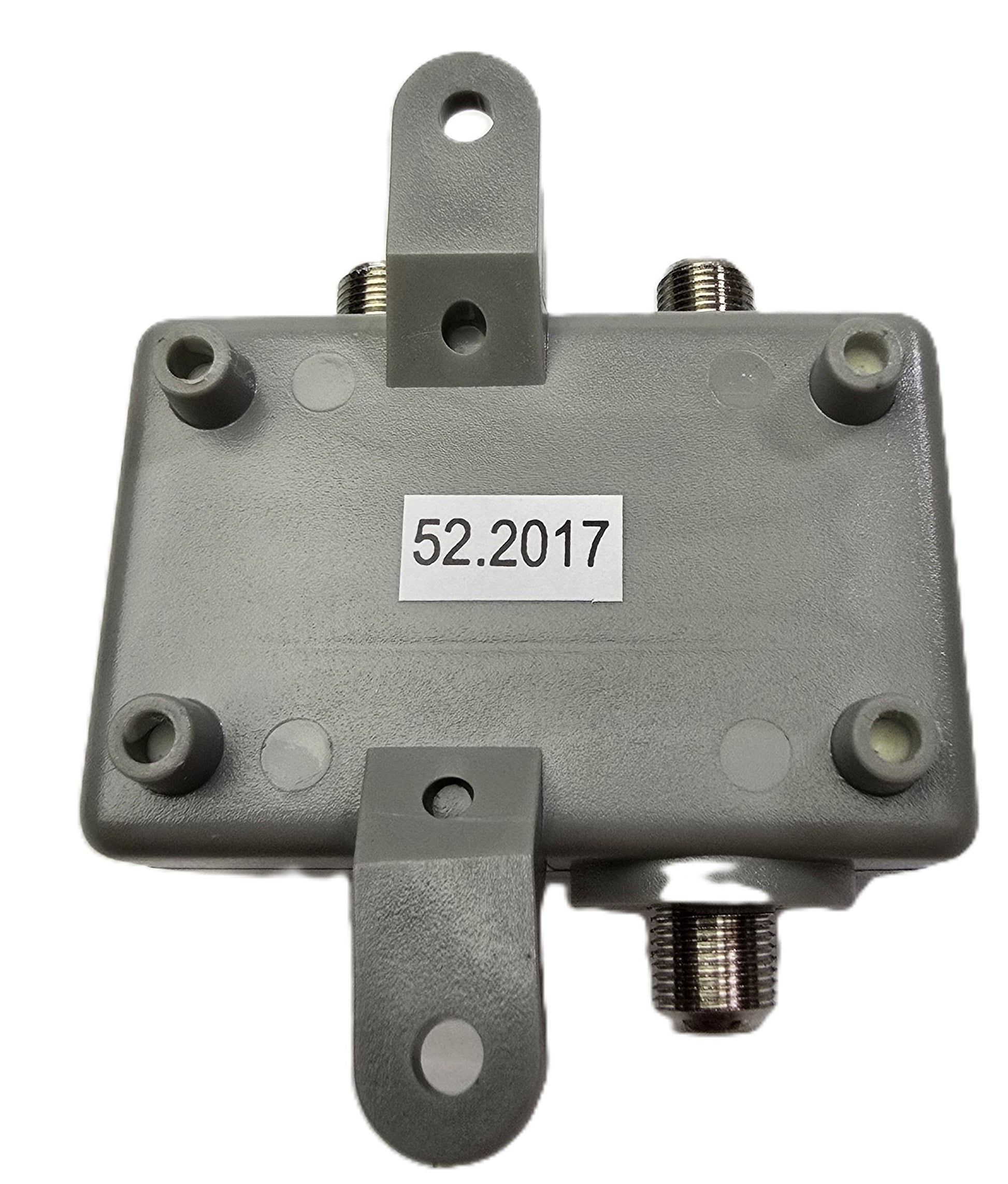

Housing Material: Die-cast aluminium body with mounting lugs

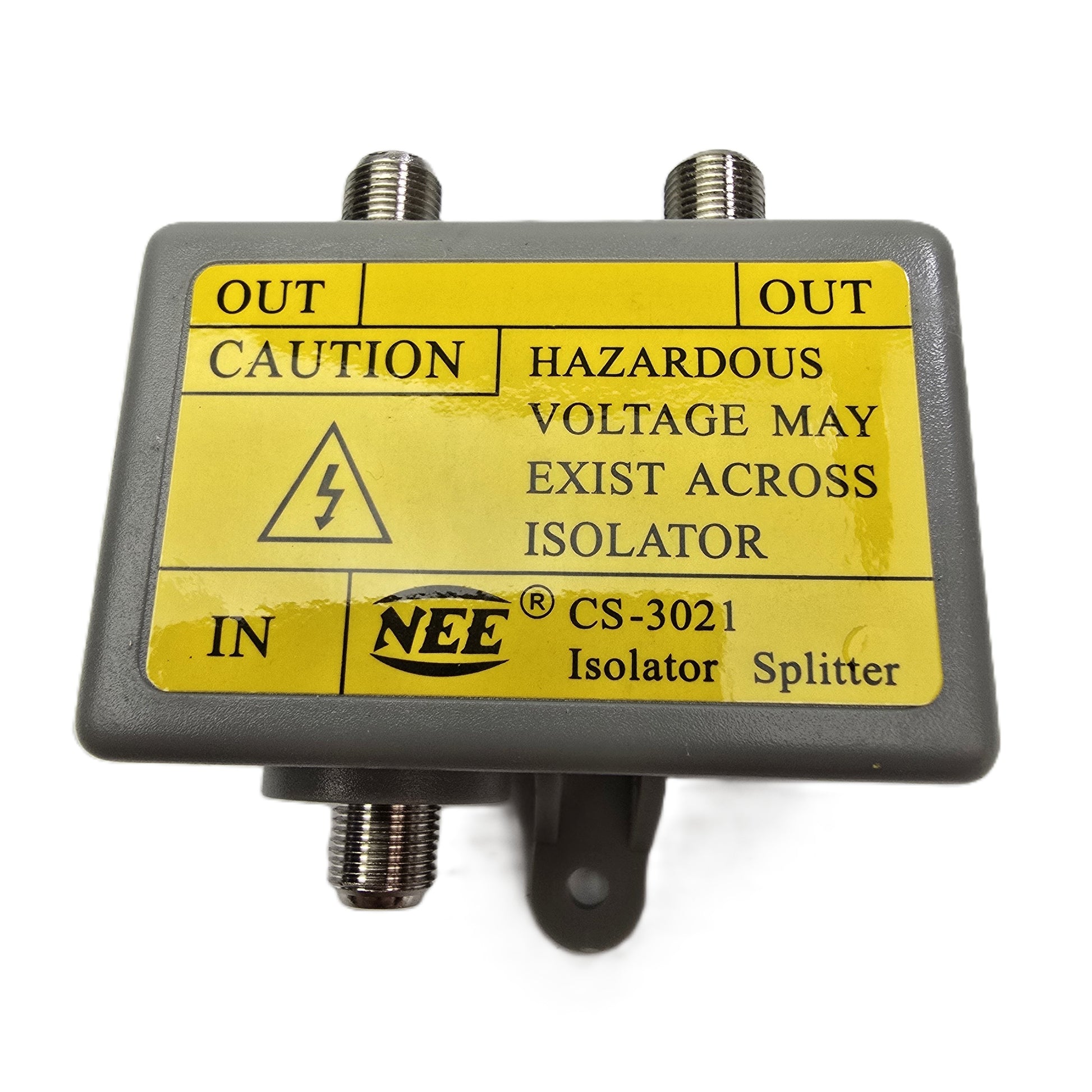

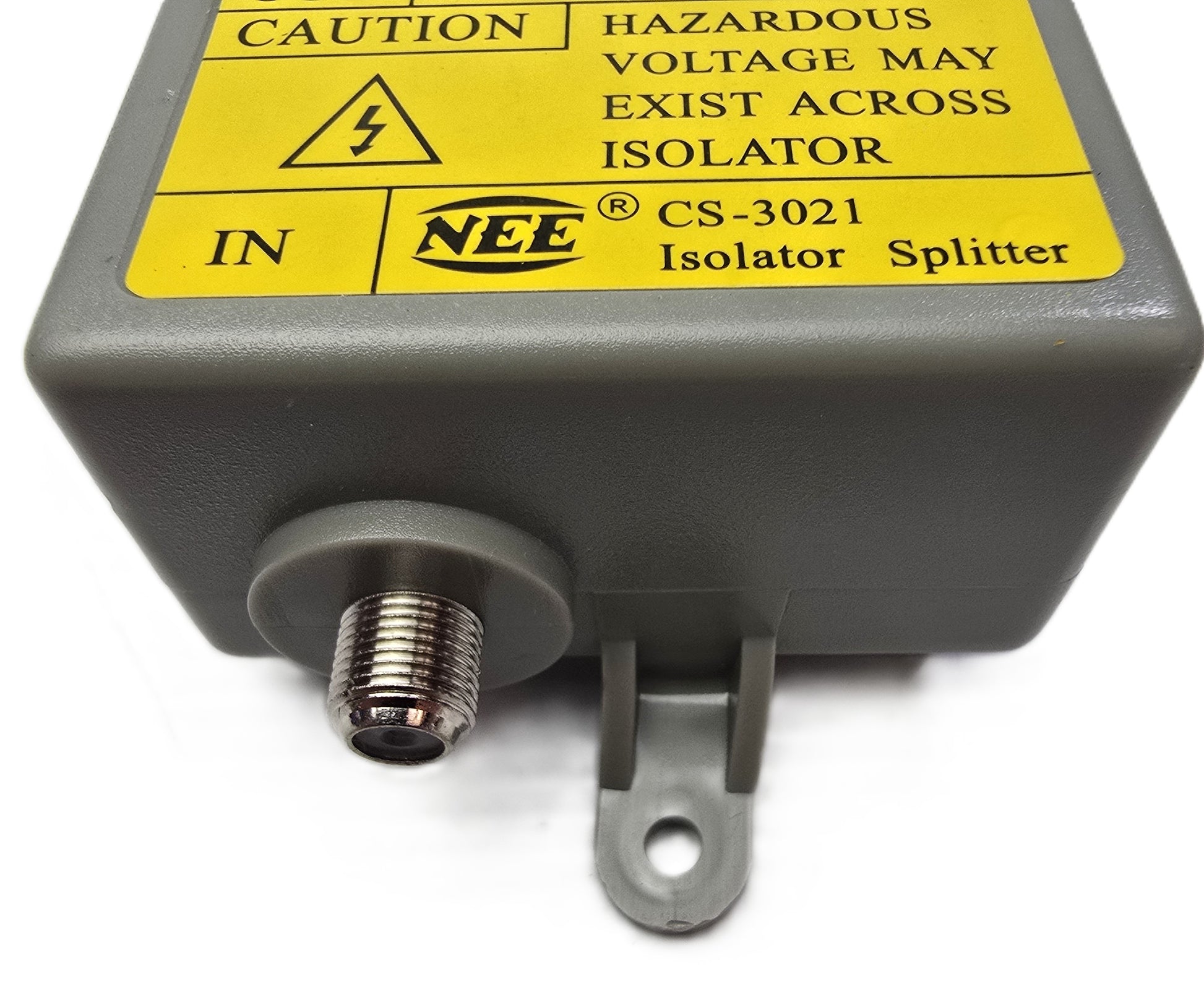

Label Warning: “Hazardous voltage may exist across isolator”
Mounting: Wall or panel mount with integrated holes
Dimensions: 85 mm (L) × 60 mm (W) × 35 mm (H)
Weight: 120 g (approx.)
Colour: Grey with yellow caution label
Condition: New (old stock, sealed in plastic)
Country of Origin: Likely China or Taiwan
HS Code: 854370
UPC: —

Features:
• Provides isolation and splitting for RF or antenna systems
• Robust metal enclosure suitable for professional installations
• F-type coaxial connectors for secure high-frequency signal connections
• Clearly labelled input/output for quick setup
• Includes mounting ears for easy surface attachment

Applications:
• TV Antenna Distribution
• Satellite and Cable TV
• RF System Isolation
• Laboratory or communications testing setups
