Müller FU-30.00-pro GPS-Zeit Time Receiver DCF Wall Mount IP54 (NEW In Box)

The Hugo Müller FU 30.00 pro is a GPS time receiver for wall mounting, sold in Germany as the Funkempfänger GPS-Zeit für Wandaufbau. It receives the GPS time signal and converts it into a DCF time telegram, which means it can drive any time switch or master clock that accepts a DCF input, anywhere in the world, without relying on coverage from the DCF77 radio transmitter. It is the standard solution where a site is outside DCF77 reception or inside a building that blocks the signal.

The output is a DCF time telegram with no weather data, presented on an open collector output that is LOW active and rated to a maximum of 50 V DC, 80 mA and 200 mW. The receiver runs from an external 12 to 30 V DC supply, drawing an average of 30 mA at 12 V or 15 mA at 30 V. It uses a three wire connection with a maximum run of 200 m between the receiver and the time switch, and shielded cable with 0.33 to 2.5 mm2 conductors is recommended. One receiver can drive up to ten time switches. The housing is rotatable, made from self-extinguishing thermoplastic, rated IP 54 to DIN EN 60529, and carries a control LED. Ambient operating range is -30 to +55 degrees C, and the unit measures 89.5 x 75 x 40 mm.

Specifications

Brand: Hugo Müller

Model: FU 30.00 pro

Part Number: FU 30.00 pro

Alternate Part Number: 735-0185, Hugo Müller article 22894, FU3000pro

Product Type: GPS time receiver with DCF telegram output

Output Signal: DCF time telegram, no weather data, open collector, LOW active

Output Rating: Maximum 50 V DC, 80 mA, 200 mW

Operating Voltage: 12 to 30 V DC via external power supply

Power Consumption: Average 30 mA at 12 V, 15 mA at 30 V

Wiring: Three wire, maximum 200 m to the time switch, 0.33 to 2.5 mm2 conductors, shielded cable recommended

Capacity: Up to 10 time switches per receiver

Protection: IP 54 to DIN EN 60529

Mounting: Wall surface mount, rotatable housing, self-extinguishing thermoplastic, control LED

Ambient Temperature: -30 to +55 degrees C

Dimensions: 89.5 x 75 x 40 mm

Barcode: 4022709228949

Country of Origin: Germany

Condition: New in box

Key Features

• Works worldwide, independent of DCF77 transmitter coverage
• Outputs a standard DCF telegram, so it drives existing DCF-capable time switches
• Drives up to ten time switches from one receiver
• IP 54 rated for outdoor wall mounting
• Rotatable housing to aim the unit for the best sky view
• Wide -30 to +55 degrees C operating range

Typical Applications

• Accurate time synchronisation for building time switches outside DCF77 range
• Street lighting and public lighting control
• School and factory bell and siren systems
• Building management and master clock installations

Package Includes

• 1 x Hugo Müller FU 30.00 pro GPS time receiver
• Manufacturer's label and operating instructions
• Original Hugo Müller box

A 12 to 30 V DC power supply and connecting cable are not included.

Additional Information

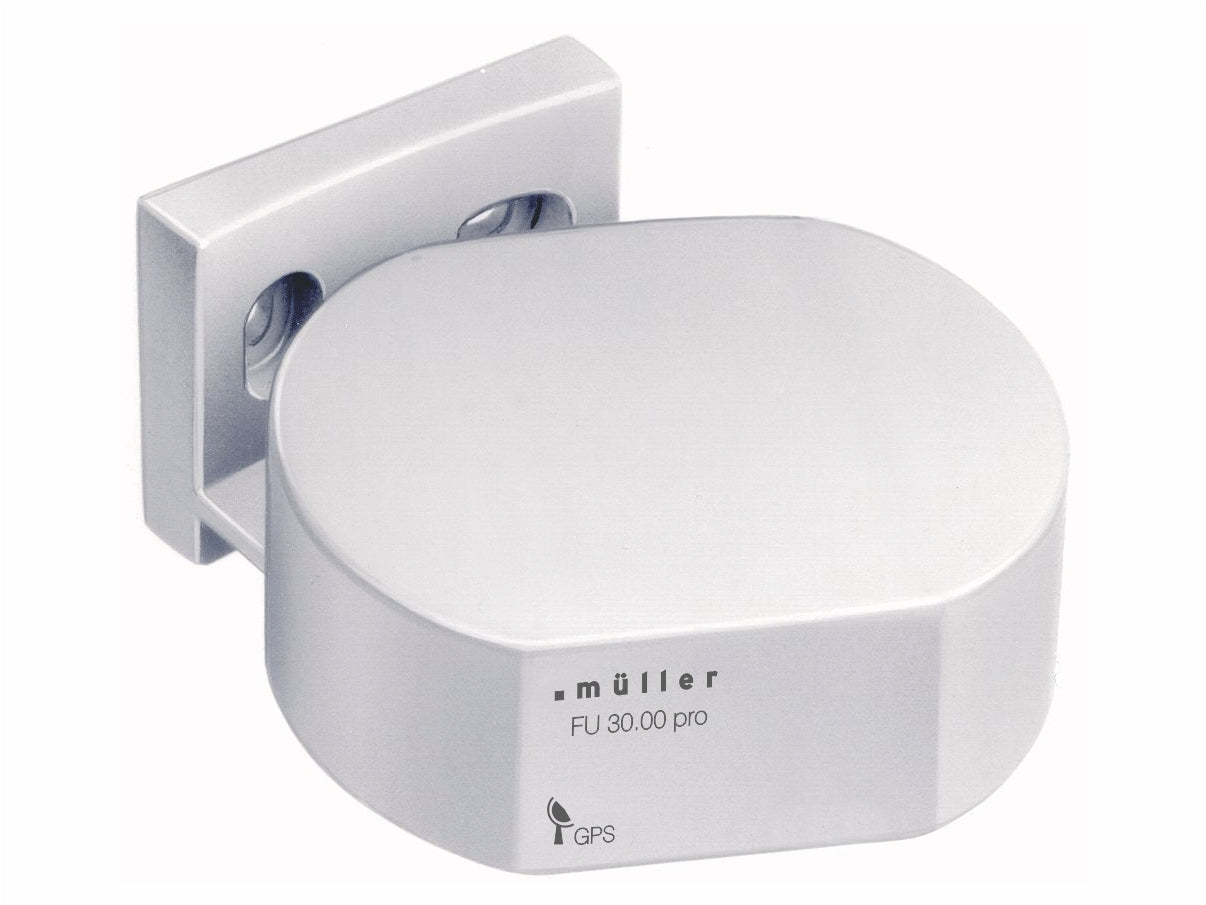

Installation of this device should be carried out by a suitably qualified person. The item is new in the manufacturer's original packaging, opened for photography and verification. Please refer to the photographs for the overall condition. One of the listing images is the manufacturer's catalogue photograph of this model, included to show the unit clearly.
