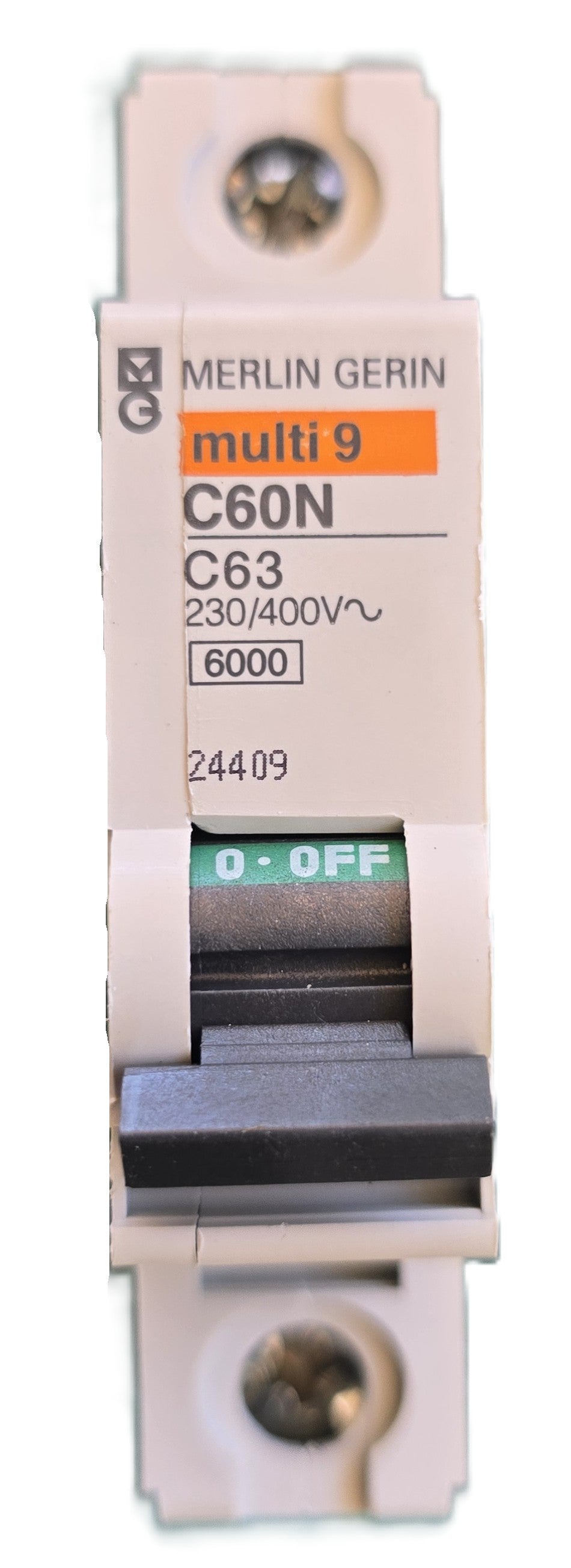

Merlin-Gerin 24409 Multi 9 C60N C63 MCB 1P 63A C Curve 6kA (New)

The Merlin Gerin Multi 9 C60N C63 is a 1 pole miniature circuit breaker, reference 24409, from the Multi 9 range now sold by Schneider Electric. It provides overload and short circuit protection for a 63A circuit with a C tripping curve, which suits general power and lighting circuits with moderate inrush currents.

The breaker is rated 230/400V AC with a breaking capacity of 6kA and complies with IEC 60947-2 and IEC 60898. It clips onto 35mm DIN rail and takes 1 (18mm) modules of width. The unit is new old stock made in Italy and is supplied without a box. Six units are available; price is per breaker.

Specifications

Brand: Merlin Gerin (Schneider Electric)

Model: Multi 9 C60N C63

Part Number: 24409

Alternate Part Number: 25809 (AU version), 24262 (UK), A9F44163 (Acti9 iC60N 1P 63A C)

Product Type: Miniature circuit breaker

Poles: 1P

Rated Current: 63A

Tripping Curve: C

Rated Voltage: 230/400V AC

Breaking Capacity: 6kA

Standards: IEC 60947-2, IEC 60898

Mounting: 35mm DIN rail clip-on

Width: 1 (18mm) modules

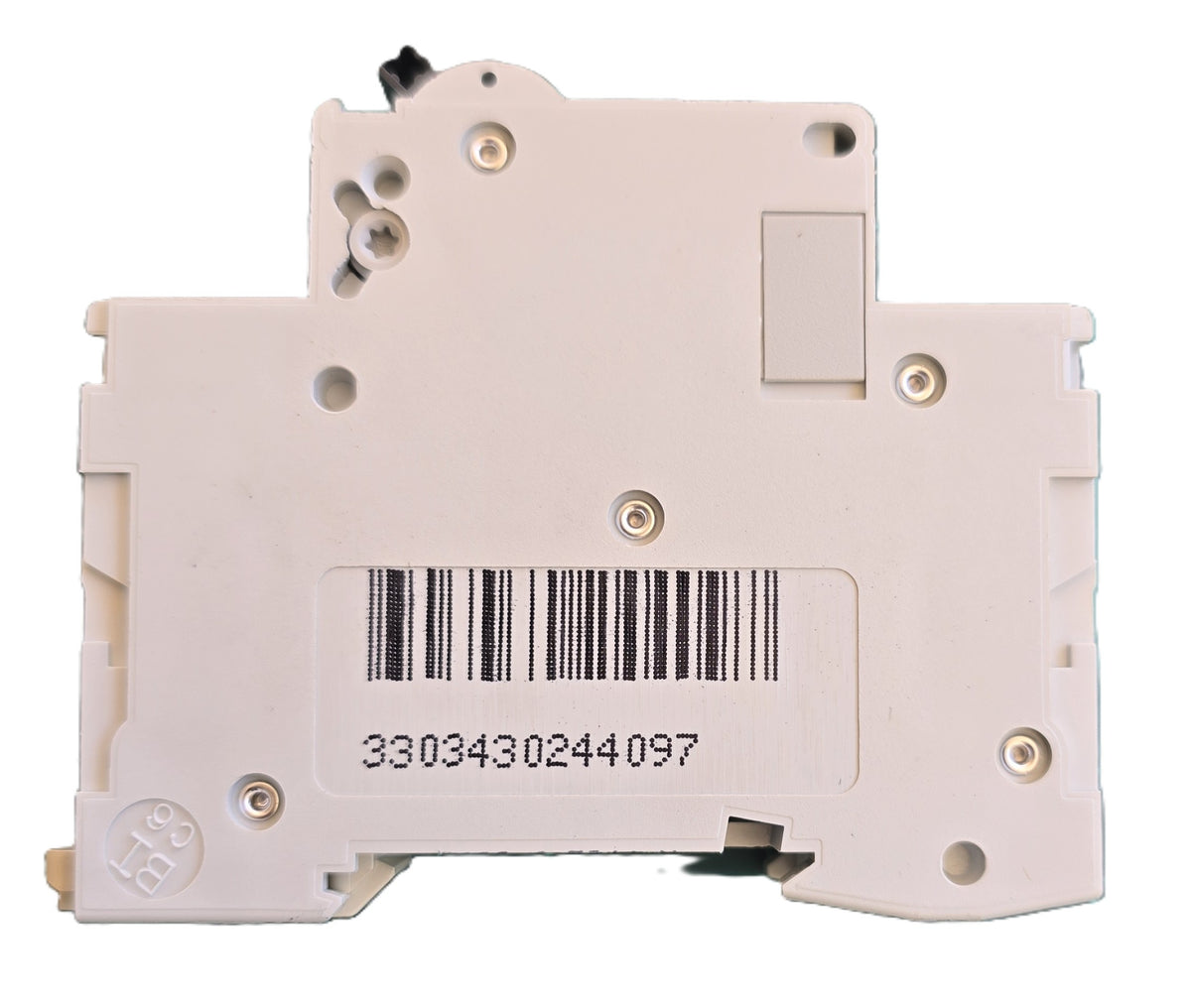

EAN: 3303430244097

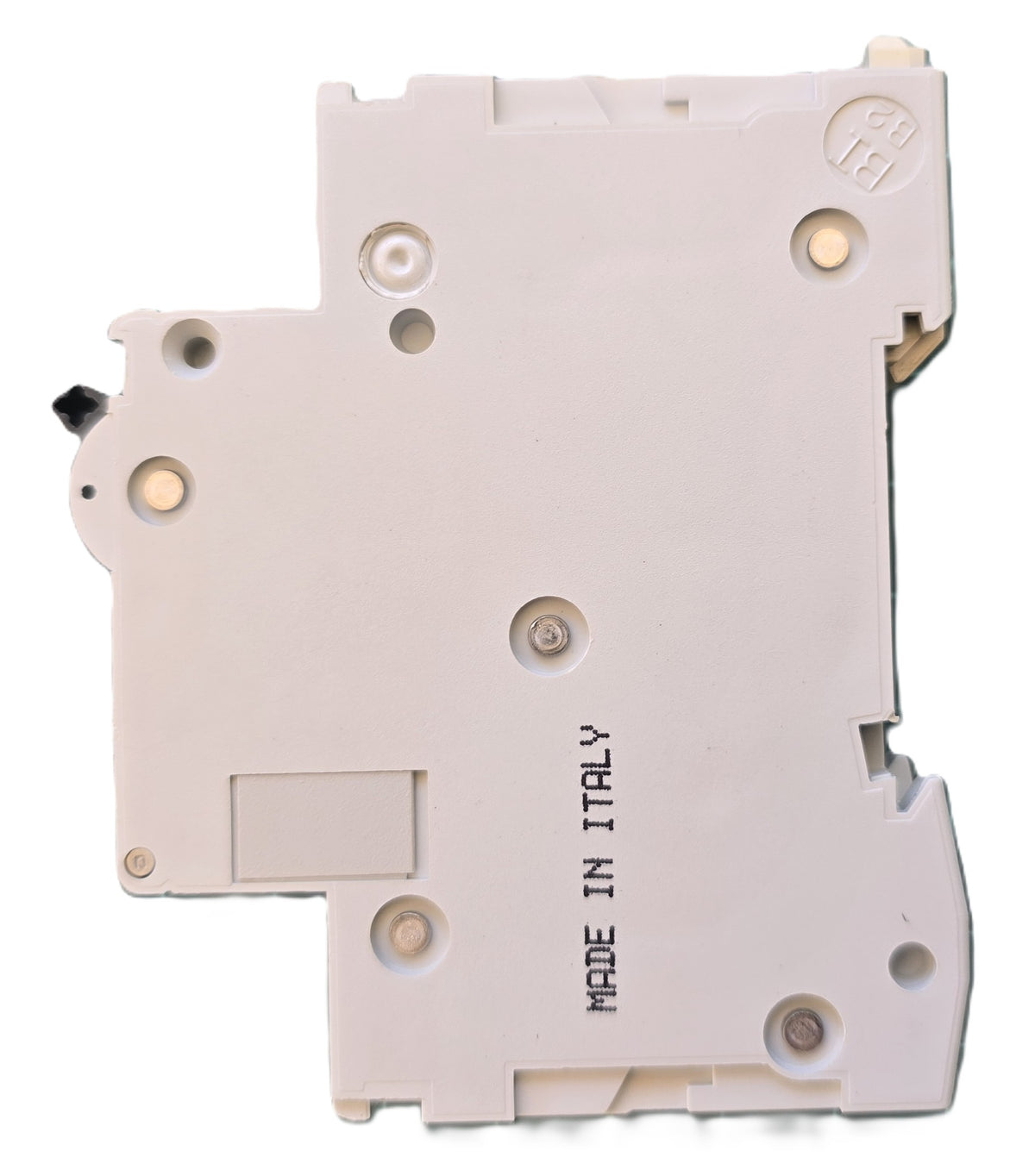

Country of Origin: Italy

Condition: New old stock, no box

Key Features

• C curve thermal magnetic protection
• Screw terminals top and bottom
• Trip-free mechanism with clear ON/OFF indication
• Clip-on DIN rail mounting
• Made in Italy

Typical Applications

• Distribution boards in commercial and industrial installations
• Replacement of an existing Multi 9 breaker of the same rating
• Machine and control panels

Package Includes

• 1 x Merlin Gerin 24409 C60N C63 circuit breaker

Additional Information

The breaker is supplied loose without retail packaging.

Installation must be carried out by a licensed electrician.

This was removed from an unused item and may show minor cosmetic marks from previous install.

Shipping from Sydney, Australia.
