Megavox F3 3 Way Fused Distribution Block 1x 4 AWG In 3x 8 AWG Out (NEW In Box)

The Megavox F3 is a three way fused power distribution block for car audio installations. It takes a single 4 AWG power feed from the battery and splits it into three fused 8 AWG outputs, so several amplifiers or accessories can be run from one main cable run with individual circuit protection on each branch. The block is part of the Megavox gold plated car audio accessory range, which also includes the F2, F5 and F7 variants with different output counts.

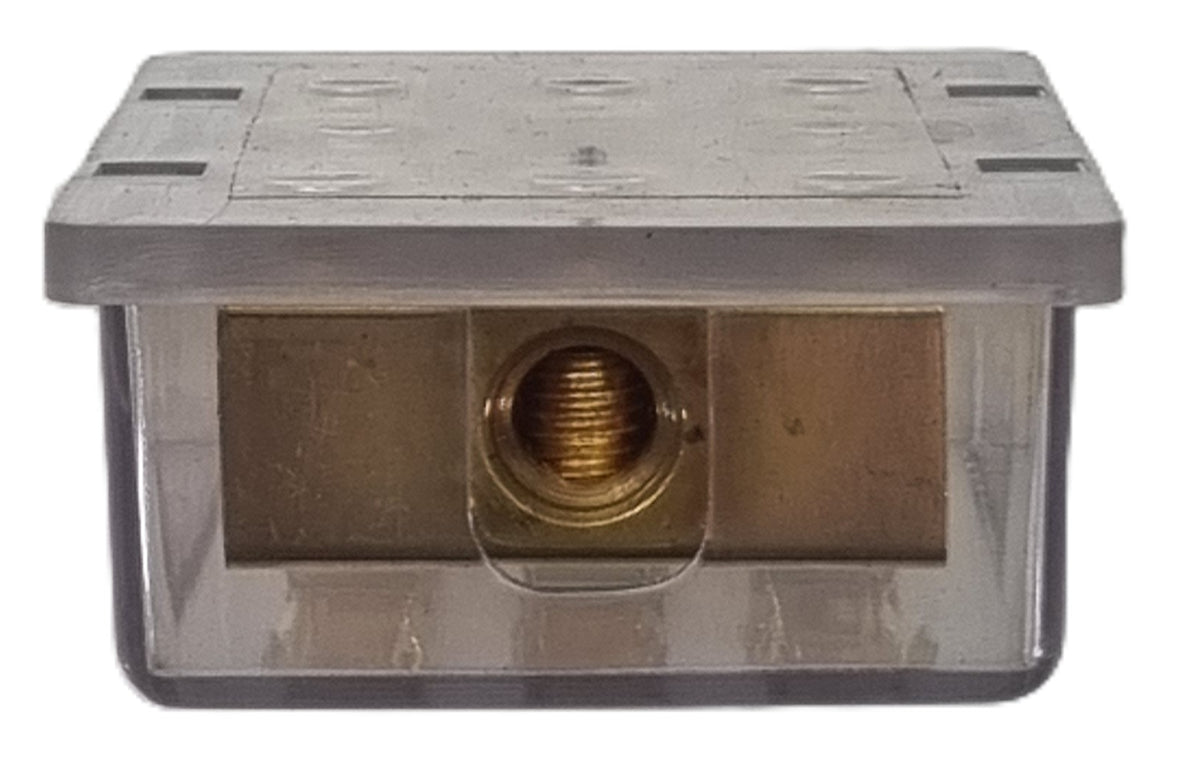

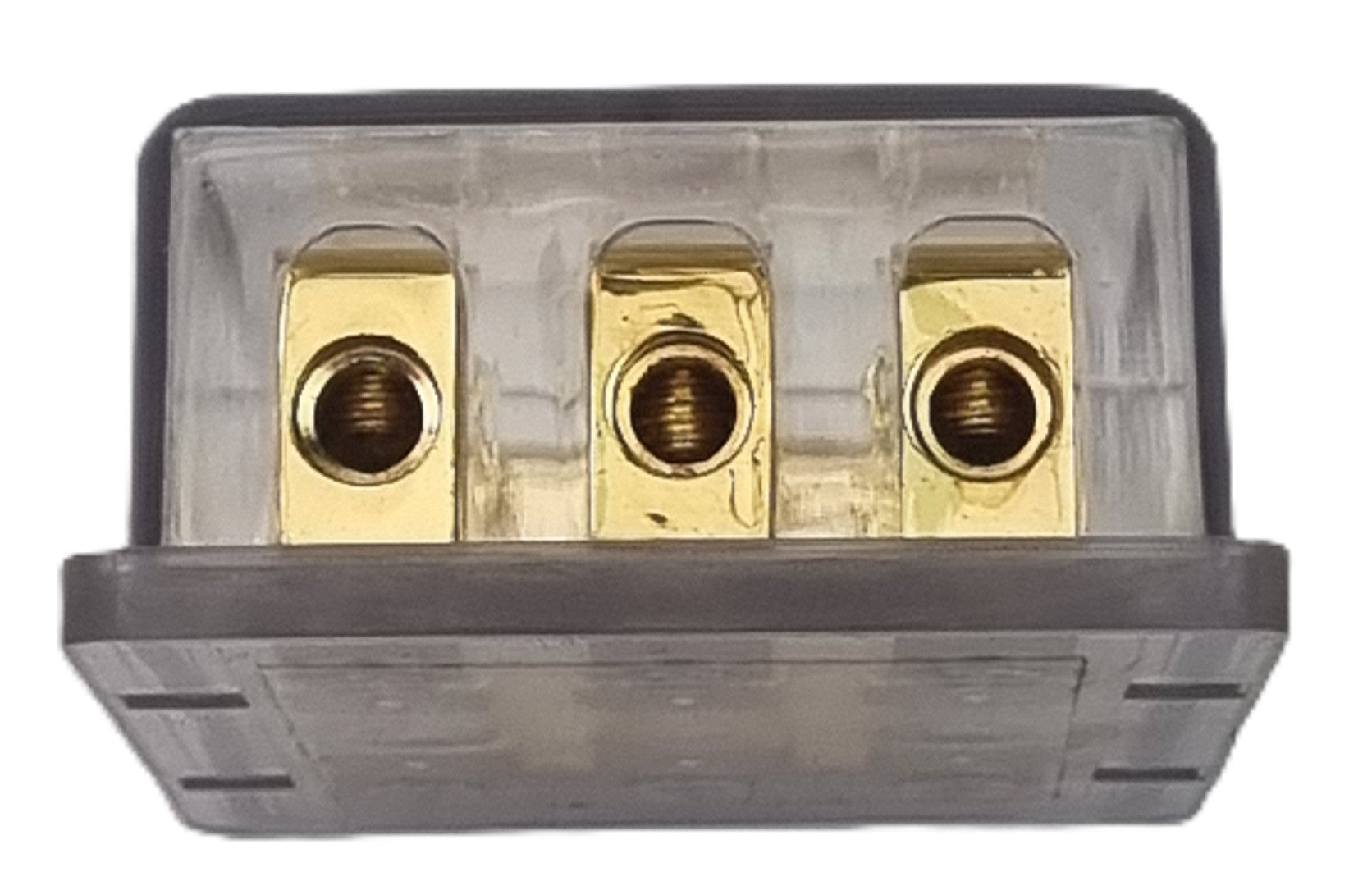

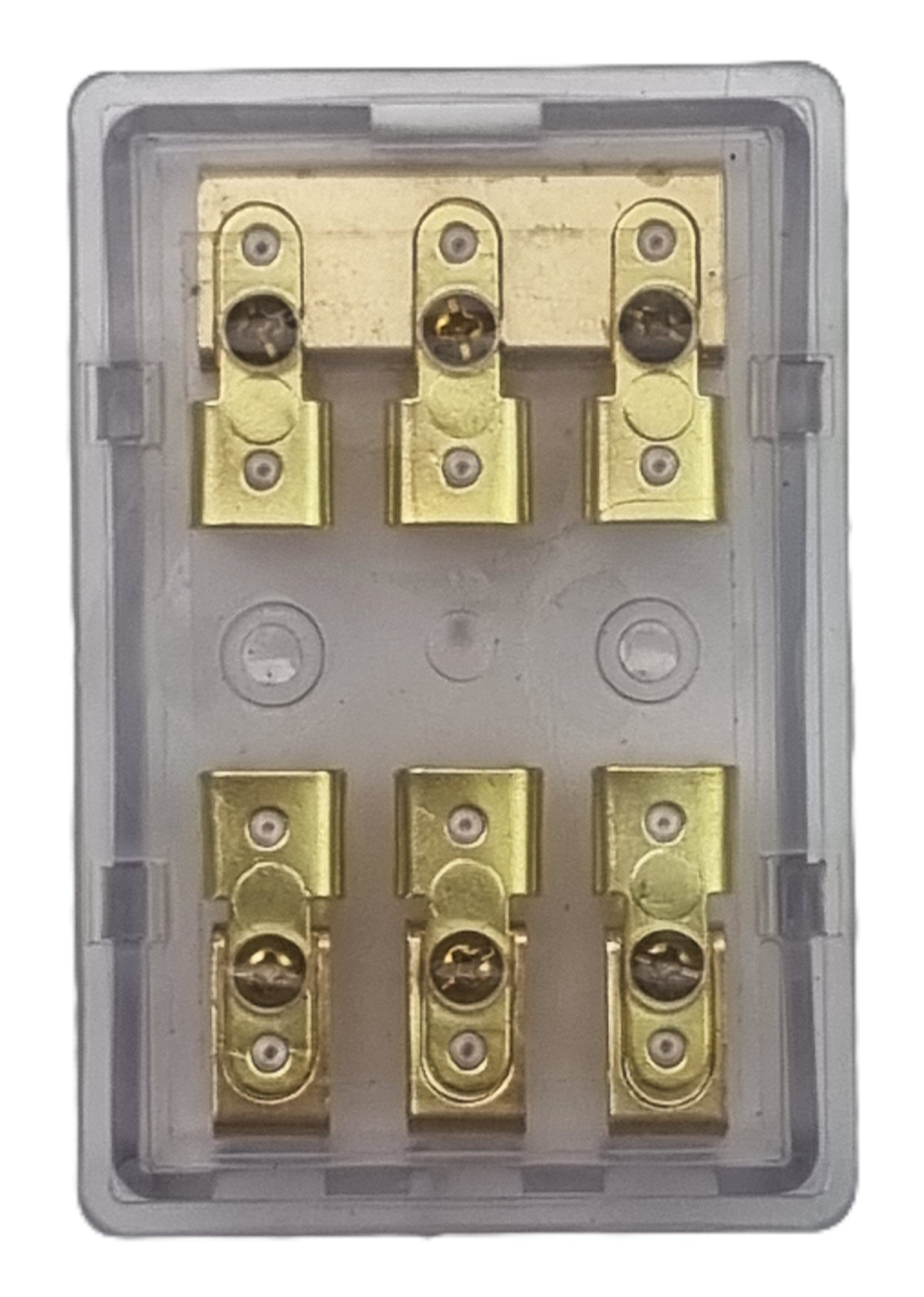

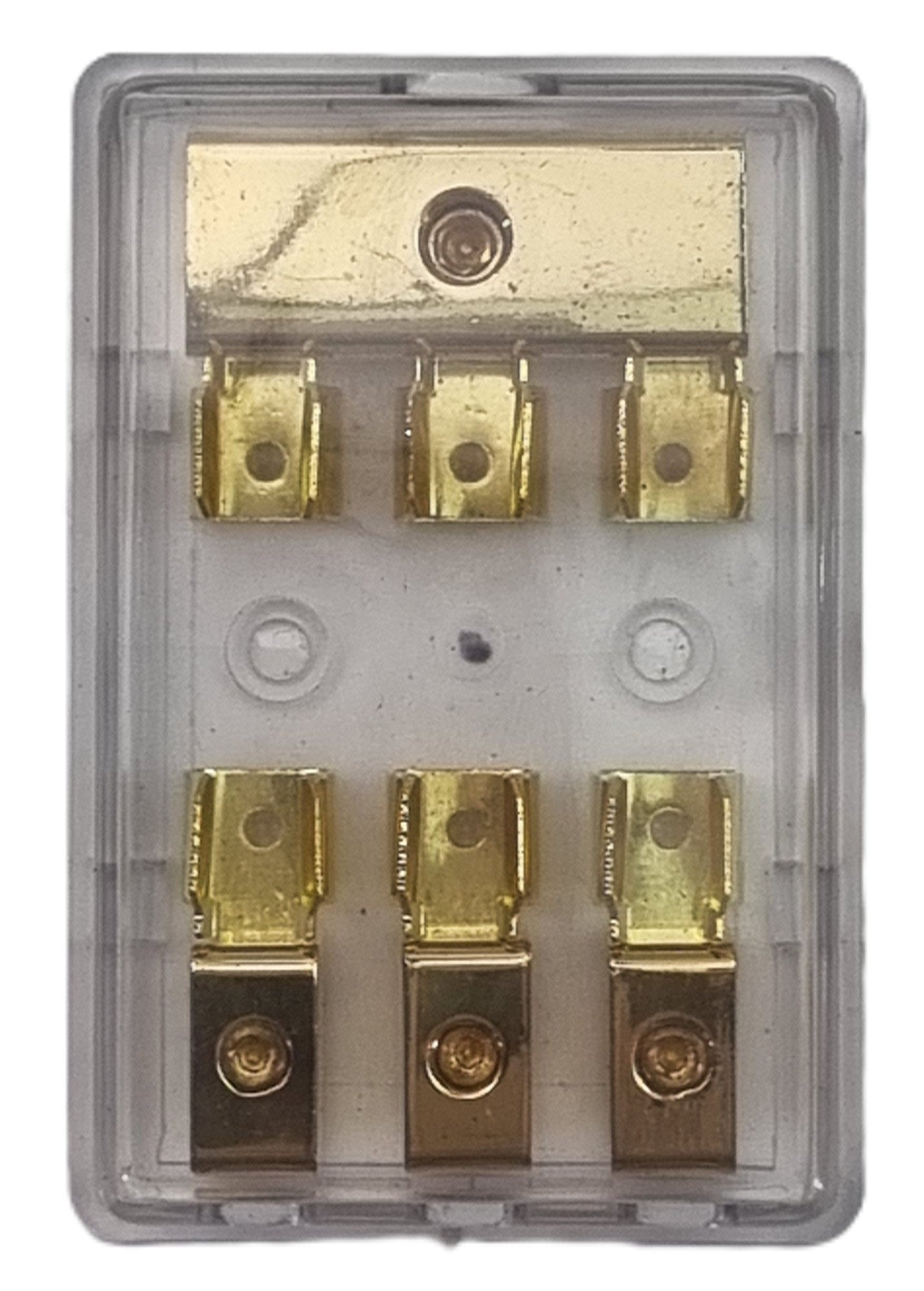

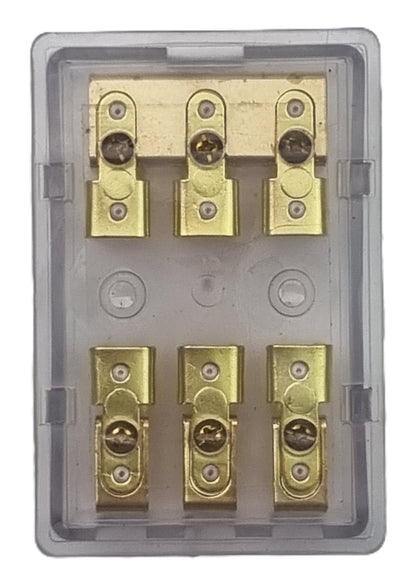

The body carries a solid gold plated busbar feeding three fuse positions, with set screw terminals on both the input and the outputs. A clear snap on cover protects the fuse positions and lets the fuse state be checked without removing hardware. Two mounting bosses are moulded into the base for fixing to a panel or amplifier rack.

Specifications

Brand: Megavox

Model: F3 Three Way Fused Distribution Block

Part Number: F3

Product Type: Car audio fused power distribution block

Configuration: One input, three fused outputs

Input: 1 x 4 AWG, set screw terminal

Outputs: 3 x 8 AWG, set screw terminals

Conductor Finish: Gold plated busbar and terminals

Cover: Clear snap on plastic cover

Mounting: Two screw bosses in the base

Barcode: 9321886005752

Condition: New in box

Key Features

• Splits one 4 AWG feed into three individually fused 8 AWG outputs
• Gold plated busbar and terminals
• Clear cover for visual fuse inspection
• Set screw clamping on all four terminals
• Panel mountable base

Typical Applications

• Running multiple amplifiers from a single battery feed
• Adding fused branches for a subwoofer amplifier and accessories
• Tidying an existing boot install onto one main power run

Package Includes

• One Megavox F3 distribution block with clear cover
• Printed retail hang card
• Fuses are not included
• No mounting screws or instructions are supplied

Additional Information

Fuses are not supplied with this block. The fuse clip geometry is consistent with AGU 10 mm by 38 mm glass fuses, however no fuse type, current rating or voltage rating is printed on the packaging, so confirm fuse compatibility before ordering fuses.

No country of manufacture is marked on the packaging supplied.

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
