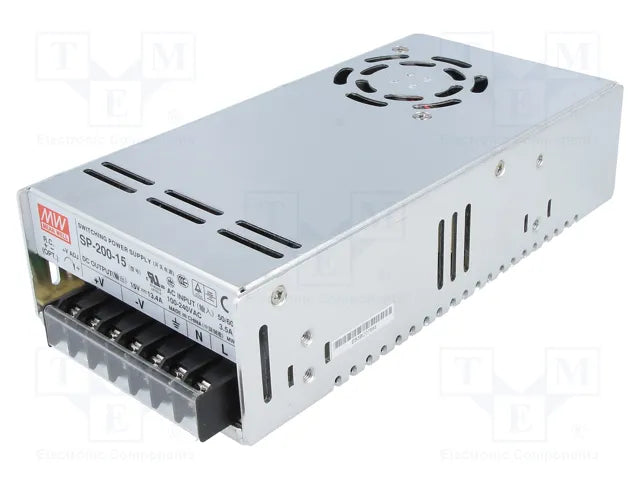

MEANWELL SP-200-15 200W 15V 13.4A Enclosed Switching Power Supply (NEW In Box)

The Mean Well SP-200-15 is a 200 W enclosed switch mode power supply with a single 15 V DC output rated at 13.4 A. It has built in active power factor correction and an internal DC cooling fan, and is designed to be built into industrial equipment, control panels and OEM machinery.

Input is a universal 85 to 264 V AC or 120 to 370 V DC. Efficiency is 84 percent typical and power factor exceeds 0.93 at 230 V AC. The output is adjustable from 14.3 to 16.5 V through a front potentiometer. Protection covers overload with constant current limiting and auto recovery, over voltage and over temperature. Connections are made on a seven way barrier terminal block with a clear cover, and a remote control input is provided.

Specifications

Brand: Mean Well

Model: SP-200

Part Number: SP-200-15

Product Type: Enclosed single output switch mode power supply with PFC

Output: 15 V DC, 13.4 A, 201 W rated

Output Adjustment Range: 14.3 to 16.5 V

Ripple and Noise: 150 mV peak to peak maximum

Input: 85 to 264 V AC or 120 to 370 V DC, 47 to 63 Hz

Input Current: 3.5 A at 115 V AC, 1.7 A at 230 V AC

Inrush Current: 50 A at 230 V AC cold start

Leakage Current: Less than 2 mA at 240 V AC

Efficiency: 84 percent typical

Power Factor: Greater than 0.93 at 230 V AC, greater than 0.97 at 115 V AC at full load

Setup and Rise Time: 600 ms and 40 ms, hold up 20 ms at full load

Overload Protection: Constant current limiting, auto recovery

Over Voltage Protection: Output shutdown, recovers on re power

Over Temperature Protection: Shutdown with auto recovery on cooling

Working Temperature: -10 to +60 degrees C, storage -20 to +85 degrees C, humidity 20 to 90 percent

Vibration: 10 to 500 Hz, 2 G, 10 minutes per cycle

Isolation: 3 kV AC input to output, 2 kV AC input to earth, 0.5 kV AC output to earth

Safety: UL 60950-1, CCC GB4943, cULus E183223, TUV Rheinland, CE

EMC: EN 55032 Class B, immunity EN 61000-4-2 to -6, -8, -11, EN 55024

MTBF: 183,800 hours minimum, MIL-HDBK-217F at 25 degrees C

Cooling: Built in DC fan

Terminals: 7 way barrier terminal block with clear cover, plus remote control and output adjust

Dimensions: 199 x 99 x 50 mm

Weight: 850 g

Country of Manufacture: China

Condition: New in box

Key Features

• 201 W from a single 15 V 13.4 A output
• Built in active power factor correction to EN 61000-3-2
• Output adjustable from 14.3 to 16.5 V
• Overload, over voltage and over temperature protection with auto recovery
• Remote control input
• Barrier terminal block with a clear safety cover fitted

Typical Applications

• Industrial control panels and machine builds needing a 15 V rail
• OEM equipment and instrumentation
• Audio and broadcast equipment on a 15 V supply
• Replacement or spare for an existing SP-200 installation

Package Includes

• One Mean Well SP-200-15 power supply with terminal cover fitted
• Supplied in a plain distributor carton with a printed RS Components label and a die cut window over the model plate
• No mains lead, no plug, no mounting screws and no printed manual are included

Additional Information

Please read this before ordering. This model is discontinued and obsolete in the Mean Well range, superseded by the RSP-200 series. There is no warranty pathway and no new supply. It suits anyone maintaining legacy equipment built around the SP-200.

The unit has an internal cooling fan. It is not silent, and on new old stock that has been stored for some years the fan is the component most worth bench testing before it goes into service.

It is certified to the older UL 60950-1 safety standard rather than the current 62368-1, so it is not suitable for new design compliance work.

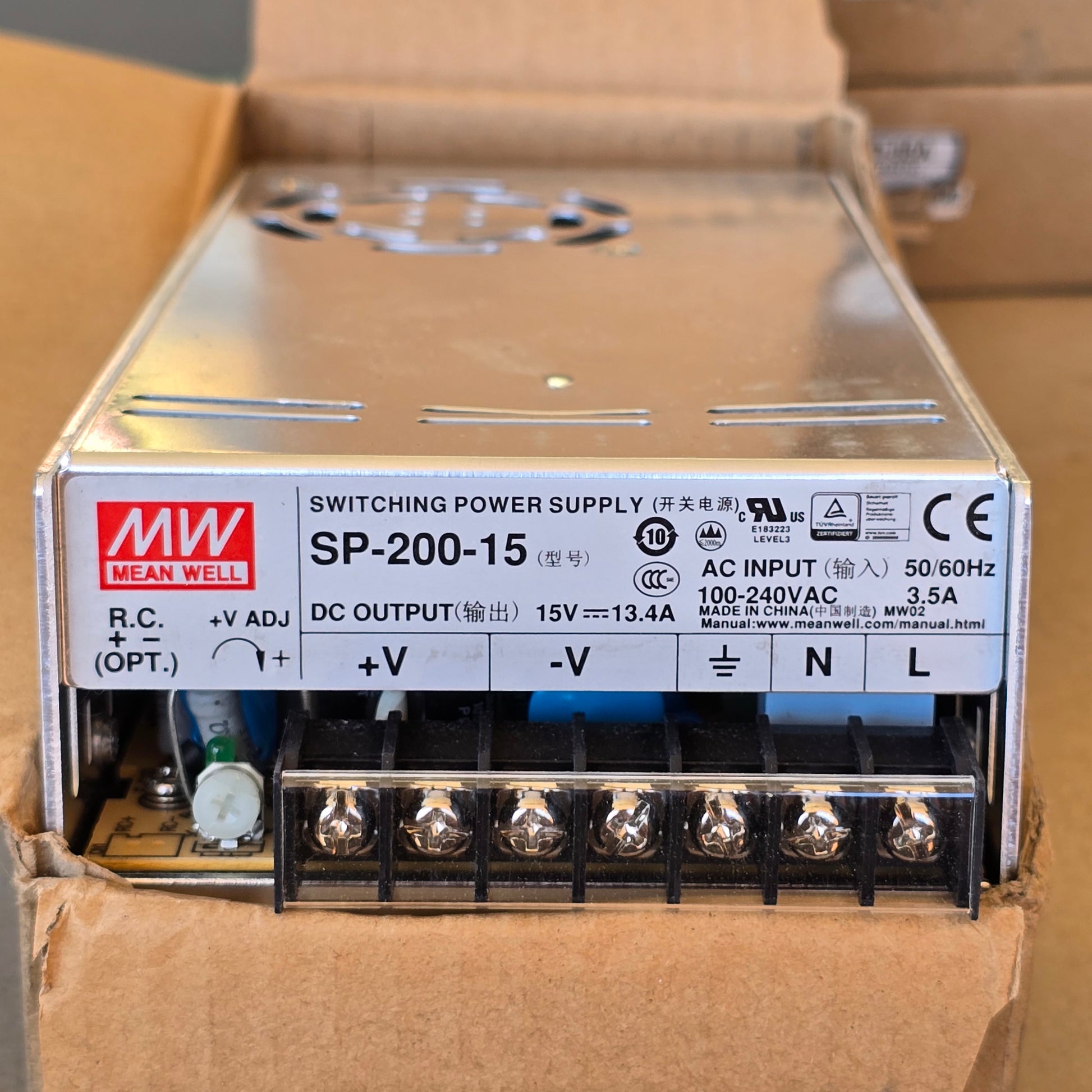

The distributor label on the outer carton reads Made In Taiwan while the unit's own nameplate reads Made In China. The nameplate governs, so the country of origin is stated as China.

This is a bare enclosed industrial component with exposed 240 V AC barrier terminals. It must be installed inside a suitable enclosure by a competent person in accordance with AS/NZS 3000.

The item is new and supplied in its distributor box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
