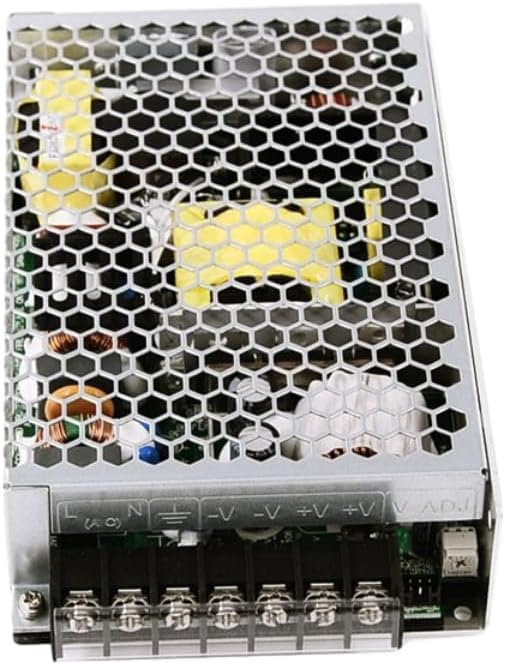

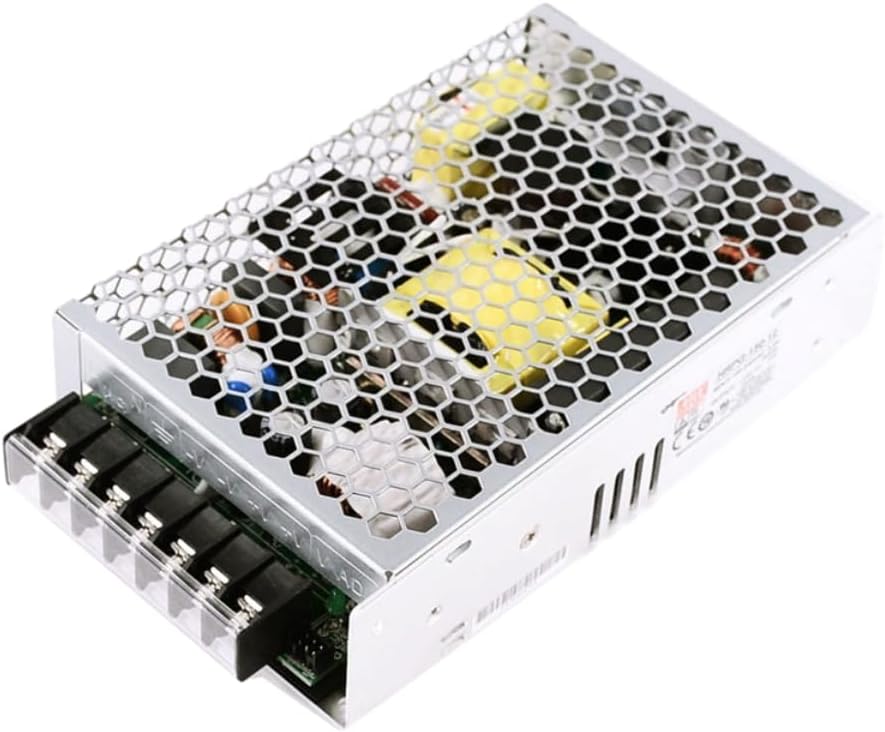

MEANWELL HRPG-150-7.5 150W 7.5V 20A Enclosed Switching Power Supply (NEW In Box)

The Mean Well HRPG-150-7.5 is a 150 W enclosed switch mode power supply with a single 7.5 V DC output rated at 20 A. It is a fanless convection cooled unit with active power factor correction, a separate 5 V standby rail, remote on and off control and remote sense, intended for building into industrial equipment, control cabinets and OEM assemblies.

Input is a universal 85 to 264 V AC or 120 to 370 V DC. Efficiency is 87 percent and power factor exceeds 0.95 at 230 V AC. The output is adjustable from 6.8 to 9 V. Protection covers overload with constant current limiting and auto recovery, over voltage and over temperature. The unit is certified to UL 62368-1 and EN 62368-1 and meets EN 55032 Class B for emissions with heavy industry immunity to EN 61000-6-2.

Specifications

Brand: Mean Well

Model: HRPG-150

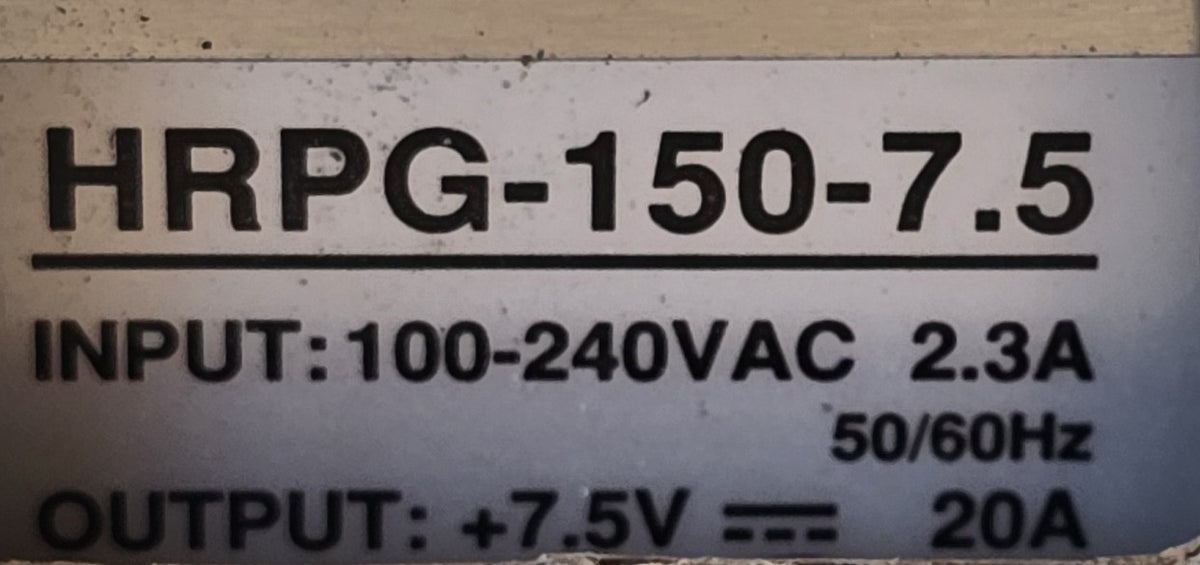

Part Number: HRPG-150-7.5

Product Type: Enclosed single output switch mode power supply

Output: 7.5 V DC, 20 A, 150 W rated

Output Adjustment Range: 6.8 to 9 V

Ripple and Noise: 100 mV peak to peak maximum

Input: 85 to 264 V AC or 120 to 370 V DC, 47 to 63 Hz

Input Current: 0.9 A at 230 V AC typical

Inrush Current: 35 A at 115 V AC, 70 A at 230 V AC

Leakage Current: Less than 1 mA at 240 V AC

Efficiency: 87 percent

Power Factor: Greater than 0.95 at 230 V AC, greater than 0.99 at 115 V AC at full load

Standby Output: 5 V at 0.3 A, plus or minus 5 percent, 50 mV peak to peak

Control: Remote on and off, remote sense with 0.5 V line drop compensation

Overload Protection: 105 to 135 percent rated power, constant current limiting, auto recovery

Over Voltage Protection: 6.8 to 9 V band, output shutdown, recovers on re power

Over Temperature Protection: Auto shutdown with auto recovery

Working Temperature: -40 to +70 degrees C, humidity 20 to 90 percent non condensing

Withstand Voltage: 3 kV AC input to output

Safety: UL 62368-1, TUV EN 62368-1, EAC TP TC 004

EMC: EN 55032 Class B, immunity EN 61000-4-2 to -6, -8, -11, EN 55035, EN 61000-6-2

MTBF: 1,544,000 hours minimum, Telcordia

Cooling: Fanless, free air convection

Terminals: Screw terminal block

Dimensions: 159 x 97 x 38 mm

Weight: 630 g

Country of Manufacture: China

Condition: New in box

Key Features

• 150 W from a single 7.5 V 20 A output
• Active power factor correction, greater than 0.95 at 230 V AC
• Fanless convection cooling, no moving parts to wear out
• Separate 5 V standby rail and remote on and off
• Remote sense compensates 0.5 V of cable drop
• Wide -40 to +70 degrees C working range
• Certified to the current UL and EN 62368-1 safety standard

Typical Applications

• OEM equipment and machine builds needing a 7.5 V rail
• Industrial control cabinets and automation panels
• Test and measurement rigs
• Replacement or spare for an existing HRPG installation

Package Includes

• One Mean Well HRPG-150-7.5 power supply
• Supplied in a plain distributor carton with a printed RS Components label
• No mains lead, no plug, no mounting hardware and no printed manual are included

Additional Information

Please read this before ordering. 7.5 V is an unusual output voltage. If you are looking for a general purpose 12 V or 24 V supply this is not the right unit. Check the required rail voltage before ordering.

This is a bare enclosed industrial component with exposed 240 V AC screw terminals. It must be installed inside a suitable enclosure by a competent person in accordance with AS/NZS 3000.

The Australian RCM mark is not listed on the Mean Well datasheet for the HRPG-150 series, so no RCM approval is claimed for this unit.

The supply is boxed in a plain distributor carton rather than a Mean Well retail carton.

The item is new and supplied in its distributor box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
