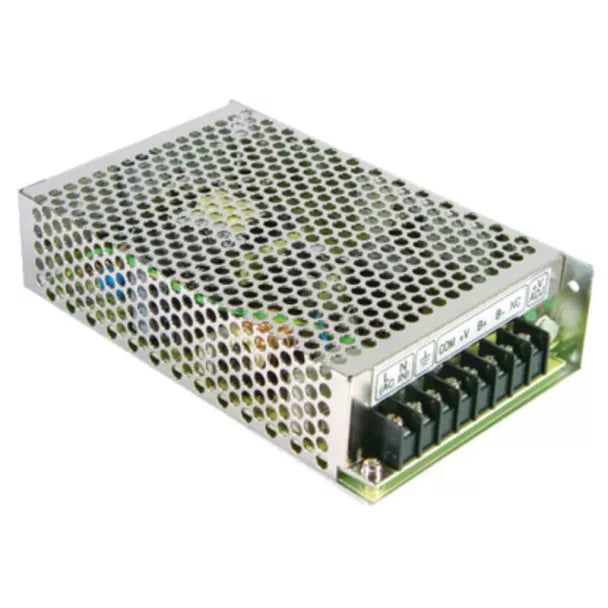

MEANWELL AD-55A 55W 13.8V Security Power Supply Battery Charger UPS (NEW In Box)

The Mean Well AD-55A is a 55 W enclosed security power supply with an integral battery charger and automatic changeover on mains failure. It provides a 13.8 V main output for the load and a separate 13.4 V charging output for a sealed lead acid standby battery. If the mains supply is lost the battery takes over automatically, which makes it the standard building block for alarm panels, access control and small CCTV installations that must keep running through an outage.

Total rated power is 51.38 W across both channels. The main output is adjustable from 12 to 14.5 V. A battery low cut off between 9.5 and 11 V protects the battery from deep discharge. Protection covers overload with hiccup mode auto recovery, over voltage and short circuit. The unit is fanless with free air convection cooling and carries UL 62368-1, TUV EN 62368-1, CB, CE and the Australian RCM mark.

Specifications

Brand: Mean Well

Model: AD-55

Part Number: AD-55A

Product Type: Enclosed security power supply with battery charger and UPS function

Main Output CH1: 13.8 V DC, 3.5 A rated, 0 to 4 A range

Battery Charging Output CH2: 13.4 V DC, 0.23 A

Total Rated Power: 51.38 W

CH1 Adjustment Range: 12 to 14.5 V

Ripple and Noise: 100 mV peak to peak maximum

Input: 88 to 264 V AC or 124 to 370 V DC, 47 to 63 Hz

Input Current: 1.6 A at 115 V AC, 1 A at 230 V AC typical

Inrush Current: 20 A at 115 V AC, 40 A at 230 V AC cold start

Efficiency: 71 percent

Backup Function: Powers the load and charges the battery simultaneously. On mains failure the battery supplies the load automatically

Battery Low Protection: Cut off 9.5 to 11 V, 82.5 percent plus or minus 2 percent of charge voltage

Overload Protection: 105 to 150 percent of rated power, hiccup mode, auto recovery

Over Voltage Protection: 15.87 to 18.63 V, hiccup mode, auto recovery

Short Circuit Protection: Included

Working Temperature: -10 to +60 degrees C with derating, humidity 20 to 90 percent

Safety: UL 62368-1, TUV EN 62368-1, CB, CE, RCM

MTBF: 2,380,900 hours minimum, Telcordia SR-332

Cooling: Fanless, free air convection

Terminals: Barrier terminal block, L, N, earth, COM, +V, B+, B-, NC

Dimensions: 159 x 97 x 38 mm

Weight: 500 g

Country of Manufacture: Taiwan

Condition: New in box

Key Features

• Powers the load and charges a standby battery from one unit
• Automatic changeover to battery on mains failure
• Battery low cut off protects the battery from deep discharge
• 13.8 V main output adjustable from 12 to 14.5 V
• Fanless convection cooling, silent in operation
• Carries the Australian RCM mark and a CB certificate

Typical Applications

• Intruder alarm panels and access control systems
• Small CCTV installations needing battery backup
• Door controllers, intercoms and gate controllers
• Any 12 V load that must survive a mains outage

Package Includes

• One Mean Well AD-55A power supply

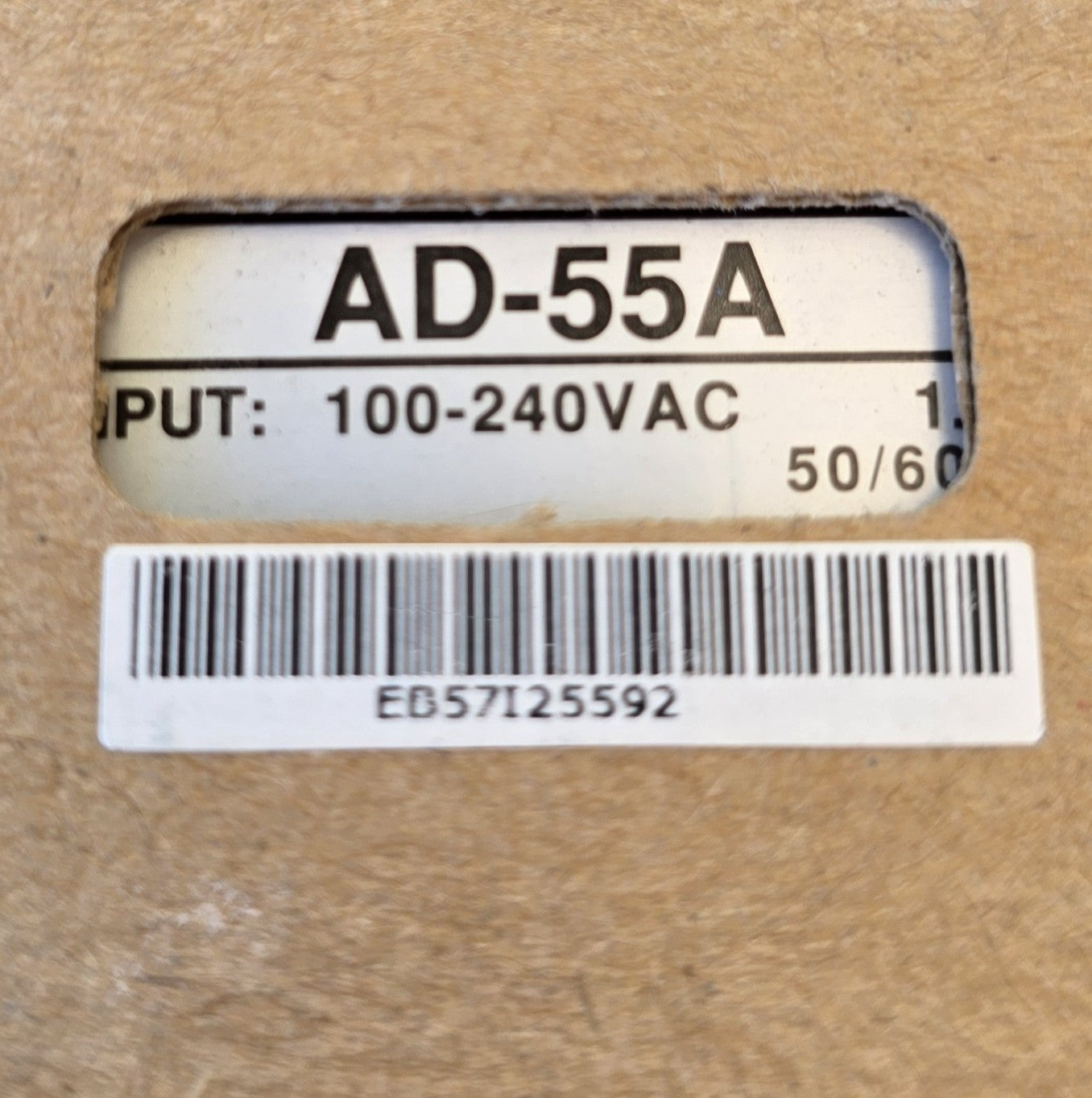

• Supplied in a plain distributor carton with a printed RS Components label and a die cut window over the nameplate
• No battery, no mains lead, no battery leads and no mounting hardware are included

Additional Information

Please read this before ordering. No battery is supplied. The backup function requires a user supplied 12 V sealed lead acid battery connected to the B plus and B minus terminals.

The charging output is 0.23 A at 13.4 V. That is a trickle and float charge for a small standby battery such as a 7 Ah alarm panel battery. It is not a fast charger and recharging a flat battery takes a long time.

The total budget is 51.38 W across both channels. The 3.5 A main output figure is not additional to the charger draw.

Efficiency is 71 percent, which is low by current standards. The unit runs warm and needs ventilation.

This is the AD-55A, which is the 13.8 V version. The AD-55B is 27.6 V and is a different unit. Please check before ordering.

This is a bare enclosed industrial component with exposed 240 V AC barrier terminals. It must be installed inside a suitable enclosure by a competent person in accordance with AS/NZS 3000.

The item is new and supplied in its distributor box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
