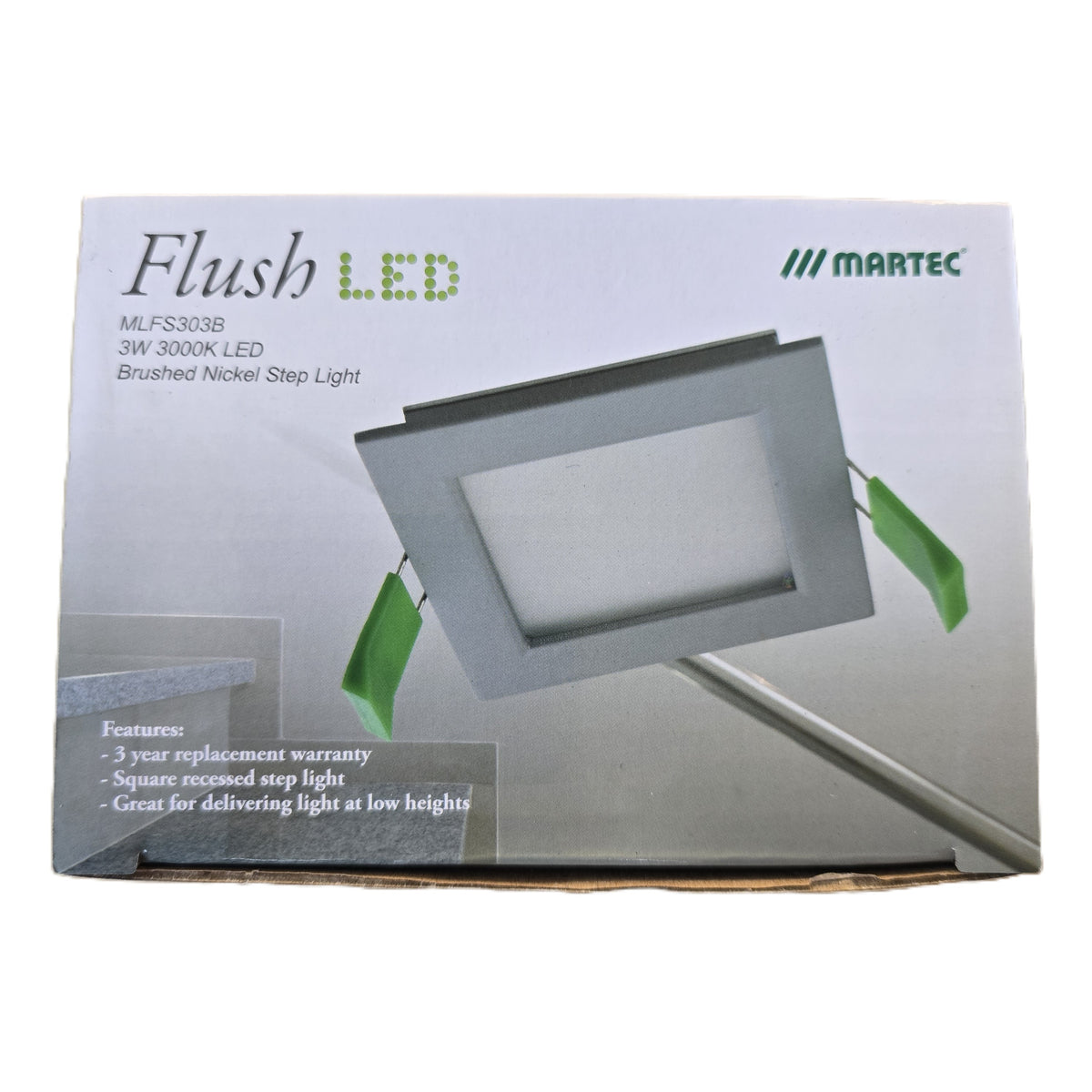

Martec MLFS303B Flush 3W 3000K LED Step Light Brushed Nickel IP44 (NEW In Box)

The Martec Flush MLFS303B is a 3 W recessed LED step light in a brushed nickel finish, made for the Australian market by Martec Pty Ltd. It is a square fitting measuring 100 mm by 100 mm with a 19 mm face depth, designed to be recessed into a wall, stair riser or low level surface where light is needed at foot height rather than from above. The kit is supplied with its own Martec LED driver.

Output is 140 lumens at 3000 K warm white over a 100 degree beam, with a colour rendering index of 82 or better. The fitting is rated IP44 and carries a 3 year replacement warranty. The supplied driver is a Martec CT-EC20015RTV1 constant current unit, rated 190 to 250 V AC input and DC 150 mA at 12 to 21 V SELV output, approval number SAA-150999-EA. The driver is marked do not install under insulation.

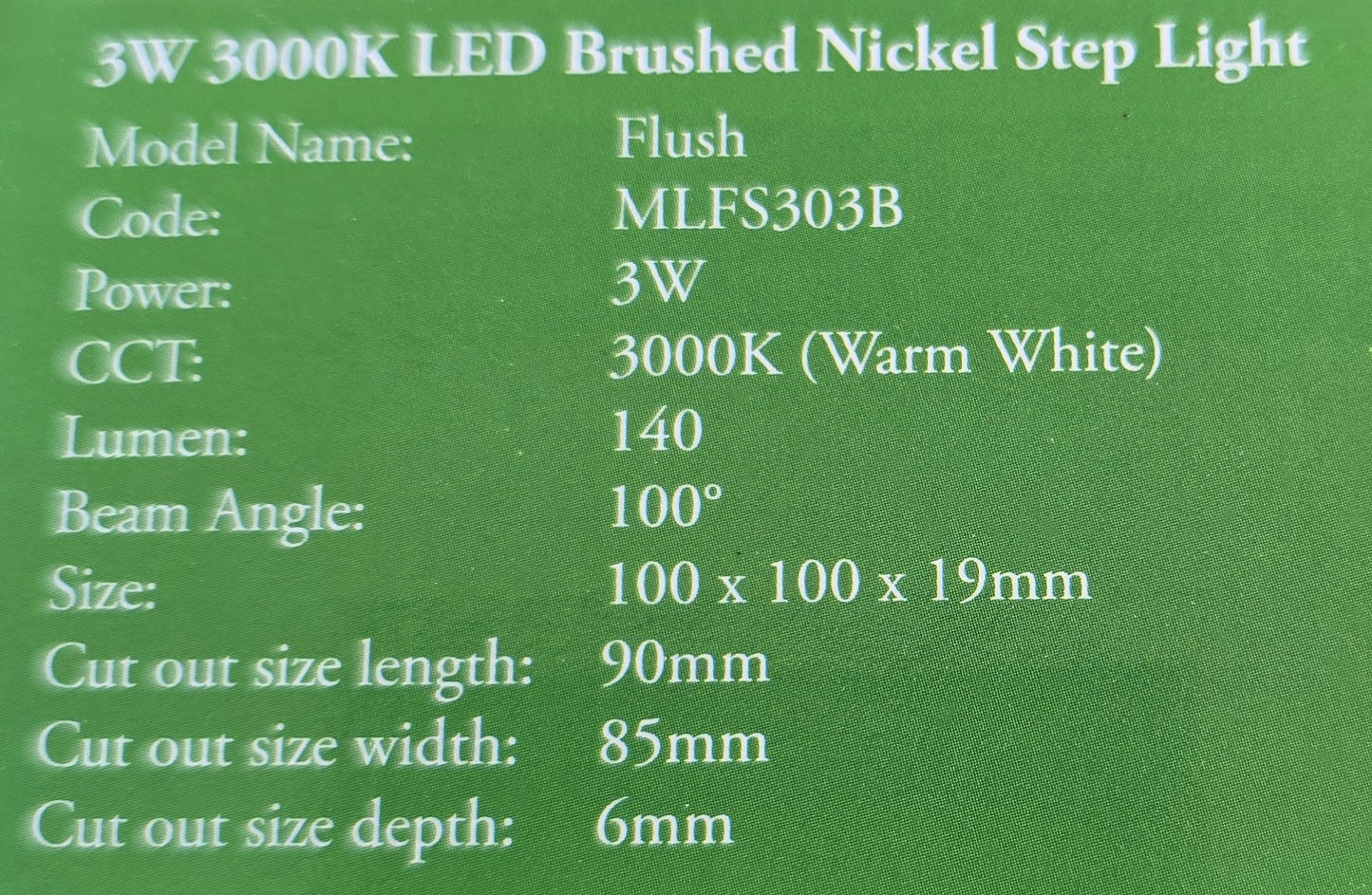

Specifications

Brand: Martec

Model: Flush

Part Number: MLFS303B

Product Type: Recessed LED step light

Power: 3 W

Colour Temperature: 3000 K warm white

Luminous Flux: 140 lumens

Beam Angle: 100 degrees

Colour Rendering Index: 82 or greater

Ingress Protection: IP44

Finish: Brushed nickel

Face Dimensions: 100 mm x 100 mm x 19 mm

Cut Out: 90 mm long x 85 mm wide x 6 mm deep

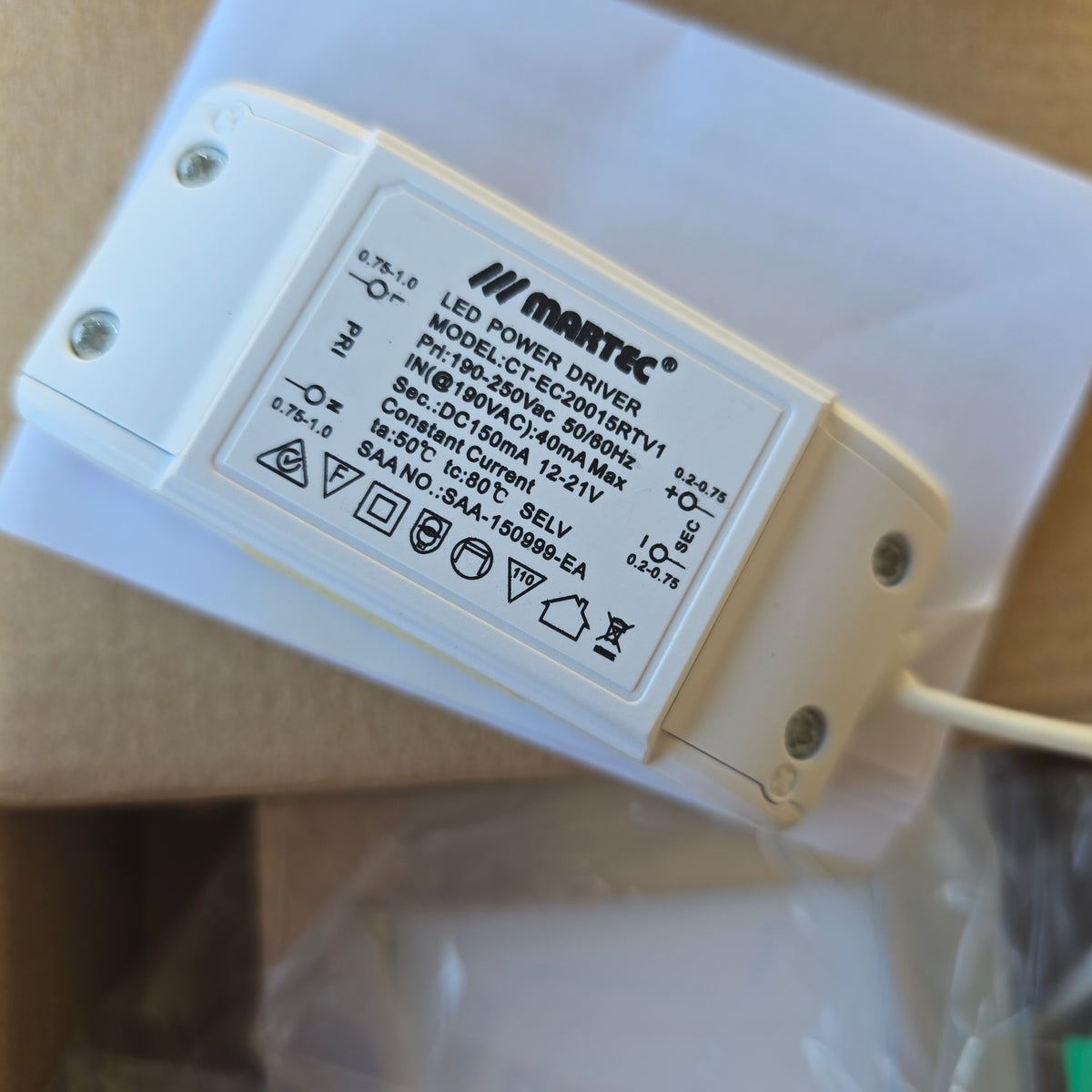

Driver: Martec CT-EC20015RTV1, input 190 to 250 V AC 50/60 Hz at 40 mA maximum, output DC 150 mA constant current at 12 to 21 V, SELV

Driver Approval: SAA-150999-EA

Luminaire Approval: SAA 130046

Country of Manufacture: China

Warranty: 3 year replacement warranty

Condition: New in box

Key Features

• Square recessed step light for lighting at low heights
• 3 W LED at 3000 K warm white, 140 lumens
• IP44 rated
• Brushed nickel face plate
• Constant current Martec LED driver supplied in the kit
• SELV low voltage output at the fitting
• 3 year replacement warranty

Typical Applications

• Stairs, stair risers and landings
• Hallway and corridor low level lighting
• Bedheads and skirting level lighting
• Undercover entries, alfresco areas and pathways
• Cinema rooms and hospitality walkways

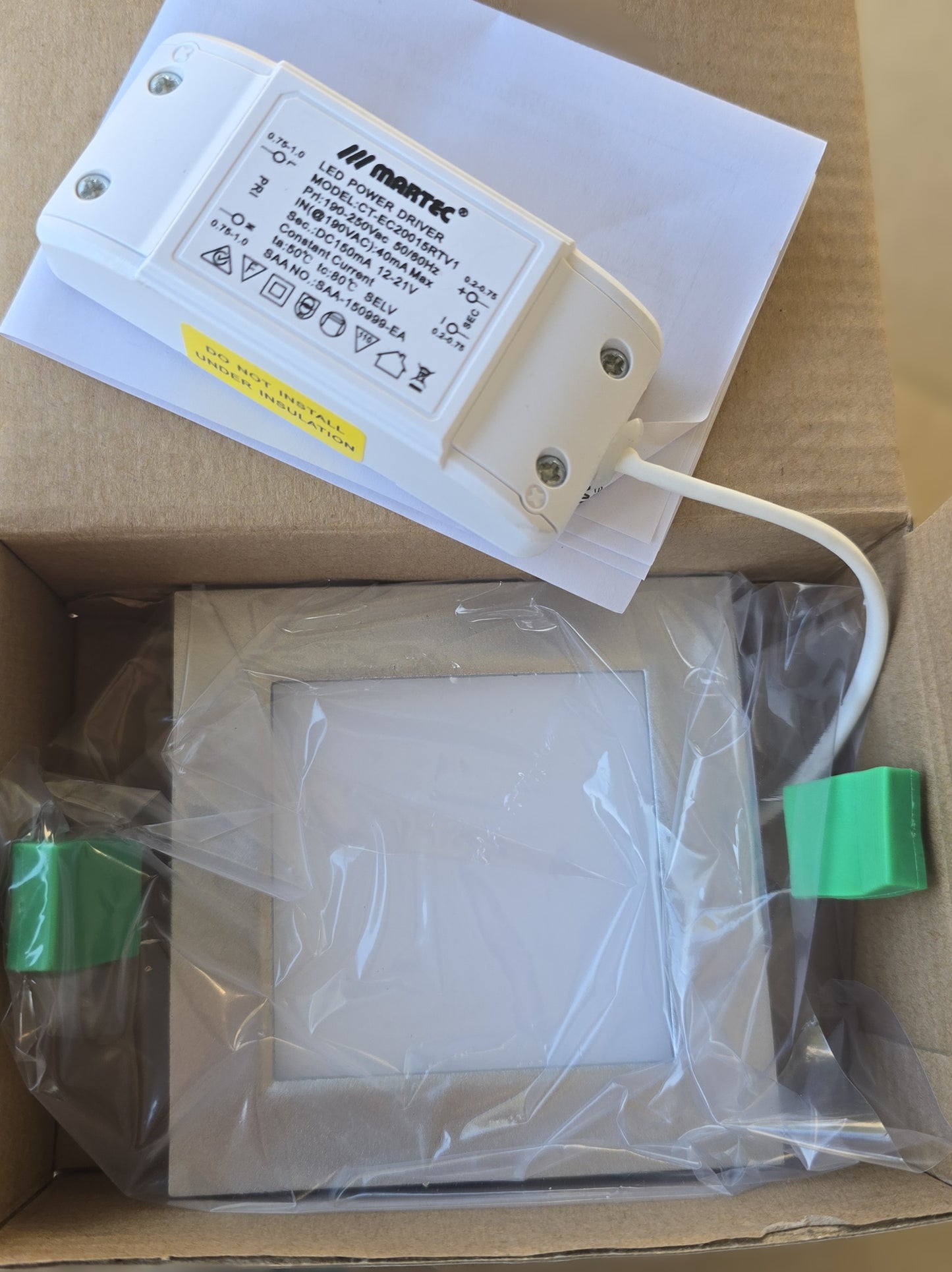

Package Includes

• One Martec Flush MLFS303B 3 W LED step light in brushed nickel
• One Martec CT-EC20015RTV1 LED power driver with flying lead
• Spring clips fitted to the light
• Manufacturer's instruction sheet

Additional Information

This fitting runs from a 240 V supply through the supplied driver and must be installed by a licensed electrician in accordance with AS/NZS 3000.

Please read this before ordering. The driver is marked do not install under insulation and must be mounted where it is not covered. This model is a discontinued line and is offered as new old stock.

The item is new and supplied in the manufacturer's box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
