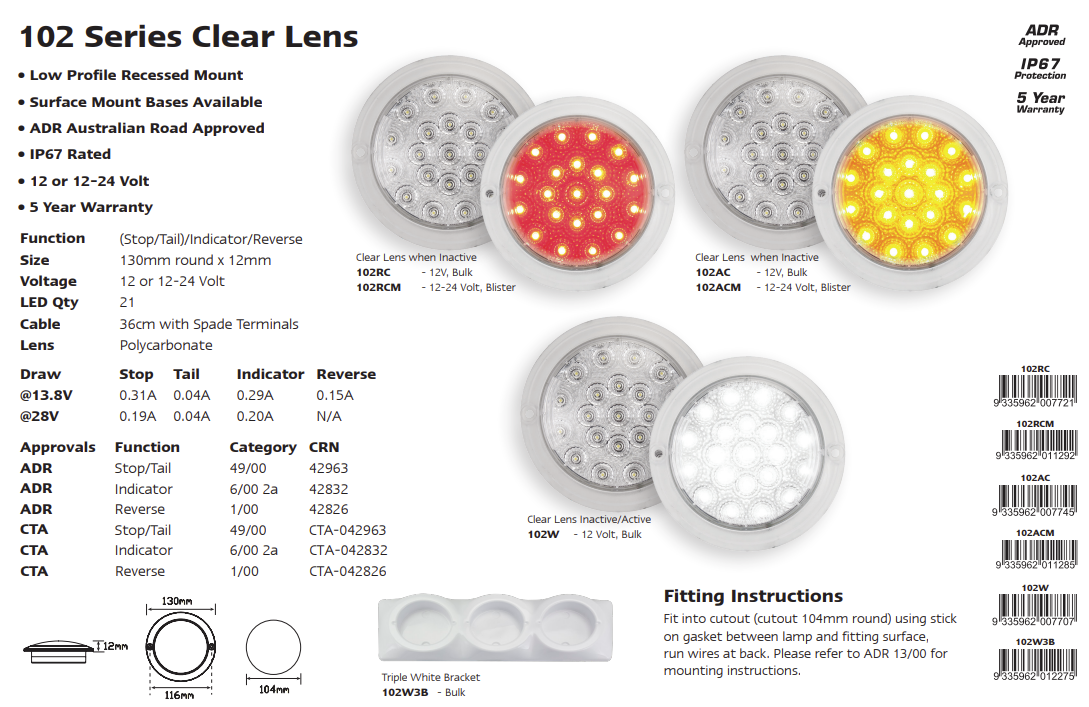

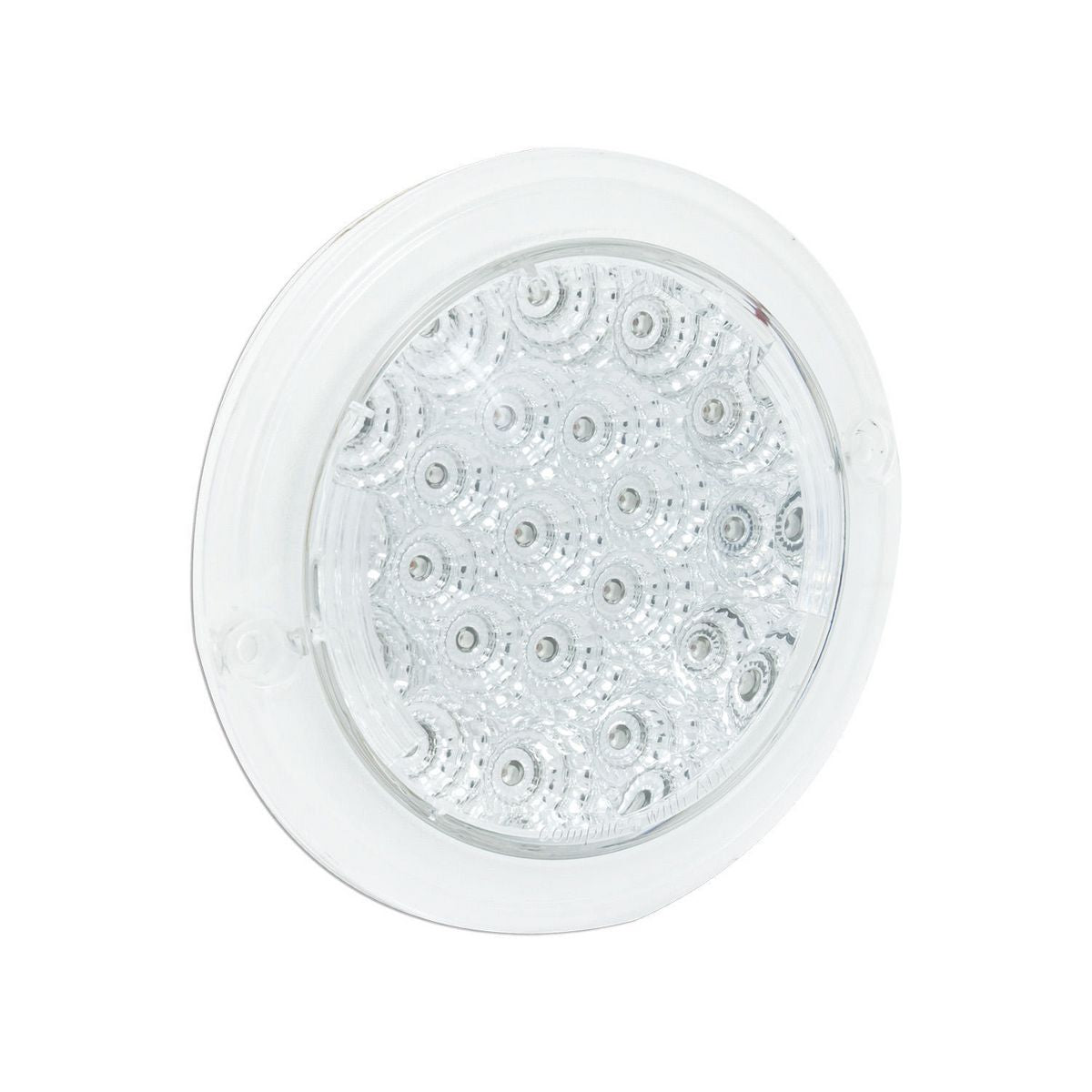

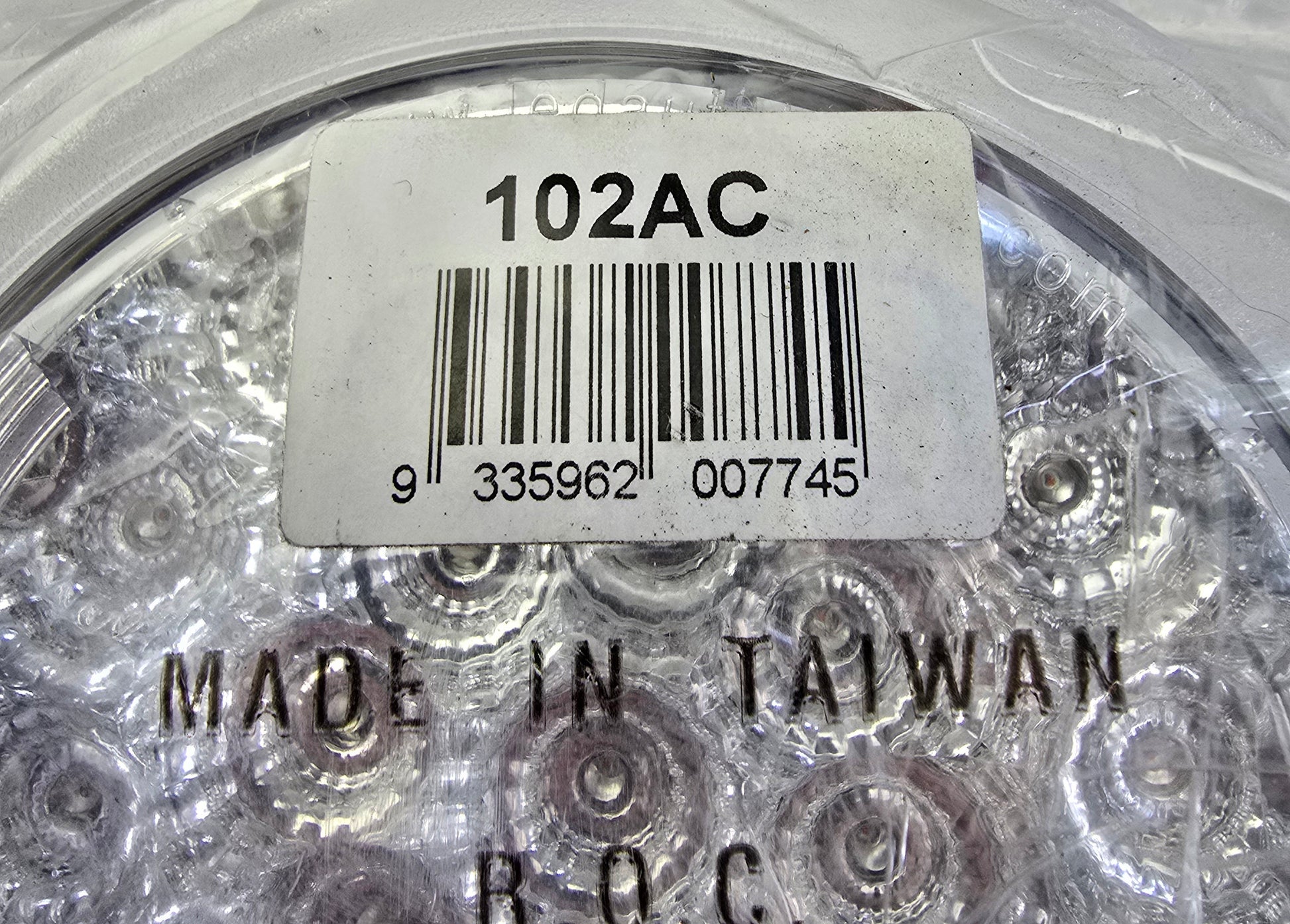

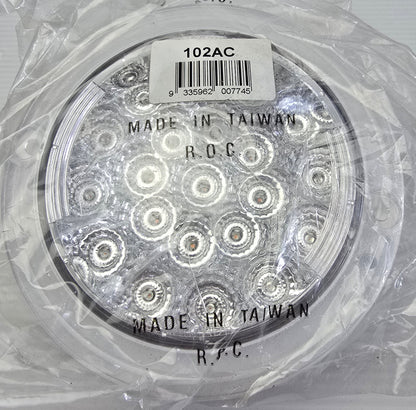

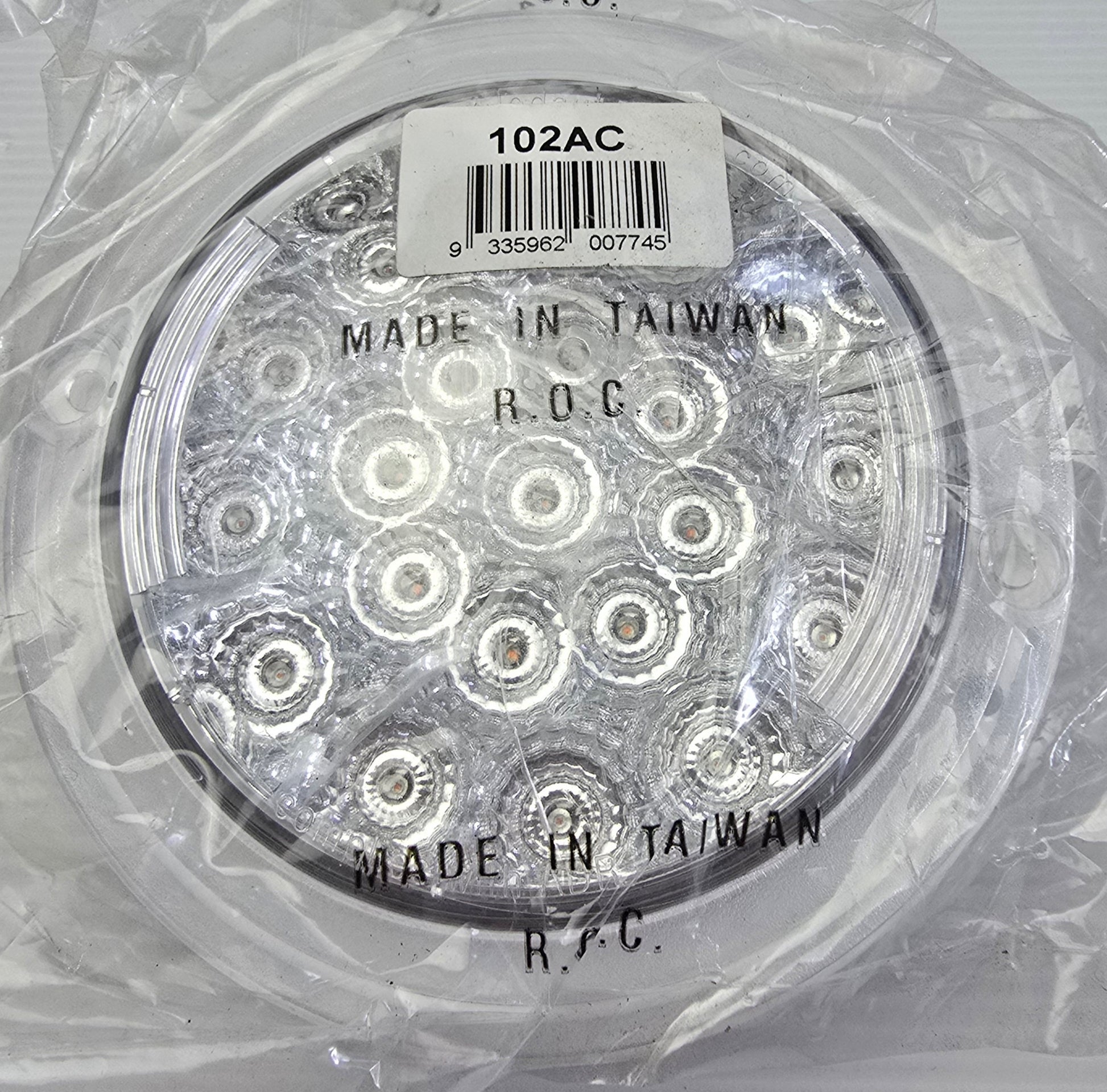

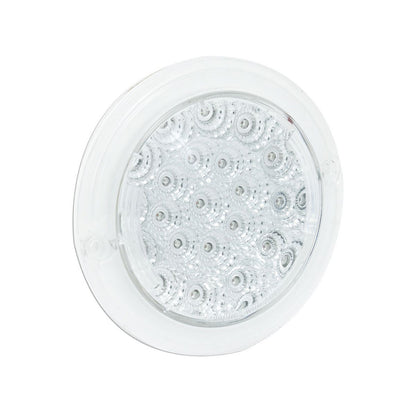

Brand: LED Autolamps Model: 102AC Series: 102 Series Type: Round LED Indicator Lamp Voltage: 12V DC LED Quantity: 21 Lens Colour: Clear LED Colour: Amber Mounting Type: Low Profile Recessed Mount Mounting Cut-out: Ø104 mm Dimensions: Ø130 mm × 12 mm Cable Length: 36 cm with Spade Terminals Current Draw: 0.29 A @ 13.8 V Housing Material: Sealed Polycarbonate Lens and ABS Base IP Rating: IP67 (Waterproof and Dustproof) Approvals: ADR Approved 6/00 Category 2a, CRN 42832 Warranty: 5 Years Condition: New Country of Origin: Taiwan (R.O.C.) HS Code: 851220 EAN: 9335962007745 Weight: 150 g (approx.)

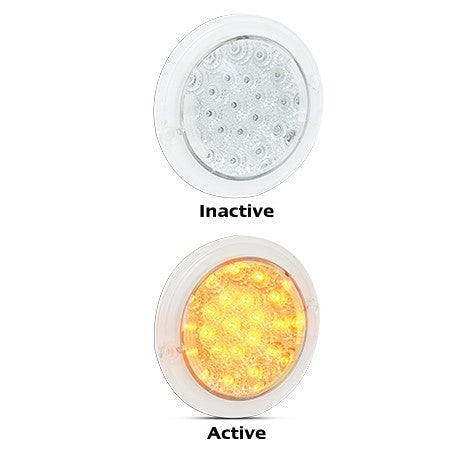

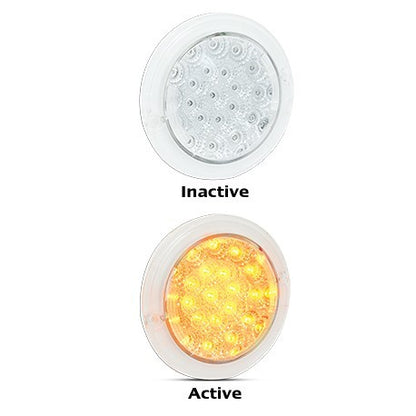

Features: • Clear lens with amber LED output • Low-profile design ideal for modern trailers and vehicles • Fully sealed to IP67 for maximum protection against water and dust • ADR compliant for road use in Australia • Easy recessed mounting using supplied gasket • Reliable long-life LEDs for maintenance-free operation

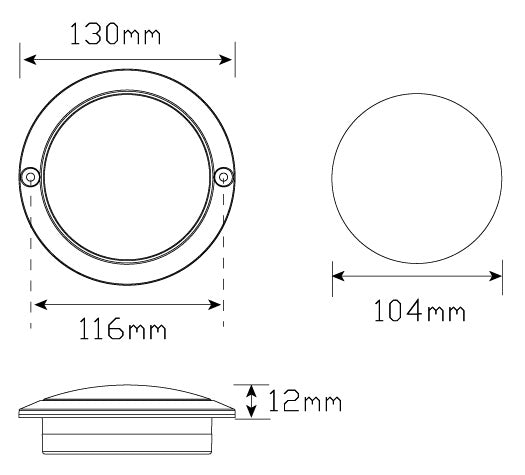

💡 Installation Note: Fit into a 104 mm round cutout using the stick-on gasket between the lamp and mounting surface. Run wires through the rear. Refer to ADR 13/00 for mounting height and position requirements.
