Kramer TP-580TXR 4K60 HDMI HDBaseT Transmitter RS-232 IR 100m (NEW In Box)

The Kramer TP-580TXR is a 4K60 4:2:0 HDMI HDCP 2.2 transmitter that sends video, RS-232 and IR over extended-reach HDBaseT. Kramer part number 50-80021190. It takes one HDMI source and drives a single twisted pair cable to a matching Kramer HDBaseT receiver, so long display runs use structured cabling instead of an HDMI cable.

The transmitter supports 4K at 60 Hz in 4:2:0 at 24 bits per pixel, is HDMI 2.0 and HDCP 2.2 compliant and HDBaseT 1.0 compliant, with bandwidth up to 10.2 Gbps, or 3.4 Gbps per graphic channel. Reach is 100 m at 4K60 4:2:0, 130 m at 1080p60 36bpp, and up to 180 m in HDBaseT ultra mode at 1080p60 24bpp. Control travels on the same cable, with bidirectional RS-232 on a 9-pin D-sub at 300 to 115200 baud and bidirectional IR on a 3.5 mm mini jack. Connections are one HDMI input, one HDBaseT RJ-45 output, the IR jack and the RS-232 D-sub. Power is 12 VDC at 280 mA from the supplied 12 VDC 2 A adapter. The unit measures 120.0 x 71.5 x 24.4 mm and weighs 0.2 kg net.

Specifications

Brand: Kramer

Model: TP-580TXR

Part Number: TP-580TXR

Alternate Part Number: 50-80021190

Product Type: HDMI to HDBaseT transmitter

Maximum Resolution: 4K at 60 Hz 4:2:0, 24bpp

Standards: HDMI 2.0, HDCP 2.2, HDBaseT 1.0

Bandwidth: Up to 10.2 Gbps, 3.4 Gbps per graphic channel

Transmission Distance: 100 m at 4K60 4:2:0, 130 m at 1080p60 36bpp, 180 m in HDBaseT ultra mode at 1080p60 24bpp

Control: Bidirectional RS-232 on 9-pin D-sub, 300 to 115200 baud; bidirectional IR on 3.5 mm mini jack

Connectors: 1 x HDMI input, 1 x HDBaseT RJ-45 output, 1 x IR 3.5 mm, 1 x RS-232 9-pin D-sub

Power: 12 VDC at 280 mA, supplied 12 VDC 2 A adapter

Dimensions: 120.0 mm W x 71.5 mm D x 24.4 mm H

Weight: 0.2 kg net

Barcode: 7291063051662

Country of Origin: Israel

Condition: New in box

Key Features

• Extended reach to 100 m at 4K60 and up to 180 m at 1080p in ultra mode
• HDCP 2.2 compliant with HDMI 2.0 support
• RS-232 and IR control carried over the same twisted pair cable
• Compact DigiTools chassis for concealed mounting
• Supplied with its own 12 VDC power adapter

Typical Applications

• Long-run display and projector feeds in auditoriums and lecture theatres
• Boardroom and conference room AV systems
• Digital signage across large retail and transport sites
• Houses of worship and event venues

Package Includes

• 1 x Kramer TP-580TXR transmitter

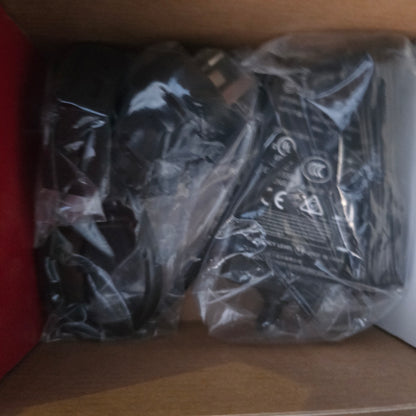

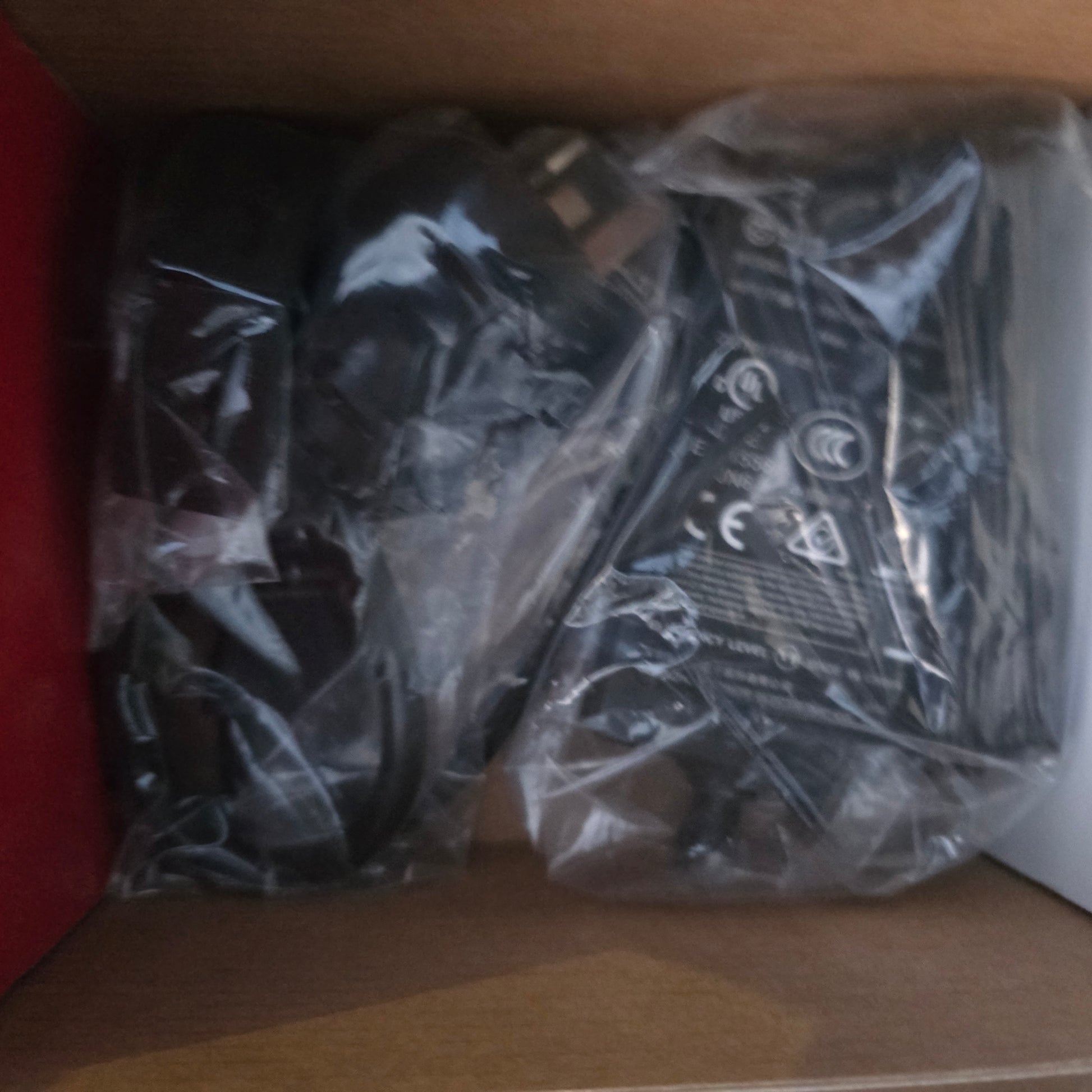

• 1 x power adapter, sealed in its own bag
• Original Kramer box with factory foam insert

A matching HDBaseT receiver and twisted pair cabling are not included.

Additional Information

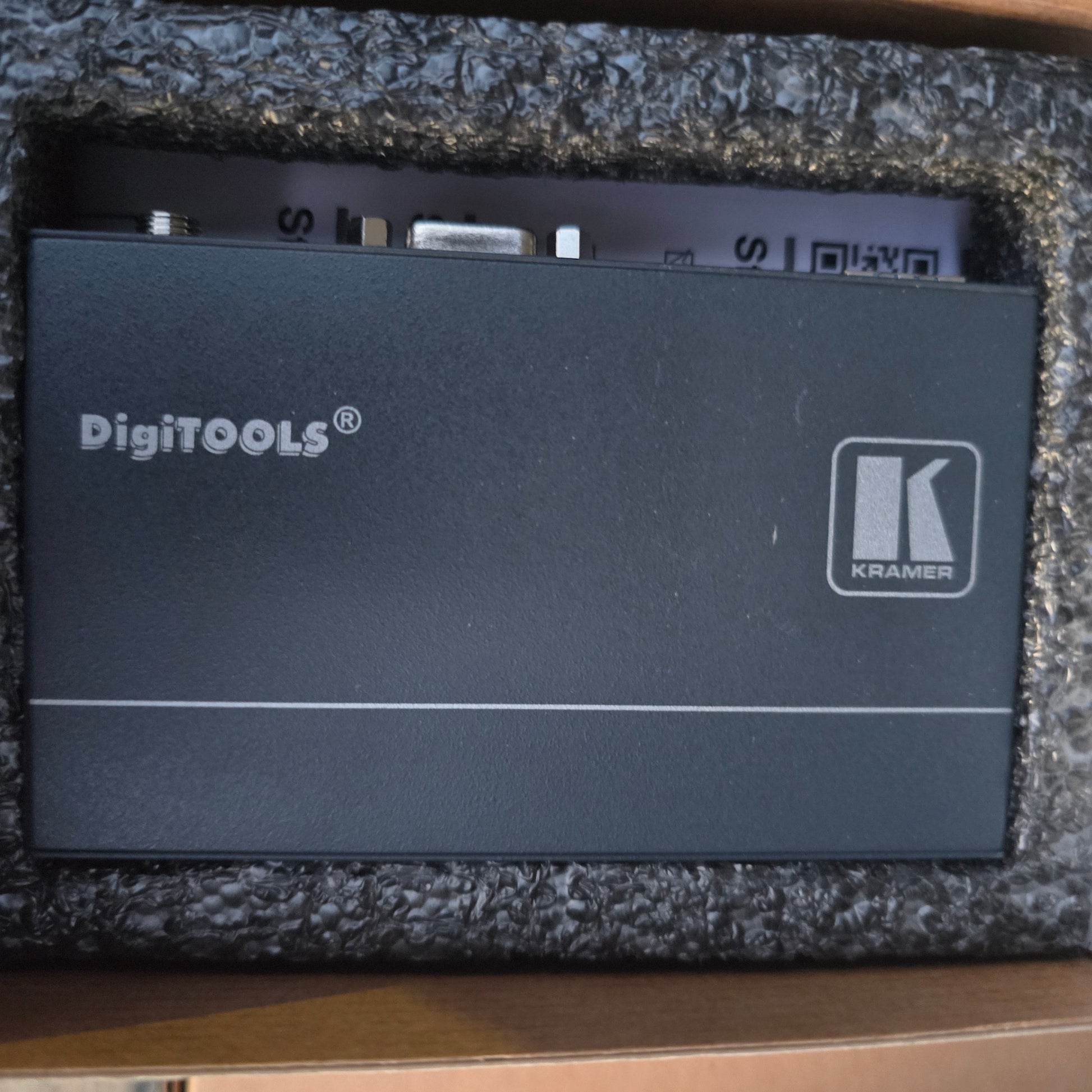

The chassis carries the Kramer logo alongside the DigiTools wordmark; DigiTools is a Kramer product line. This model does not pass HDR.

The item is new in the manufacturer's original packaging, opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
