Kramer PT-871/2XR-KIT 4K HDR HDMI PoC Extender Kit DGKat 2.0 (NEW In Box)

The Kramer PT-871/2XR-KIT is a compact 4K HDR HDMI extender kit that runs over long-reach DGKat 2.0. The kit contains the PT-871xr transmitter and the PT-872xr receiver as a matched pair, so a single shielded twisted pair cable replaces a long HDMI run between a source and a remote display. Kramer part number 50-80389390.

The pair carries up to 4096x2160 at 60 Hz in 4:4:4 at 24 bits per pixel, and 3840x2160 at 60 Hz 4:4:4, with HDMI 2.0 and HDCP 2.2 support and bandwidth up to 18 Gbps, or 6 Gbps per graphic channel. Reach is up to 60 m at 4K60 4:4:4 and up to 70 m at 4K30 4:4:4 over shielded Kramer UNIKAT or plenum HDKat cable. Two-way PoC means either unit can power the link, so only one mains outlet is needed for the pair. Connectors are HDMI female in and out and an RJ-45 female DGKat line connector on each unit, with a power draw of 600 mA. Each unit measures 62.2 x 51.8 x 24.4 mm and weighs approximately 0.2 kg.

Specifications

Brand: Kramer

Model: PT-871/2XR-KIT, comprising PT-871xr transmitter and PT-872xr receiver

Part Number: PT-871/2XR-KIT

Alternate Part Number: 50-80389390

Product Type: HDMI extender kit over DGKat 2.0

Maximum Resolution: 4096x2160 at 60 Hz 4:4:4 24bpp, 3840x2160 at 60 Hz 4:4:4

Standards: HDMI 2.0, HDCP 2.2

Bandwidth: Up to 18 Gbps, 6 Gbps per graphic channel

Transmission Distance: Up to 60 m at 4K60 4:4:4, up to 70 m at 4K30 4:4:4 over shielded UNIKAT or HDKat cable

Power: Two-way PoC, either unit can power the link; 600 mA consumption

Connectors: HDMI female in and out, RJ-45 female DGKat line

Dimensions: 62.2 mm W x 51.8 mm D x 24.4 mm H per unit

Weight: Approximately 0.2 kg per unit

Barcode: 7291063086459

Country of Origin: Israel

Condition: New in box

Key Features

• Matched transmitter and receiver pair supplied as one kit
• Full 4K60 4:4:4 at 18 Gbps with HDCP 2.2
• Two-way PoC, so power can be applied at whichever end is convenient
• Very compact chassis that hides behind a display or under a desk
• Long reach over a single shielded twisted pair cable

Typical Applications

• Meeting room and boardroom display extension
• Digital signage in retail and hospitality
• Classroom and lecture theatre projector feeds
• Residential and commercial media distribution

Package Includes

• 1 x Kramer PT-871xr transmitter
• 1 x Kramer PT-872xr receiver
• 1 x power adapter
• Kramer quick start guide
• Original Kramer box with factory foam insert

DGKat cabling is not included.

Additional Information

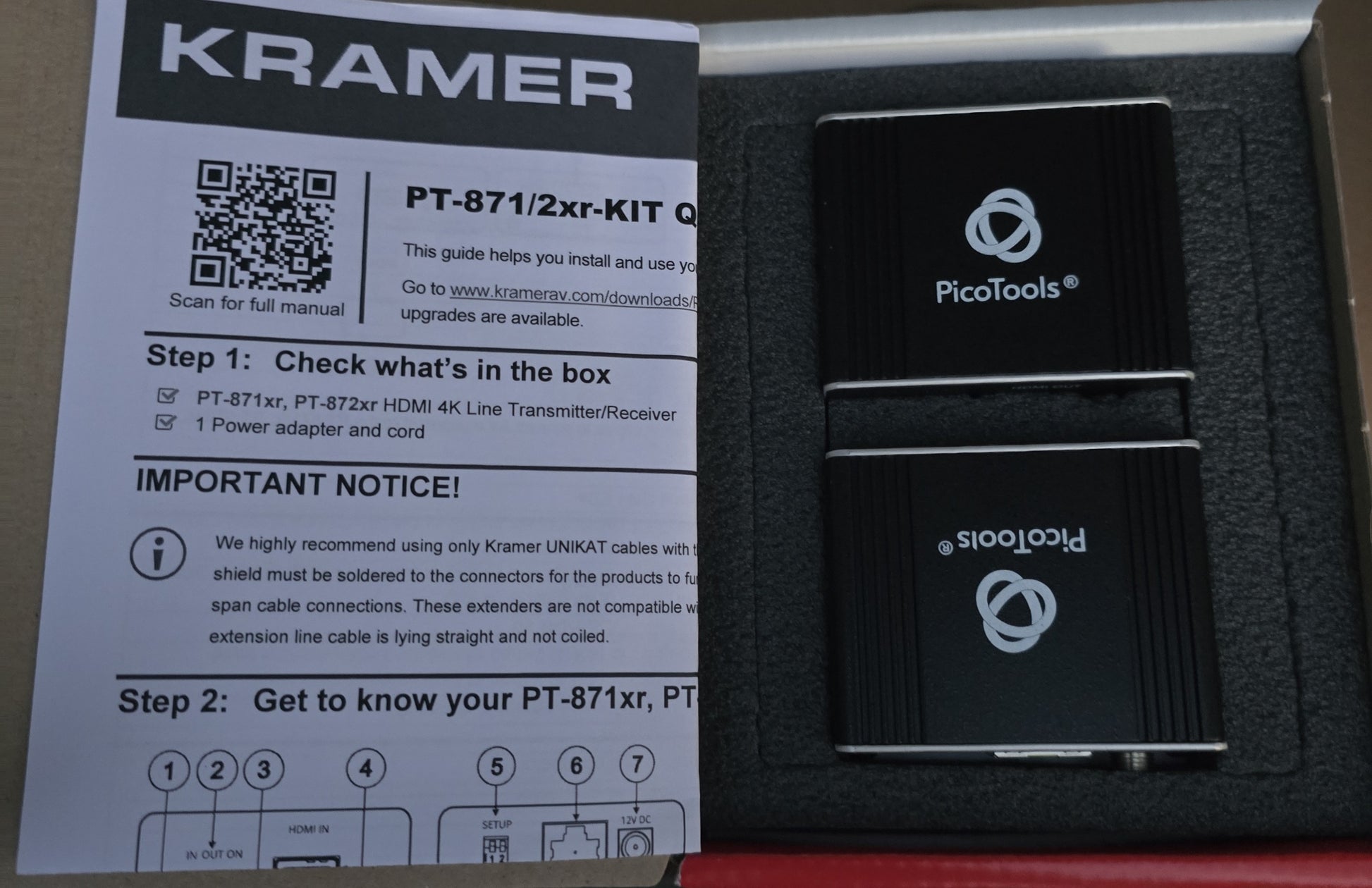

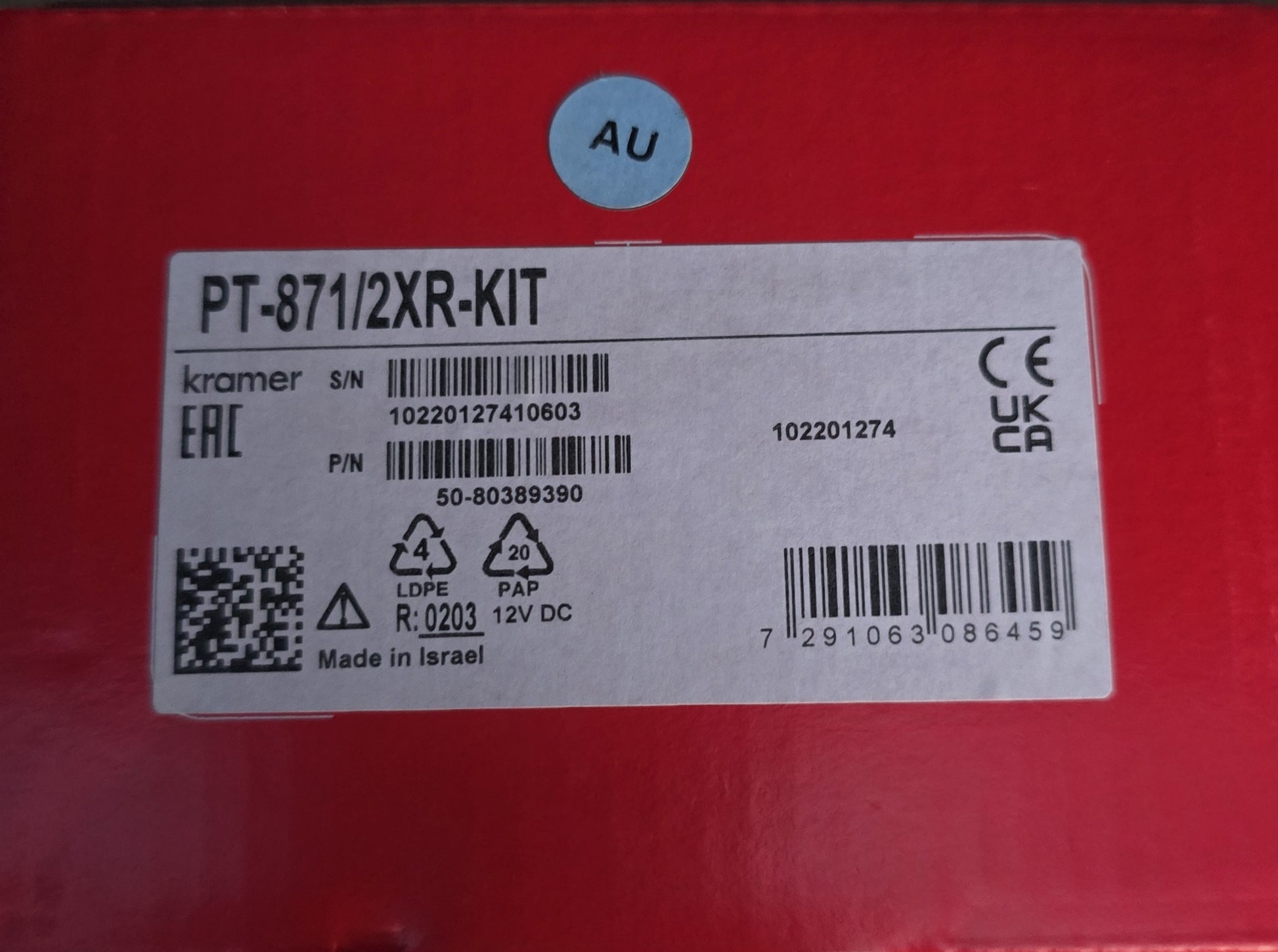

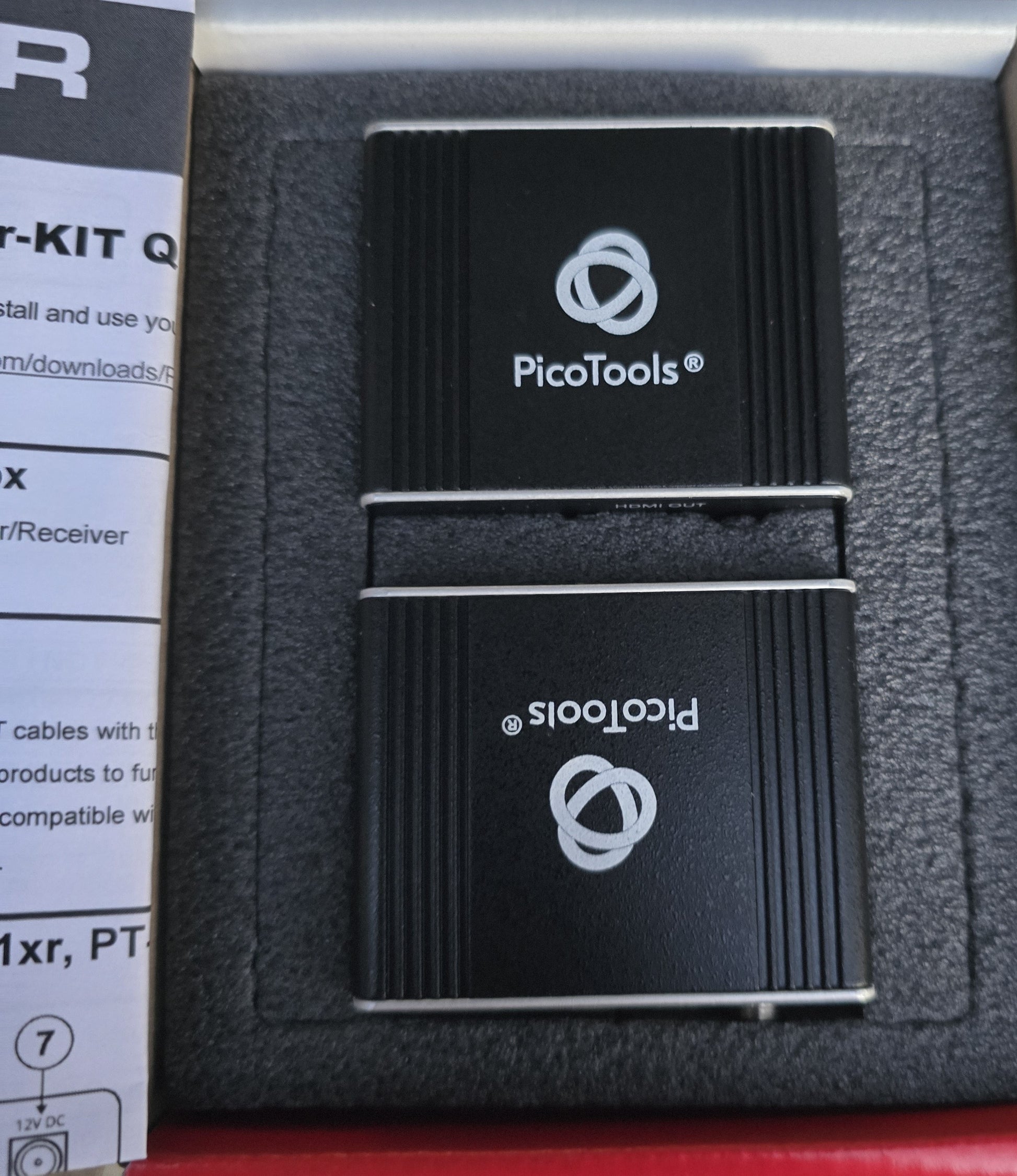

The two units are branded PicoTools on their top face while the outer box carries Kramer branding and the Kramer part number; PicoTools is a Kramer product line. Both markings are shown in the listing photographs.

The item is new in the manufacturer's original packaging, opened for photography and verification. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
