Konftel 900102149 OCC Hub One Cable Connection USB HDMI Hub (NEW In Box)

The Konftel OCC Hub is the One Cable Connection hub from Konftel's video collaboration range. It stays permanently installed in a meeting room, wired to the room camera, the speakerphone and the display. A person walking in with a laptop plugs in one single USB cable and immediately has the camera, the microphone and speaker, and the room screen available to whatever conferencing application they are running. That is the whole idea: one cable at the table instead of three.

The hub takes a USB 3.0 connection from the laptop and fans it out to two USB 2.0 ports for the camera and speakerphone plus an HDMI output for the room display, driving up to 2048 x 1152. The HDMI output is carried over USB using DisplayLink, so the DisplayLink driver must be installed on the connecting laptop. The hub is mains powered from its own supply and does not draw from the laptop.

Specifications

Brand: Konftel

Model: OCC Hub

Part Number: 900102149

Alternate Part Number: OCC Hub

Product Type: One Cable Connection meeting room hub

Host Port: 1 x USB 3.0 to laptop

Peripheral Ports: 2 x USB 2.0 for camera and speakerphone

Video Output: 1 x HDMI

Maximum Video Resolution: 2048 x 1152, 16 bit and 32 bit colour

Driver: DisplayLink required on the host computer

Power: Mains powered, AC adapter 100 to 240 V in, 5 V DC 4 A out

Dimensions: Approximately 182 mm x 78 mm x 32 mm

Net Weight: Approximately 370 g

Gross Weight: 1.045 kg with cables and power supply

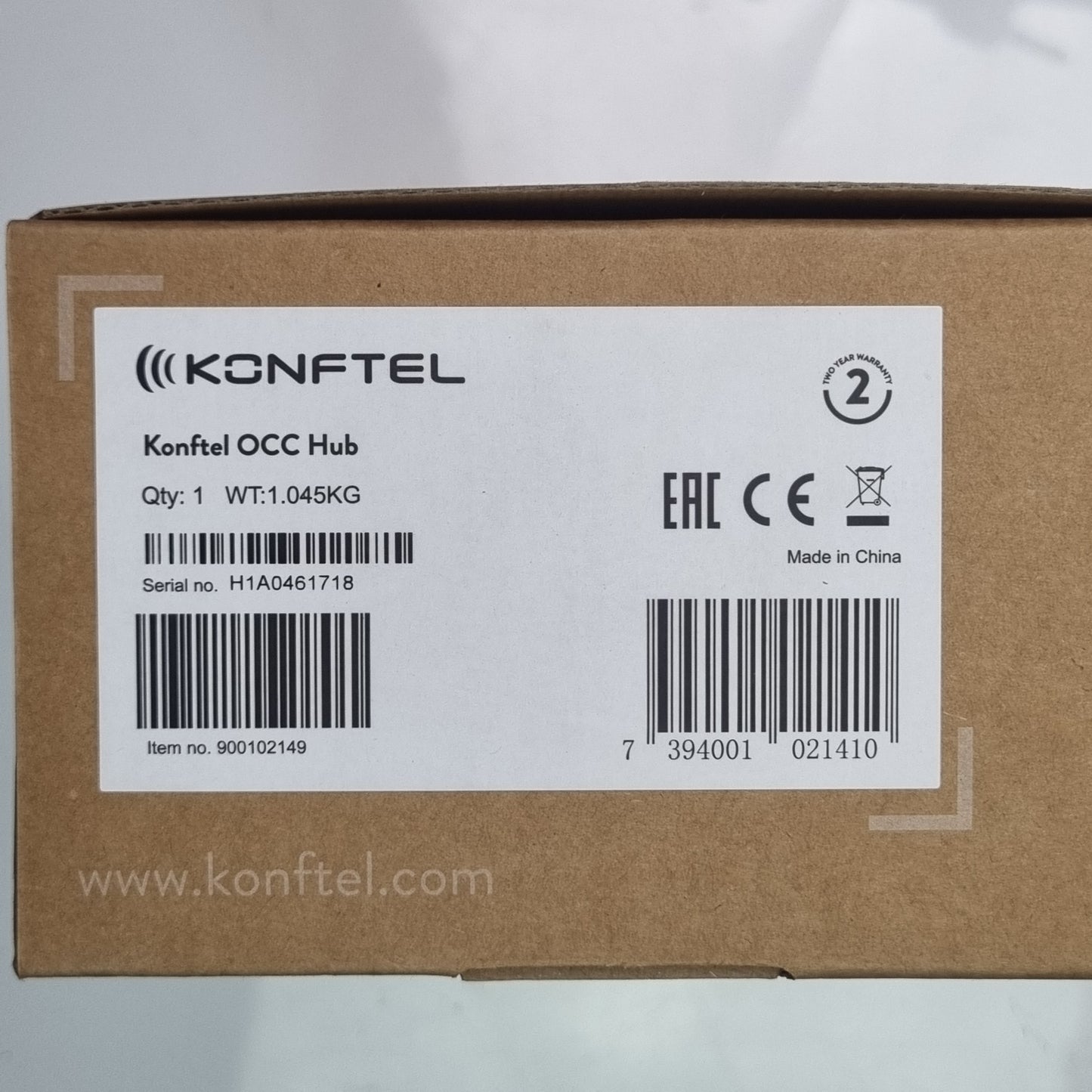

Warranty Marking: 2 year, as printed on the carton

Serial Number: H1A0461718

Barcode: 7394001021410

Country of Origin: China

Condition: New, in the original box

Key Features

• One USB cable to the laptop carries camera, audio and the room display
• Three USB cables supplied, 5 m, 5 m and 3 m, enough to reach around a room
• HDMI output to the room screen at up to 2048 x 1152
• Mains powered, so it does not load the laptop USB port
• Velcro mounting tape supplied for fixing under a table or behind a screen
• Platform agnostic, works with any conferencing application

Typical Applications

• Bring your own device meeting rooms and huddle spaces
• Tidying a table that currently has three separate cables on it
• Rebuilding a Konftel C5055Wx, C50300 or similar room kit
• Guest and contractor laptops that need instant room access

Package Includes

• 1 x Konftel OCC Hub
• 3 x USB cables, 5 m, 5 m and 3 m
• 1 x AC adapter with interchangeable plug heads
• 1 x Velcro mounting tape
• 1 x quick guide and safety information
• No HDMI cable is included
• No camera, speakerphone or display is included

Additional Information

This hub came from a Konftel C5055Wx video collaboration kit, which is also listed separately in our store together with the Konftel Cam50 camera and 55Wx speakerphone from the same kit. Please order only the listing that matches what you need.

The DisplayLink driver is a free download and must be installed on the connecting computer before the HDMI output will work. USB audio and video pass through without a driver.

The Konftel OCC Hub is discontinued and Konftel has not published a direct replacement. Its function is folded into the newer Konftel 70 and Cam20 room architecture.

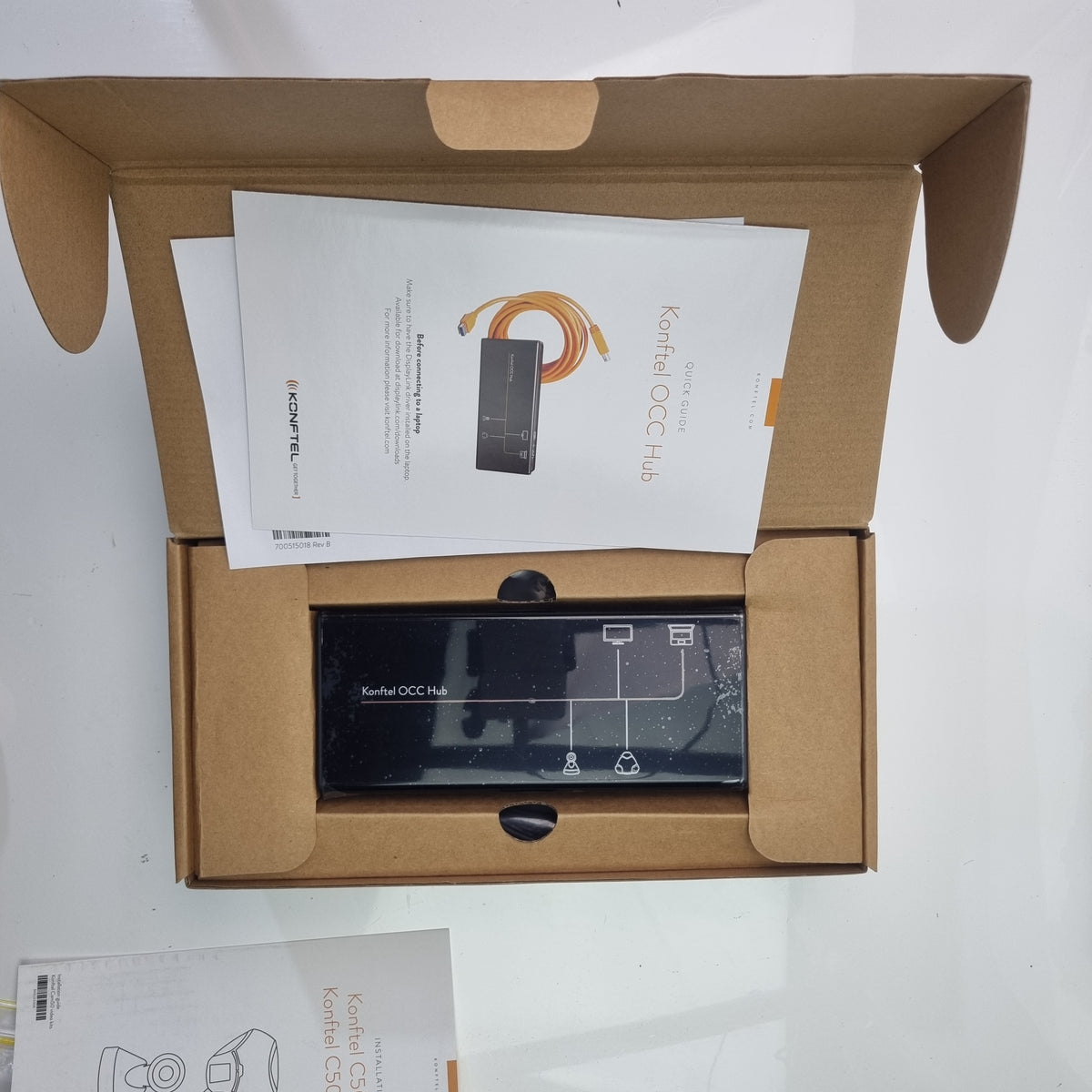

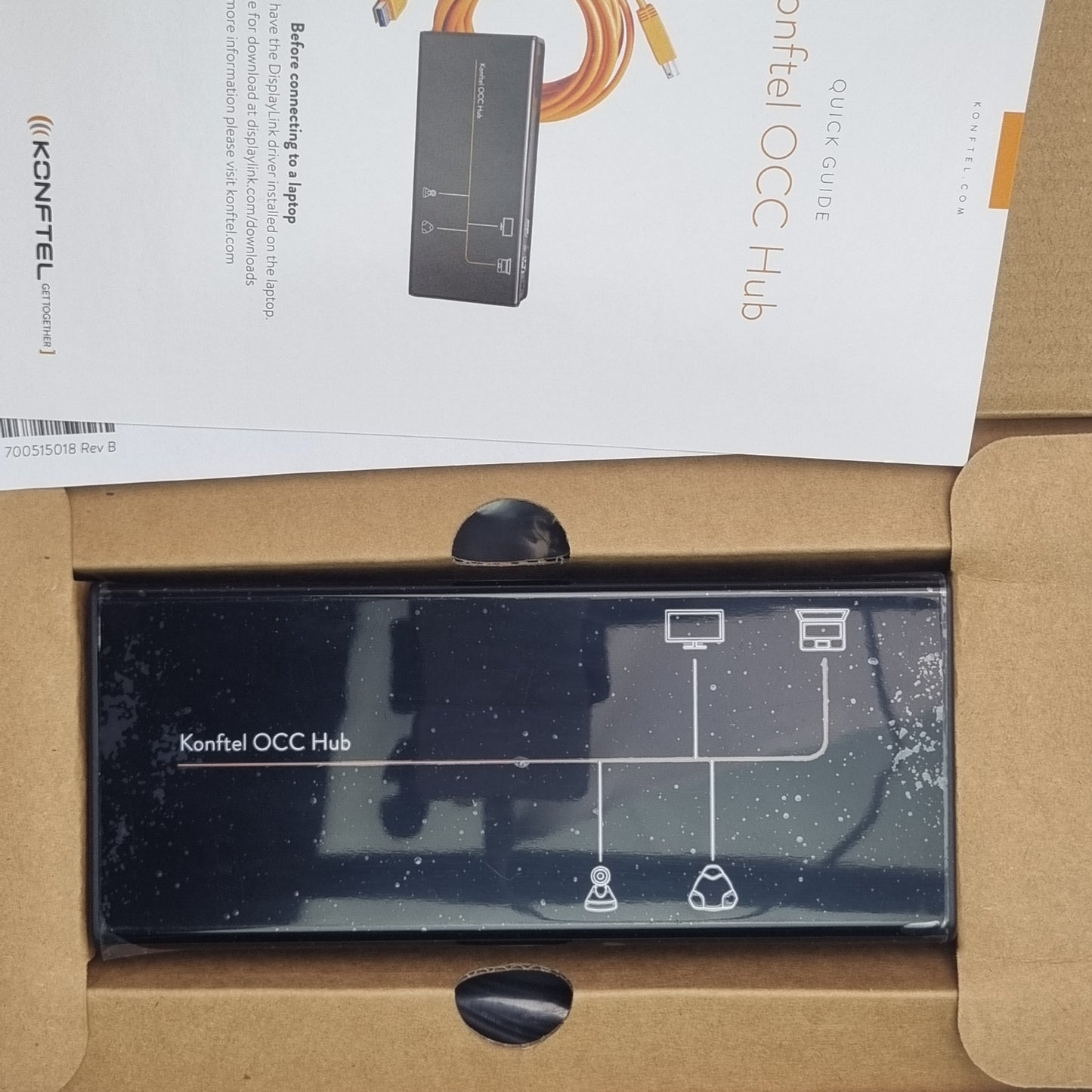

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
