JONSA-ELLIES BPAS2 2 Way TV Signal Splitter FTA Split TV Signal (NEW Sealed)

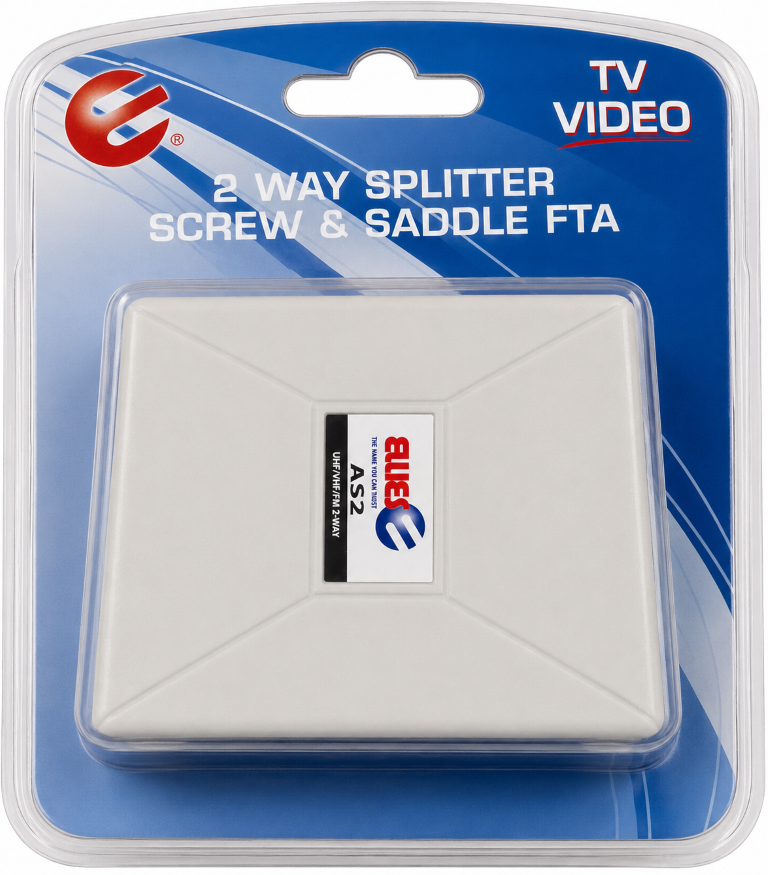

JONSA Ellies BPAS2 2 Way TV Signal Splitter

The JONSA Ellies BPAS2 is a 2-way television signal splitter designed for Free-to-Air (FTA) and RF signal distribution systems. It allows a single incoming television signal to be distributed to two separate outlets while maintaining reliable signal quality for residential and commercial installations.

Featuring screw and saddle terminations and a shielded metal housing, the BPAS2 provides secure connections and helps minimise signal interference, making it suitable for antenna, television, and RF distribution applications.

Supplied new and sealed.

Specifications

Brand: JONSA / Ellies
Model: BPAS2
Part Number: BPAS2
Product Type: TV Signal Splitter
Configuration: 2 Way Splitter
Input Connections: 1
Output Connections: 2
Connection Type: Screw and Saddle
Frequency Range: 5–1000 MHz
Impedance: 75 Ohm
Insertion Loss: ≤ 4 dB
Return Loss: ≥ 10 dB
Housing Material: Shielded Metal Enclosure
Mounting Type: Inline or Wall Mounted
Application: Free-to-Air TV and RF Signal Distribution
Condition: New (Sealed)
Country of Origin: China

Key Features

• Genuine JONSA Ellies splitter
• Splits one TV signal into two outputs
• Suitable for Free-to-Air television systems
• Screw and saddle cable terminations
• Wide 5–1000 MHz frequency range
• Low insertion loss design
• Shielded metal housing for reduced interference
• Suitable for residential and commercial installations

Typical Applications

• Free-to-Air TV systems
• Television antenna installations
• RF distribution networks
• Residential television systems
• Commercial TV installations
• Multi-room TV signal distribution

Package Includes

1 × JONSA Ellies BPAS2 2 Way TV Signal Splitter

Additional Information

HS Code: 85444290
Shipping from Sydney, Australia.
