IP-Enclosures IP-404020 IP66 Steel Enclosure 400x400x200 IK10 Grey (NEW In Box)

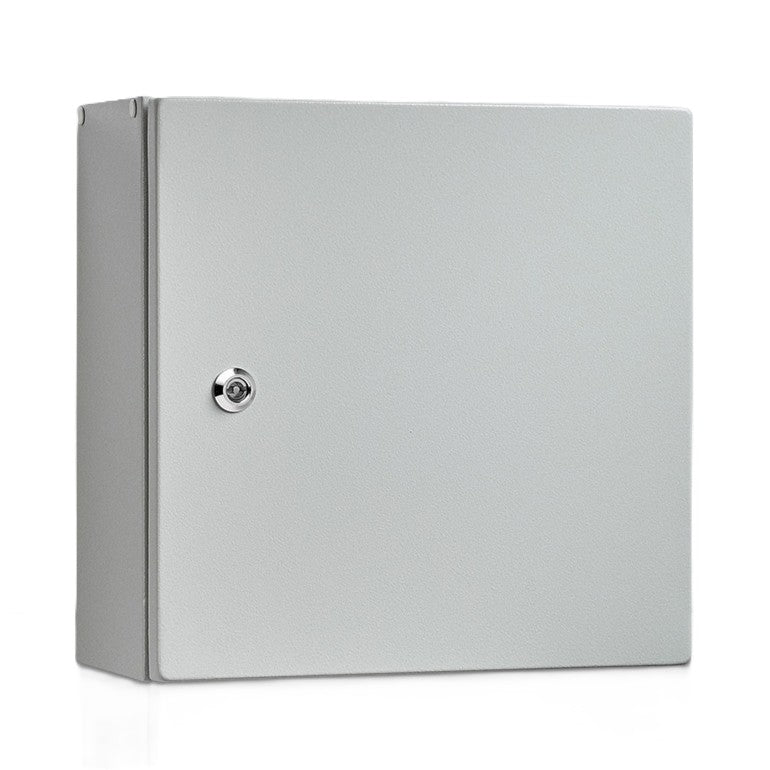

The IP Enclosures IP-404020 is a wall mount single door industrial electrical enclosure measuring 400 mm high by 400 mm wide by 200 mm deep. It is built for switchgear, control gear and instrumentation that has to survive dust, hose-down washing and impact, in plant rooms, workshops, food processing areas and outdoor installations. IP Enclosures designs in Australia and manufactures in Europe.

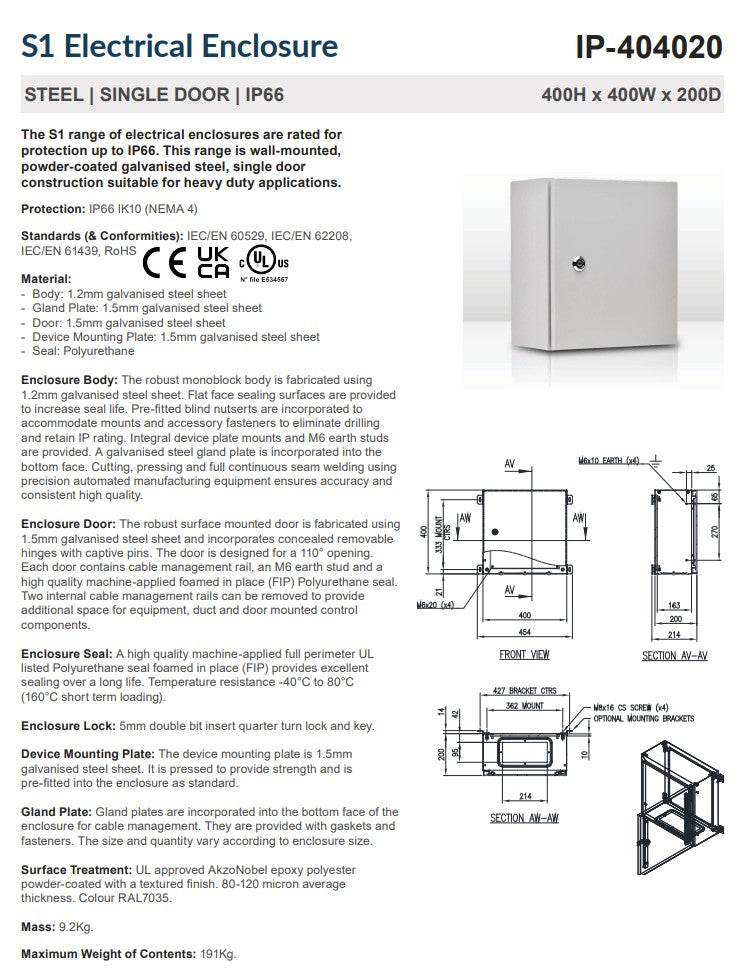

The body is 1.2 mm galvanised steel sheet, with a 1.5 mm galvanised steel door, gland plate and device mounting plate. The finish is a UL approved AkzoNobel epoxy-polyester textured powder coat in standard RAL 7035 grey. Sealing is by a machine applied foamed-in-place polyurethane gasket rated from -40 to +80 degrees C. The enclosure is rated IP66, IK10 and NEMA 4, and is built to IEC/EN 62208, IEC/EN/AS 60529 and IEC/EN 61439, with UL listing under file E534557 plus CE, UKCA and RoHS. The door opens to 110 degrees on a chrome 5 mm double-bit quarter-turn lock, and the body is supplied with pre-fitted blind nutserts, removable cable management rails and integral M6 earth studs.

Specifications

Brand: IP Enclosures

Model: IP-404020, model designation S1

Part Number: IP-404020

Product Type: Wall mount single door electrical enclosure

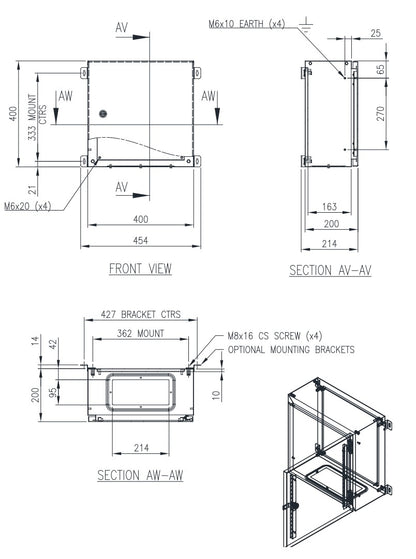

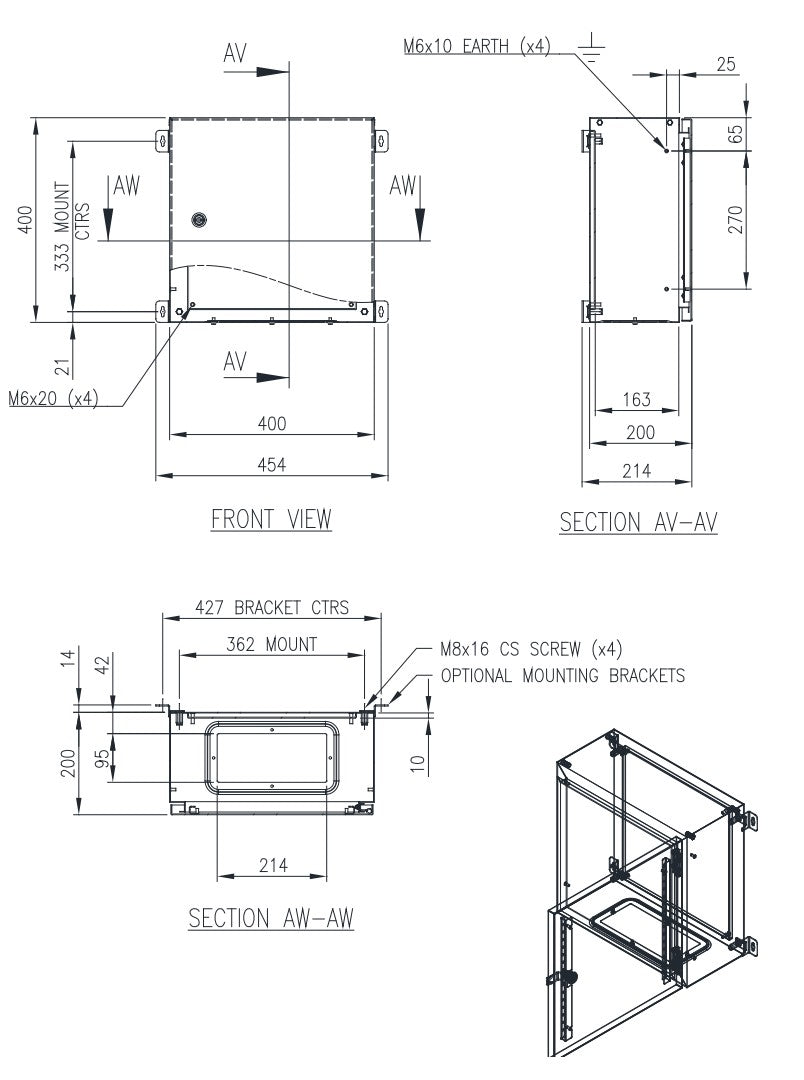

Dimensions: 400 mm H x 400 mm W x 200 mm D

Body Material: 1.2 mm galvanised steel sheet

Door, Gland Plate and Mounting Plate: 1.5 mm galvanised steel sheet

Finish: AkzoNobel epoxy-polyester textured powder coat, RAL 7035 grey

Sealing: Machine applied foamed-in-place polyurethane gasket, -40 to +80 degrees C

Ratings: IP66, IK10, NEMA 4

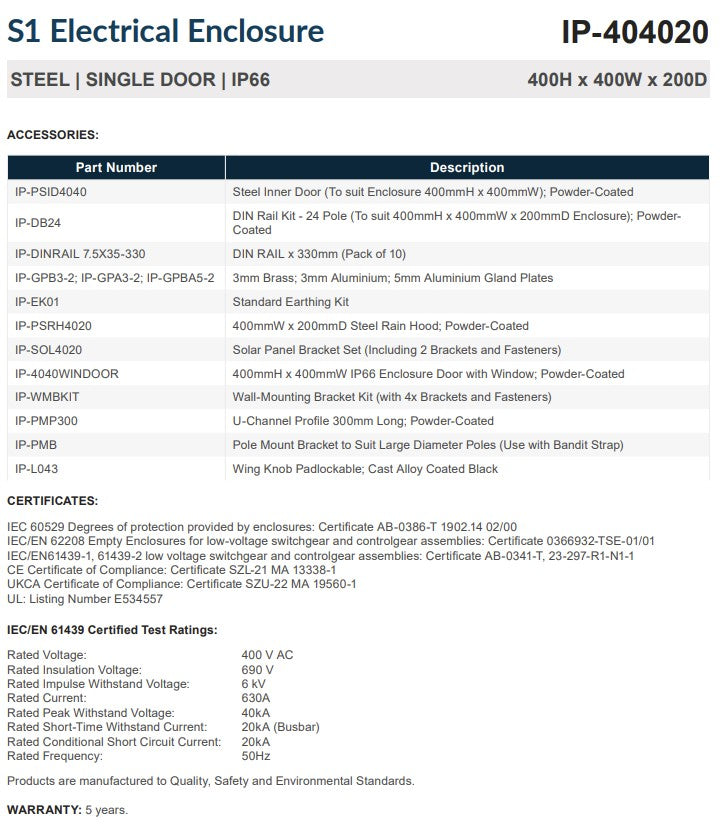

Standards: IEC/EN 62208, IEC/EN/AS 60529, IEC/EN 61439, UL file E534557, CE, UKCA, RoHS

Door: Opens 110 degrees, chrome 5 mm double-bit quarter-turn lock

Weight: 9 kg

Condition: New in box

Key Features

• IP66 dust tight and powerful water jet rated
• IK10 impact rating, the highest in the IEC scale
• Full galvanised steel construction under the powder coat for corrosion resistance
• Foamed-in-place gasket that seals reliably over a wide temperature range
• Device mounting plate, gland plate, cable management rails and earth studs supplied
• Pre-fitted blind nutserts so accessories bolt straight in

Typical Applications

• Industrial control and switchboard enclosures
• Plant rooms, workshops and pump stations
• Food and beverage processing areas subject to wash-down
• Outdoor and exposed electrical installations
• Water treatment and mining site instrumentation

Package Includes

• 1 x IP-404020 enclosure with door and lock
• 1 x device mounting plate
• 1 x gland plate with gaskets and fasteners
• Cable management rails
• M6 earth studs

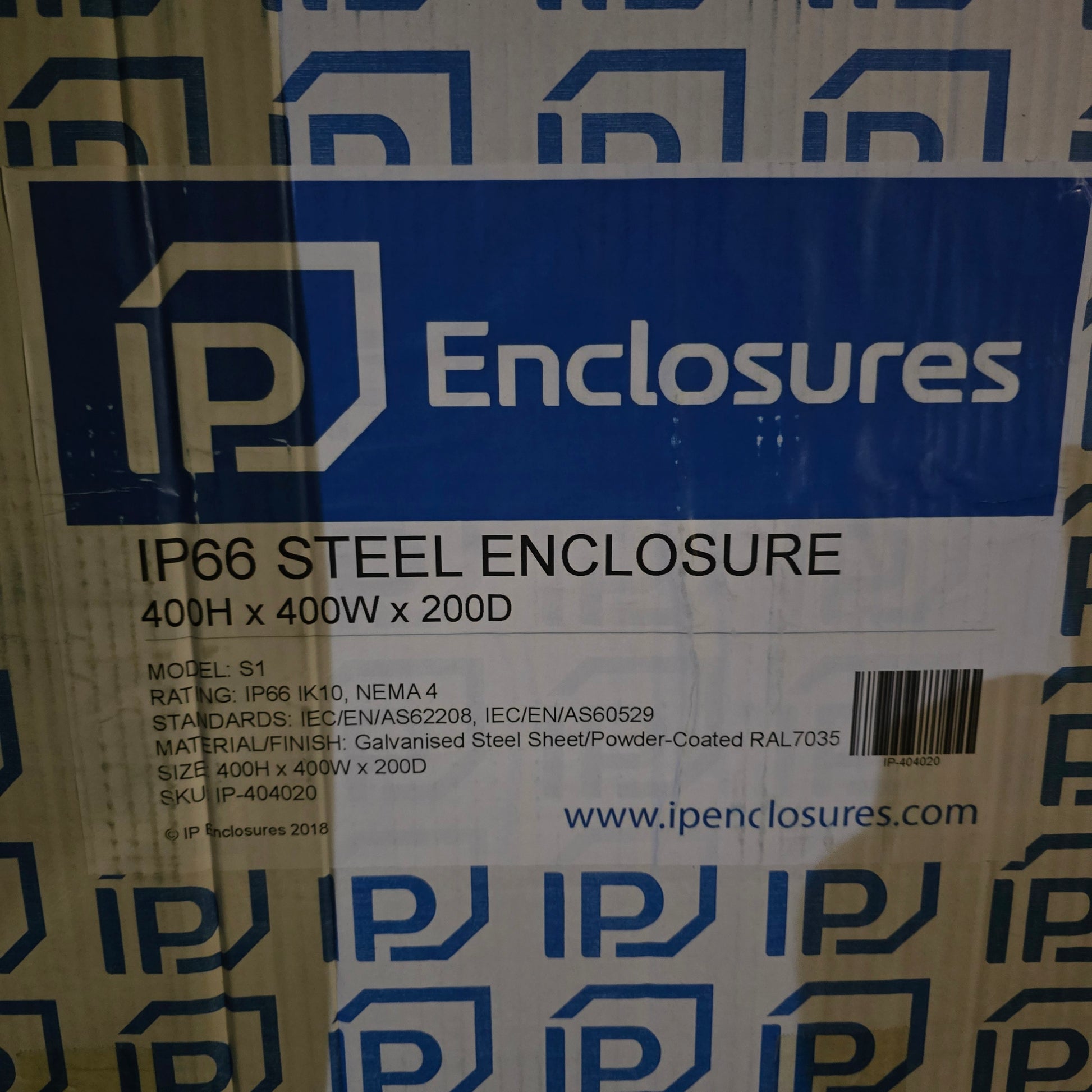

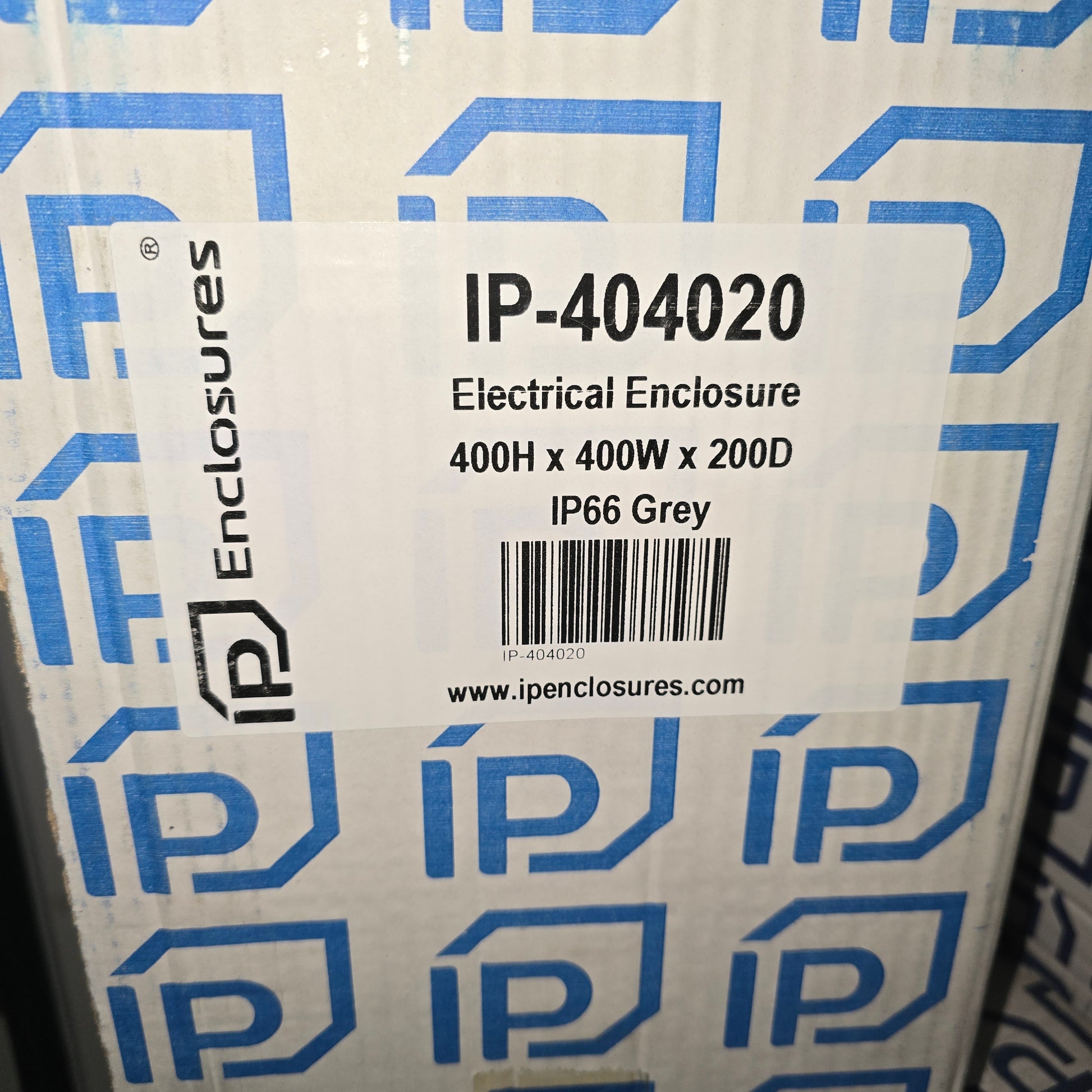

• Original IP Enclosures carton

Wall mounting brackets, cable glands and any electrical components are not included.

Additional Information

Ten units are available. The price shown is for one enclosure. Country of origin is stated by the manufacturer only as Europe, without a specific country, so it has been left unspecified for customs purposes. Installation should be carried out by a suitably qualified person.

The item is new in the manufacturer's original packaging. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
