Interlogix NX-4-BO-FG-DAS NetworX NX-4 Alarm Panel Board Only (NEW In Box)

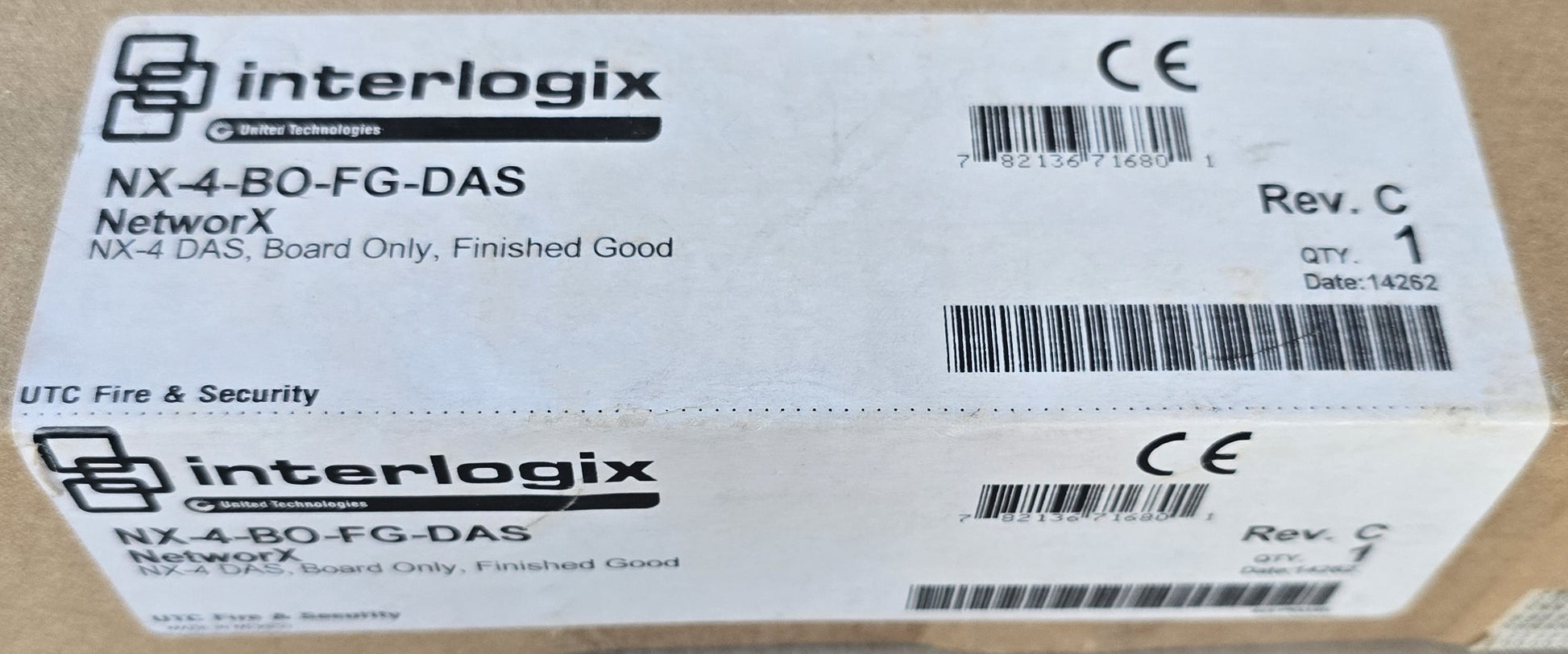

The Interlogix NetworX NX-4 is a hardwired intruder alarm control panel supplied here as a board only, part number NX-4-BO-FG-DAS. The suffix codes are spelled out on the carton label: BO means board only and FG means finished good. The DAS suffix denotes the Direct Alarm Supplies build, which is the Australian market version of the panel. NetworX panels were widely installed in Australia through the Hills and DAS channels and remain in service on many sites.

The NX-4 provides four hardwired zones on board, expandable to eight zones using hardwired or wireless expansion, with eight user codes and a 185 event history log recording date, time, event and user number. A two tone siren driver is built in, offering steady and yelp outputs, and up to 2.5 amps of alarm current is available where the siren driver is unused. Auxiliary current is 1 amp with the standard transformer.

Specifications

Brand: Interlogix

Model: NetworX NX-4

Part Number: NX-4-BO-FG-DAS

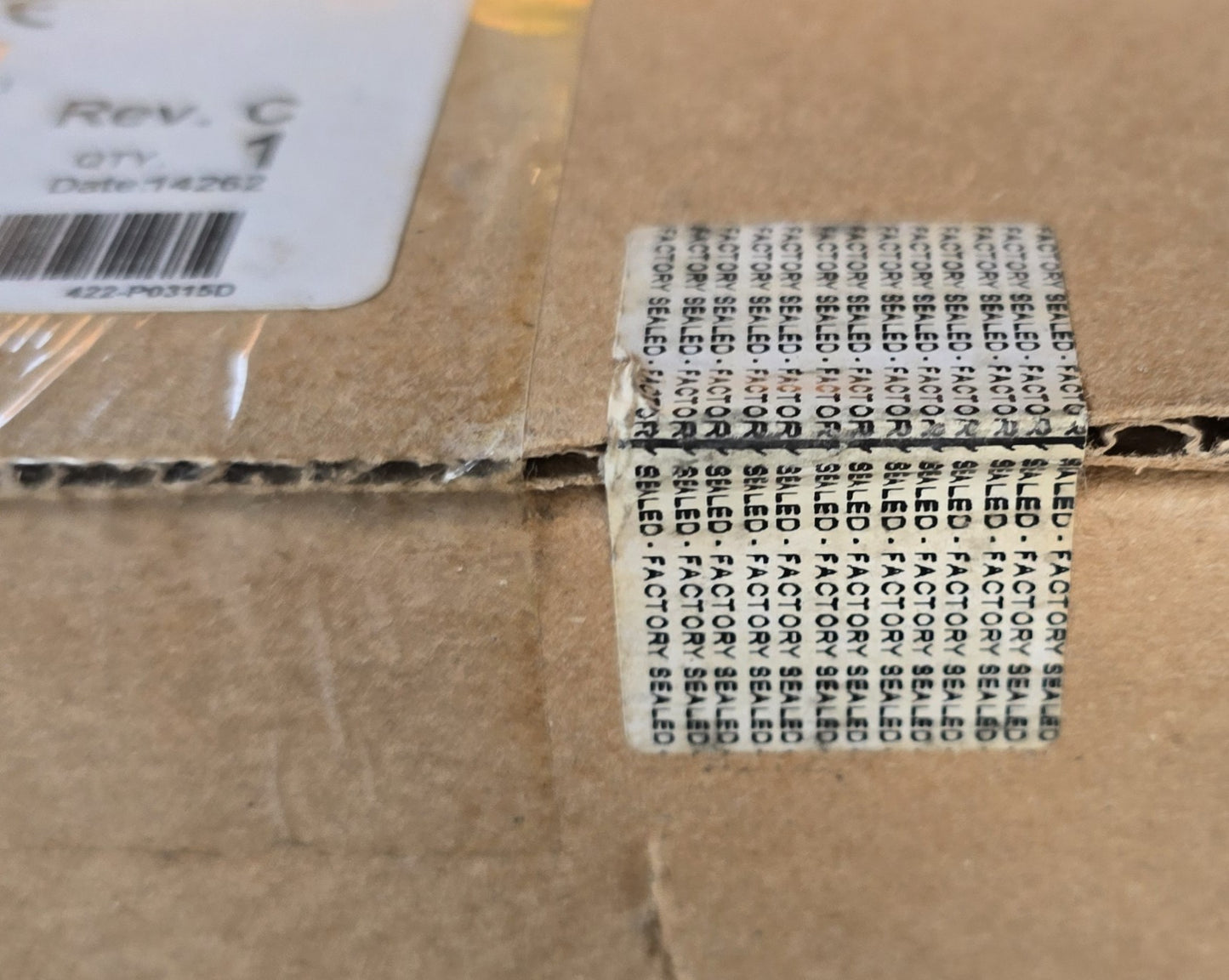

Alternate Part Number: 422-P0315D

Product Type: Hardwired intruder alarm control panel, printed circuit board only

Regional Variant: DAS, Direct Alarm Supplies, Australian market

Zones: 4 hardwired on board, expandable to 8

User Codes: 8

Event Log: 185 events with date, time, event and user number

Siren Driver: Built in two tone, steady and yelp

Alarm Current: Up to 2.5 A where the siren driver is unused

Auxiliary Current: 1 A with the standard transformer

Operating Temperature: 0 to 49 degrees C

Board Revision: Rev. C

Date Code: 14262, approximately 19 September 2014

Barcode: 782136716801

Condition: New old stock, board only, in original carton

Key Features

• Four zones on board, expandable to eight
• Eight user codes with a 185 event log
• Built in two tone siren driver
• Australian DAS market build
• Suits legacy Hills and DAS NetworX installations
• Battery lead harness attached

Typical Applications

• Replacement board for an existing NetworX NX-4 installation
• Servicing legacy Hills and DAS alarm systems in Australia
• Small residential and light commercial intruder alarm systems

Package Includes

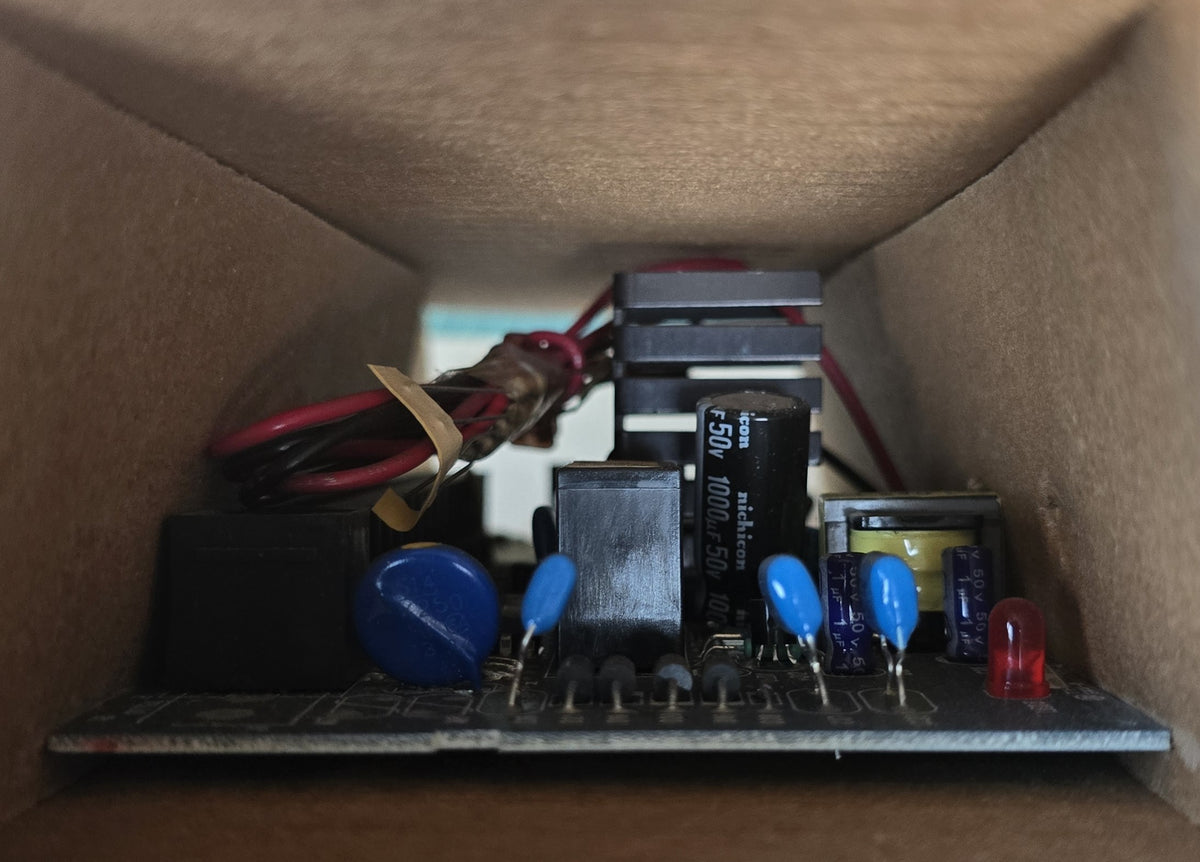

• One Interlogix NetworX NX-4 control panel printed circuit board

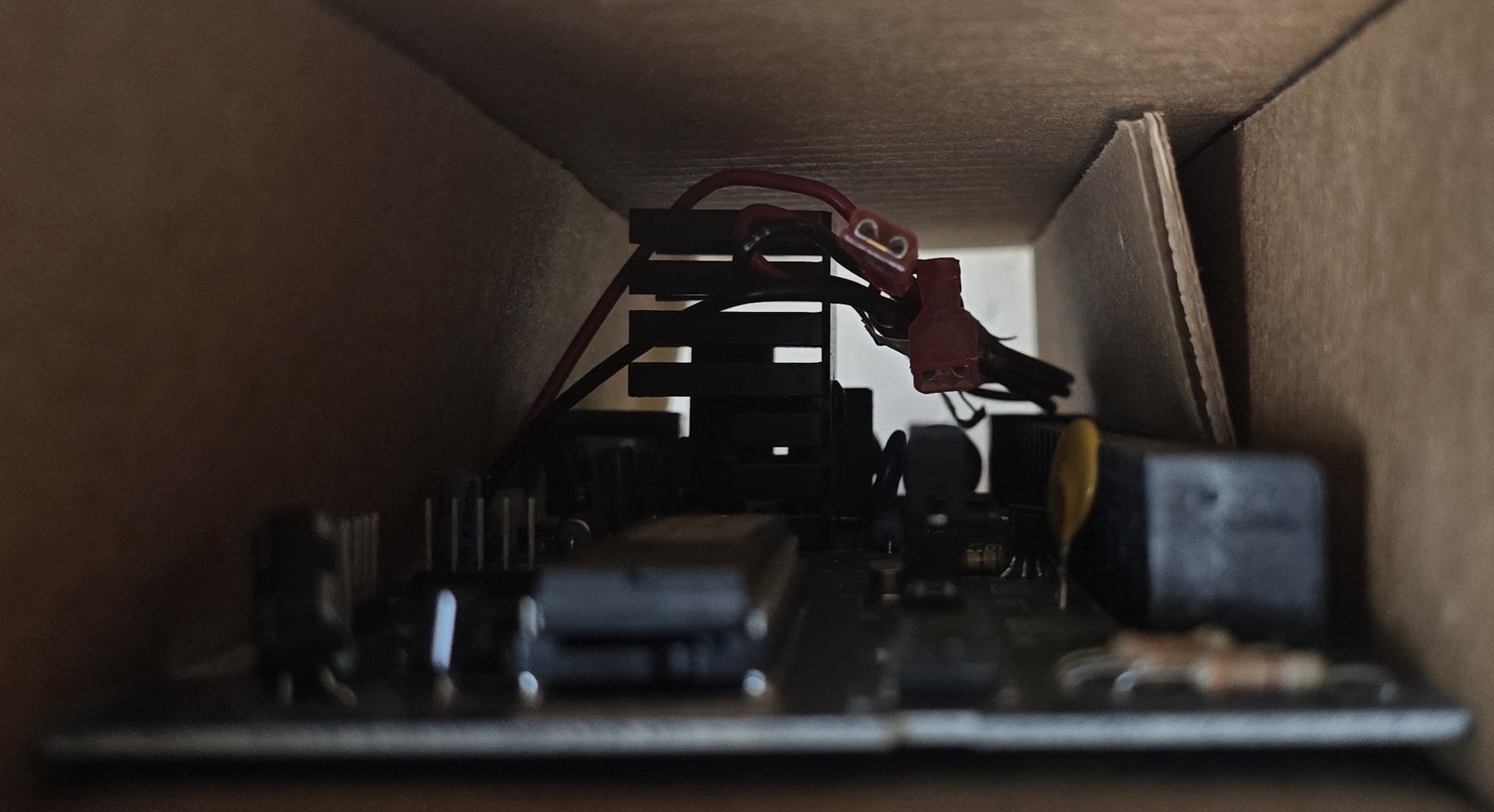

• Attached red and black battery lead harness with spade terminals
• Original manufacturer carton
• No keypad, transformer, battery, enclosure, end of line resistors or printed manual are included

Additional Information

Please read this before ordering. This is the control panel board only. A working system additionally requires a keypad, a plugpack or transformer, a standby battery, an enclosure and end of line resistors, none of which are supplied.

The board carries a manufacture date code of September 2014 and is new old stock that has been stored since. It has not been powered up or functionally tested.

Interlogix has ceased operations and the NetworX line is discontinued. No manufacturer warranty or technical support is available.

Published NX-4 figures for transformer rating and enclosure dimensions relate to the complete boxed kit sold in other markets and do not apply to this board only item. The Australian DAS build is powered from an Australian plugpack, which is not included.

No country of manufacture could be read from the carton label. The manufacture statement on the label is present but not legible in the photographs, so no country is declared here.

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
