Integriti 996012PCB&K SLAM Standard LAN Access Module Inner Range (New Opened)

The Integriti SLAM, or Standard LAN Access Module, is a two door access control module from Inner Range, designed and made in Australia. It connects to an Integriti or Inception controller over the RS-485 Integriti LAN and provides the reader interfaces, lock relays and door monitoring inputs for up to two doors. This listing is for the PCB and installation kit version, which mounts into an Inner Range enclosure supplied separately.

The module supports up to four Inner Range SIFER or third party OSDP readers over RS-485, giving an entry and an exit reader on each of the two doors, or up to two Wiegand or Clock and Data readers. It carries two lock relays rated 5 A at 30 V DC, two door open too long relays rated 1 A at 30 V DC, valid and invalid outputs, and monitored inputs for door reed, tongue sense, request to exit and request to enter on each door plus a cabinet tamper. An offline card cache holds 2000 users so doors keep working if the LAN drops. Module addressing is set on a DIP switch, with up to 99 modules on a controller LAN.

Specifications

Brand: Inner Range

Model: Integriti SLAM, Standard LAN Access Module

Part Number: 996012PCB&K

PCB Assembly Number: 936012_D

Product Type: Two door access control module, PCB and installation kit

Doors Supported: Up to 2

Reader Support: Up to 4 SIFER or OSDP readers over RS-485, or up to 2 Wiegand or Clock and Data readers

Wiegand Format: Up to 88 bits

Lock Relays: 2 x 5 A at 30 V DC

DOTL Relays: 2 x 1 A at 30 V DC

Additional Outputs: 2 x Valid, 2 x Invalid

Monitored Inputs: 2 x door reed, 2 x tongue sense, 2 x request to exit, 2 x request to enter, 1 x cabinet tamper

Offline Card Cache: 2000 users, expiry configurable from 1 hour to 4 months

Wireless Lock Integration: Assa Abloy Aperio, SimonsVoss, Salto Sallis

Operating Voltage: 11 to 14 V DC

Current Draw: 110 mA standby, 175 mA with both lock relays energised

Reader Output Protection: 250 mA self resetting, per reader

LAN: RS-485 Integriti LAN, not Ethernet. Module address 1 to 99 set by DIP switch, up to 99 modules per controller. IP connection is possible only through an Inner Range Ethernet Bridge or CLOE device, purchased separately

Controller Compatibility: Integriti and Inception. Integriti requires controller firmware V4 or later and Integriti software V4 or later

PCB Dimensions: 200 mm x 94 mm, allow 45 mm depth

Operating Environment: 0 to 70 degrees C, 15 to 90 percent relative humidity

Board Test Date: Factory tested and passed July 2022

Country of Manufacture: Australia

Condition: New, box opened

Key Features

• Two door access control from a single module
• OSDP and SIFER reader support over RS-485, or Wiegand and Clock and Data
• Two 5 A lock relays with separate lock power input
• Full door monitoring including tongue sense and request to enter
• 2000 user offline cache keeps doors operating if the LAN is lost
• Wireless lock integration for Aperio, SimonsVoss and Sallis
• Built in locator buzzer and DIP switch addressing
• Designed and made in Australia

Typical Applications

• Expanding an existing Integriti or Inception system by two doors
• Commercial office and tenancy access control
• Education, health and government sites running Integriti
• Retrofitting OSDP readers onto an existing Inner Range LAN

Package Includes

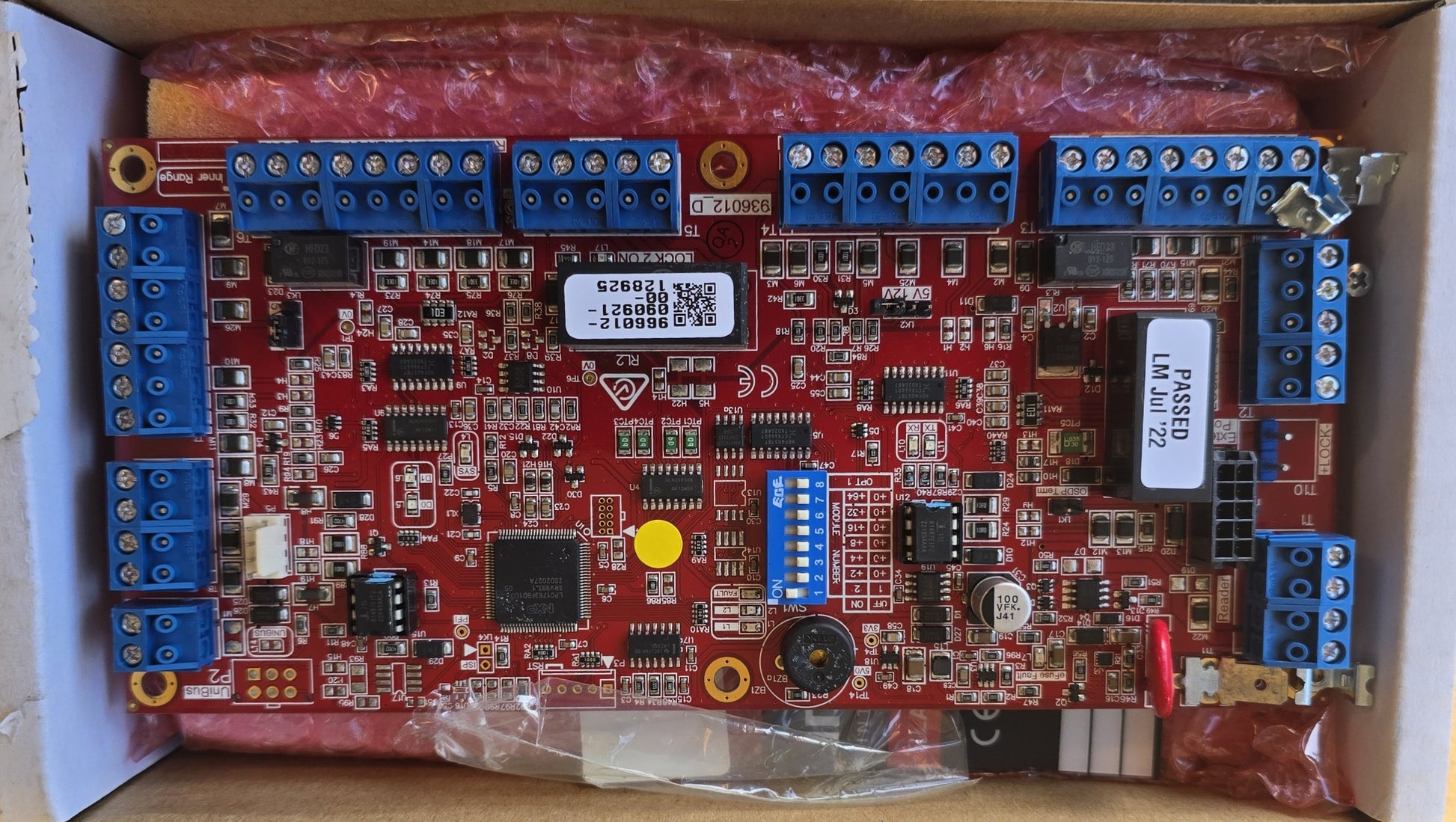

• One Inner Range Integriti SLAM PCB, assembly 936012_D, factory tested and passed July 2022

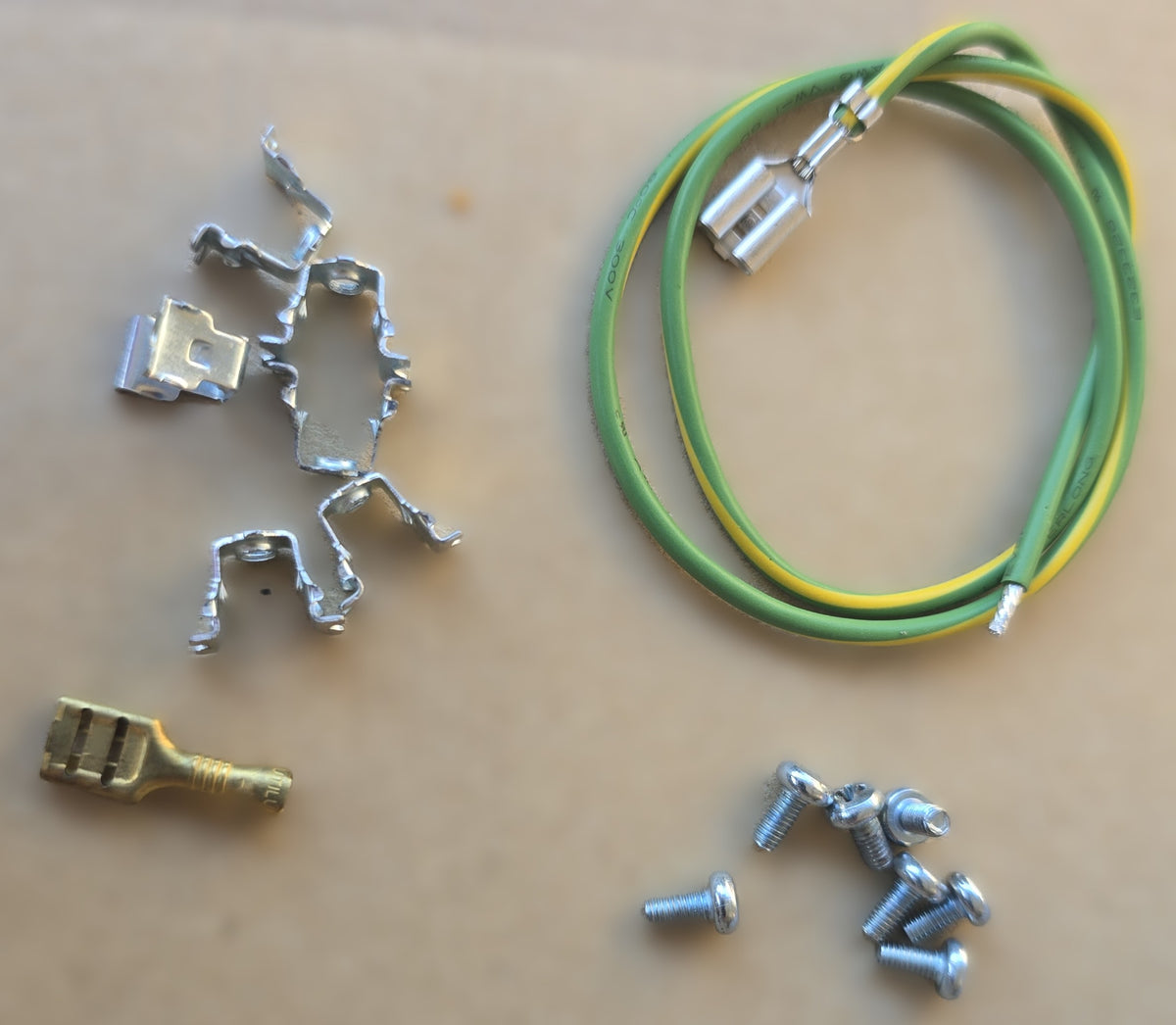

• Installation kit as packed: mounting screws and standoffs, spring clips, earth lead with spade terminal
• Integriti SLAM identification label
• No enclosure, no power supply, no readers and no locks are included
• No printed manual is included. The current SLAM installation manual is a free download from the Inner Range support site

Additional Information

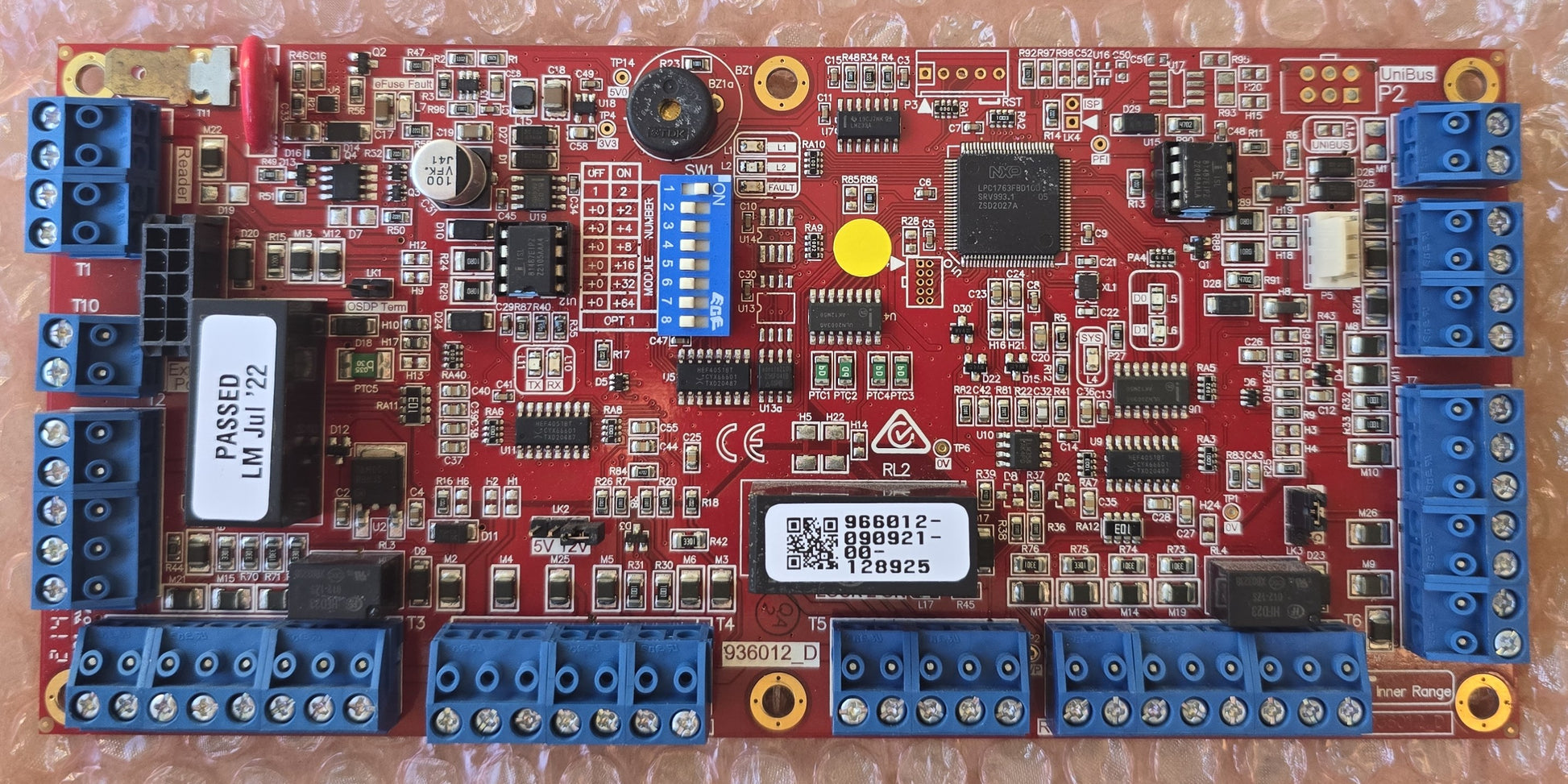

The PCB has an unpopulated UniBus footprint at P2, with no header fitted. This is normal for a SLAM. Inner Range states that UniBus expander boards cannot be used on a SLAM, so do not plan an installation around UniBus expansion on this board.

The kit is specified by Inner Range to include end of line resistors and diodes. Only the hardware shown in the photographs is confirmed present, so treat any small parts beyond that as not included.

This is a new item that has been removed from its packaging for inspection and photography. The board is unused. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
