IGUS TX1SI-1620-12 [5 Pack] heavy duty bearing 200MPa 1x3/4" (NEW)

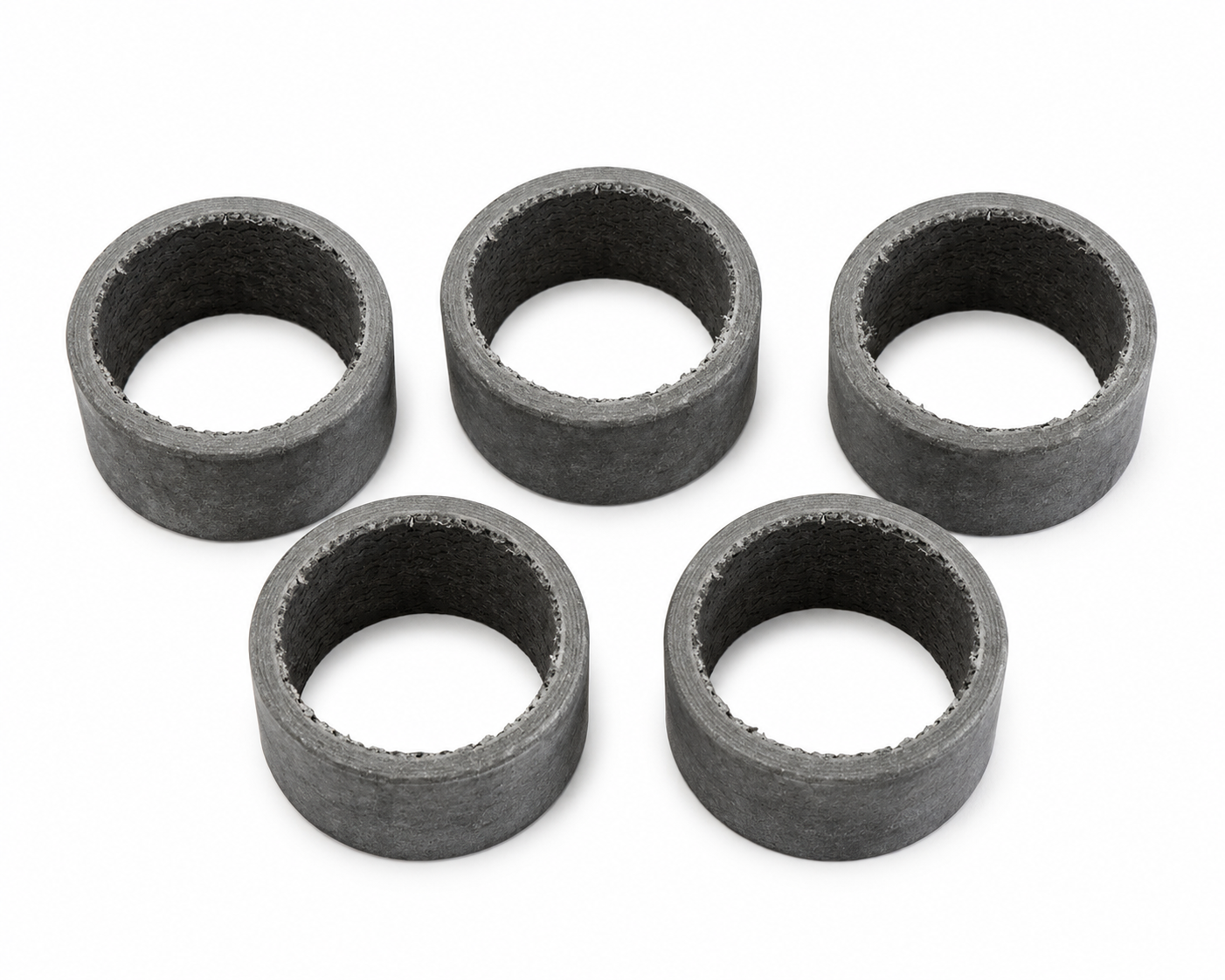

igus TX1SI-1620-12 igutex TX1 Sleeve Bearing Pack of 5

The igus TX1SI-1620-12 is a heavy-duty igutex TX1 composite sleeve bearing designed for demanding industrial applications requiring high load capacity, excellent wear resistance, and maintenance-free operation. Manufactured using a long-fibre wound composite structure with integrated solid lubricants, these bearings provide reliable performance without the need for additional lubrication.

Suitable for heavy-duty machinery, agricultural equipment, construction machinery, and industrial applications where high loads and harsh operating conditions are present.

Supplied as a pack of 5 new bearings.

Specifications

Brand: igus
Model: TX1SI-1620-12
Series: igutex TX1
Part Number: TX1SI-1620-12
Product Type: Sleeve Bearing / Plain Bush
Bearing Material: igutex TX1 Composite
Bearing Style: Plain Sleeve Bearing
Shaft Diameter (d1): 0.75" (19.05mm)
Outside Diameter (d2): 0.875" (22.23mm)
Length (b1): 1" (25.4mm)
Static Load Rating: Up to 200MPa
Dynamic Load Rating: Up to 140MPa
Lubrication: Maintenance-Free / Self-Lubricating
Pack Quantity: 5 Bearings
Condition: New
Country of Origin: Germany

Key Features

• Genuine igus igutex TX1 bearing
• Heavy-duty composite bearing design
• Maintenance-free operation
• Self-lubricating material technology
• High wear resistance
• Resistant to dirt, moisture, and chemicals
• High static load capacity up to 200MPa
• Suitable for demanding industrial environments
• Supplied as a pack of 5 bearings

Typical Applications

• Industrial machinery
• Agricultural equipment
• Construction equipment
• Material handling systems
• Heavy-duty pivot points
• Mobile machinery
• Automation equipment
• General engineering applications

Package Includes

5 × igus TX1SI-1620-12 igutex TX1 Sleeve Bearings

Additional Information

HS Code: 848330
Shipping from Sydney, Australia.
