IDEC SA1E-TNR1-2M SA1E-TNP1-2M Through-Beam Sensor Pair NPN 2m (New Opened)

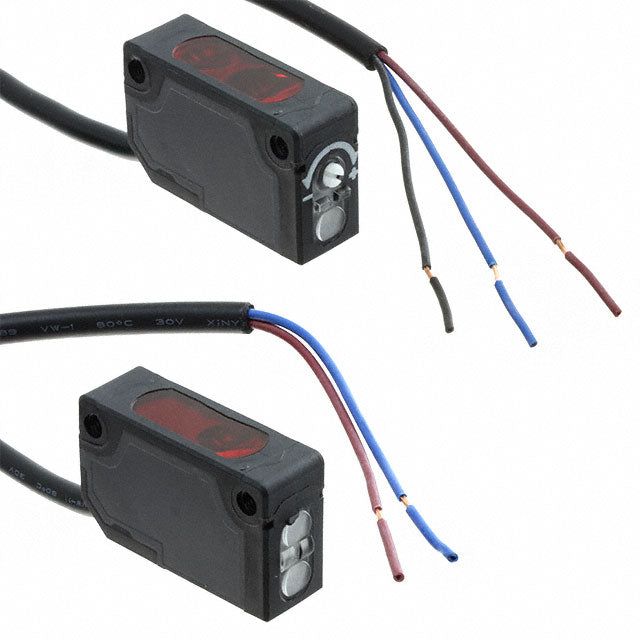

The IDEC SA1E-TN1-2M is a miniature through-beam photoelectric sensor set from the IDEC SA1E series. Each set is supplied as a matched pair, comprising a receiver (part number SA1E-TNR1-2M) and an emitter, or projector (part number SA1E-TNP1-2M). The emitter transmits an infrared beam across an open gap to the receiver, and the sensor detects when an object interrupts that beam, making it well suited to reliable object detection over longer distances.

The receiver provides an NPN transistor output and operates from a 12 to 24 V DC supply. It offers a sensing range of up to 10 metres, a compact rectangular housing, and a 2 metre pre-wired cable on each unit. Operation and stability LED indicators together with a sensitivity control support quick setup and stable detection in industrial environments. This item was manufactured in Japan.

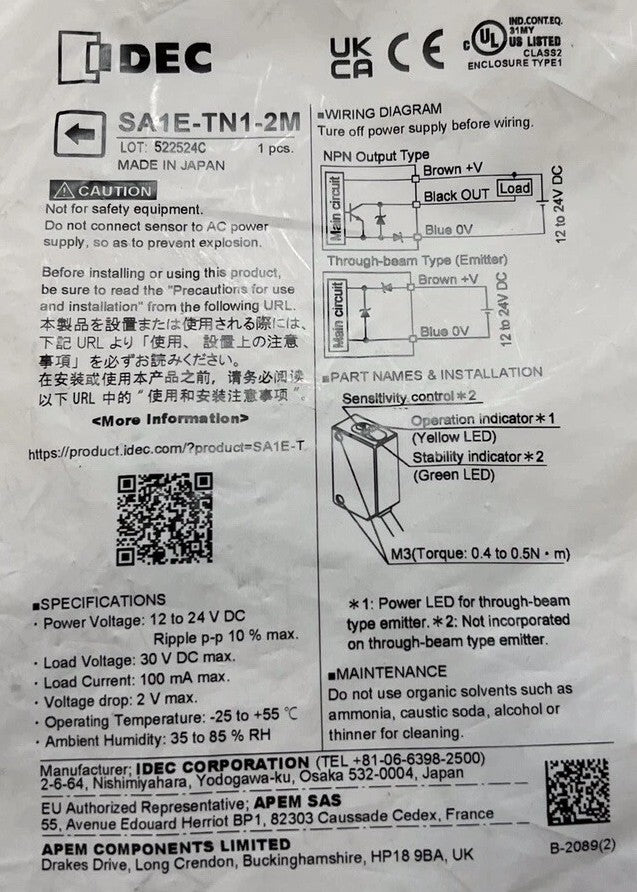

Specifications

• Brand: IDEC
• Set part number: SA1E-TN1-2M
• Receiver part number: SA1E-TNR1-2M
• Emitter part number: SA1E-TNP1-2M
• Sensing method: Through-beam
• Sensing range: Up to 10 m (per IDEC datasheet)
• Light source: Infrared LED
• Supply voltage: 12 to 24 V DC (ripple p-p 10% max)

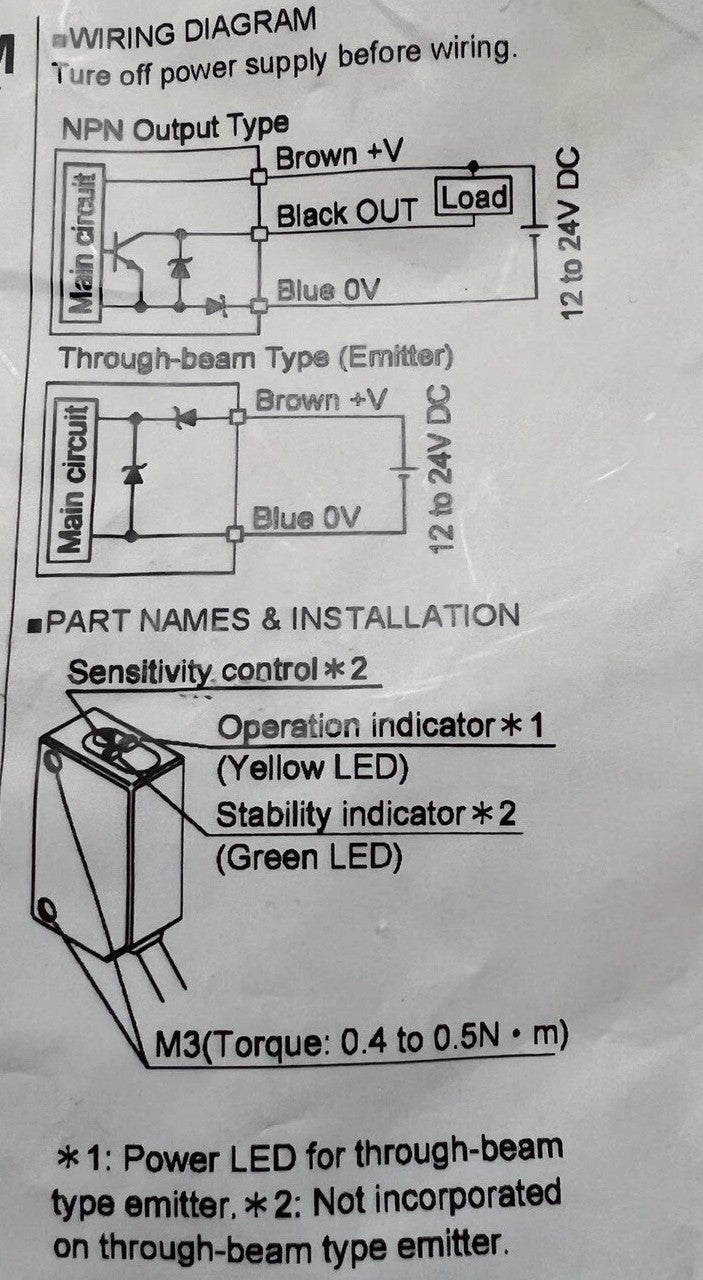

• Output type: NPN transistor
• Load voltage: 30 V DC max
• Load current: 100 mA max
• Voltage drop: 2 V max
• Cable length: 2 m (each unit)
• Indicators: Operation indicator (yellow LED), stability indicator (green LED)
• Adjustment: Sensitivity control (on receiver)
• Operating temperature: -25 to +55 C
• Ambient humidity: 35 to 85% RH
• Mounting: M3 screws (torque 0.4 to 0.5 N m)
• Enclosure protection: IP67 (per IDEC datasheet)
• Approvals: cULus Listed (Class 2), CE, UKCA
• Country of manufacture: Japan

Key Features

• Complete through-beam pair supplied together (emitter and receiver)
• Long sensing range of up to 10 metres
• NPN transistor output for straightforward interfacing
• Infrared LED beam for dependable detection
• Yellow operation and green stability LEDs for clear status indication
• Adjustable sensitivity on the receiver
• Compact miniature housing with M3 mounting
• 2 metre pre-wired cable on each unit

Typical Applications

• Object presence and passage detection on conveyors
• Counting and positioning on production lines
• Gap and access monitoring across wide openings
• Packaging and material handling machinery
• General factory automation and machine building

Package Includes

• This listing is for one complete through-beam sensor set.

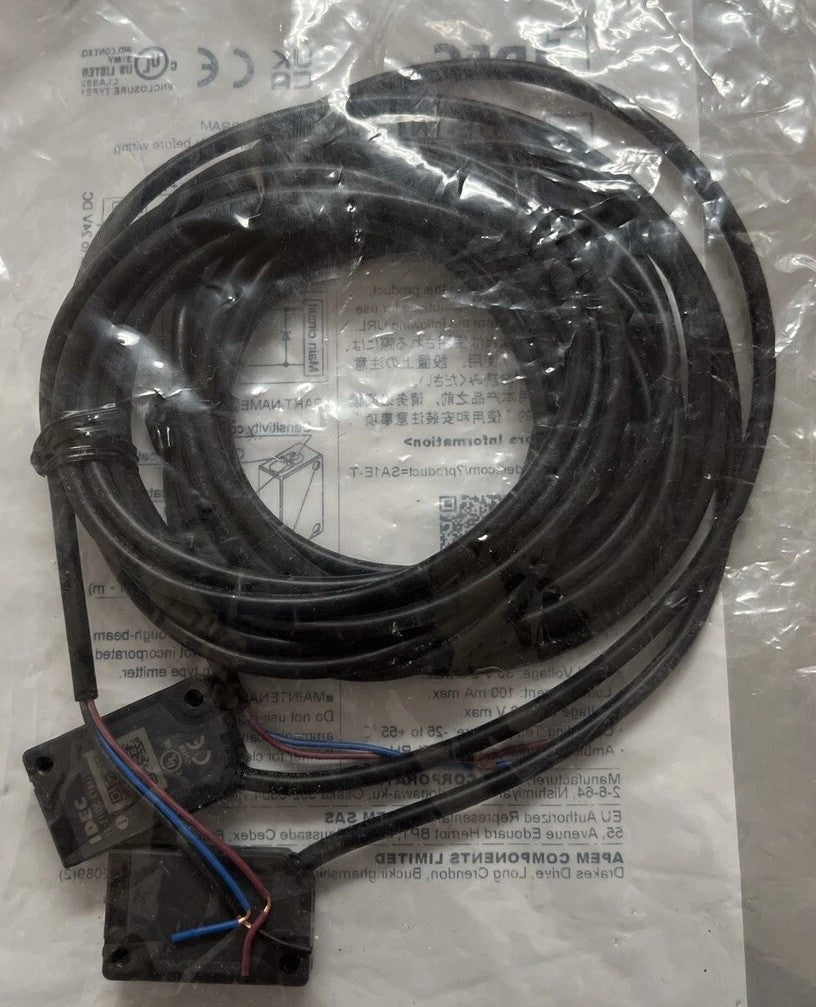

• Each set includes 1 x receiver (SA1E-TNR1-2M) and 1 x emitter (SA1E-TNP1-2M), each with a 2 metre cable.
• Quantity available: 6 complete sets.

Additional Information

The item is new, in opened packaging, and unused.

Shipping from Sydney, Australia.
