HPM XL770/1WE Excel 1 Gang Vertical Light Switch 10A 240V White (NEW Sealed)

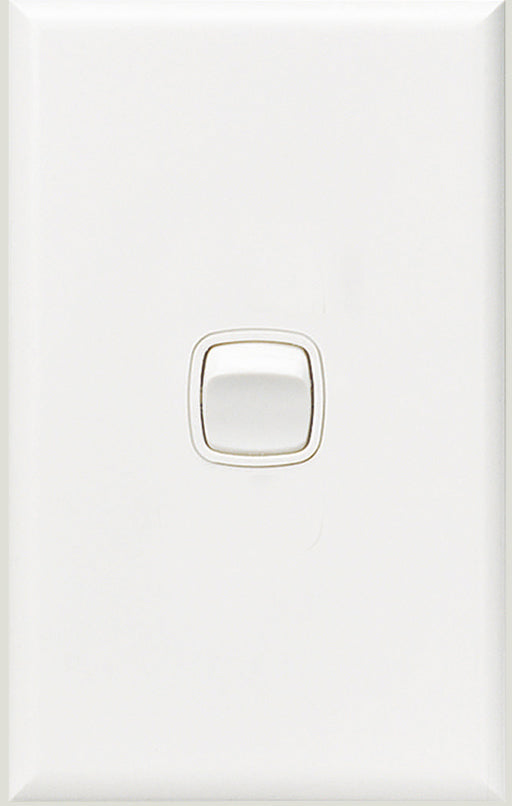

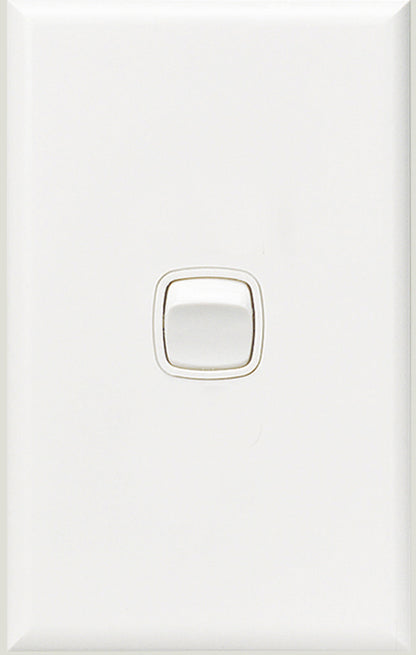

The HPM XL770/1WE is a 1 gang vertical rocker light switch from the HPM Excel range, manufactured by HPM Industries Pty Ltd, part of Legrand. It is a complete flush mounted wall switch supplied as a grid plate, one switch mechanism and a snap on coverplate in matt white. It is used for switching lighting and other resistive loads in Australian domestic and commercial installations, mounted to a standard vertical wall box or mounting block.

Each mechanism is rated at 10 A, 230 to 240 V a.c. and is single pole double throw, so it can be wired as a one way or two way switch and will accept a loop connection. Terminals are screwed. The coverplate measures 73 mm wide by 117 mm high by 12.5 mm thick, the mounting centres are 84 mm and the wall box cut out is 96 x 40 mm. This listing is for a single switch.

Specifications

Brand: HPM (Legrand)

Range: Excel

Model: Excel 1 Gang Vertical Switch

Part Number: XL770/1WE

Alternate Part Number: XL7701WE

Product Type: Flush mounted wall light switch

Number of Gangs: 1

Current Rating: 10 A

Voltage: 230 to 240 V a.c.

Switch Action: Single pole double throw, one way or two way

Terminals: Screwed

Mounting: Flush, vertical

Mounting Centres: 84 mm

Cut Out Size: 96 x 40 mm

Plate Size: 73 mm W x 117 mm H x 12.5 mm D

Finish: Matt White

Standard: AS/NZS 3133

Approval: NSW3087, RCM marked

Quantity Supplied: 1 switch

Barcode: 9321001087878

Condition: New, factory sealed

Key Features

• 1 gang vertical rocker switch on a single standard size plate
• 10 A, 230 to 240 V a.c. rating on every mechanism
• Single pole double throw mechanisms, wireable one way or two way with loop
• Screwed terminals for solid copper conductors
• Matt white finish with a snap on coverplate
• Standard 84 mm mounting centres for Australian wall boxes
• Approved to AS/NZS 3133 and RCM marked

Typical Applications

• Lighting circuits in houses, units and townhouses
• Office, retail and light commercial lighting control
• Two way switching from two locations on a stairway or hallway
• Replacement of existing HPM Excel switch plates
• New residential wiring and switchboard rough in work

Package Includes

• 1 x HPM XL770/1WE Excel 1 gang vertical switch, assembled with coverplate
• 2 x mounting screws

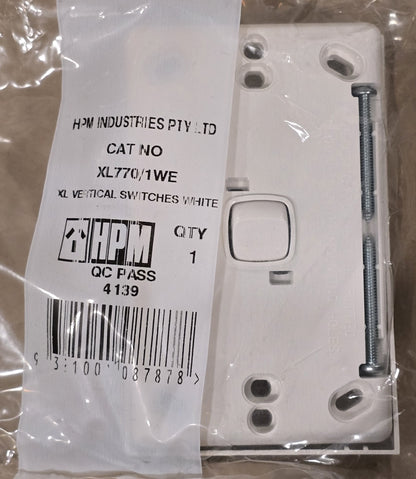

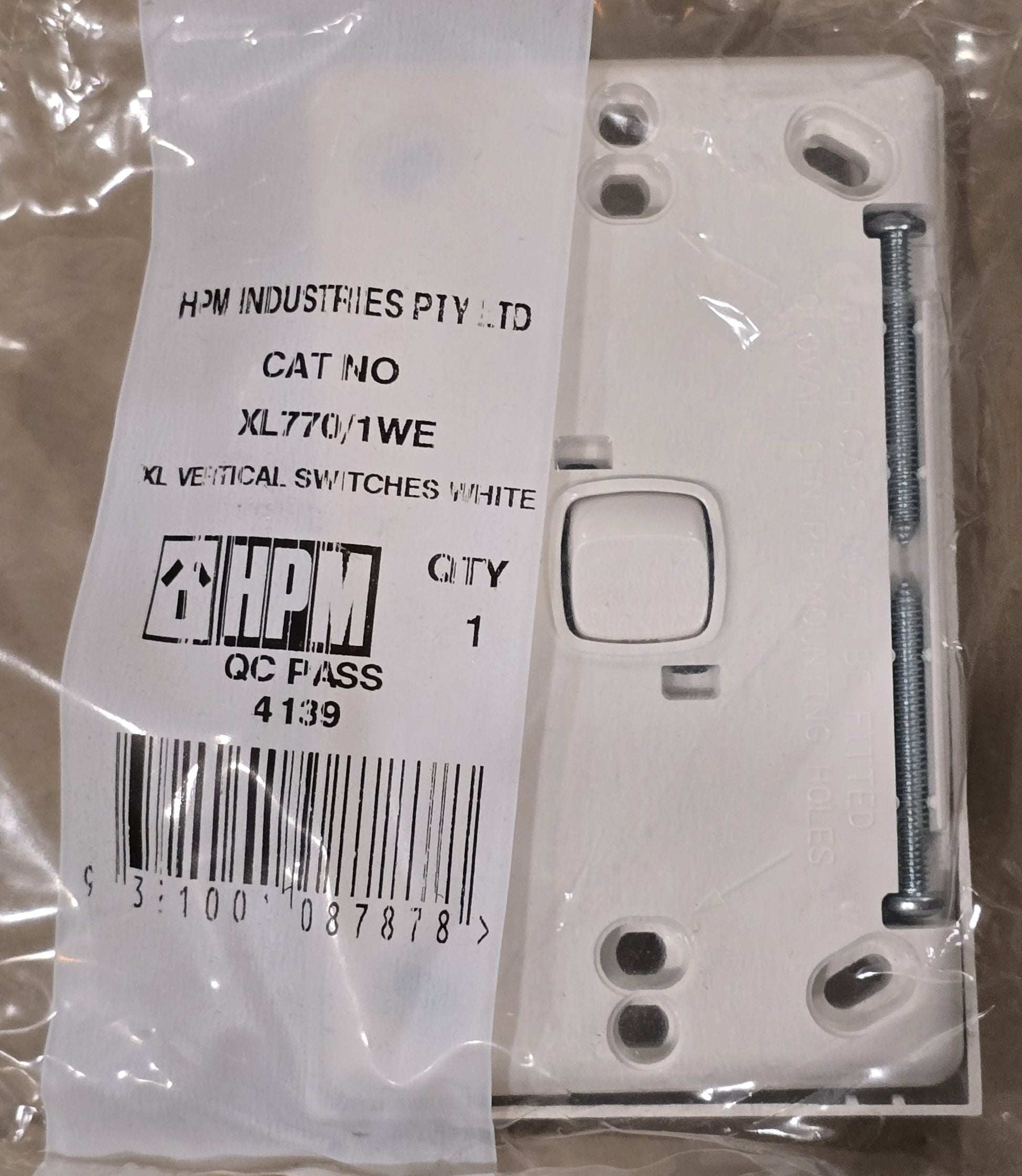

• Sealed HPM poly bag
• No wall box, mounting block or flush cap is included

Additional Information

This is a switch only. No wall box, mounting block, flush cap or architrave plate is supplied unless shown in the listing photographs.

Installation must be carried out by a licensed electrical worker in accordance with AS/NZS 3000.

The item is new in the manufacturer's original packaging.
