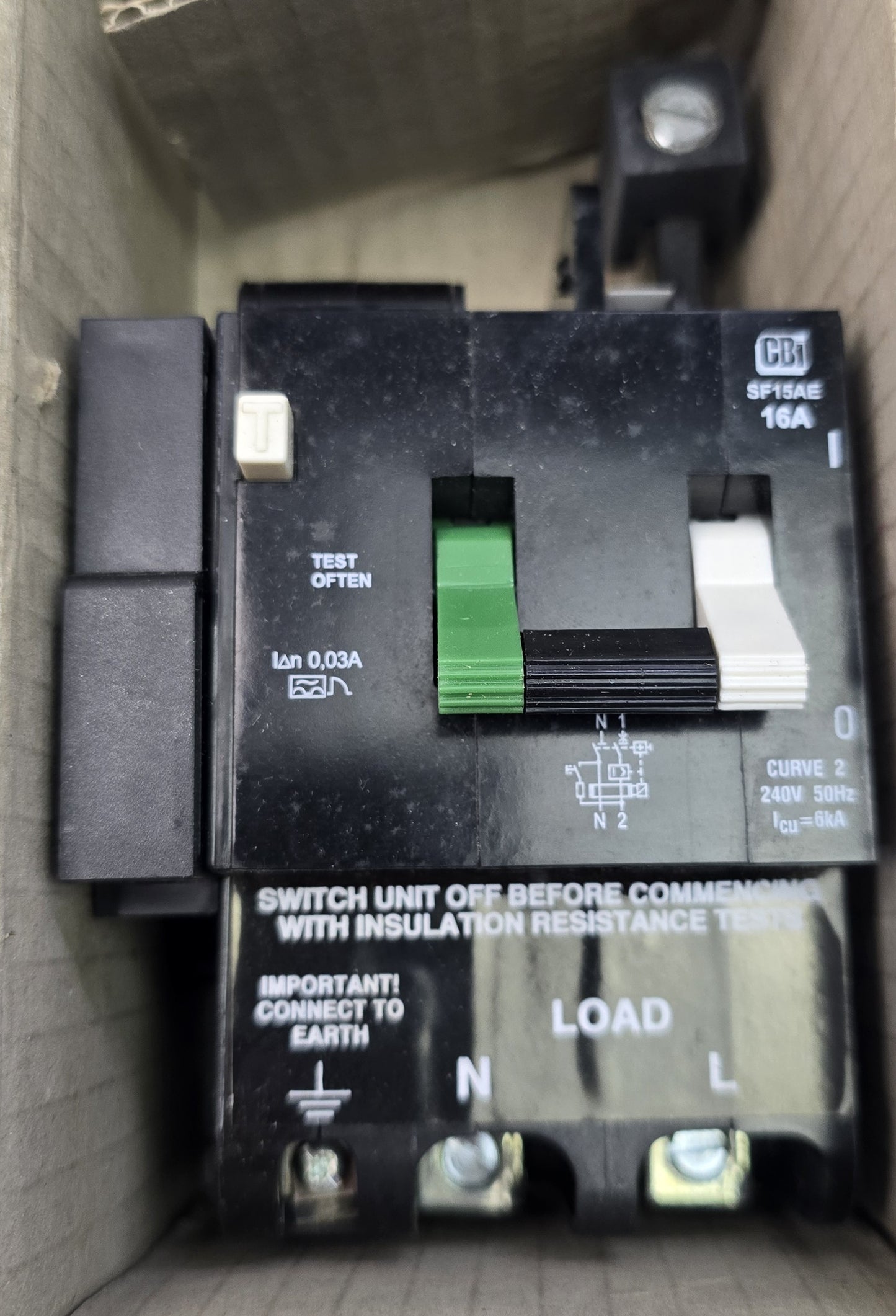

Heinelec SF15AE Combined RCD/MCB RCBO 16A 30mA 2 Pole 240V (Spares Stock)

The Heinelec SF15AE is a combined residual current device and miniature circuit breaker (RCBO) manufactured by CBi-electric in Australia, also carrying Heinemann Electric and CBi branding. It provides both earth leakage (residual current) protection and overcurrent protection in a single two pole unit that switches both the active and neutral conductors.

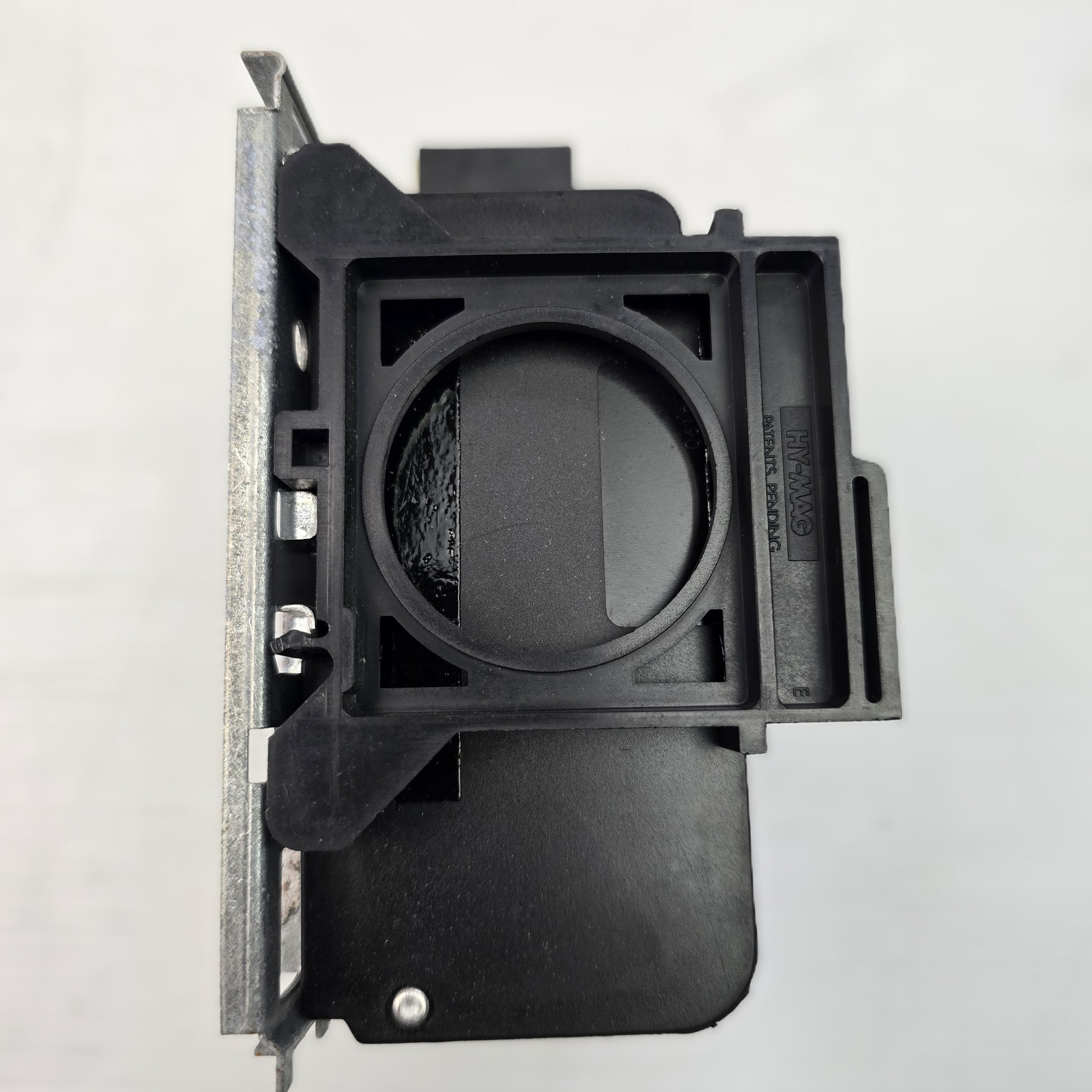

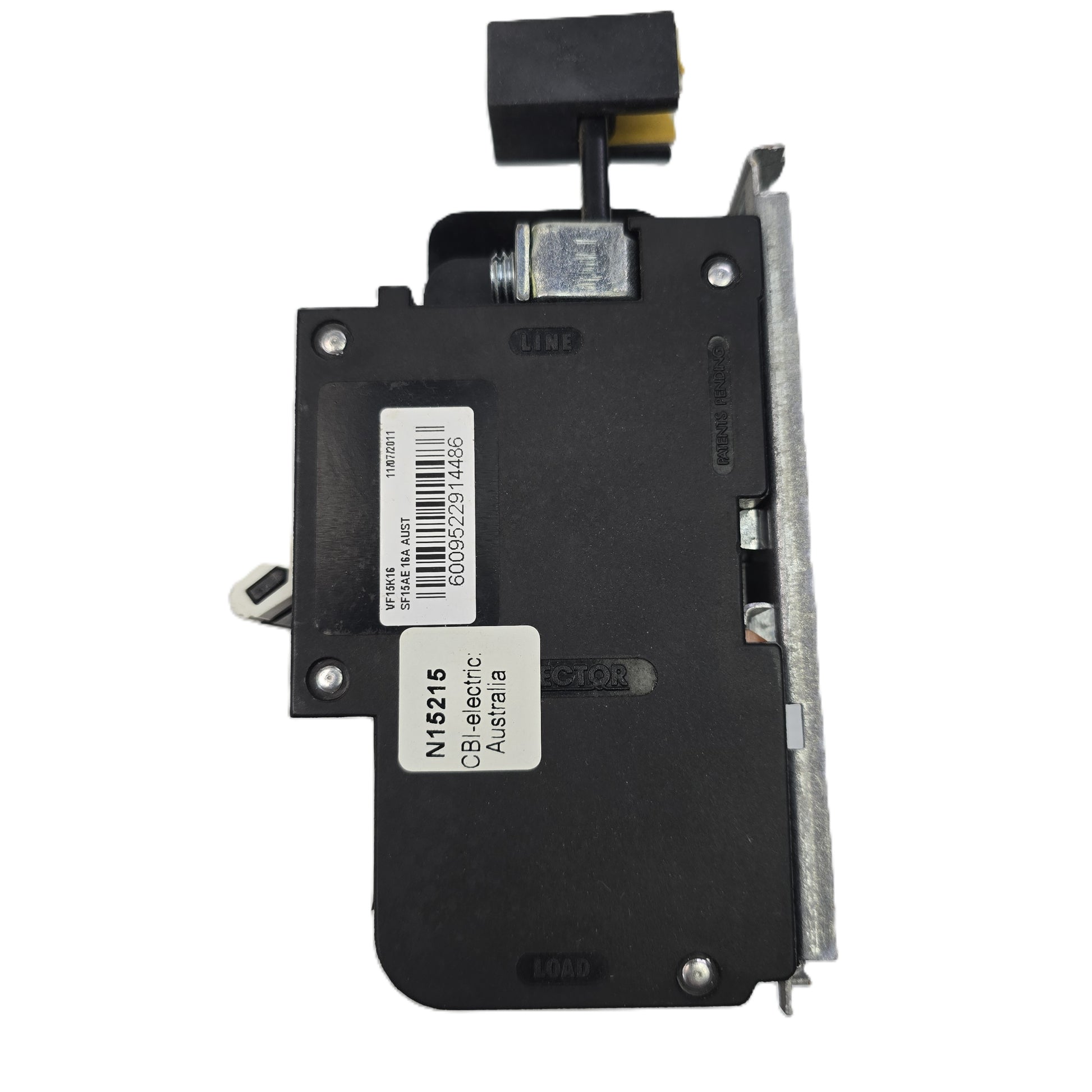

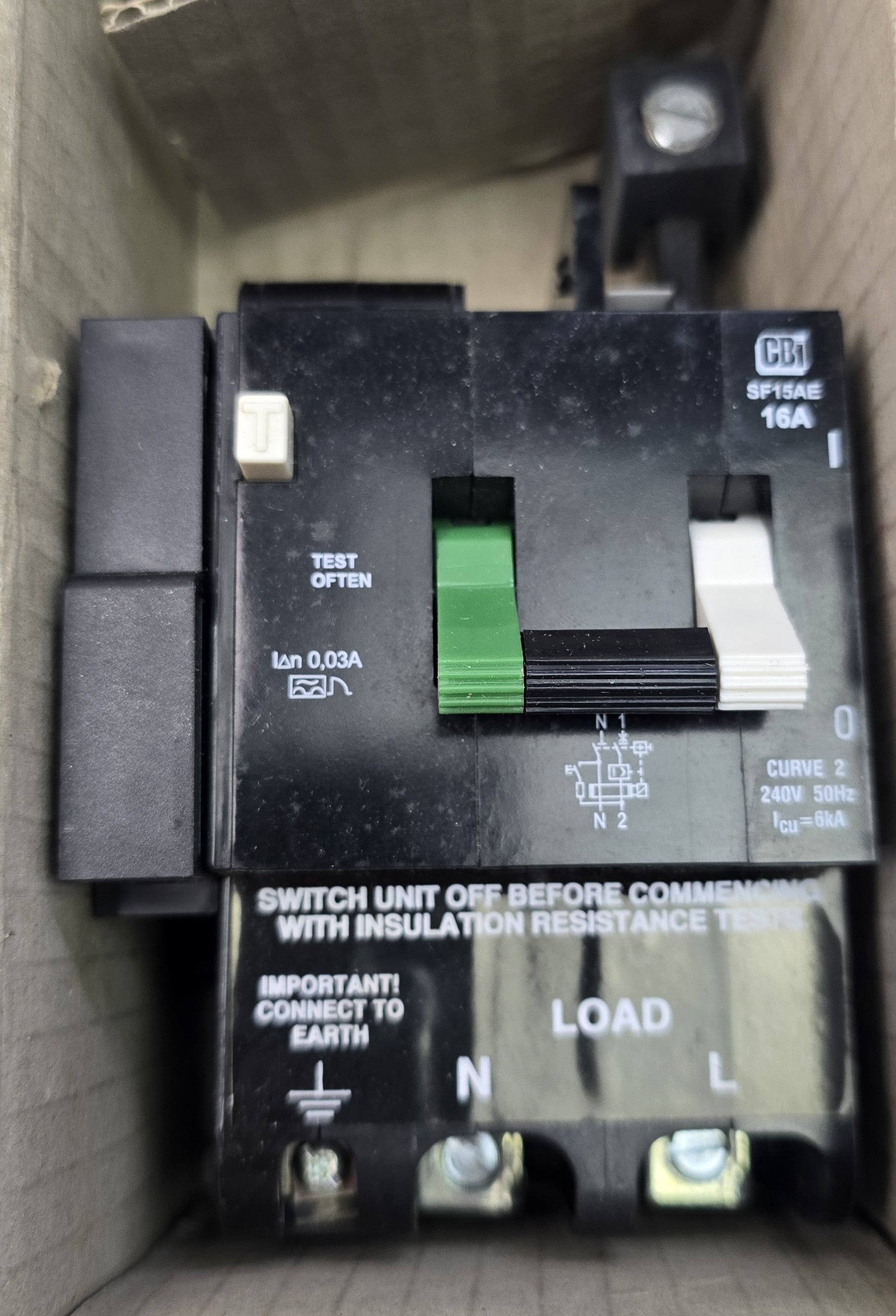

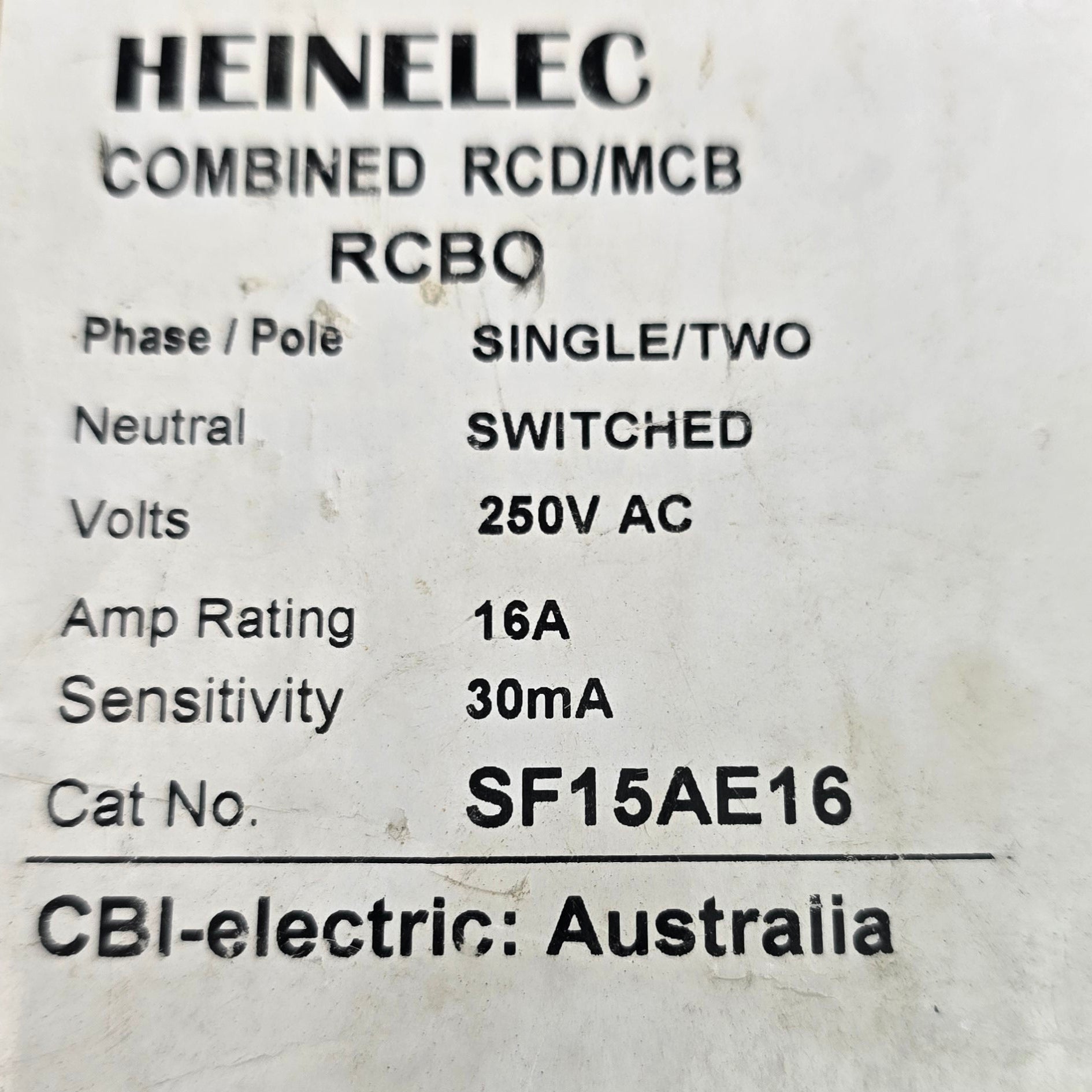

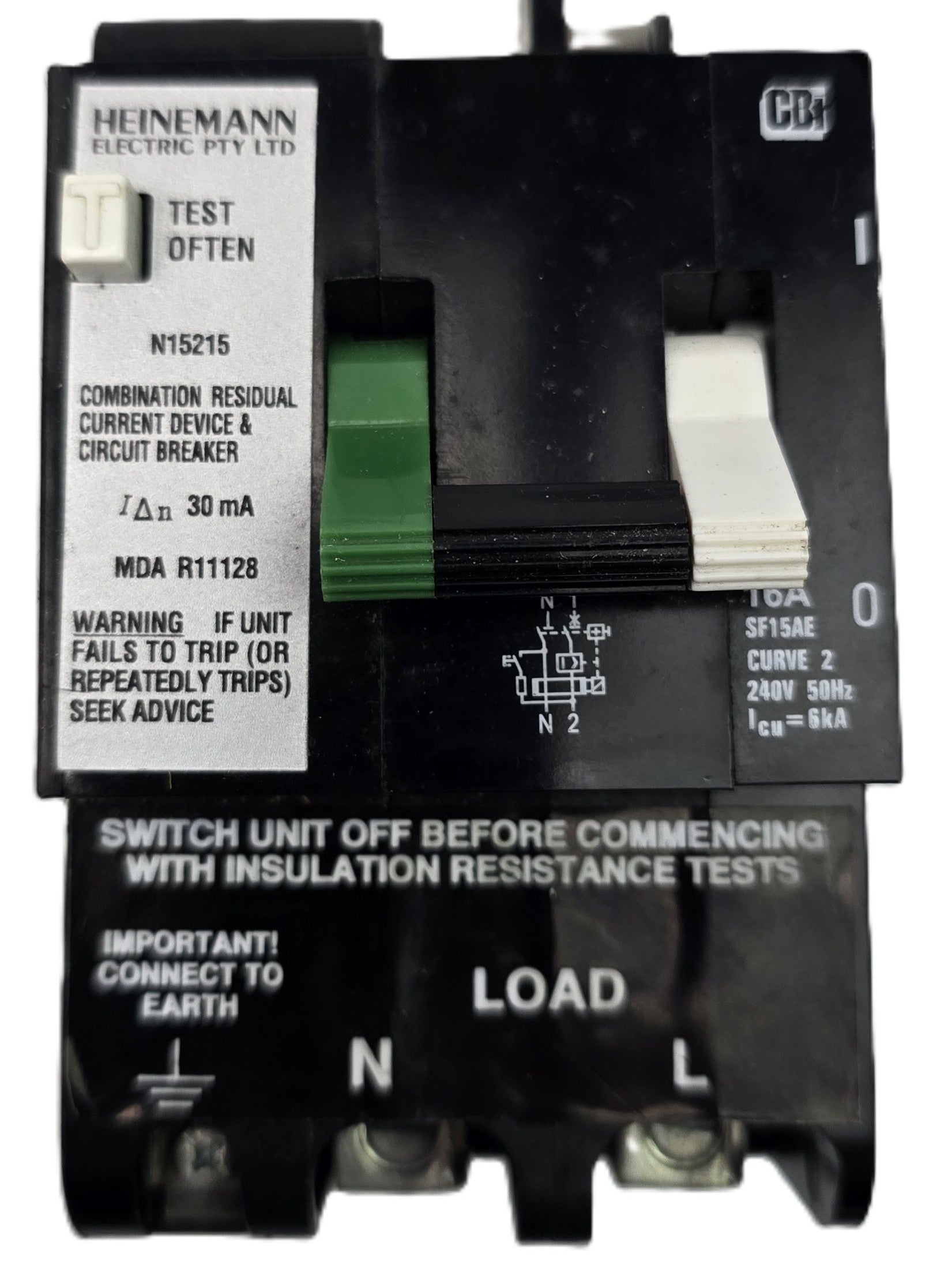

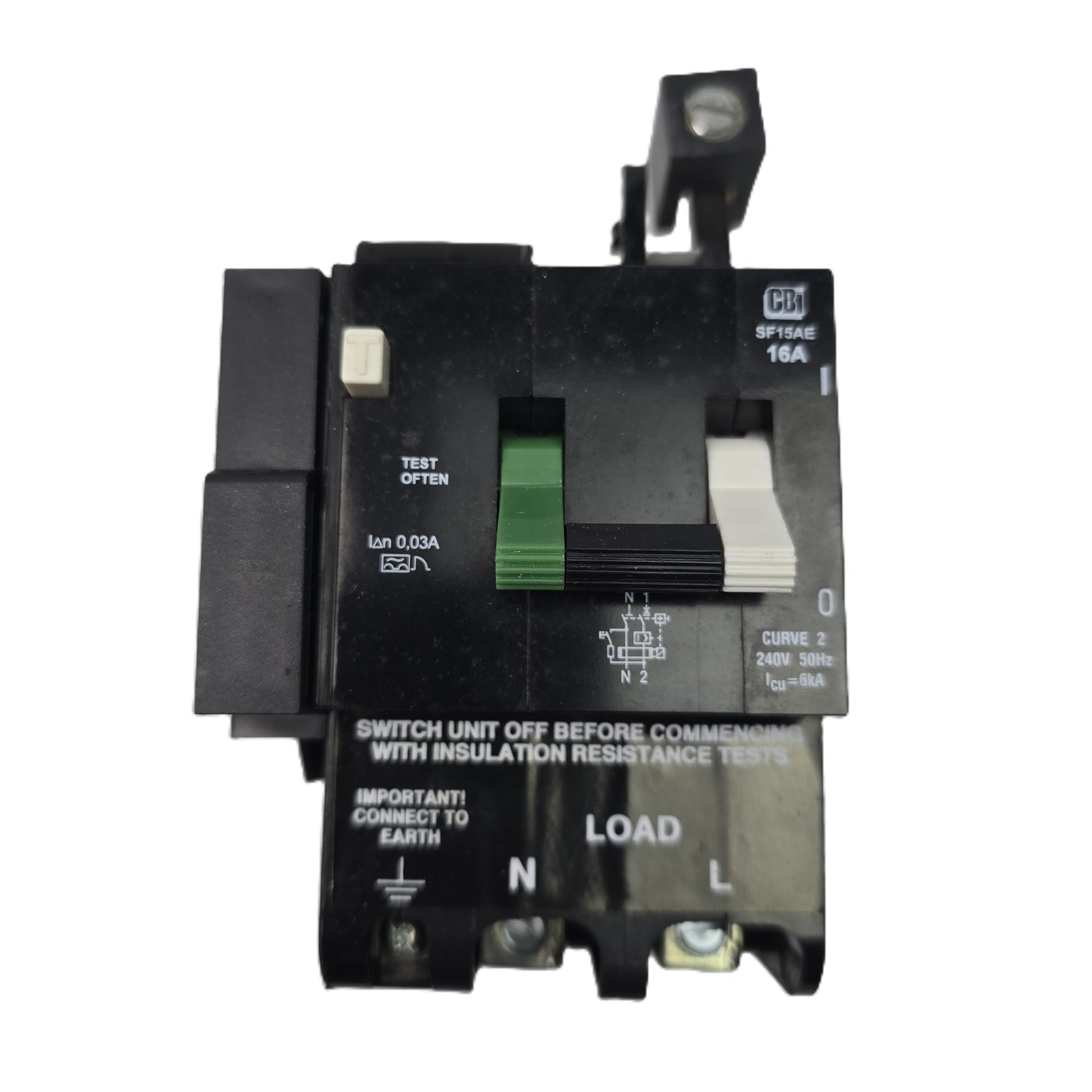

This unit uses hydraulic-magnetic (HY-MAG) tripping technology and is rated at 16A with 30mA residual current sensitivity, a Curve 2 characteristic and a short circuit capacity of 6kA. The specifications listed below are taken from the rating plate and packaging shown in the photographs and should be confirmed against those images before purchase.

Specifications

• Brand: Heinelec (CBi-electric Australia / Heinemann Electric)
• Part number: SF15AE (box catalogue no. SF15AE16)
• Type: Combined RCD/MCB (RCBO), hydraulic-magnetic
• Poles: 2 pole, single phase and neutral, neutral switched
• Rated current: 16A
• Residual current sensitivity: 30mA (IdeltaN 0.03A)
• Tripping characteristic: Curve 2
• Rated voltage: 240V 50Hz (250V AC rated on packaging)
• Short circuit capacity: Icu 6kA
• Approval: N15215
• Standards: AS 3111 and AS/NZS 3190
• Country of manufacture: Australia
• Barcode (EAN): 6009522914486

Key Features

• Combined residual current and overcurrent protection in one device
• Two pole design switching both active and neutral
• 30mA residual current sensitivity for personnel protection
• Hydraulic-magnetic operation with overcurrent trip point unaffected by ambient temperature
• Type A operation, immune to pulsating DC residual currents
• IP2X shrouded line and load terminals
• Integral test button for periodic testing

Typical Applications

• Final subcircuit protection in switchboards and distribution boards
• Combined earth leakage and overload protection for lighting and power circuits
• Residential, commercial and light industrial installations
• Replacement or spare for existing Heinelec / CBi RCBO installations

Package Includes

• 1 x Heinelec SF15AE combined RCD/MCB (RCBO), 16A

Additional Information

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
