Hager SBR263 2P 63A 400V Modular Switch Disconnector Isolator (Spares Stock)

The Hager SBR263 is a two-pole 63A modular switch-disconnector (isolator) rated at 400V AC. Fitted with a red toggle, it provides manual on-load switching and isolation within distribution boards and control panels, and mounts on standard 35mm DIN rail.

This unit is a genuine Hager SBR-series device (Hager index 551039) occupying two modules (35mm width). It is designed to IEC 60947-3 for reliable isolation and switching in residential, commercial and light industrial installations.

Specifications

• Brand: Hager
• Part number: SBR263
• Hager index: 551039
• Type: Modular switch-disconnector (isolator), red toggle
• Poles: 2 (2P)
• Rated current: 63A
• Rated voltage: 400V AC
• Frequency: 50/60Hz
• Standard: IEC 60947-3
• Protection rating: IP20
• Width: 2 modules (35mm)
• Approximate device dimensions: 83 x 35 x 68mm (H x W x D)
• Mounting: 35mm DIN rail
• EAN: 3250615510396

Key Features

• Two-pole on-load isolation for reliable circuit disconnection
• Red toggle for clear identification as a main switch or isolator
• Compact two-module footprint for DIN-rail distribution boards
• Manufactured to IEC 60947-3

Typical Applications

• Main switch or sub-main isolation in distribution boards
• Isolation of two-pole circuits in control panels
• Residential, commercial and light industrial installations

Package Includes

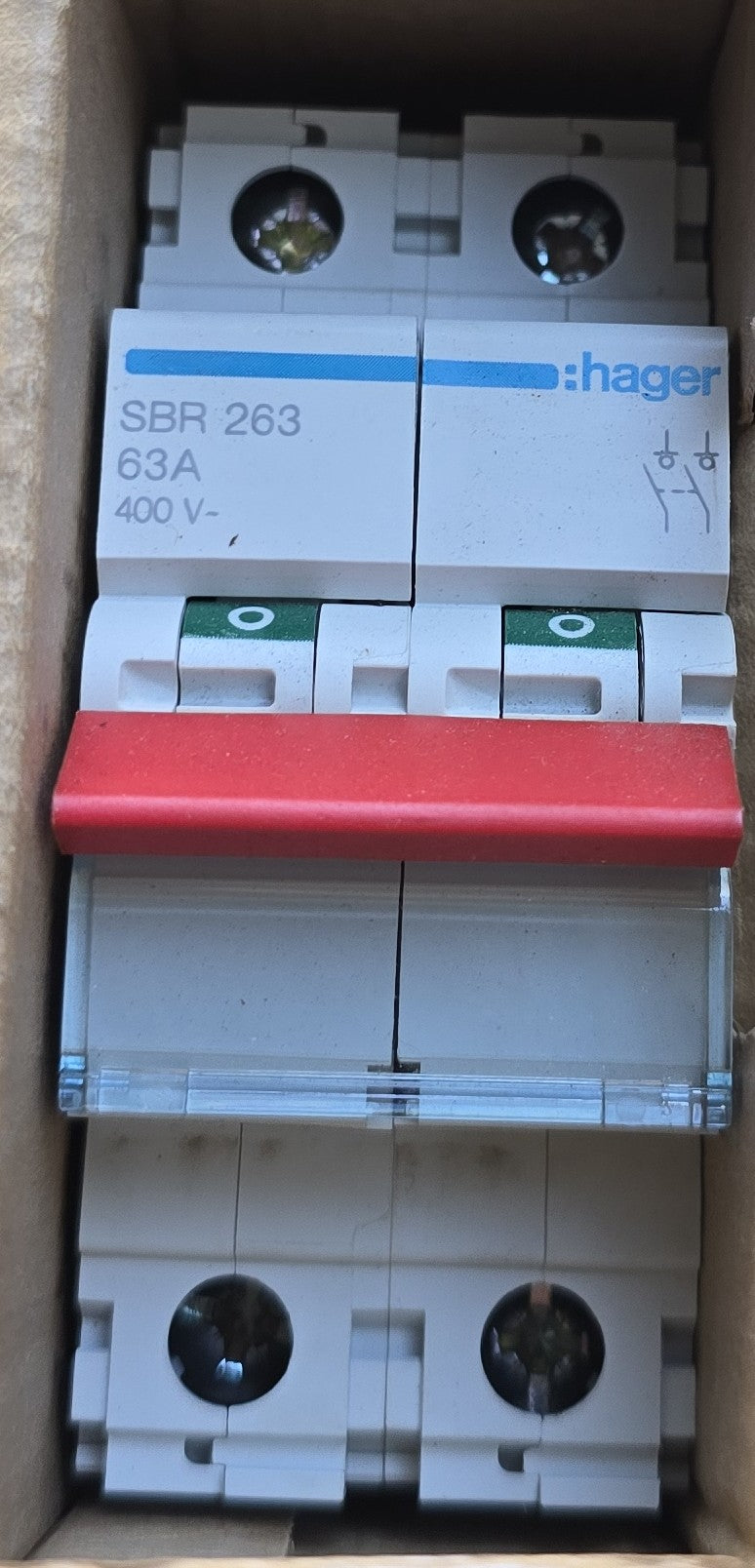

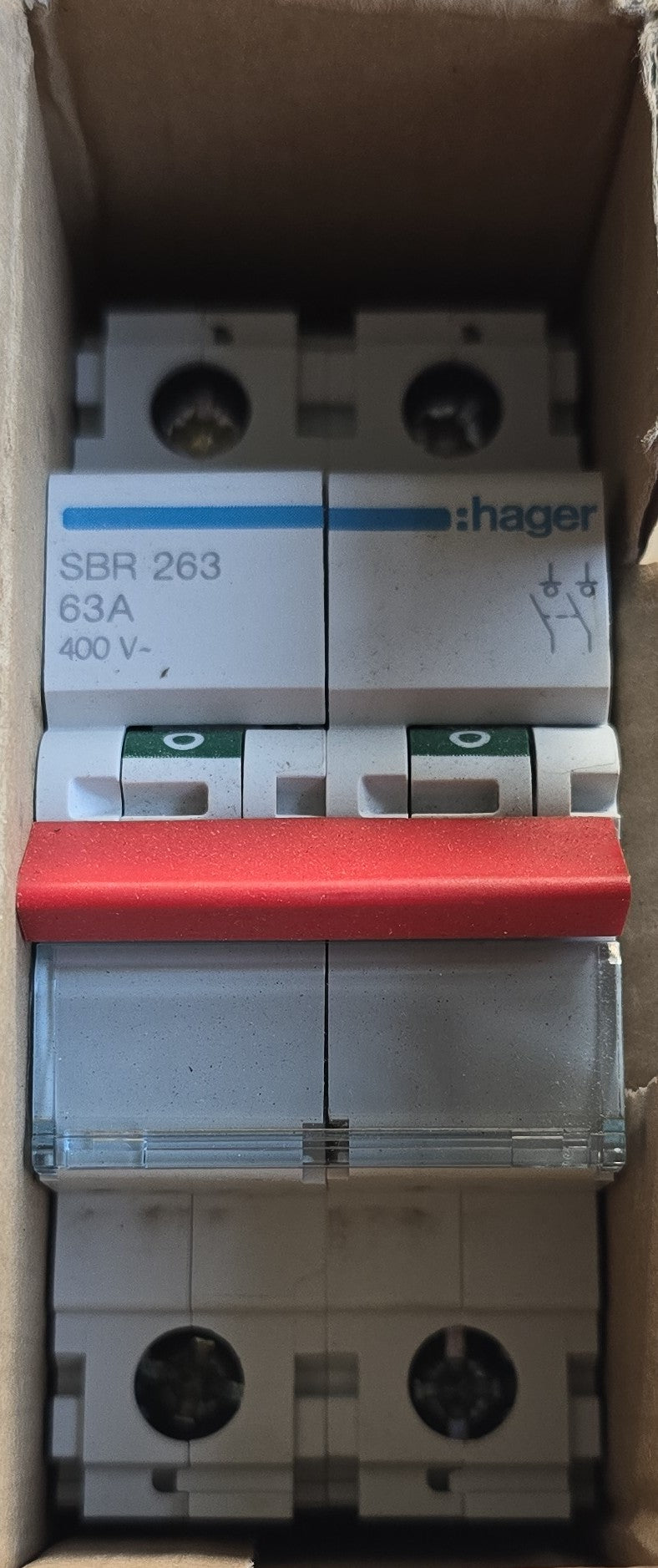

• 1 x Hager SBR263 2-pole 63A modular switch-disconnector (as pictured)

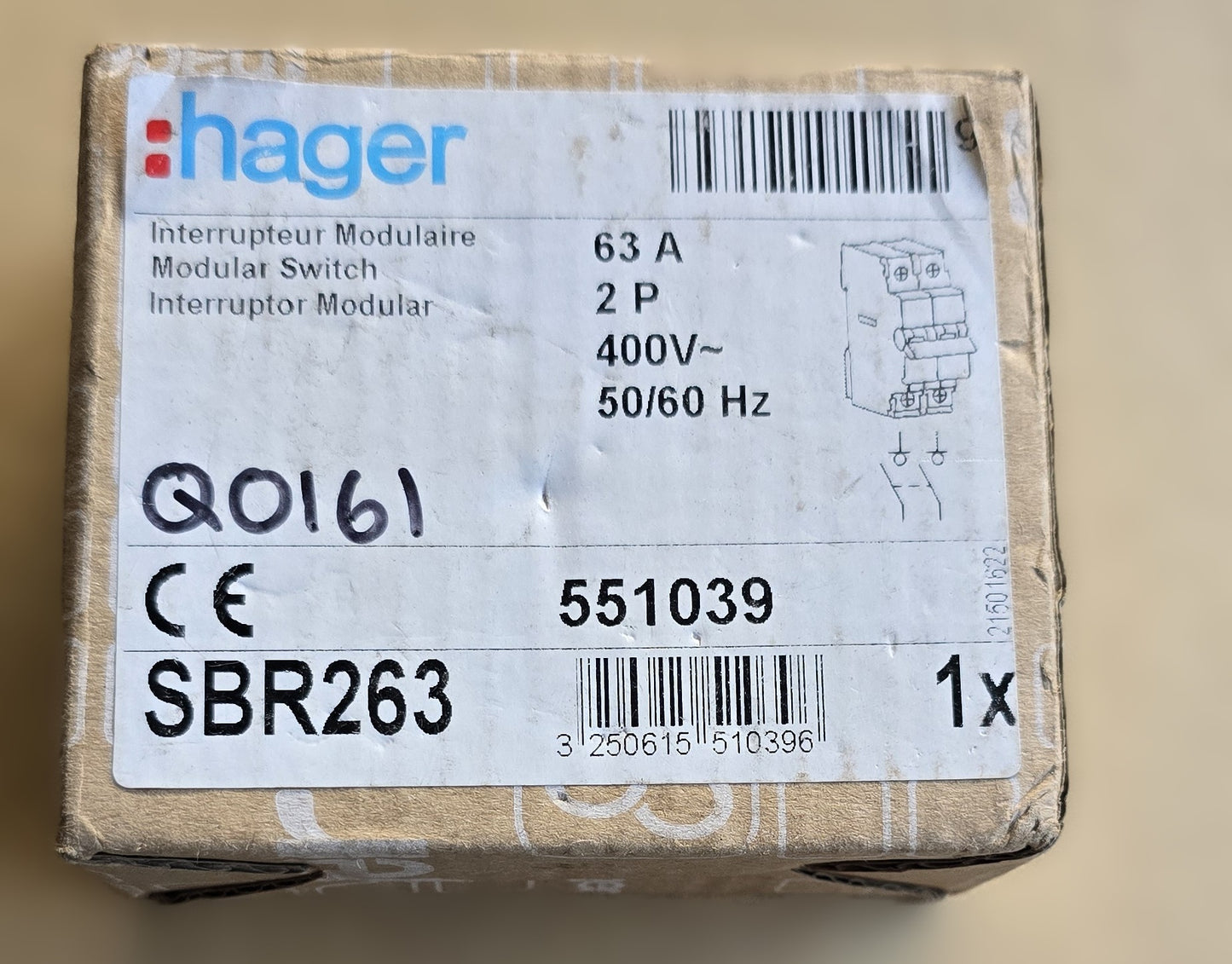

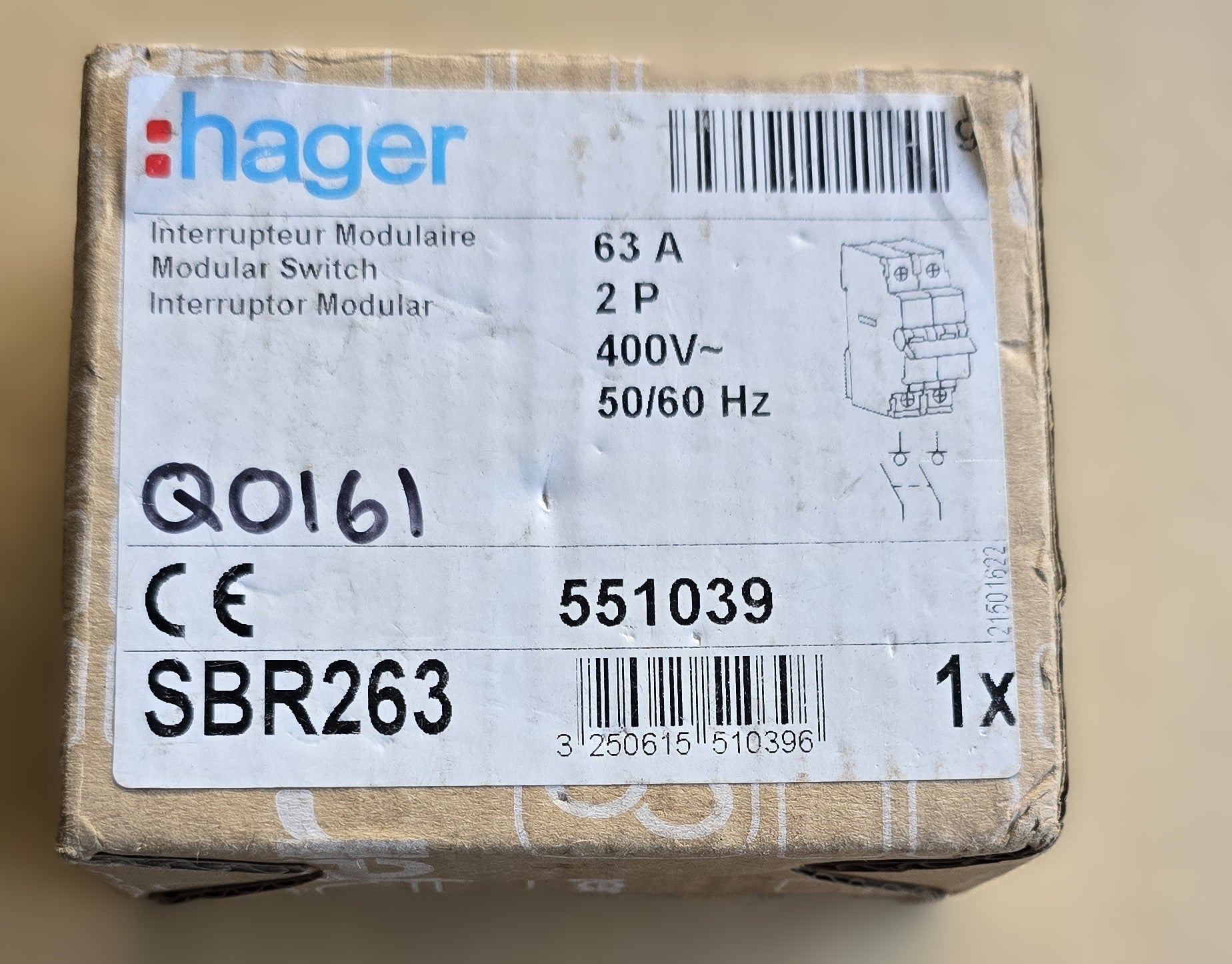

• Original Hager box

Additional Information

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
