GoodWe 140-20012-00 Acrel AKH-0.66/K K-80x40 1000/5A Split Core CT (NEW Sealed)

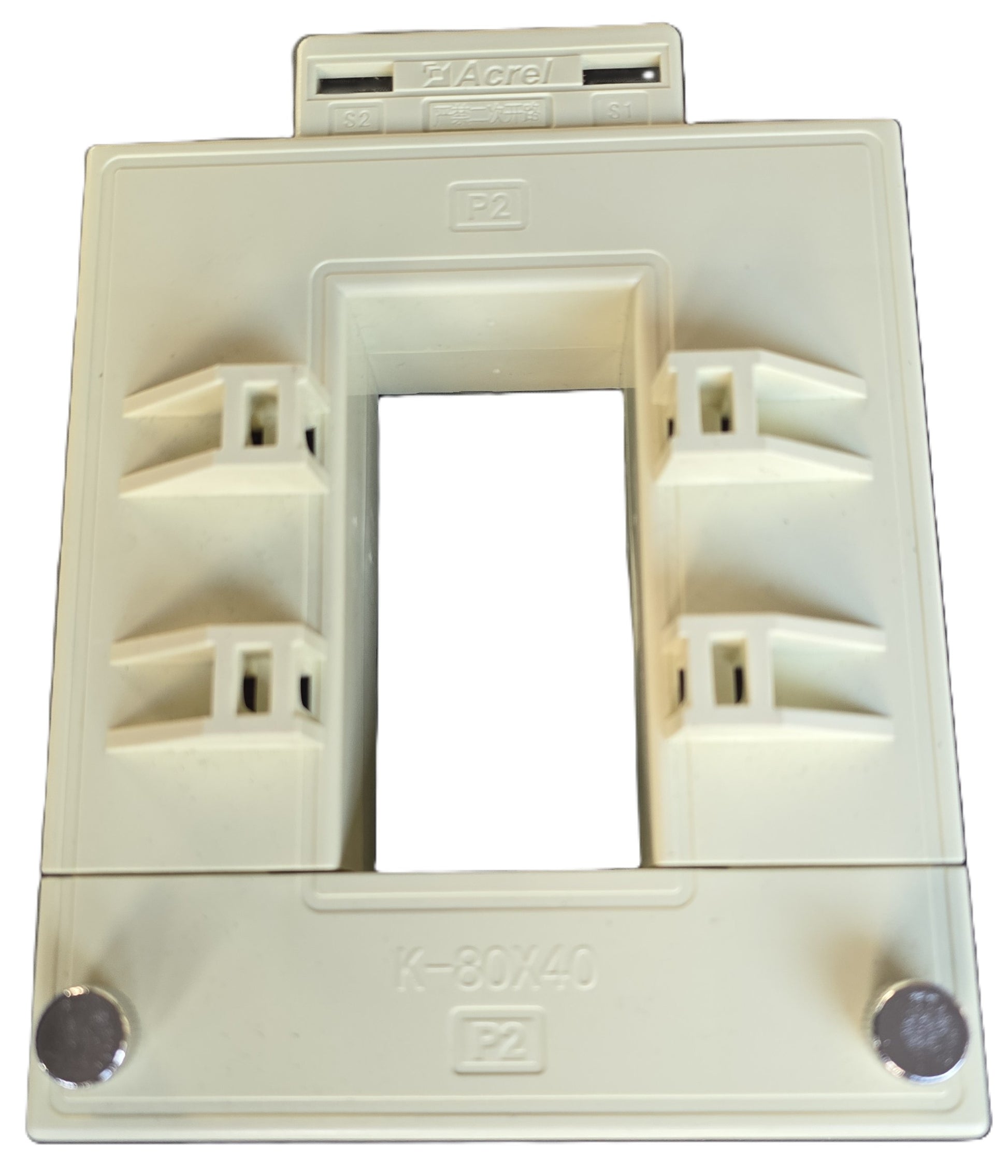

This is a GoodWe branded split core current transformer, GoodWe part number 140-20012-00, manufactured by Acrel as the AKH-0.66/K type with a K-80x40 window. It provides a 1000/5A ratio for current measurement in solar and energy monitoring systems, including GoodWe SEC1000 Smart Energy Controller installations and general low voltage metering. The split core design opens around the conductor, allowing installation on existing cabling or busbar without disconnecting the circuit.

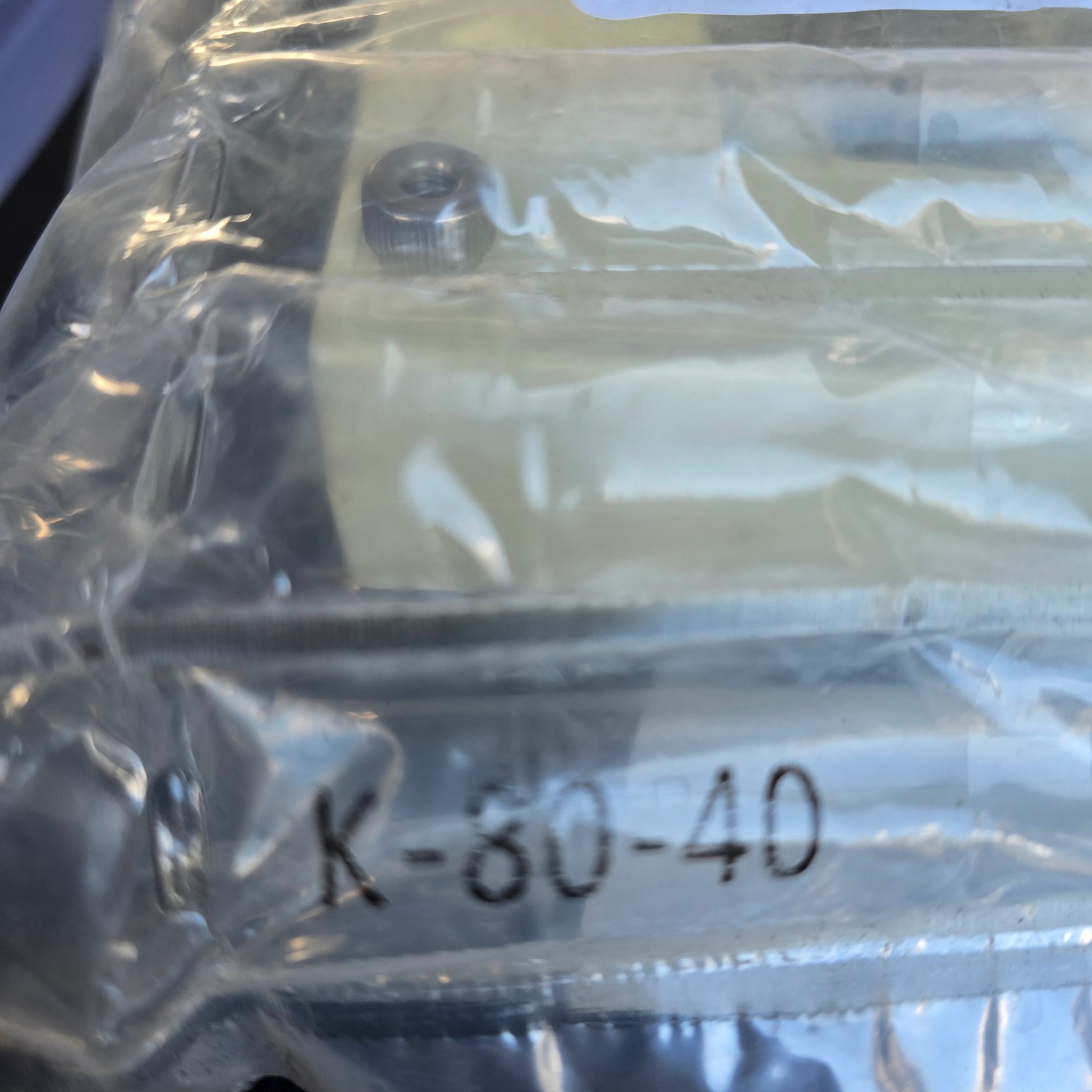

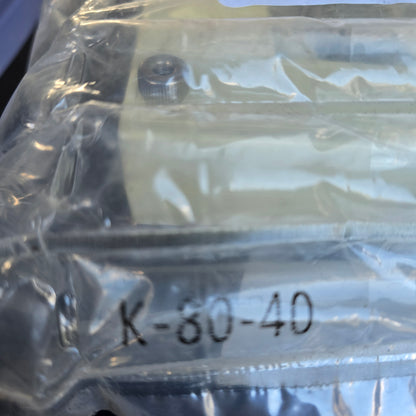

The AKH-0.66 K series is rated at 0.66 kV and 50 Hz with screw terminal secondary connections marked S1 and S2 and polarity marks (P1/P2) on the housing. The larger 80 x 40 mm window suits wider busbar and larger cable bundles. Each unit is new and supplied in the manufacturer's sealed bag. Multiple units are available for three-phase installations.

Specifications

Brand: GoodWe (manufactured by Acrel)

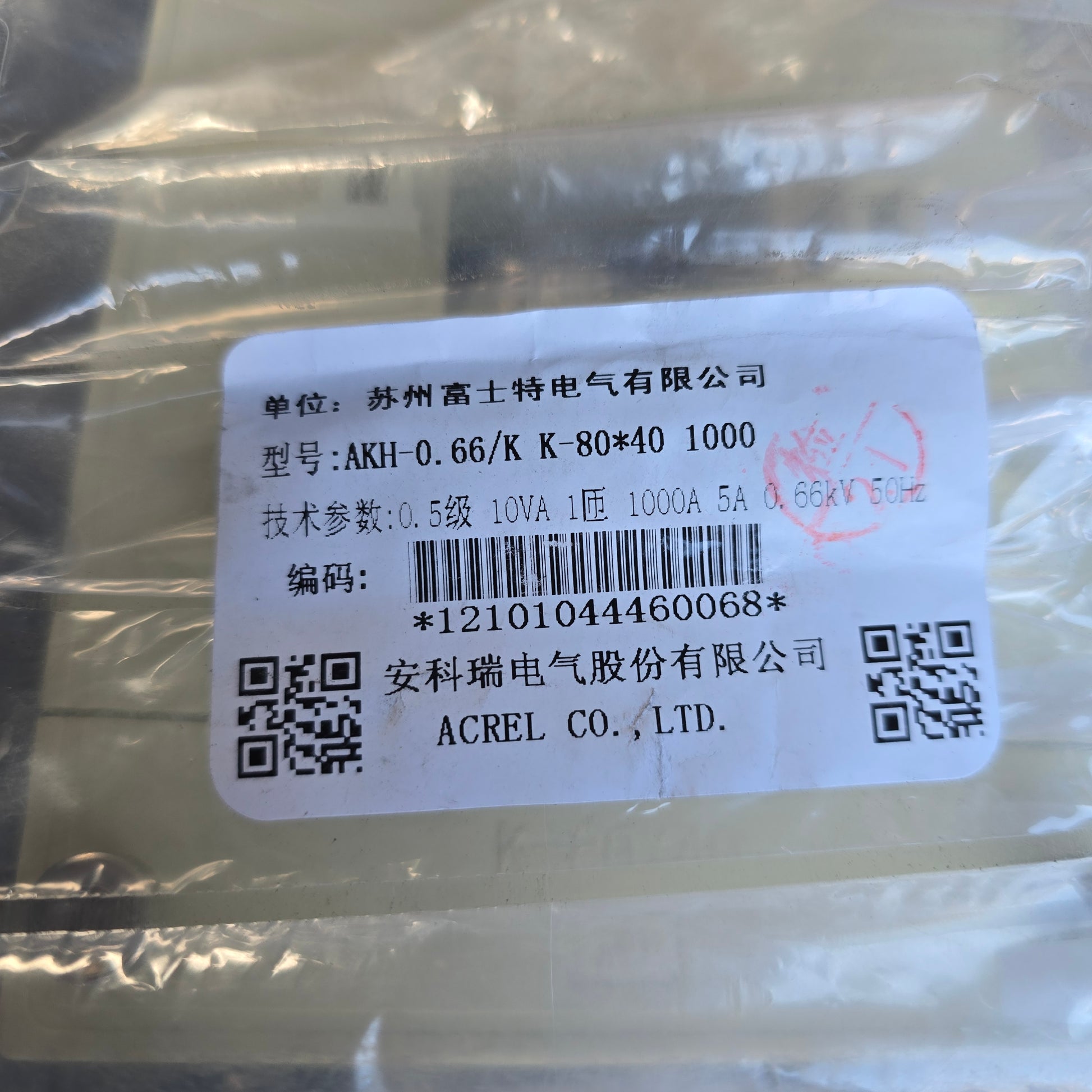

Model: AKH-0.66/K K-80*40

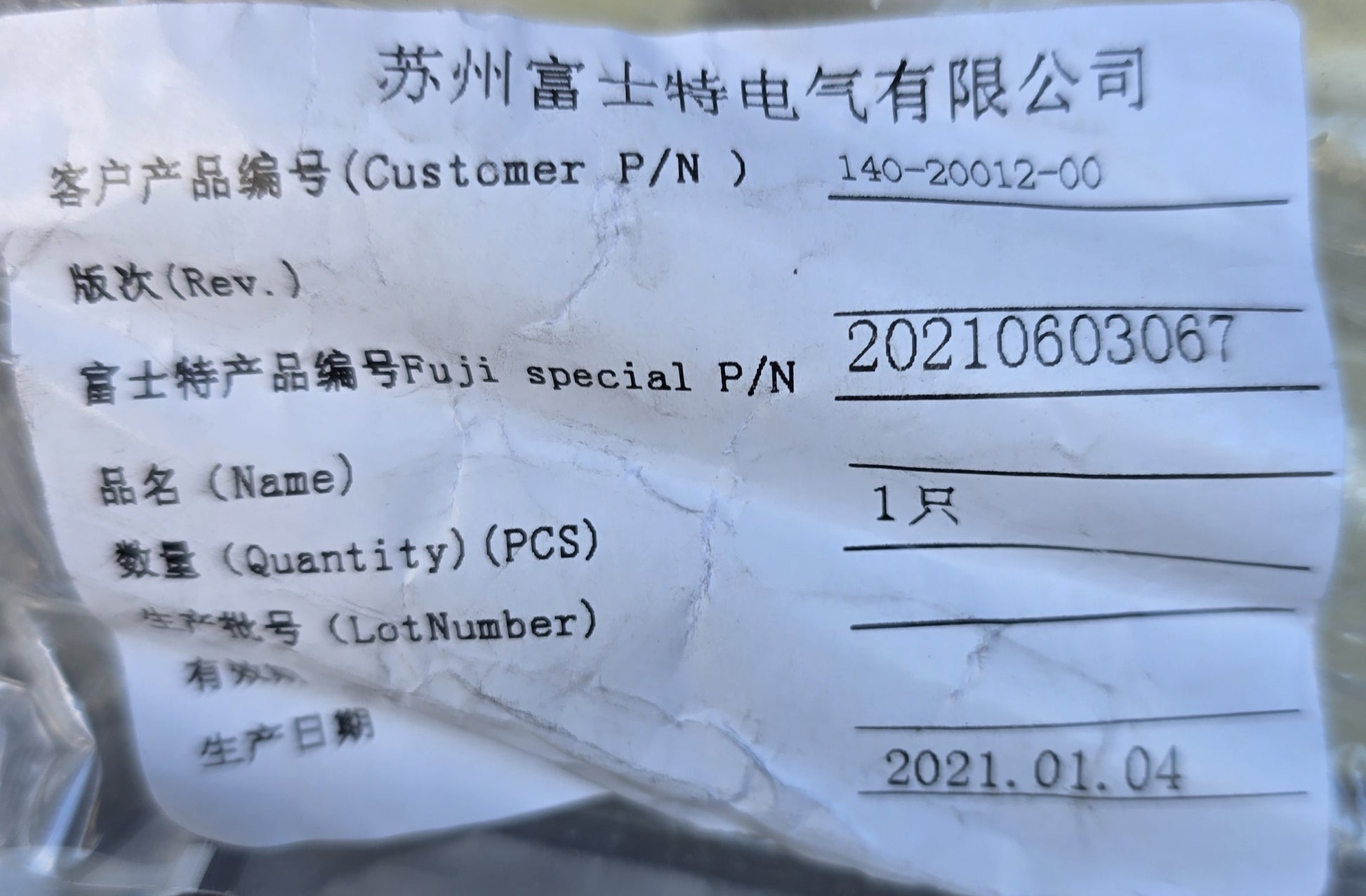

Part Number: 140-20012-00

Alternate Part Number: CT1000-8040

Product Type: Split core current transformer

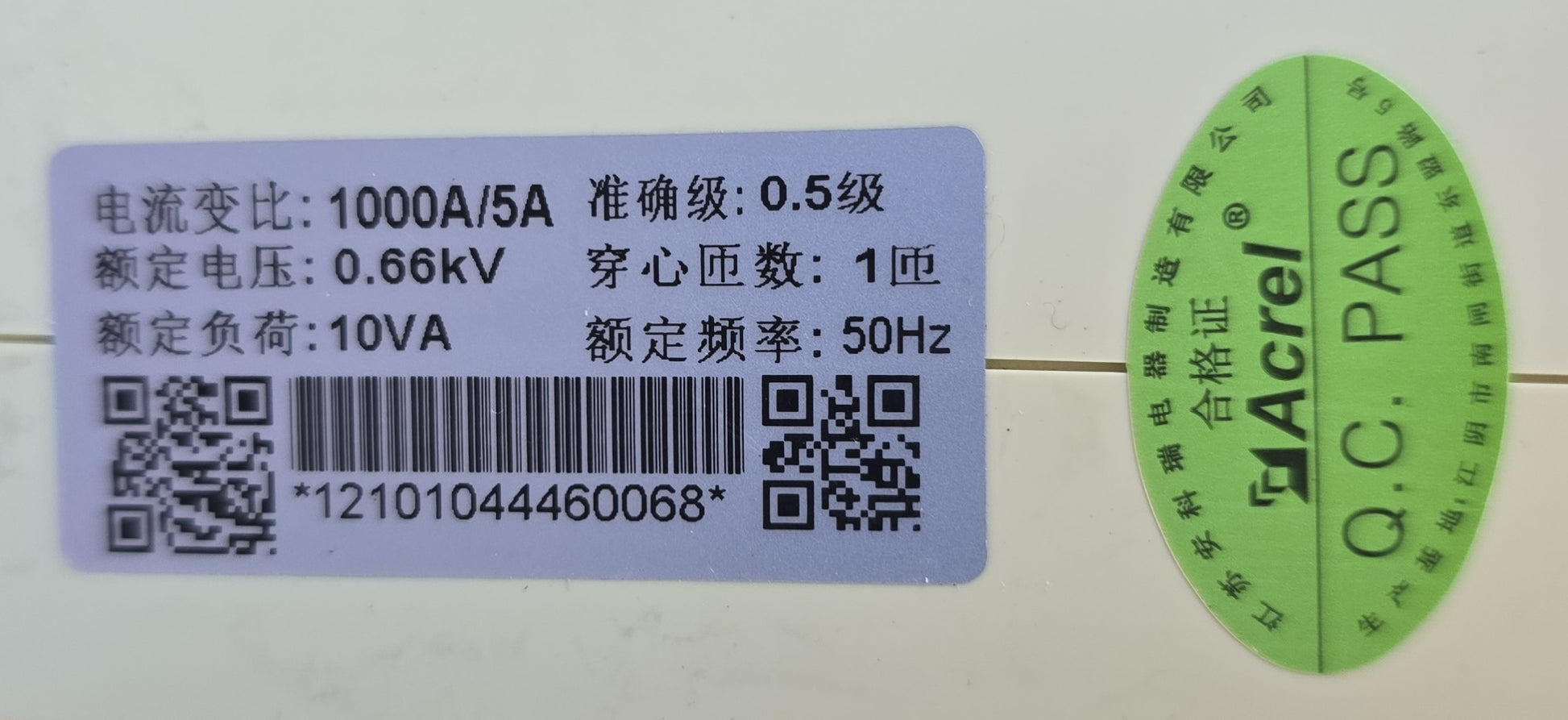

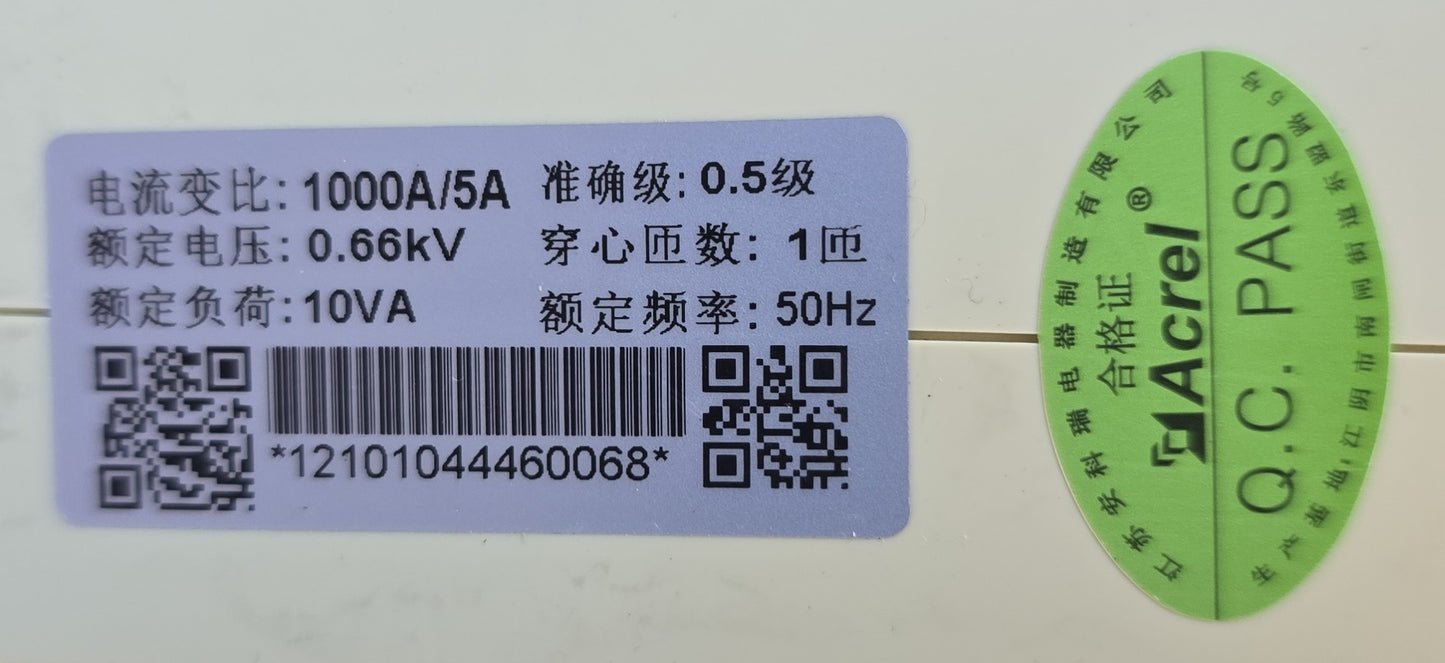

Ratio: 1000/5 A

Rated Voltage: 0.66 kV

Frequency: 50 Hz

Window Size: 80 x 40 mm

Condition: New, Factory Sealed

Key Features

• Split core design installs without breaking the primary circuit
• 1000/5A ratio suits mains monitoring on large distribution boards
• 80 x 40 mm window for wide busbar or multiple cables

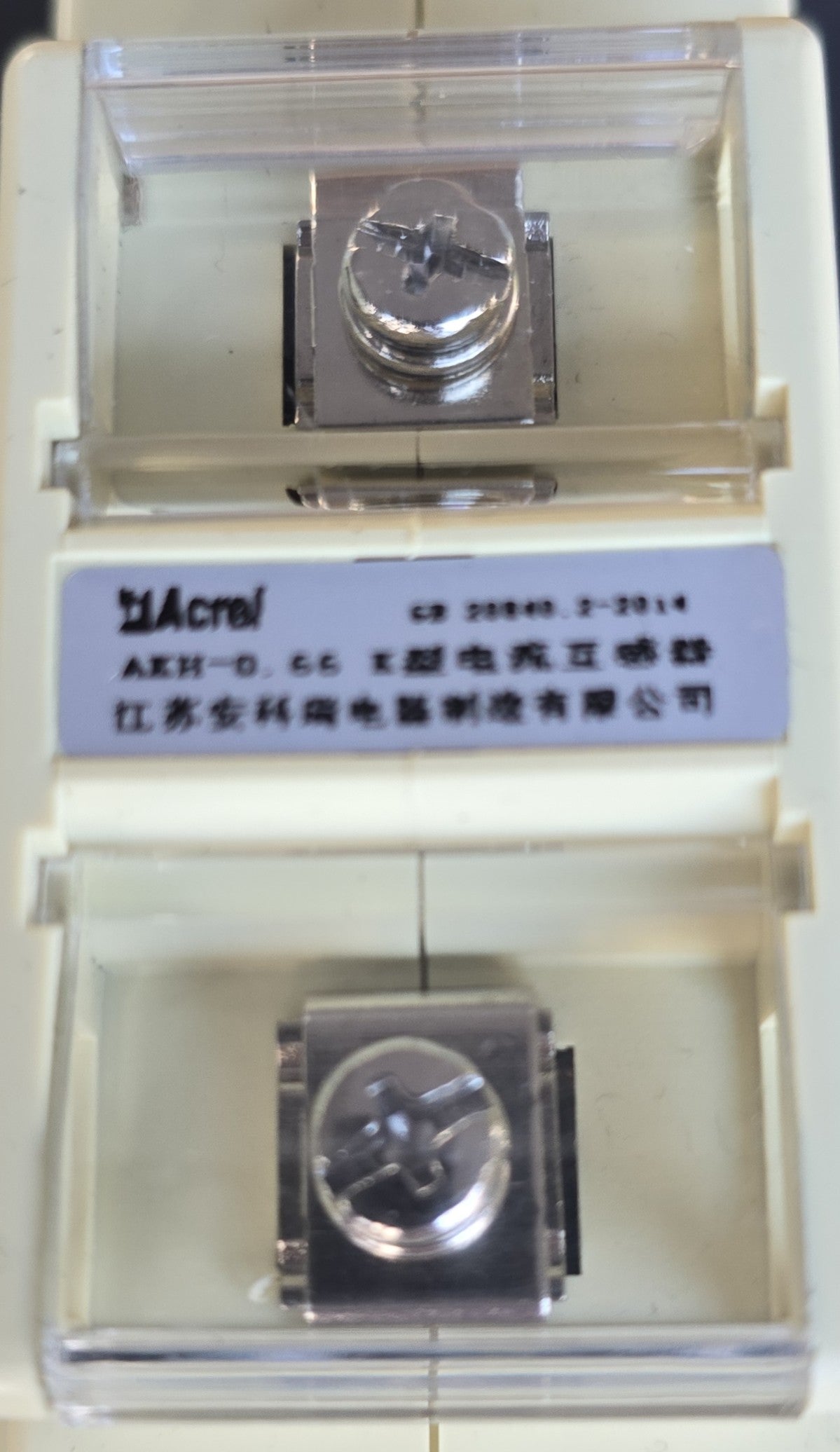

• Screw terminal secondary with P1/P2 orientation marking

Typical Applications

• GoodWe SEC1000 Smart Energy Controller commercial solar installations
• Export power control and energy management systems
• Low voltage switchboard current metering

Package Includes

• 1 x Split core current transformer (sealed manufacturer bag)

Additional Information

Price is per unit. The secondary circuit must never be open circuited while the primary is energised.

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
