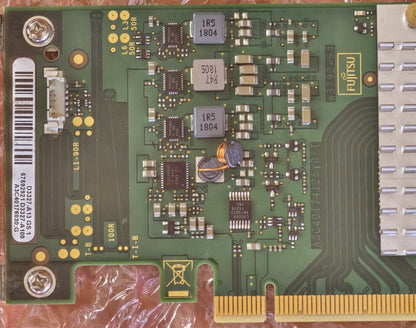

Fujitsu D3327-A13 PSAS CP400i 12G SAS HBA RAID Controller PCIe3 x8 (Pre-owned)

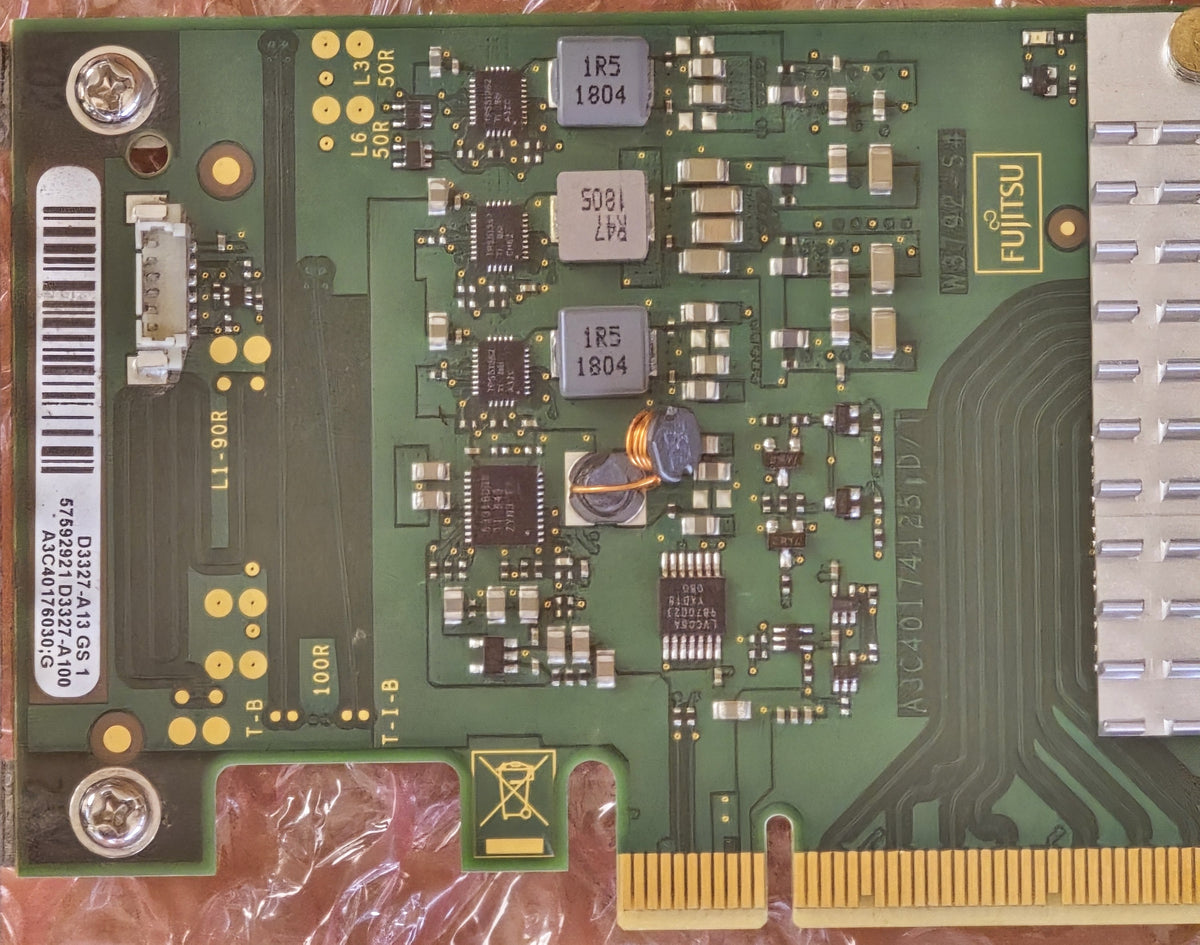

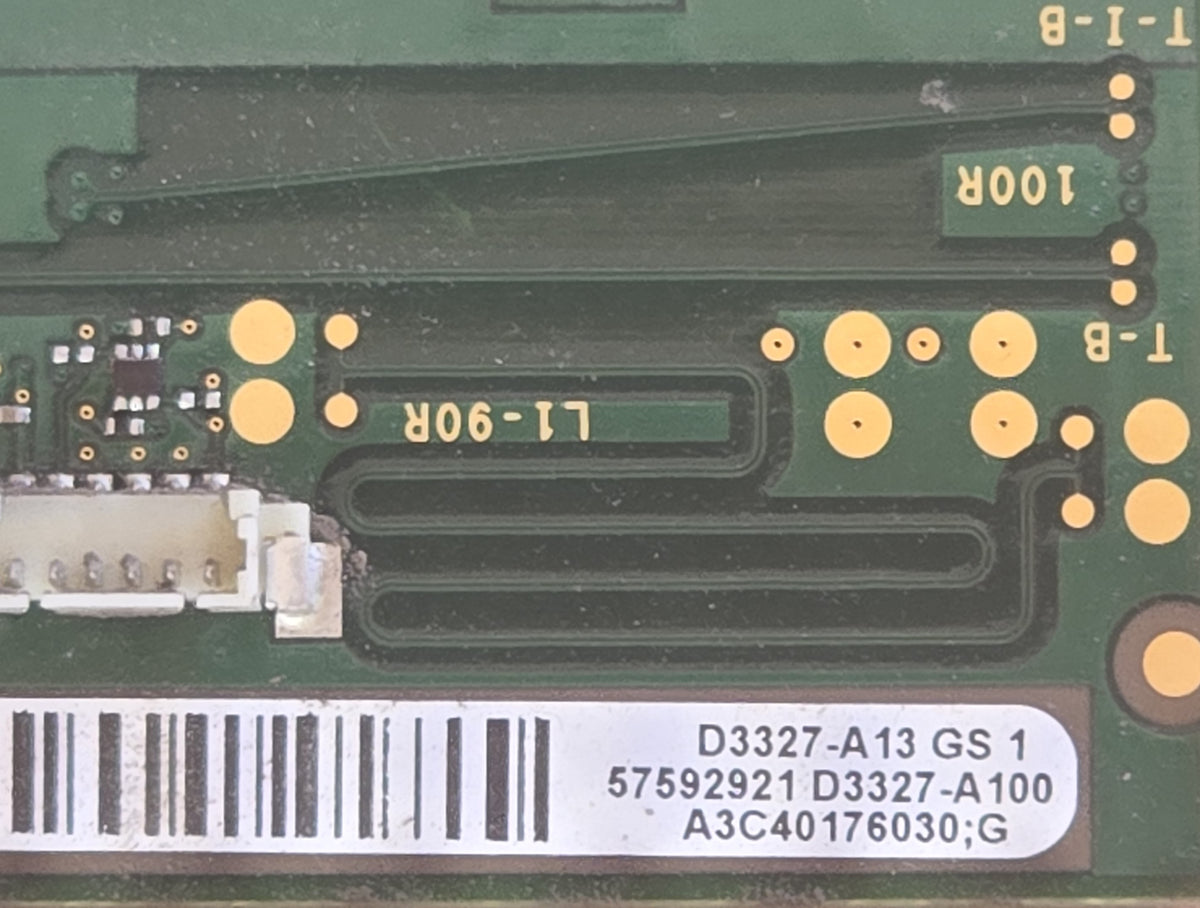

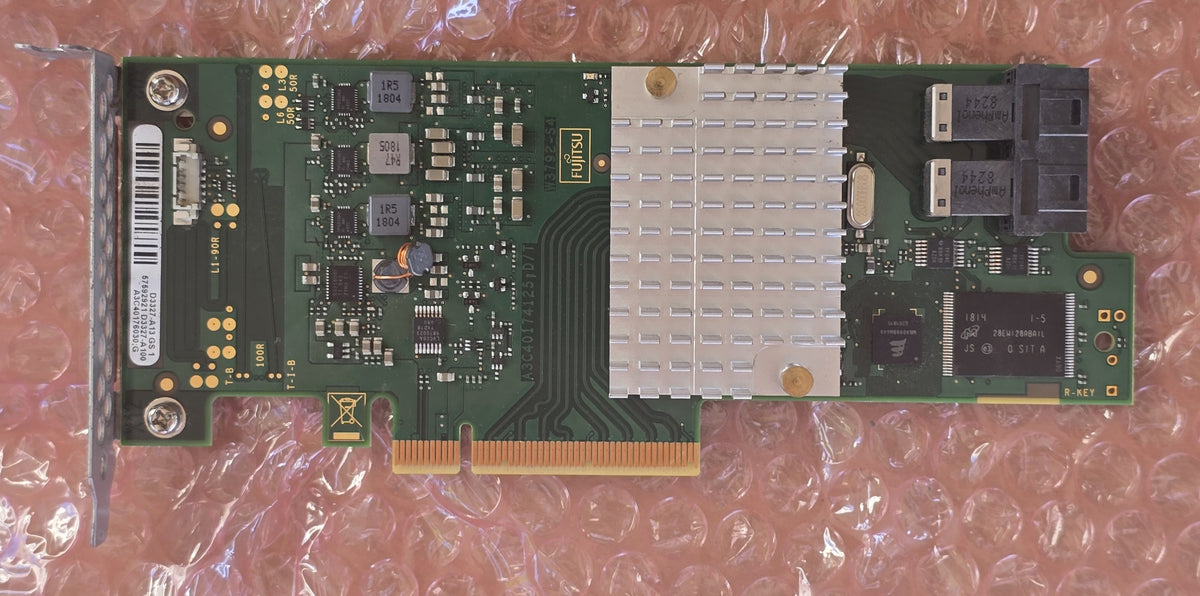

The Fujitsu PSAS CP400i is a 12Gb/s SAS host bus adapter for Fujitsu PRIMERGY servers, board D3327-A13 GS 1, assembly S26361-D3327-A100 (A3C40176030). It is built on the LSI / Broadcom SAS3008 controller and connects up to eight SAS or SATA drives directly through two internal SFF-8643 Mini-SAS HD connectors.

The card runs in PCIe 3.0 x8 slots and supports simple RAID 0 and RAID 1 as well as plain HBA pass-through for software RAID, ZFS and storage servers. It is fitted with a low profile bracket. These cards are used pulls from working servers and are sold untested.

Specifications

Brand: Fujitsu

Model: PSAS CP400i

Part Number: D3327-A13

Alternate Part Number: S26361-D3327-A100, A3C40176030

Product Type: SAS / SATA host bus adapter

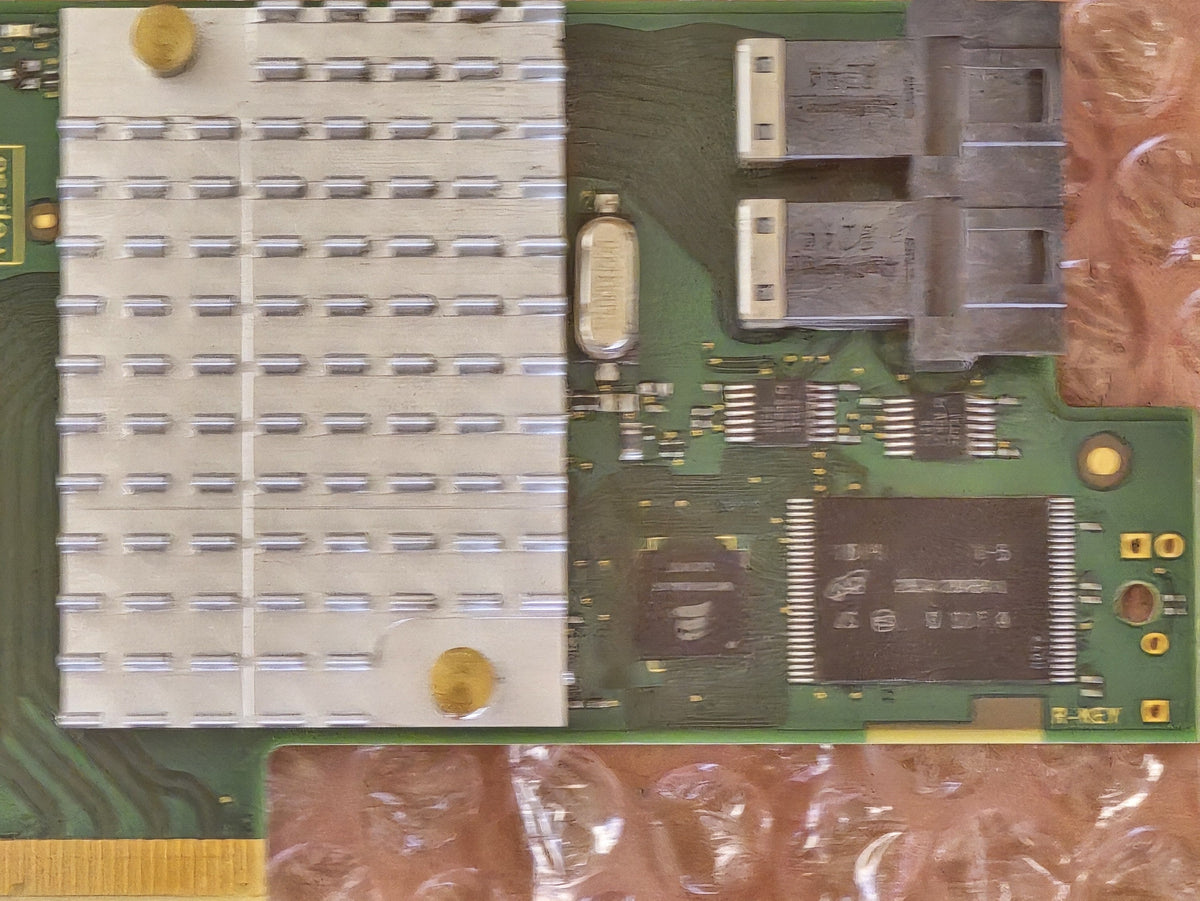

Controller: LSI / Broadcom SAS3008

Ports: 8 internal

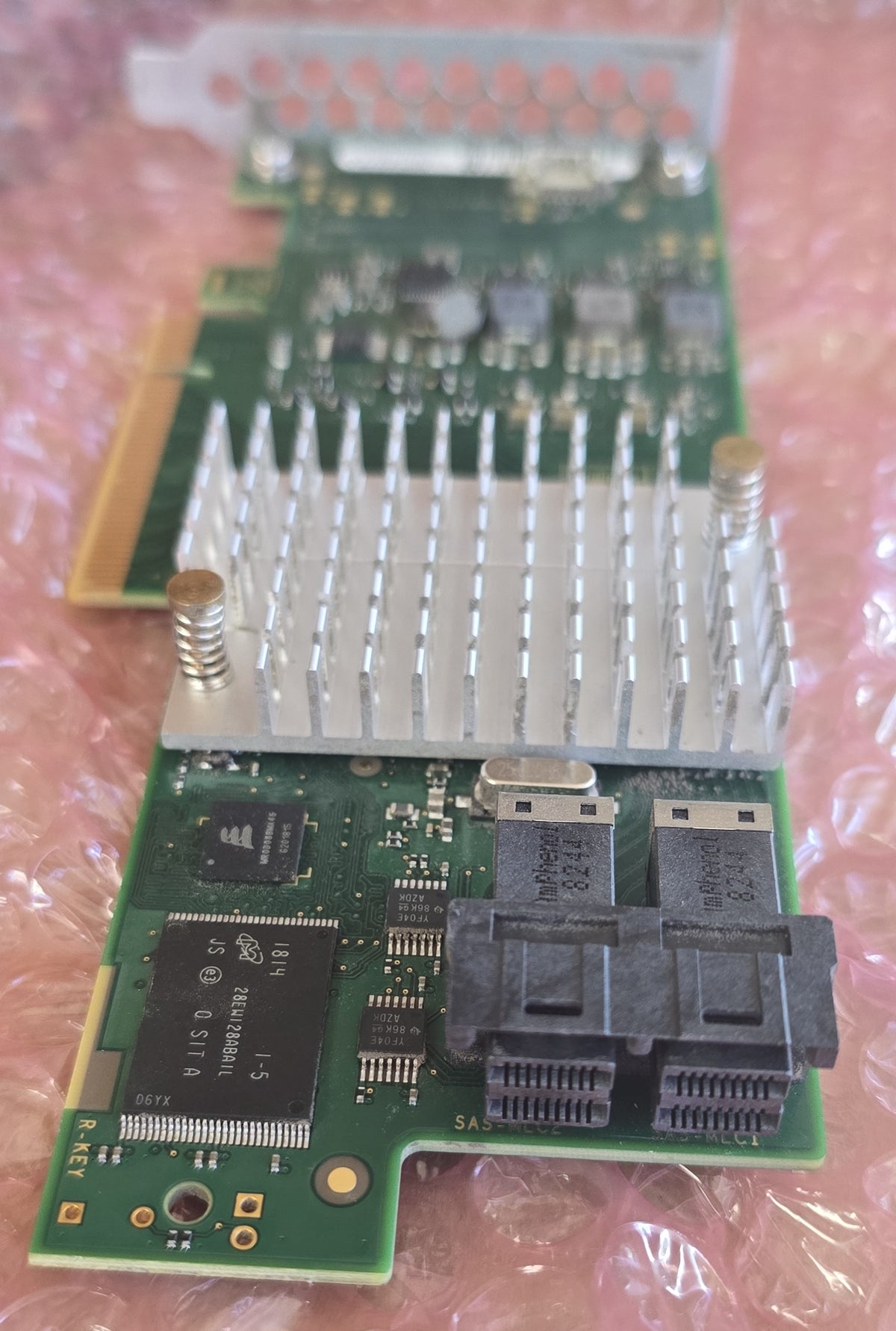

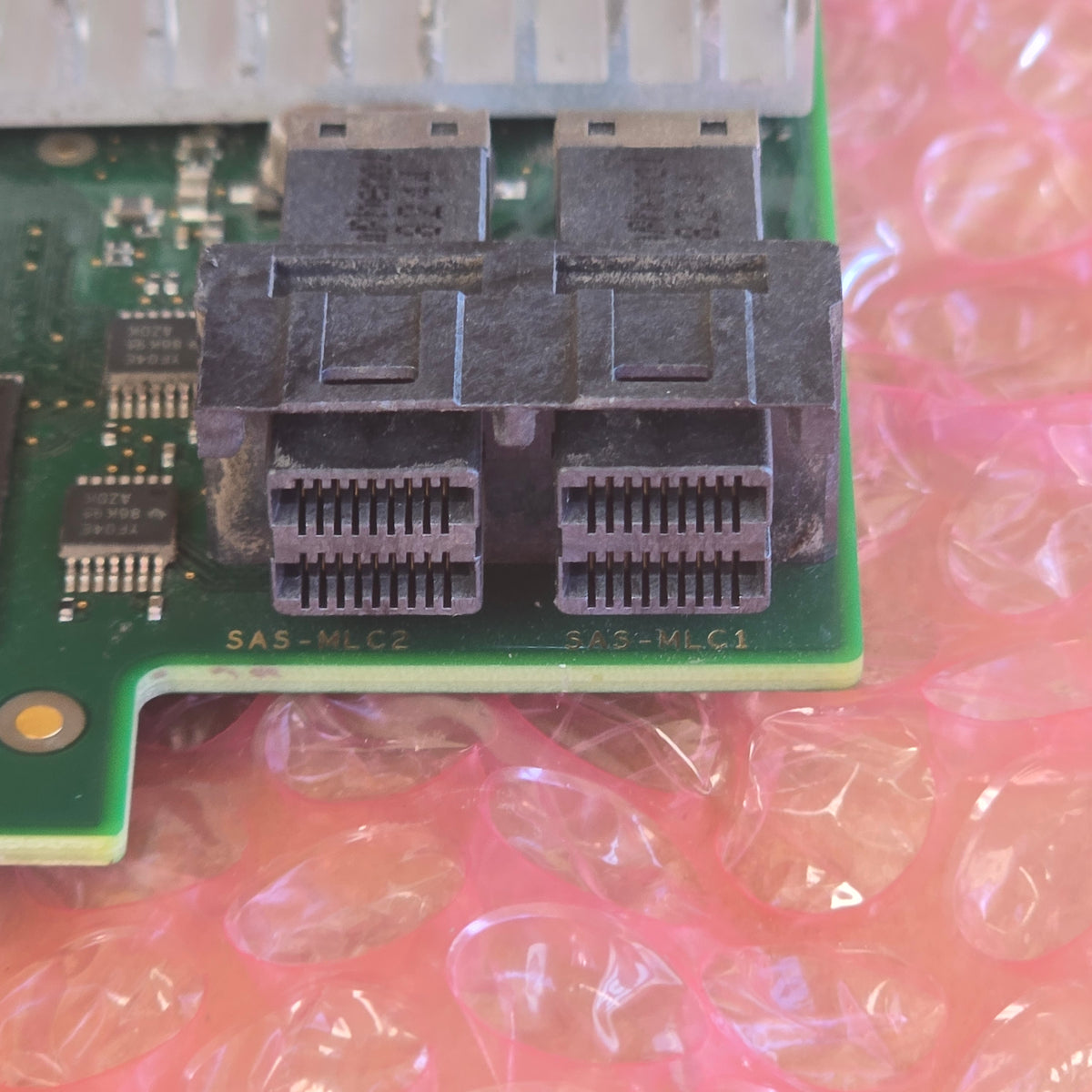

Connectors: 2 x SFF-8643 Mini-SAS HD

Data Rate: 12Gb/s SAS, 6Gb/s SATA

Host Interface: PCIe 3.0 x8

RAID Levels: 0, 1 and HBA pass-through

Bracket: Low profile

Condition: Used, removed from working equipment, untested

Key Features

• 12Gb/s SAS3 performance
• Eight drives from two Mini-SAS HD ports
• HBA pass-through for ZFS and software RAID
• Low profile card for 1U and 2U servers

Typical Applications

• Fujitsu PRIMERGY RX and TX servers
• Home lab and NAS storage builds
• Replacement controller for existing CP400i installations

Package Includes

• 1 x Fujitsu PSAS CP400i card with low profile bracket as photographed

Additional Information

Price is per card. Twenty units are available.

Cables are not included. A full height bracket is not included.

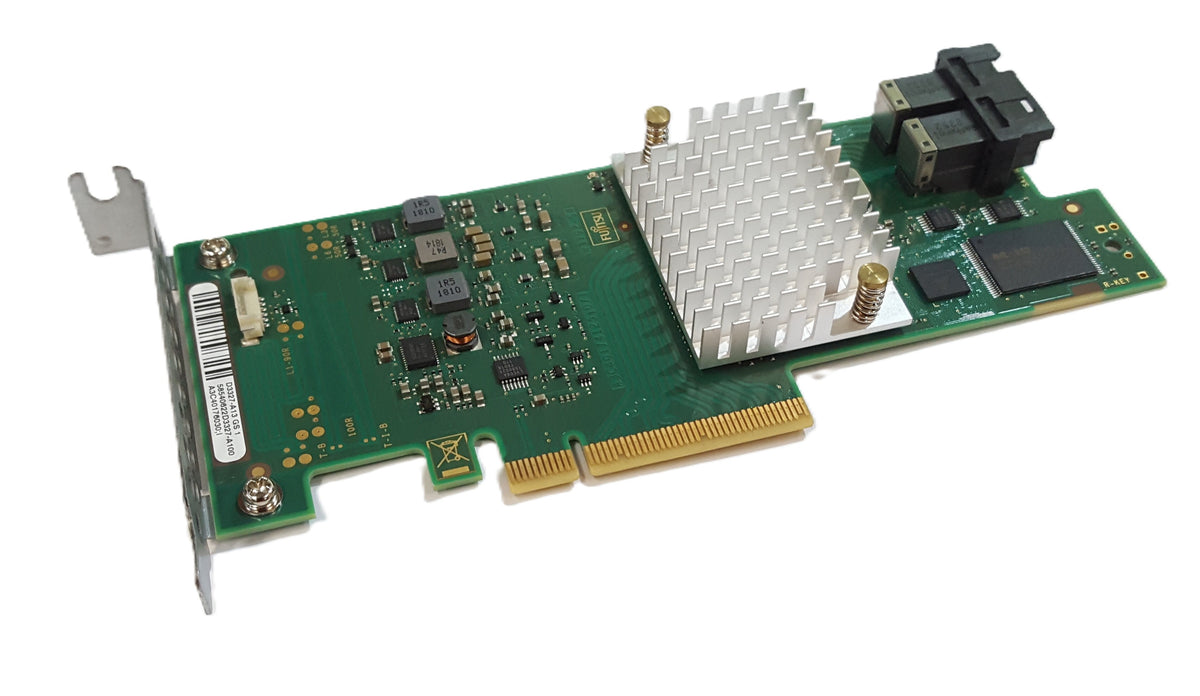

One photograph is a representative image of the same card.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
