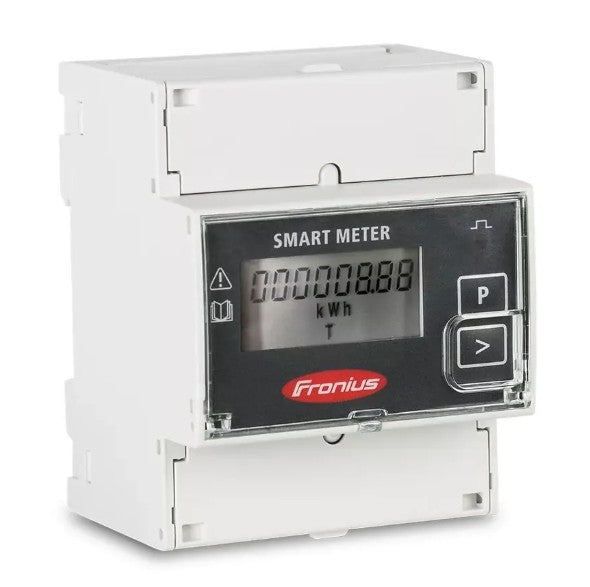

Fronius 43,0001,1473 Smart Meter 63A-3 Three Phase Modbus RTU (NEW Sealed)

The Fronius Smart Meter 63A-3, article number 43,0001,1473, is a three phase bidirectional energy meter for Fronius solar installations. Installed at the grid connection point, it records import and export values and communicates with the inverter's Datamanager over Modbus RTU, enabling dynamic export power limiting and complete consumption data in Fronius Solar.web.

The meter is rated 230(400) V to 240(415) V at 10(63) A, 50 to 60 Hz, with accuracy class 1 for active energy (Wh) and class 2 for reactive energy (varh). This unit is new in the manufacturer's original packaging and carries CE, UKCA and RCM marks.

Specifications

Brand: Fronius

Model: Smart Meter 63A-3

Part Number: 43,0001,1473

Product Type: Three phase bidirectional energy meter

Voltage: 230(400) V - 240(415) V

Current: 10(63) A

Frequency: 50 - 60 Hz

Accuracy: Class 1 (Wh), Class 2 (varh)

Communication: Modbus RTU

EAN: 9007947175335

Condition: New, Factory Sealed

Key Features

• Three phase direct measurement up to 63 A per phase
• Modbus RTU communication to Fronius Datamanager
• Enables dynamic export power limiting
• Full consumption and feed-in data in Fronius Solar.web
• DIN rail switchboard mounting

Typical Applications

• Three phase Fronius solar installations
• Export limited grid connections
• Whole-of-site consumption monitoring

Package Includes

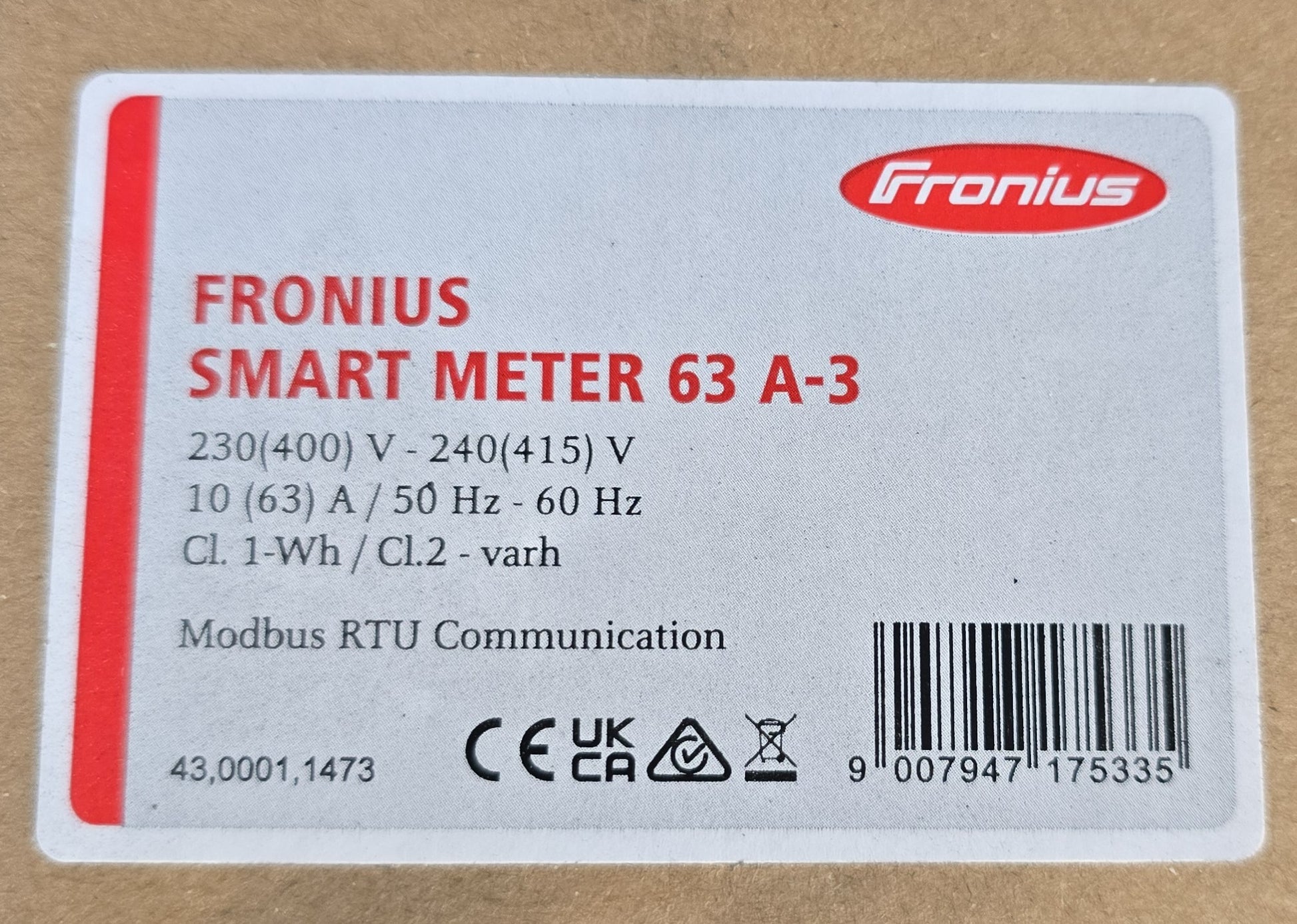

• 1 x Fronius Smart Meter 63A-3 in the manufacturer's box

Additional Information

A Fronius inverter with Datamanager 2.0 or equivalent communication is required for monitoring integration. Installation must be carried out by a licensed electrician.

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
