Fronius CTV100333MV Current Transformer 100A 333mV Split-Core (NEW In Box)

The Fronius CTV100333MV is a split-core current transformer, also referred to as the Fronius Smart Meter CT V 100A/333mV. It converts a primary current of up to 100A into a 333mV (0.333V) secondary voltage signal for use with a Fronius Smart Meter, enabling accurate energy measurement without breaking the existing conductor.

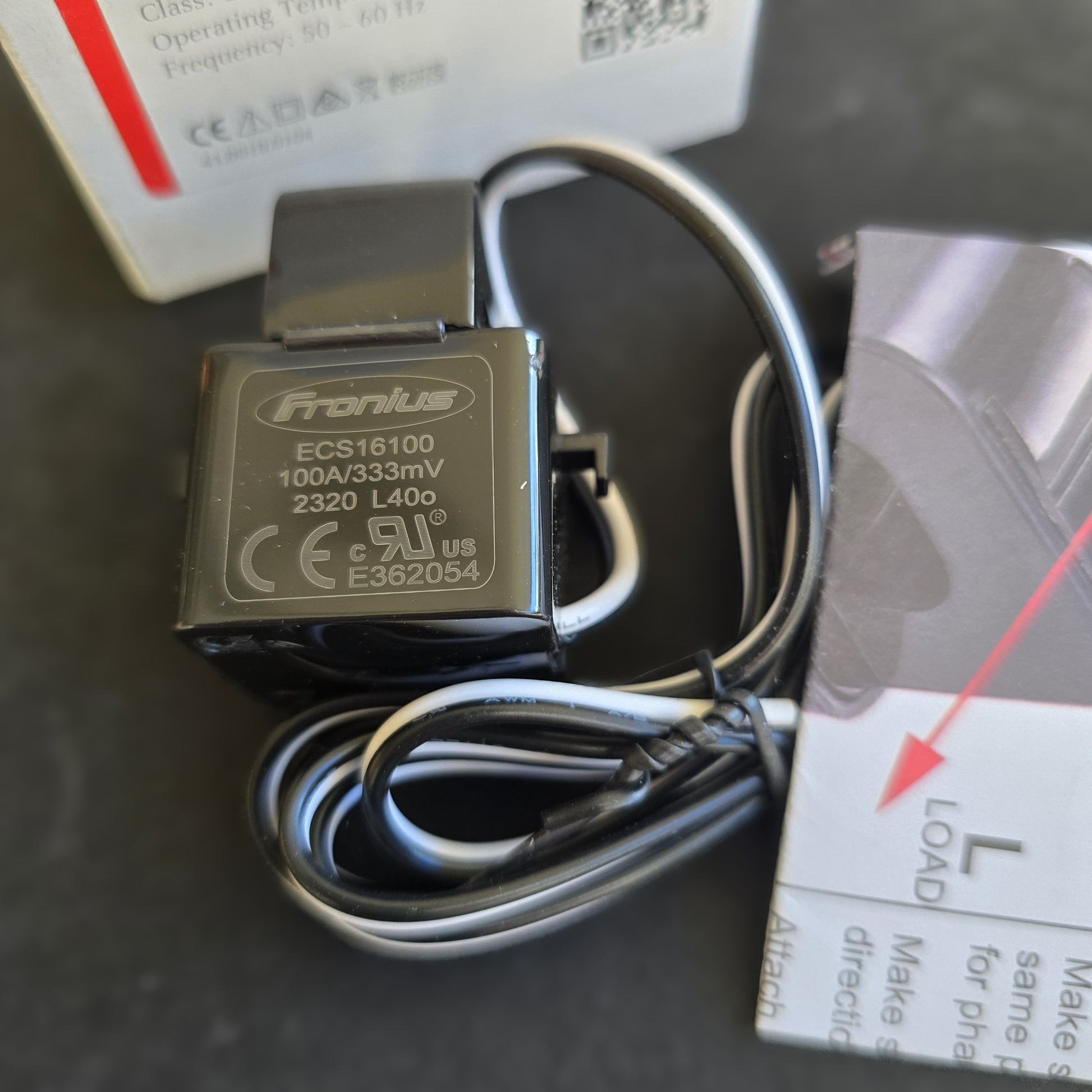

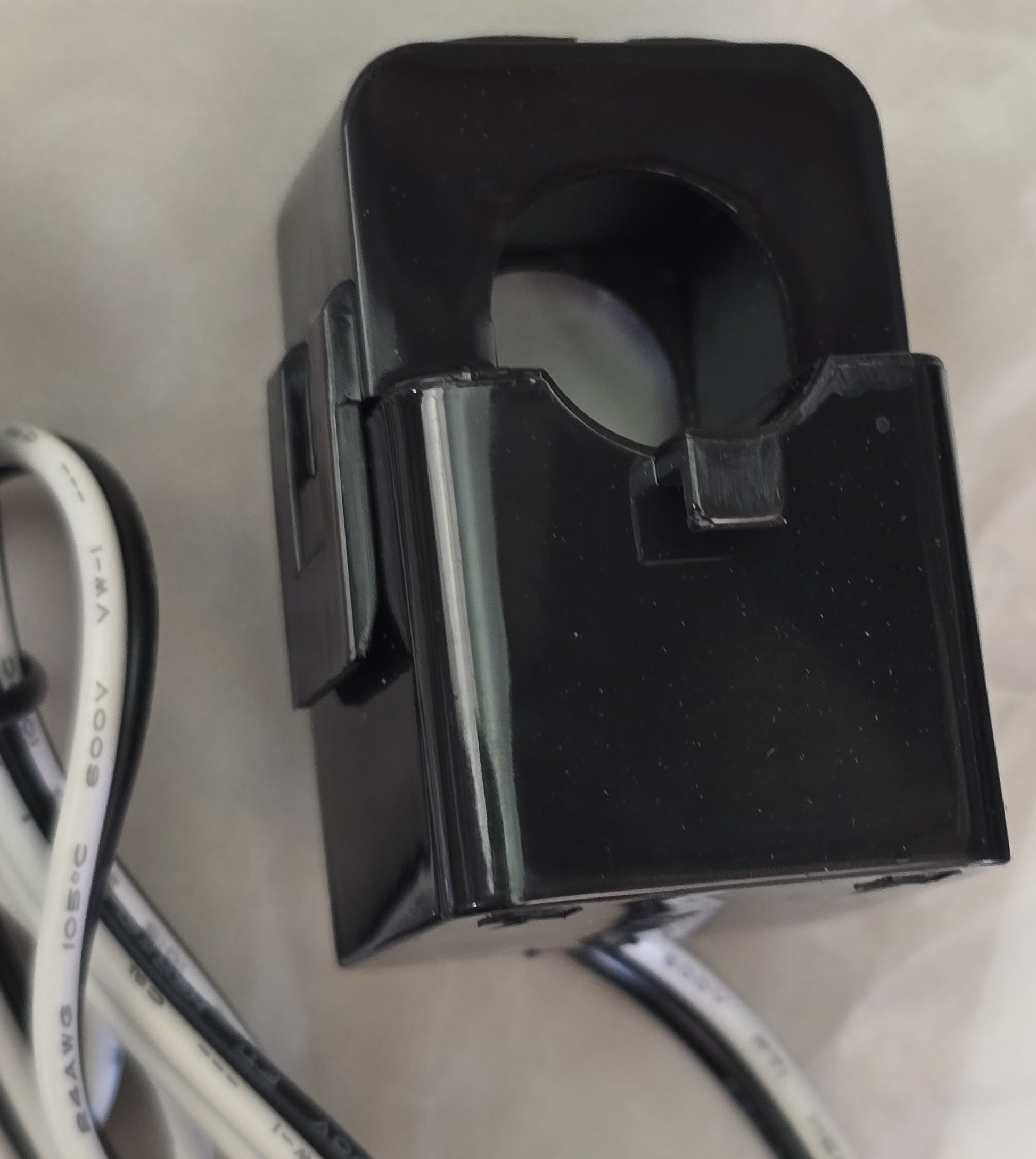

The split-core design clips around a live cable through a 16mm conductor opening, allowing installation without disconnecting the circuit. It carries the Fronius order code 41,0010,0104 and is device-marked ECS16100. This listing is for a unit that is new in the manufacturer's original packaging.

Specifications

• Brand: Fronius
• Model: CTV100333MV (Smart Meter CT V 100A/333mV)
• Order code: 41,0010,0104

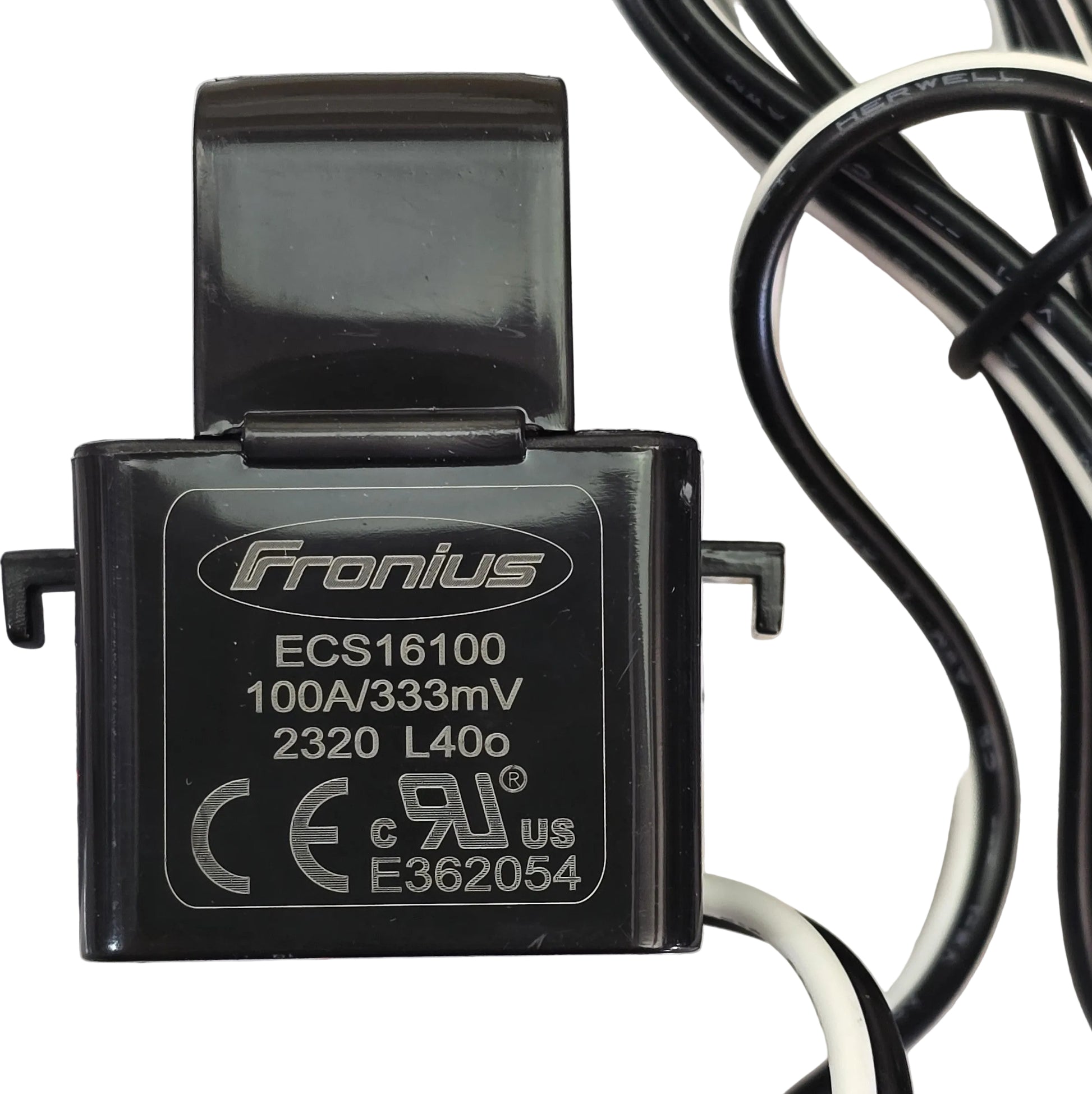

• Device marking: ECS16100
• Primary current: 100A
• Secondary output: 333mV (0.333V)
• Type: Split-core current transformer
• Conductor opening: 16mm
• Accuracy: Class 1
• Frequency: 50 to 60Hz
• Operating temperature: -40C to +65C
• Lead length: 1m
• Approvals: CE, cULus E362054, RoHS

Key Features

• Split-core body clips around the conductor for installation without disconnecting the circuit
• 333mV voltage output compatible with the Fronius Smart Meter
• Class 1 measurement accuracy
• Wide operating temperature range from -40C to +65C
• 16mm conductor opening suits common single-phase and three-phase cabling

Typical Applications

• Current measurement for Fronius Smart Meter energy monitoring
• Solar photovoltaic self-consumption and feed-in monitoring
• Retrofit metering where the main conductor cannot be disconnected
• Single-phase and three-phase installations (one unit per phase)

Package Includes

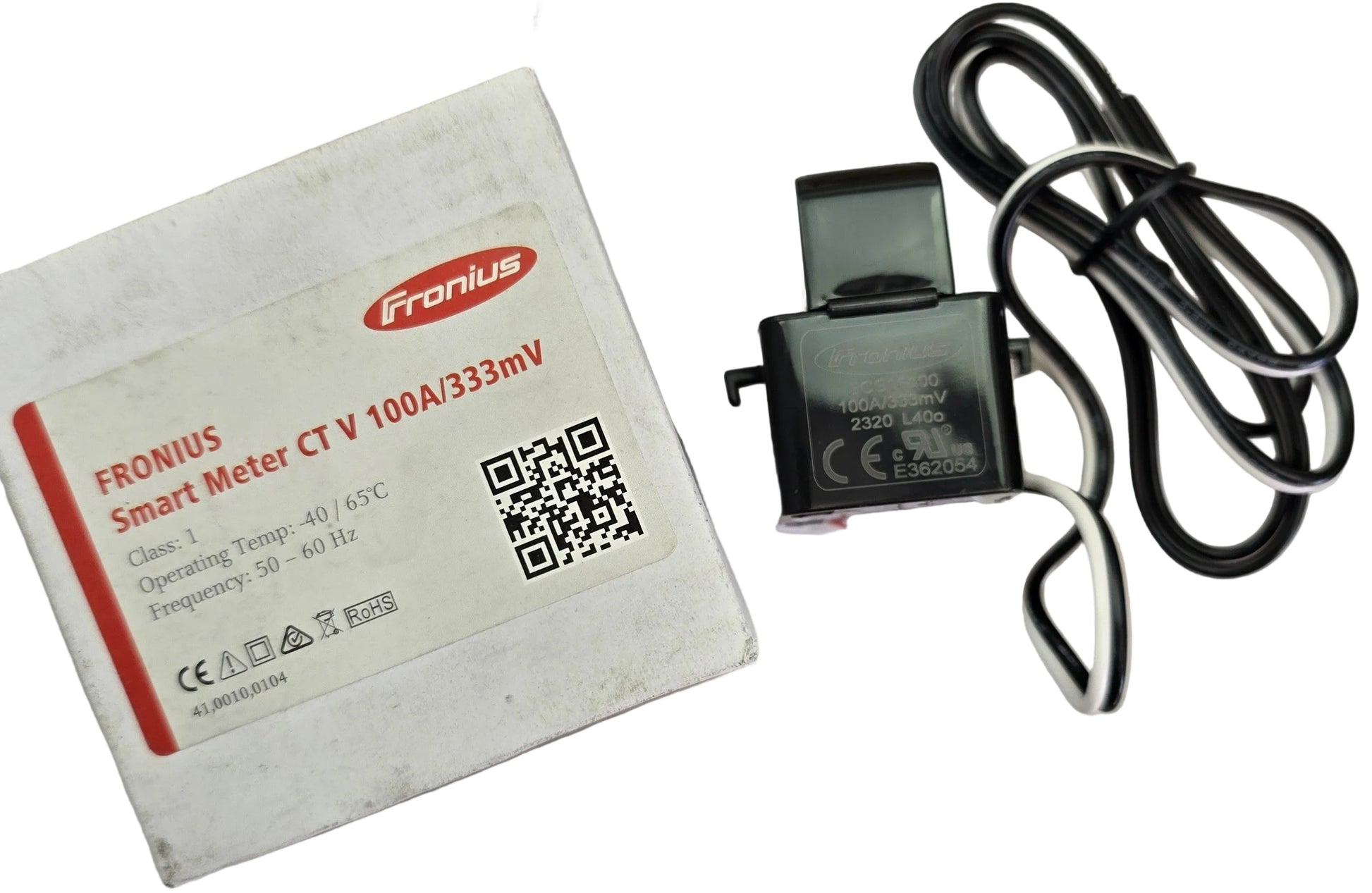

• 1 x Fronius CTV100333MV split-core current transformer with 1m lead
• Manufacturer's original box and documentation
• Up to 35 units are available; multiple quantities can be supplied

Additional Information

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
