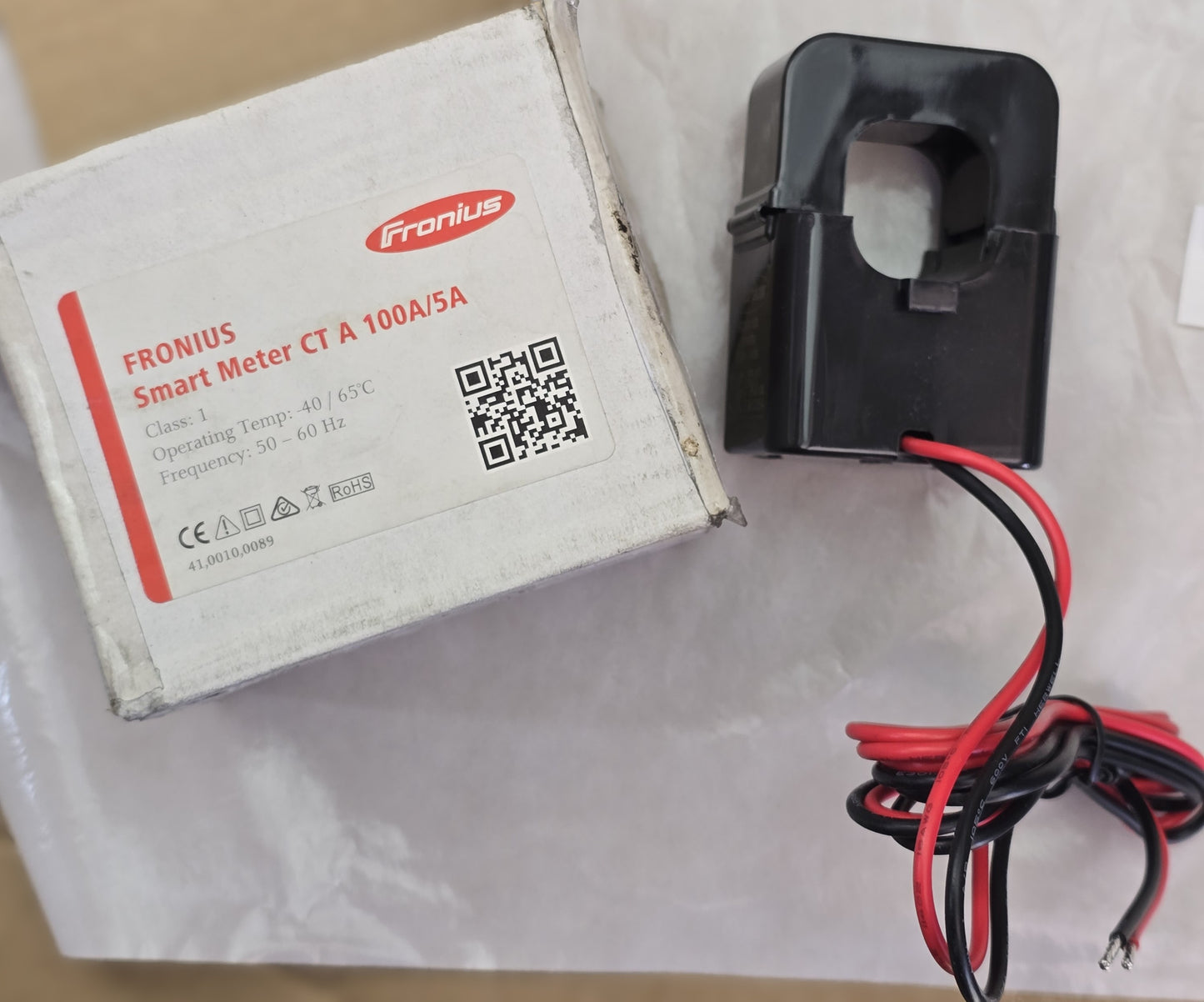

Fronius CTA1005A Current Transformer 100A/5A Split Core Smart Meter (NEW In Box)

The Fronius CTA1005A is a split-core current transformer with a 100 A to 5 A ratio, supplied as an accessory for the Fronius Smart Meter. It clips around an existing conductor without the need to disconnect the cable, stepping the primary current down to a 5 A secondary signal that the meter measures.

This is a genuine Fronius part carrying the order code 41,0010,0089 and marked ECS24100 on the housing. It is a Class 1 accuracy device rated for 50 to 60 Hz operation, fitted with red and black flying leads for connection to the meter's current inputs.

Specifications

• Brand: Fronius
• Model: CTA1005A (Smart Meter CT A 100A/5A)

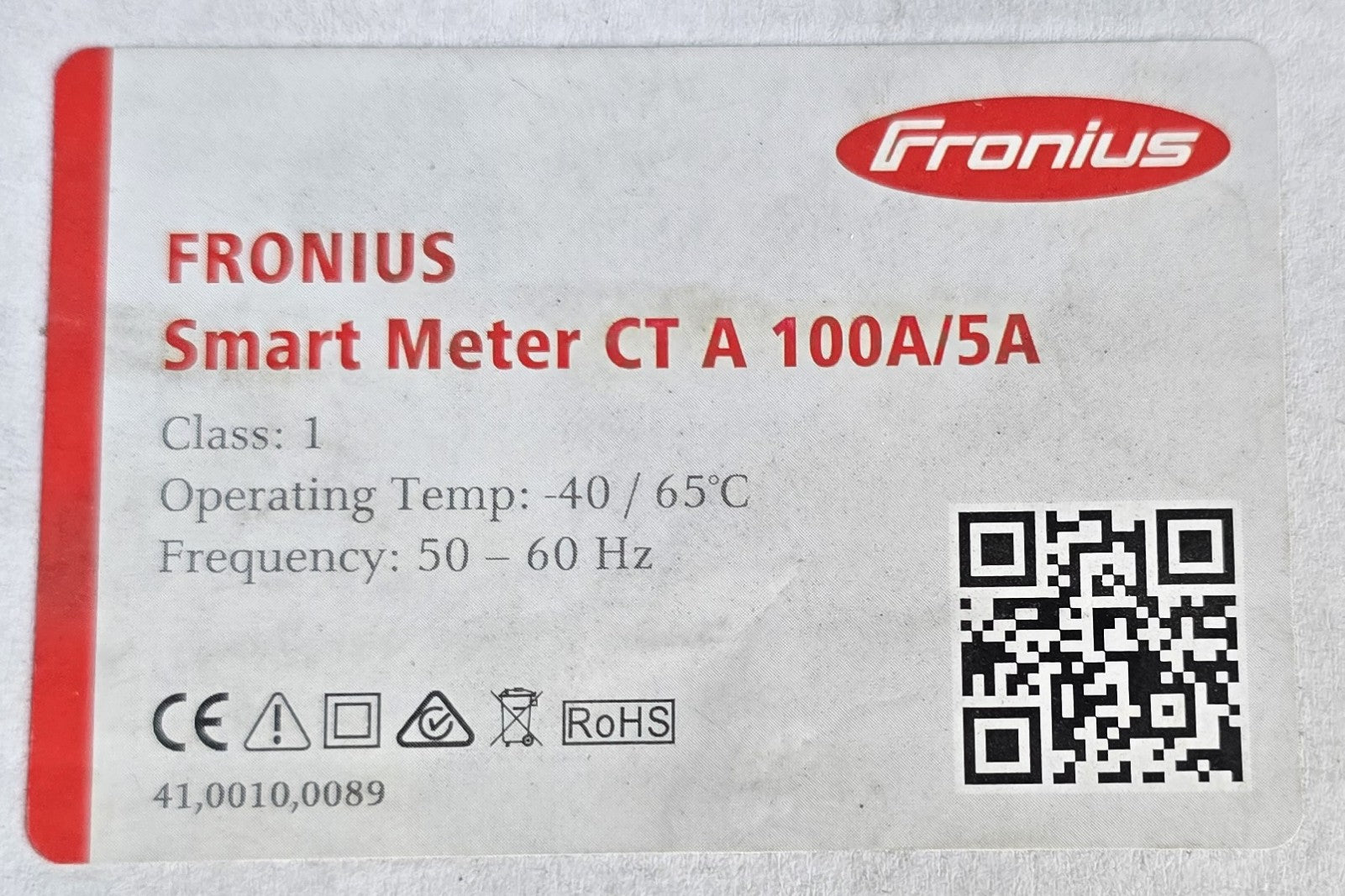

• Fronius order code: 41,0010,0089

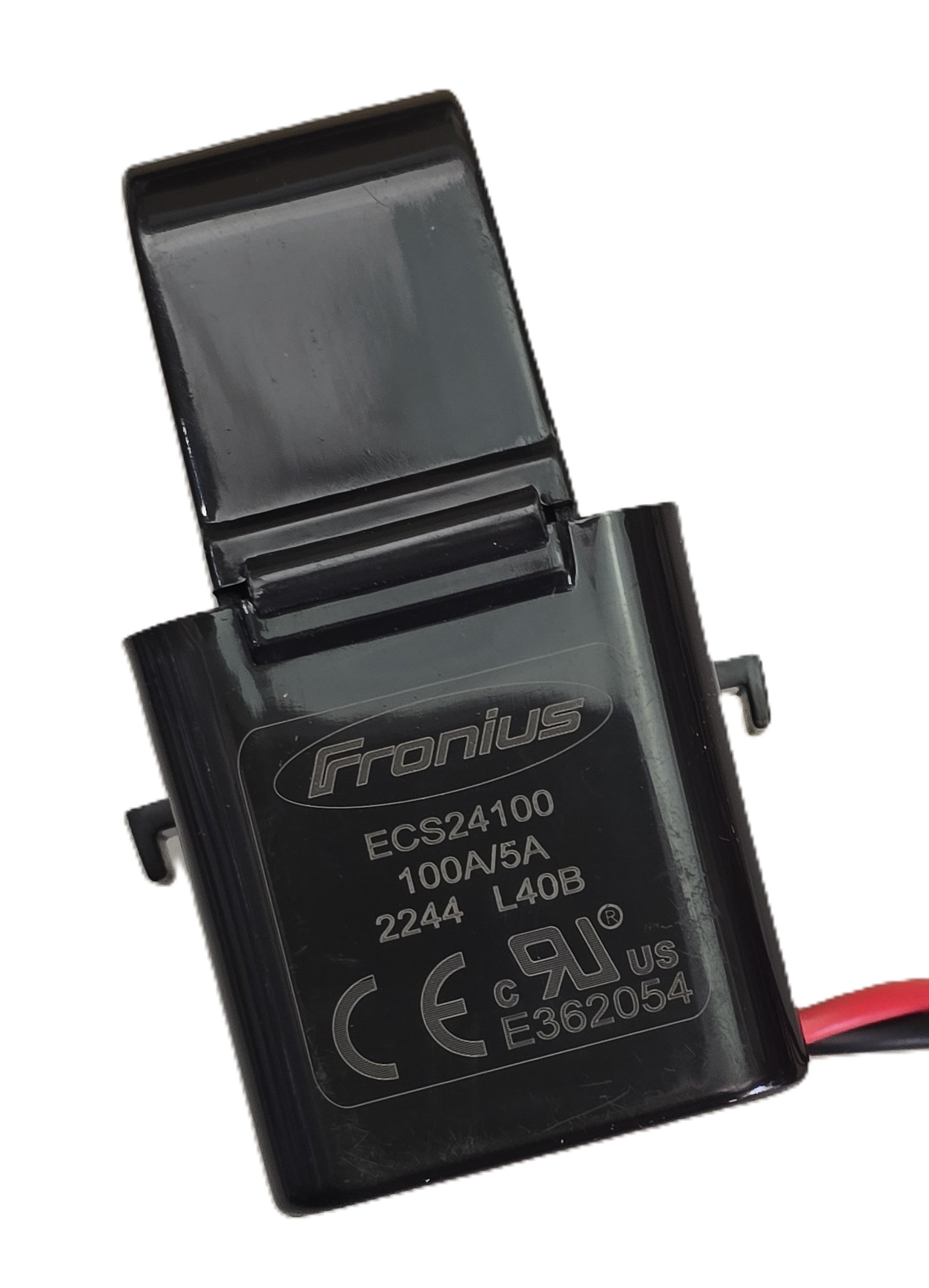

• Housing marking: ECS24100 (2244 L40B)
• Type: Split-core current transformer
• Current ratio: 100 A : 5 A
• Secondary output: 5 A
• Accuracy class: Class 1
• Operating frequency: 50 to 60 Hz
• Operating temperature: -40 C to +65 C
• Window aperture: 24 mm (split core)

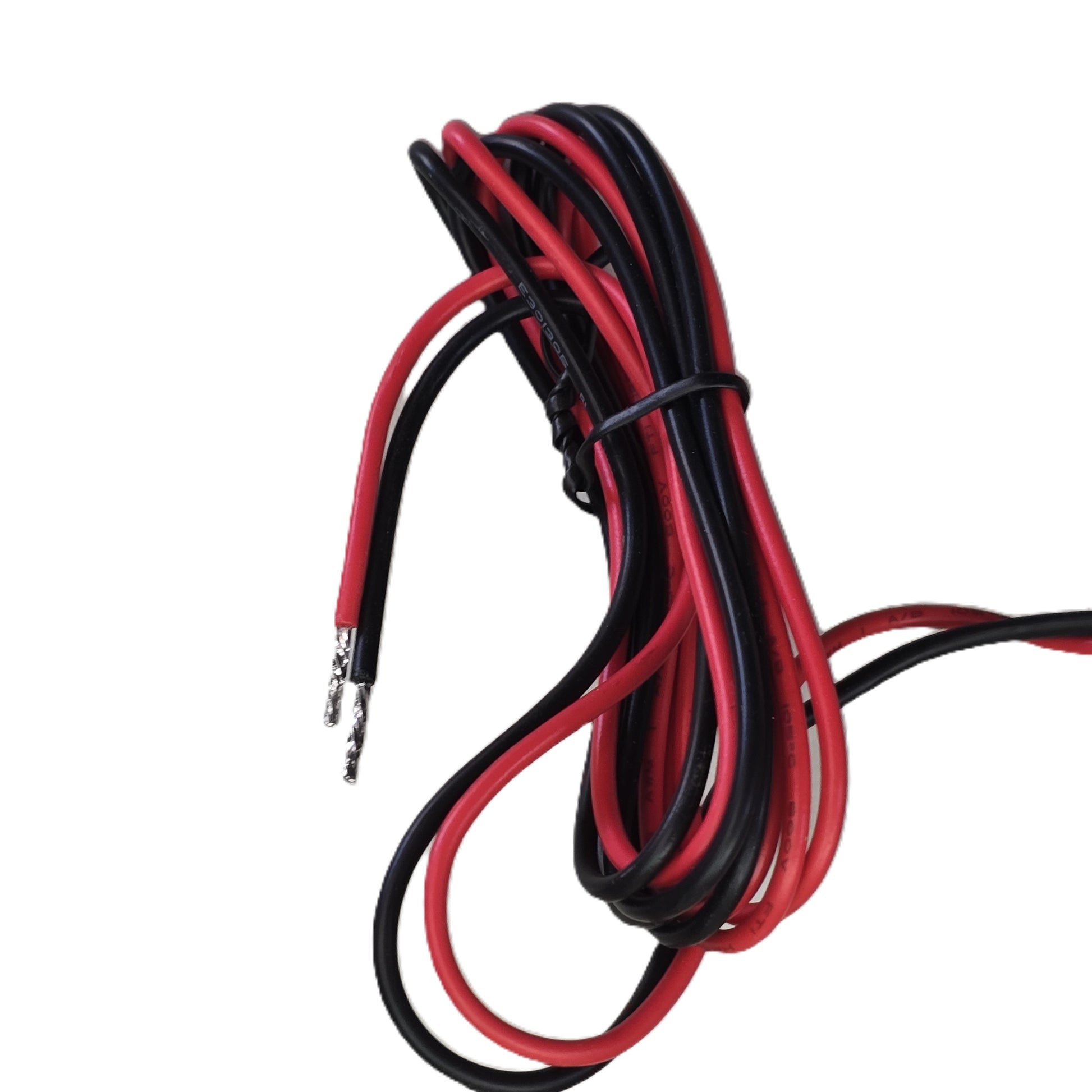

• Connection: red and black flying leads
• Approvals: CE, RoHS, cURus (UL file E362054)

Key Features

• Split-core design clips around a live conductor without disconnecting the wiring
• 100 A to 5 A ratio with a standard 5 A secondary output
• Class 1 metering accuracy
• Wide operating temperature range of -40 C to +65 C
• Genuine Fronius accessory for the Fronius Smart Meter

Typical Applications

• Current measurement for the Fronius Smart Meter in solar and energy monitoring installations
• Retrofitting metering onto existing cabling where the conductor cannot be broken
• Single-phase or multi-phase current sensing using one transformer per phase
• Commercial and residential energy management systems

Package Includes

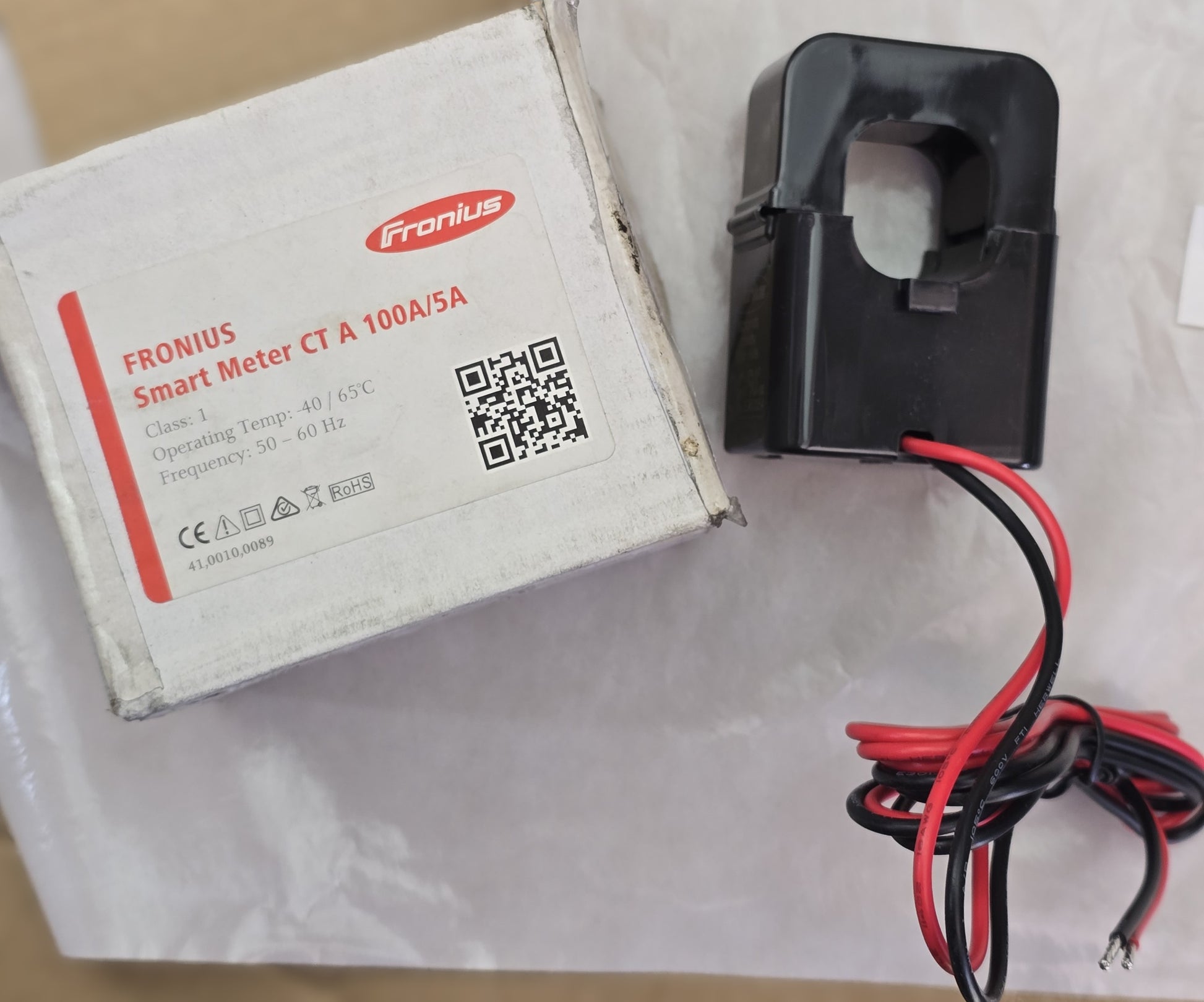

• 1 x Fronius CTA1005A 100A/5A split-core current transformer with flying leads
• Manufacturer's original box

Additional Information

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
