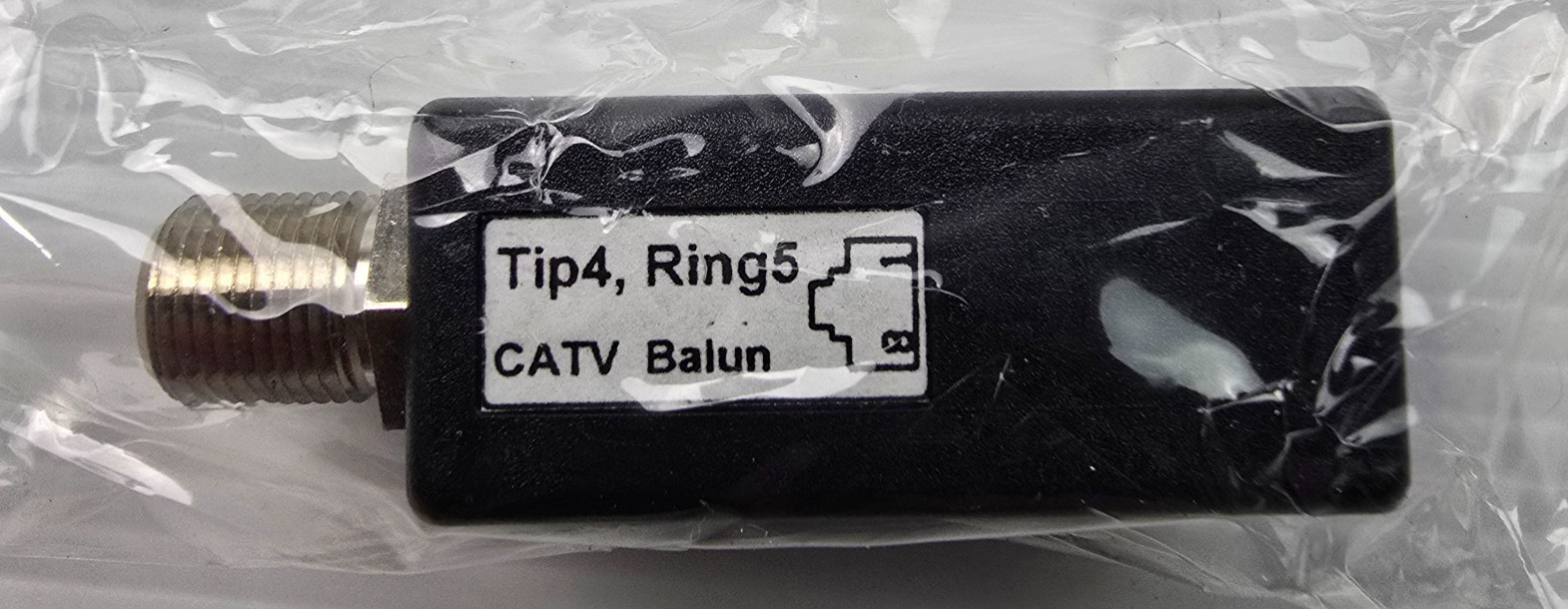

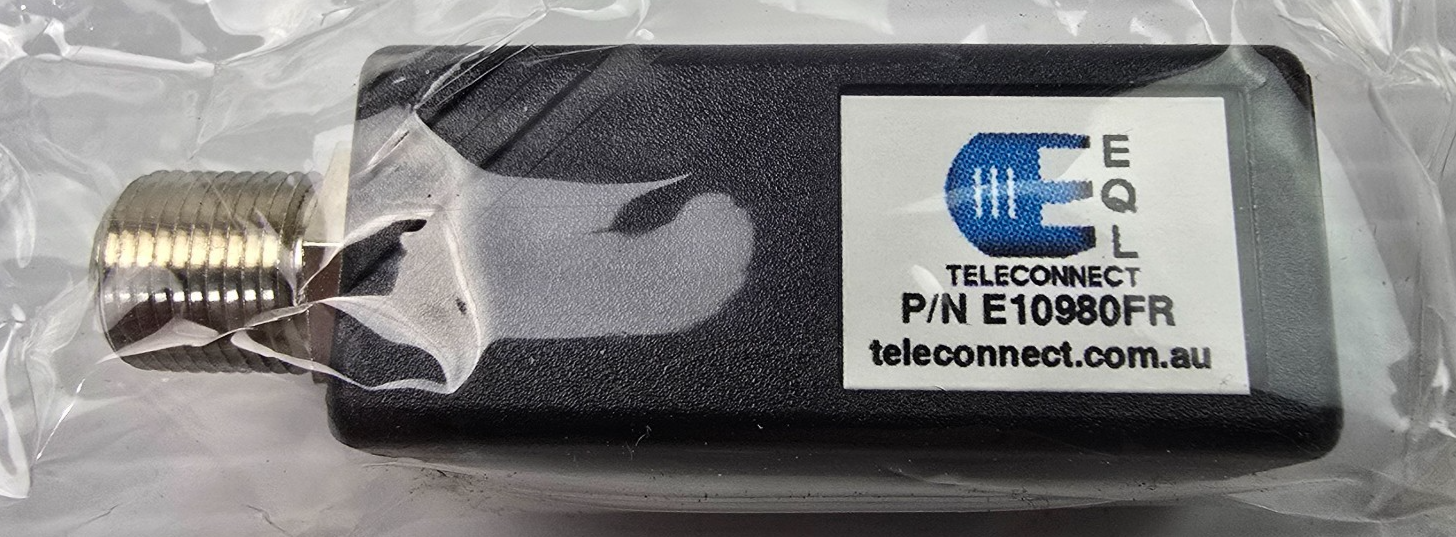

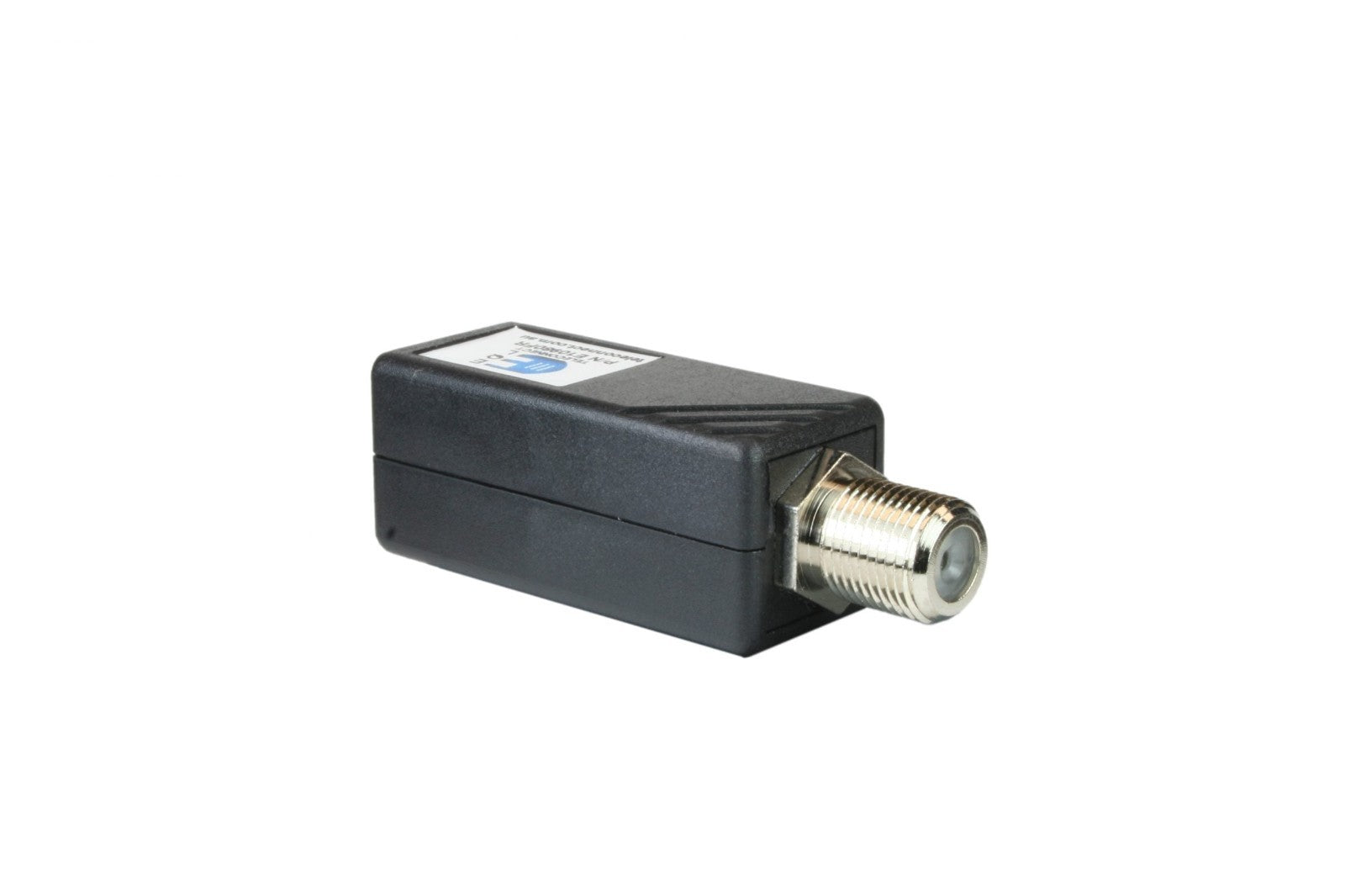

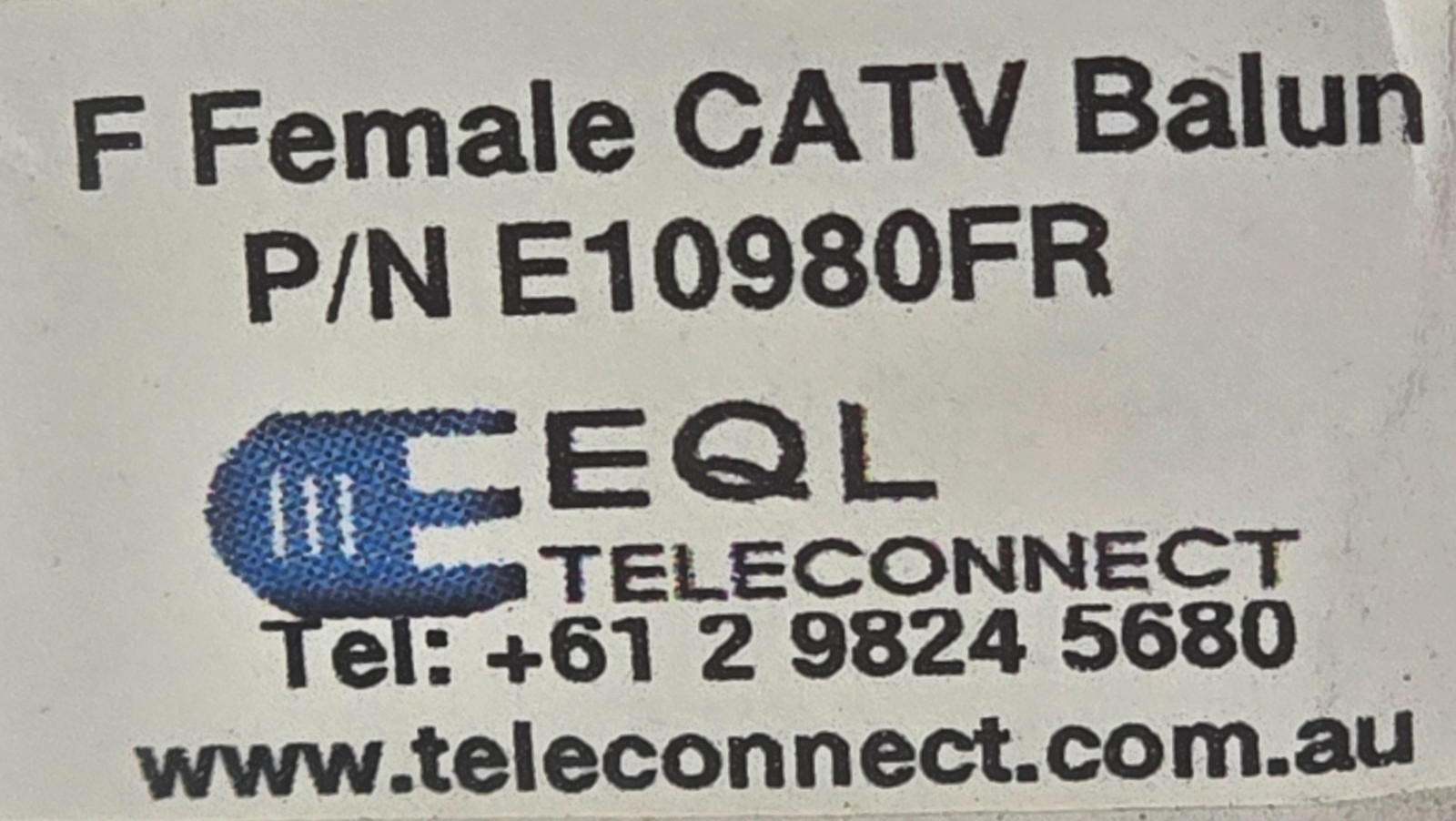

EQL E10980FR F Female CATV Balun Slim Case RJ45 Jack (NEW In Box)

Brand: EQL
Model: E10980FR
Part Number: E10980FR
Description: F-Type Female CATV Balun in slim wall-mountable fire-retardant case. Converts unbalanced 75 Ω coaxial CATV signal to balanced 100 Ω twisted pair via RJ45 jack for structured cabling systems. Ideal for extending CATV signals over Cat 5/6 cabling in residential and commercial installations.
Interface: F Female to RJ45 Jack
Impedance: 75 Ω ↔ 100 Ω
Power: Passive (no external power required)
Features: Compact design, high reliability, bi-directional signal conversion, suitable for CATV and broadband video distribution
Housing: Slim fire-retardant wall-mountable case
Dimensions: Approx. 55 mm (L) × 25 mm (W) × 20 mm (H)
Weight: Approx. 30 g
Country of Origin: China
HS Code: 8544.42.00
Condition: New (in box)
