Epson ELPMB23 V12H003B23 Projector Ceiling Mount White Steel (NEW In Box)

The Epson ELPMB23 is the genuine Epson ceiling mount for small and medium Epson projectors, Epson product code V12H003B23. It is a powder coated white steel bracket built around a ball joint, so the projector can be aimed accurately after installation, and it uses a quick mount and detach arrangement so the projector can be taken down for lamp or filter service without disturbing the ceiling fixing.

The mount gives 360 degrees of horizontal rotation, plus or minus 18 degrees of tilt, and 100 mm of horizontal adjustment. Scale stickers are provided to help align the lens centre during installation. It accepts an optional Epson extension pipe for high ceilings, sold separately, and Epson notes that an ELP-PT01 setting plate is required when using this mount with 1700 series projectors. Epson lists it against a wide range of models including the EB-770F, EB-770Fi, EB-775F, EB-760W, EB-750, EB-755, EB-992F, EB-994F, EB-982W, EB-972, EB-2250U, EB-2265U, EB-1780W, EB-1725, EB-1925W, CO-FH01, CO-W01, EH-TW6250 and EH-TW840. The mount weighs 3.4 kg and measures 270 x 139 x 150 mm.

Specifications

Brand: Epson

Model: ELPMB23 Ceiling Mount

Part Number: ELPMB23

Alternate Part Number: V12H003B23

Product Type: Projector ceiling mount

Material and Finish: Steel, powder coated white

Horizontal Rotation: 360 degrees

Tilt Adjustment: Plus or minus 18 degrees

Horizontal Adjustment Range: 100 mm

Structure: Ball joint with quick mount and detach for projector servicing

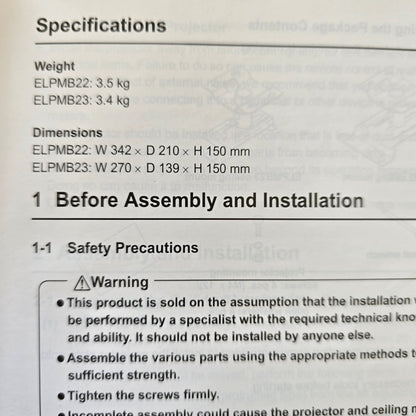

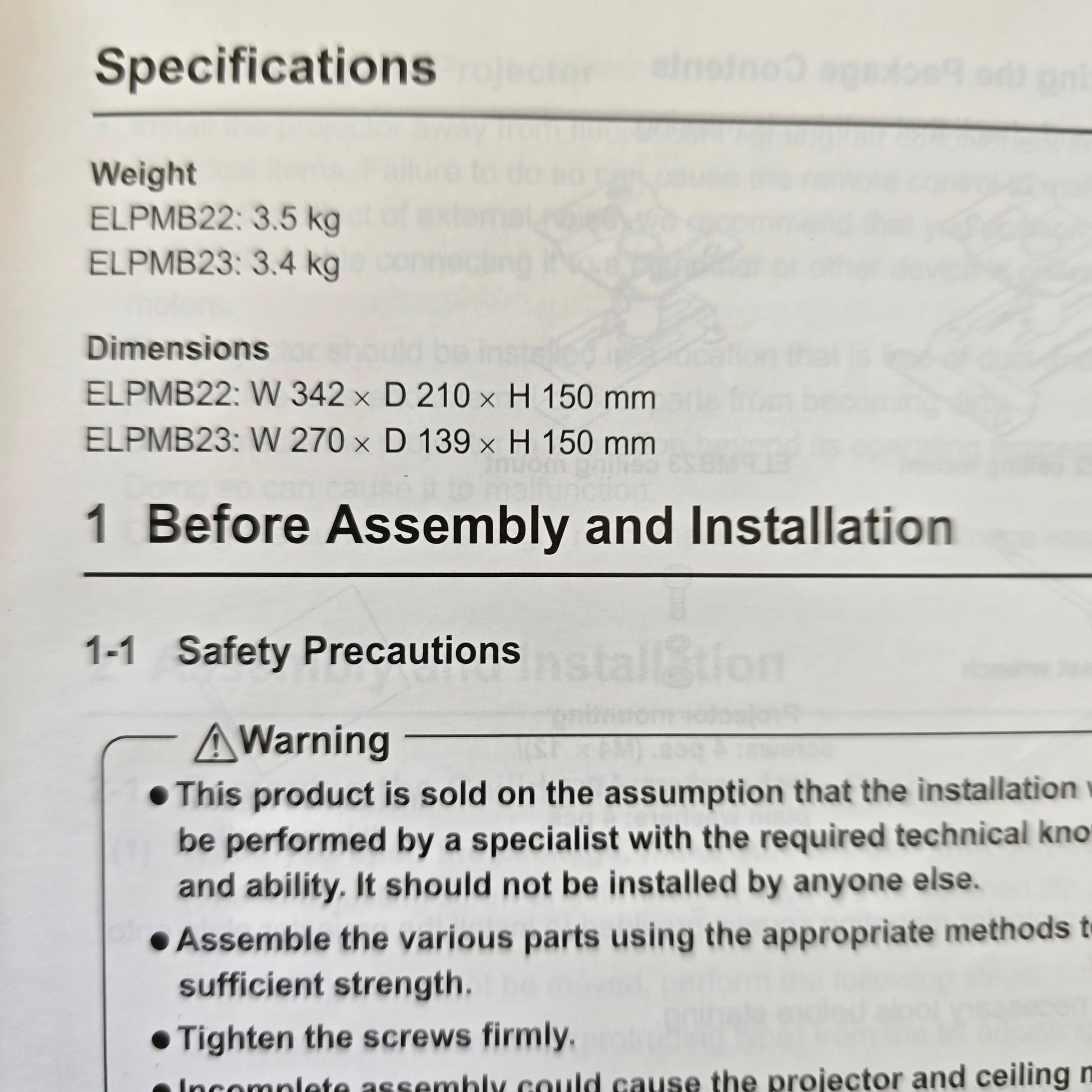

Dimensions: 270 mm W x 139 mm D x 150 mm H

Weight: 3.4 kg

Barcode: 8715946426327

Condition: New in box

Key Features

• Genuine Epson mount, matched to Epson projector fixing patterns
• Ball joint allows precise aiming after the ceiling plate is fixed
• Quick detach lets the projector come down for servicing without re-aligning
• 100 mm of horizontal adjustment to centre the lens on the screen
• Safety cable supplied for secondary retention
• Accepts an optional Epson extension pipe for high ceilings

Typical Applications

• Classroom and lecture theatre projector installations
• Meeting room and boardroom ceiling mounting
• Home cinema projector installation
• Replacing a failed or incompatible third party mount

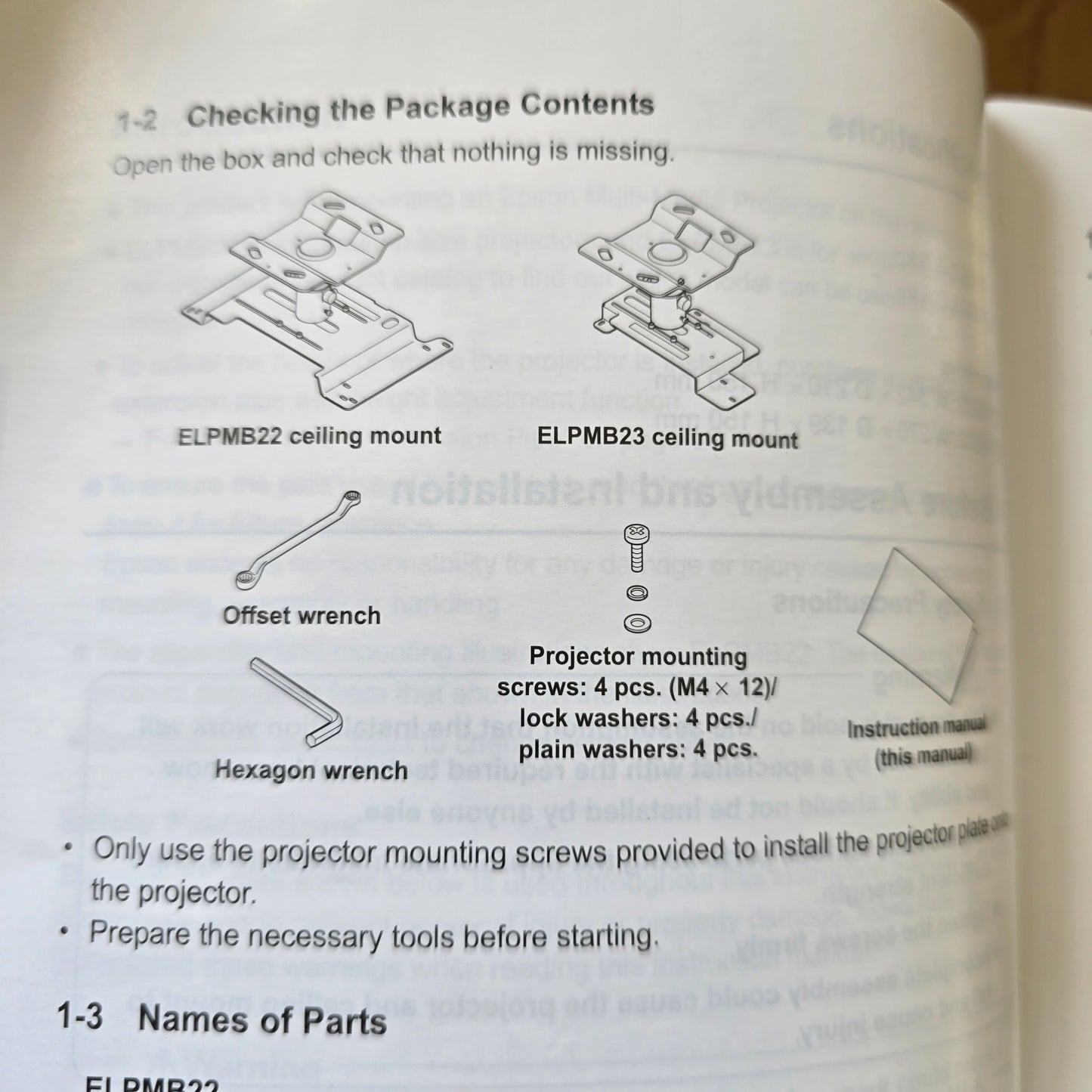

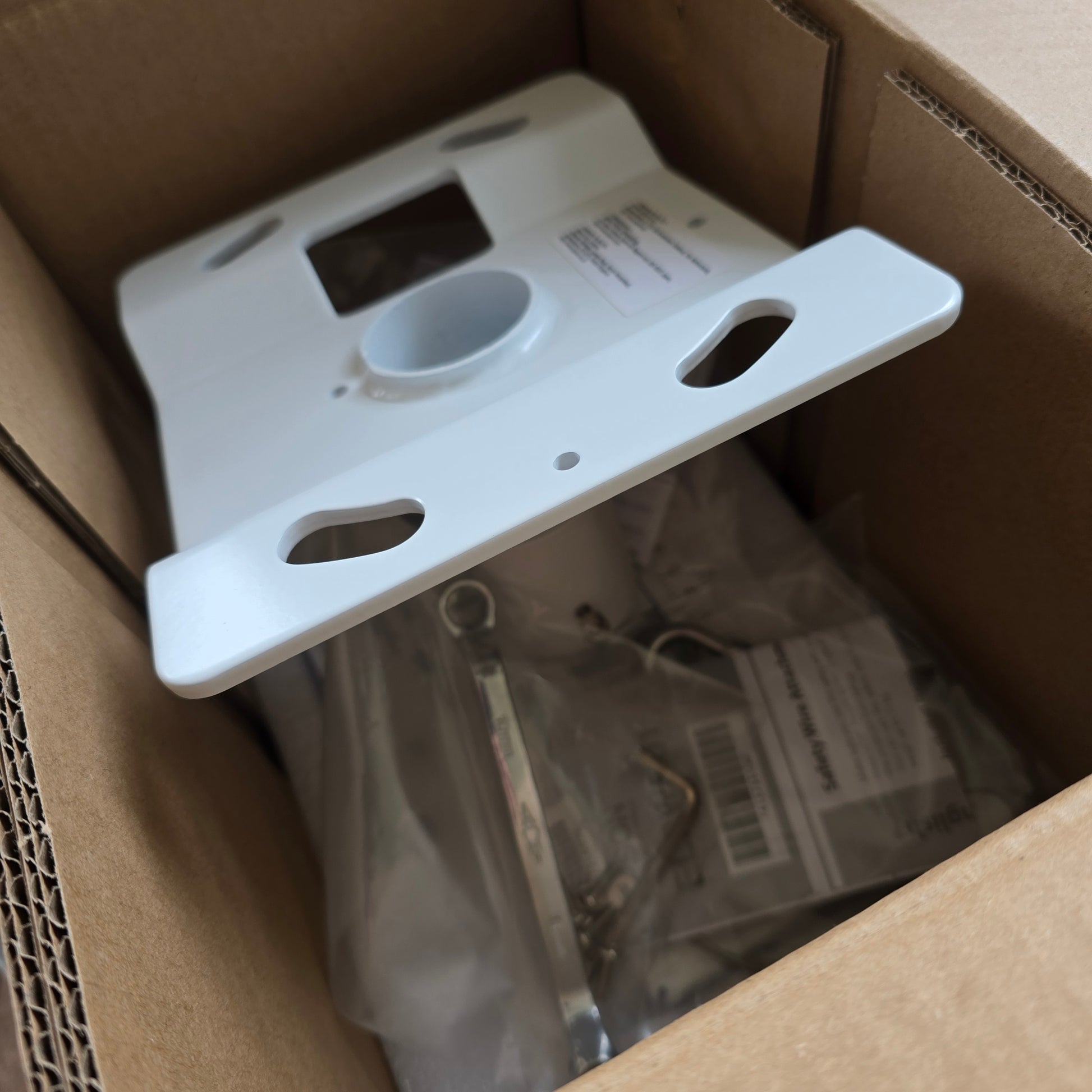

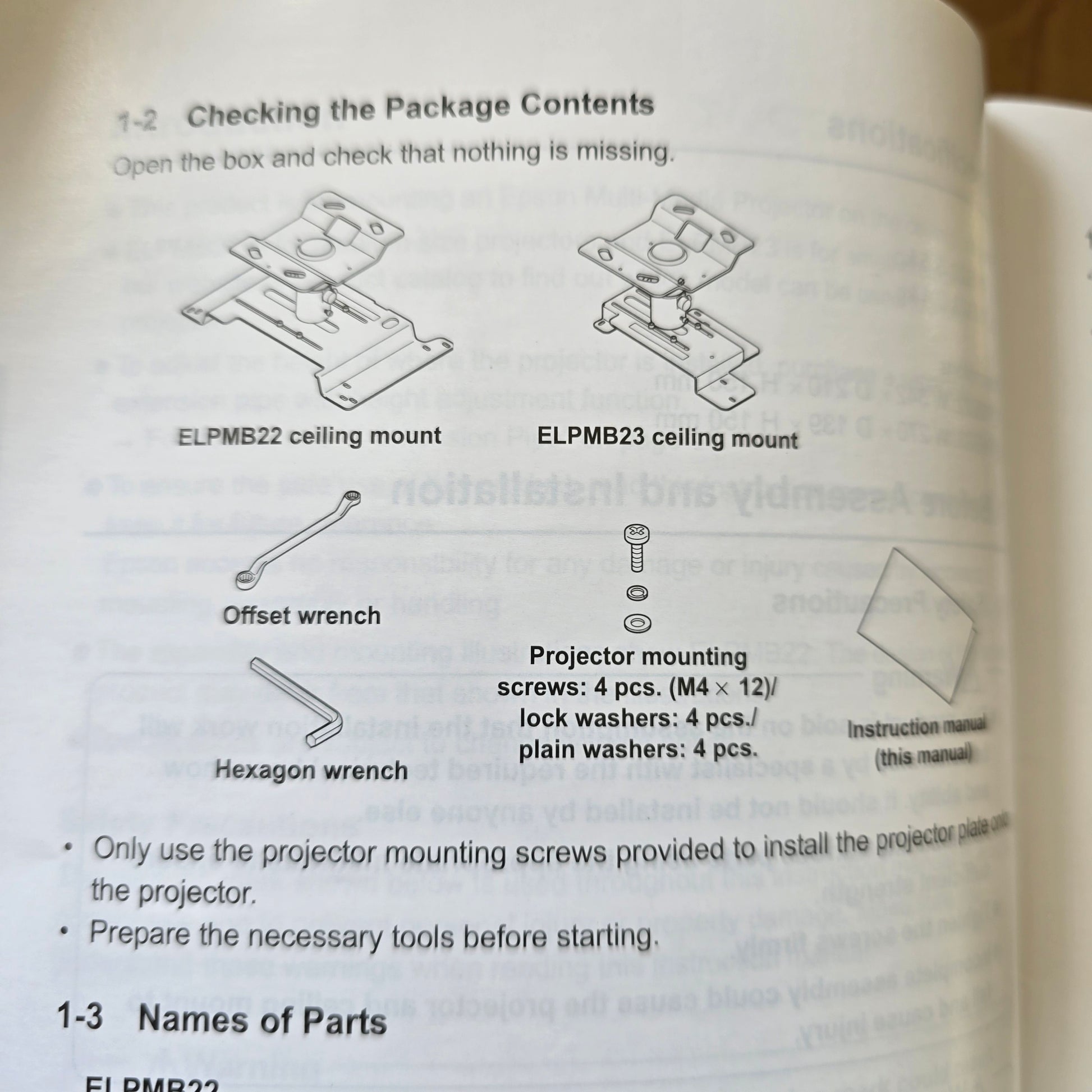

Package Includes

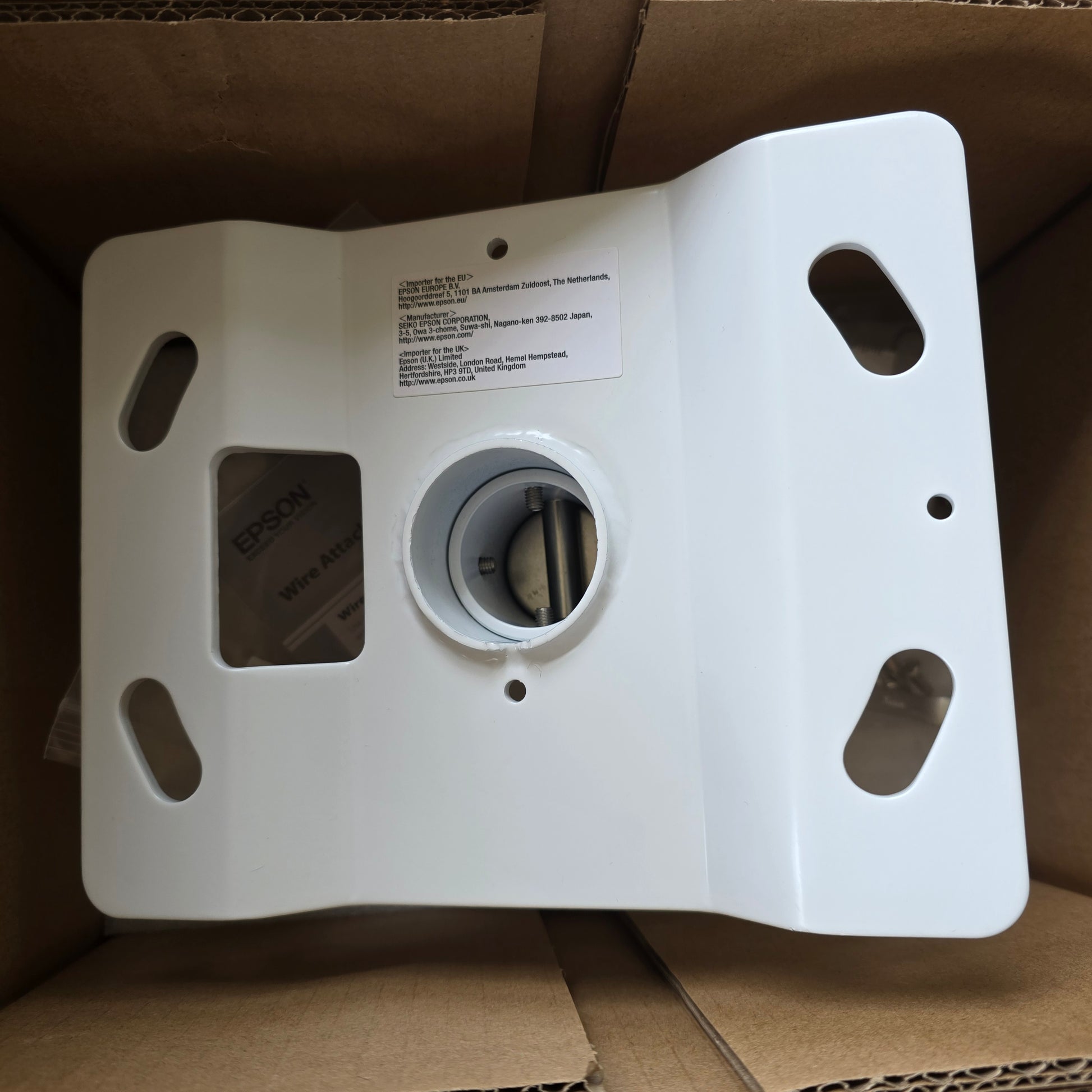

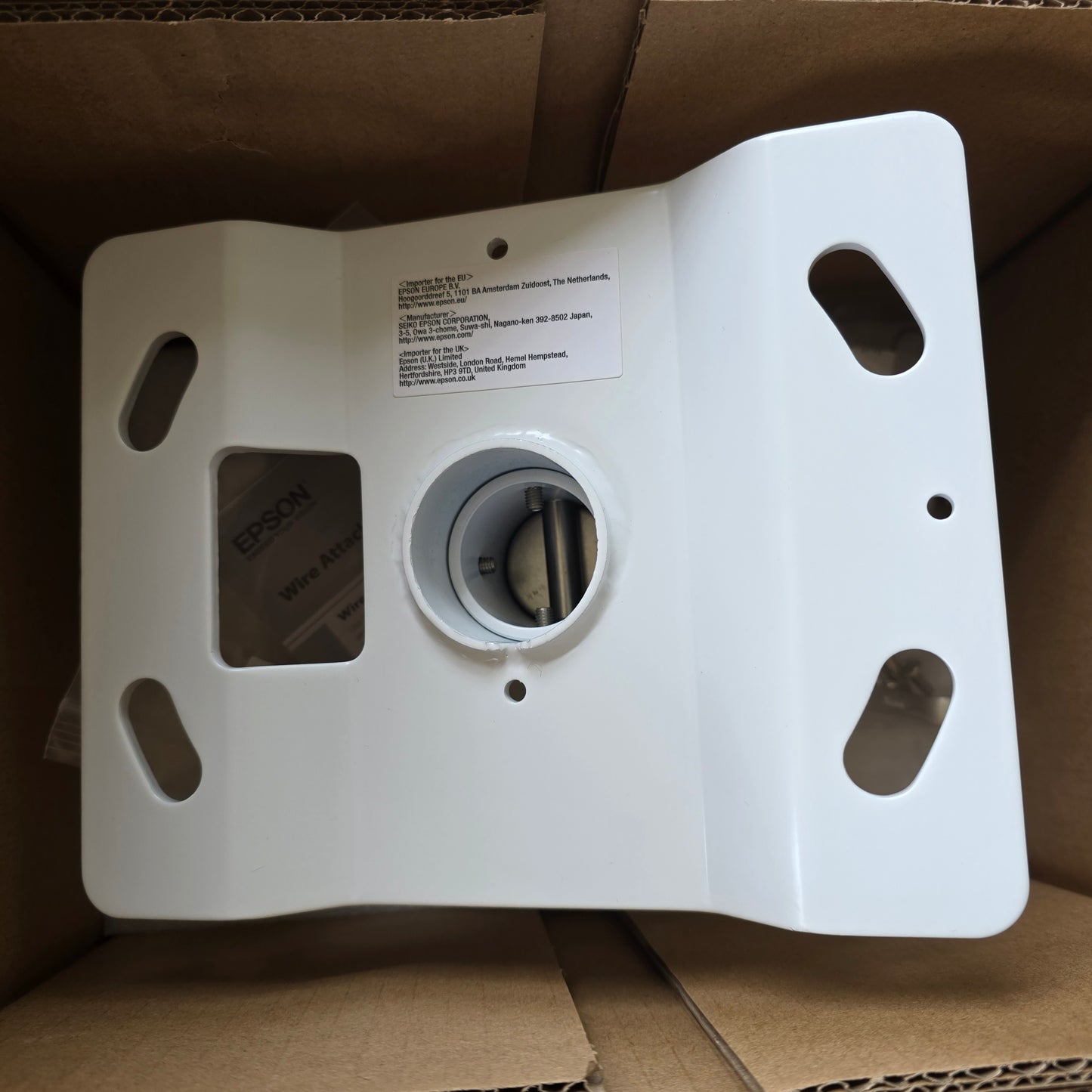

• 1 x ELPMB23 ceiling mount bracket and plate
• 1 x adjustable extension pole

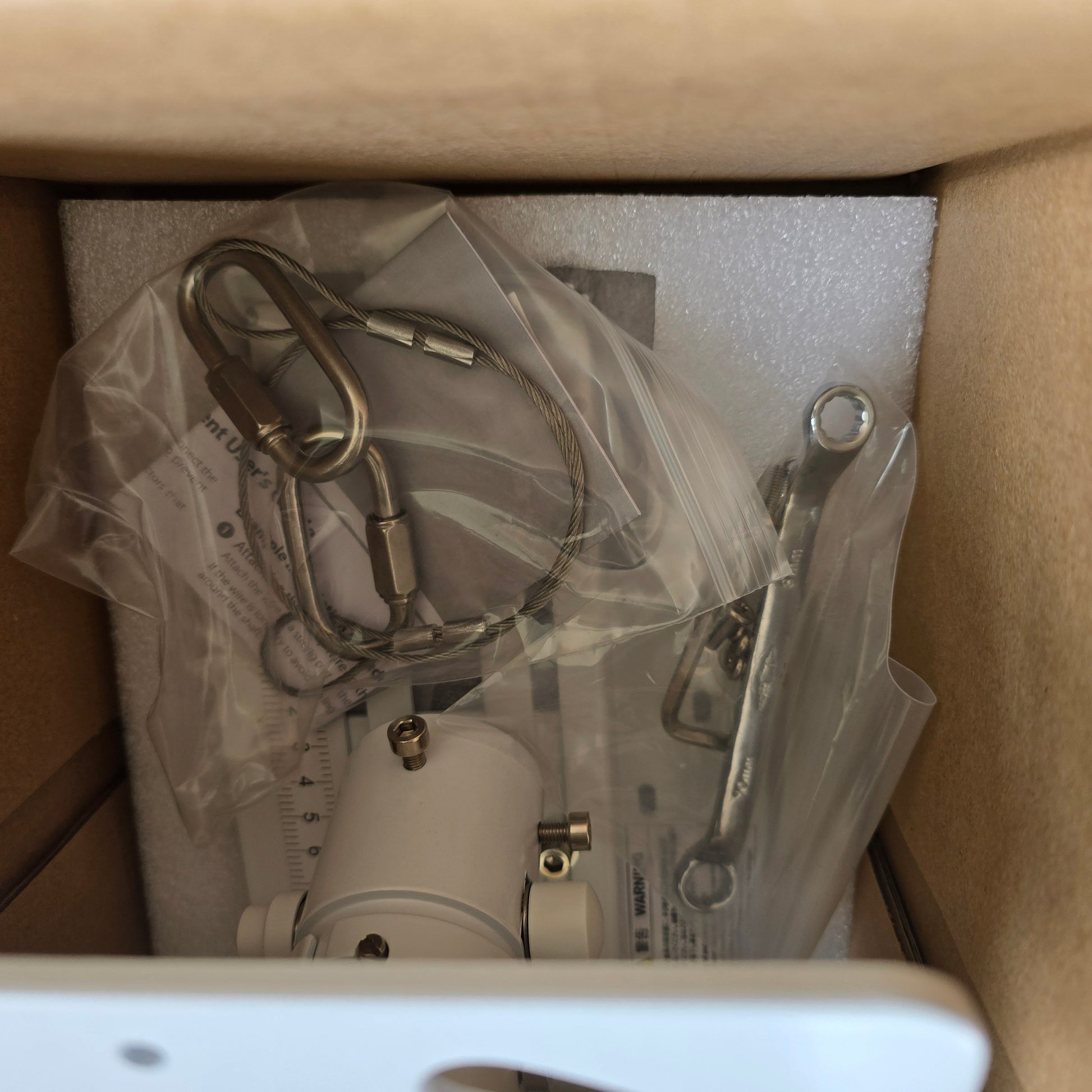

• 1 x stainless safety cable with quick links
• 1 x offset wrench and 1 x hexagon wrench
• Mounting screw, lock washer and plain washer set

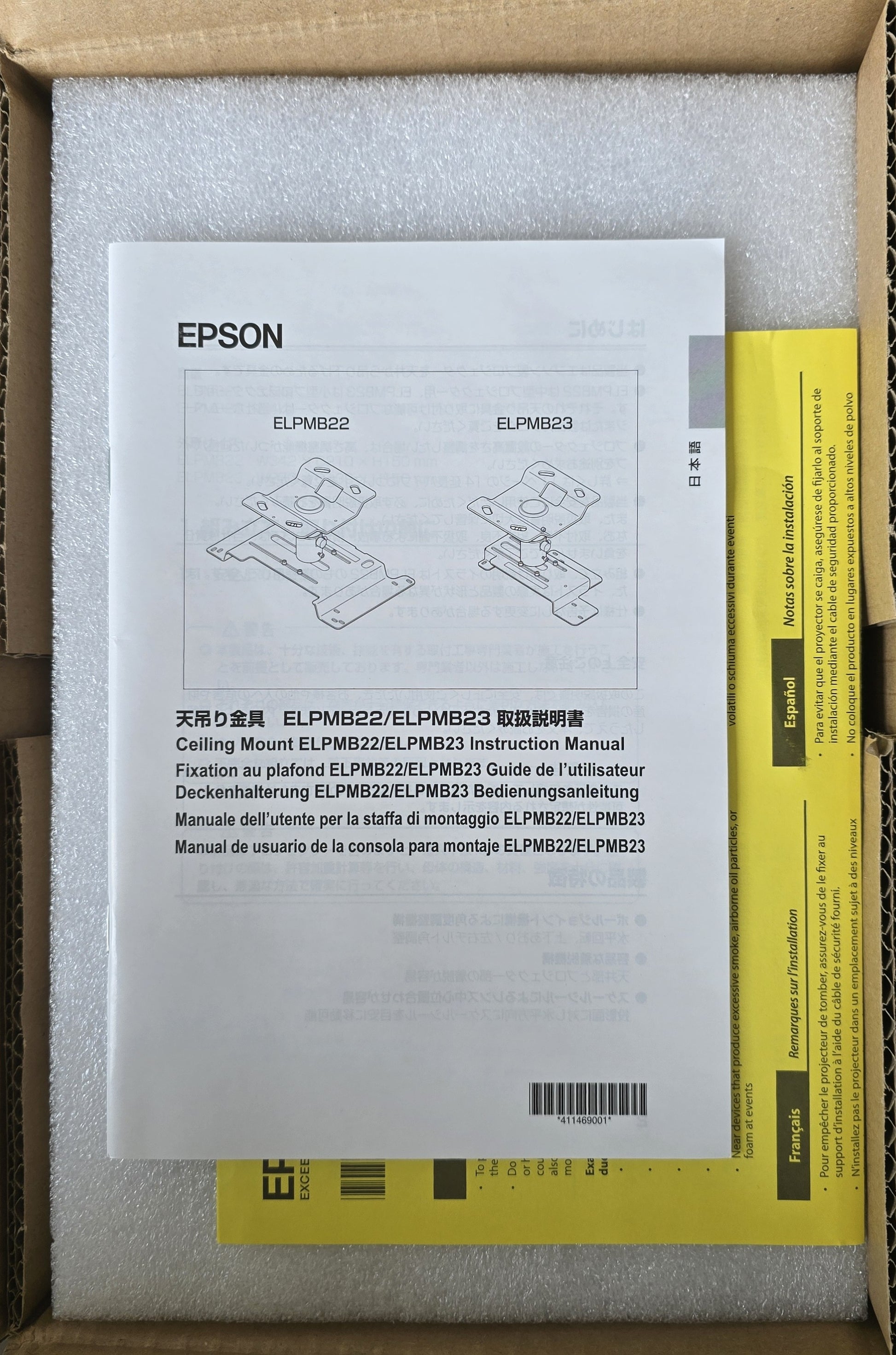

• Notes on Installation sheet and ELPMB22/ELPMB23 instruction manual
• Original Epson carton with foam inserts

A projector, ceiling fixings suited to your building structure, and the optional extension pipe or ELP-PT01 setting plate are not included.

Additional Information

Epson does not publish a maximum load rating for this mount, so none is quoted here. Confirm your projector model appears on Epson's compatibility list, and have the mount installed by a competent person using fixings appropriate to the ceiling structure.

Country of origin is not marked on the packaging and has therefore been left unspecified. The item is new in the manufacturer's original packaging, with the carton opened for photography and verification and all contents still factory bagged in their foam inserts. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
