Epson ELPLW05 V12H004W05 Wide Throw Zoom Lens for EB-PU EB-PQ (NEW In Box)

The Epson ELPLW05 is a wide throw zoom projection lens for Epson large venue and Pro installation projectors, Epson product code V12H004W05. Epson markets it as the Wide-Throw #1 Zoom Lens. It is the lens fitted where the projector has to sit close to the screen and still fill a large image, such as a shallow auditorium or a rear-projection cabinet.

The lens has a 1 to 1.4 zoom ratio, a focal length of 17.6 mm to 24.3 mm and an F-number of 2.0 to 2.2, and supports screen sizes from 50 to 1000 inches, or 1.27 to 12.7 m diagonal. Throw ratio depends on the projector class: 1.04 to 1.46 on WUXGA and WXGA projectors up to 8,500 lumens, 0.77 to 1.07 on 9,000 to 15,000 lumen WUXGA projectors, and 0.74 to 1.04 on EB-PQ Series native 4K projectors. Lens shift is up to plus or minus 67 percent vertical and 30 percent horizontal on projectors to 8,500 lumens, plus or minus 24 and 10 percent on 9,000 to 13,000 lumen models, and plus or minus 18 and 16 percent on the EB-PQ 4K Series. Epson states compatibility with Pro Series projectors up to 20,000 lumens, the EB-PU and EB-PQ Series, and the Pro G7000 Series. The lens weighs 1,450 g.

Specifications

Brand: Epson

Model: ELPLW05, Wide-Throw #1 Zoom Lens

Part Number: ELPLW05

Alternate Part Number: V12H004W05

Product Type: Projector zoom lens

Zoom Ratio: 1 to 1.4

Focal Length: 17.6 mm to 24.3 mm

F-number: 2.0 to 2.2

Screen Size: 50 to 1000 inches, 1.27 to 12.7 m diagonal

Throw Ratio: 1.04 to 1.46 up to 8,500 lumens; 0.77 to 1.07 on 9,000 to 15,000 lumen WUXGA; 0.74 to 1.04 on EB-PQ native 4K

Lens Shift: Up to plus or minus 67 percent vertical and 30 percent horizontal, varying by projector class

Compatible Projectors: Epson Pro Series up to 20,000 lumens, EB-PU Series, EB-PQ Series, Pro G7000 Series

Weight: 1,450 g

Barcode: 010343928213

Country of Origin: China

Condition: New in box

Key Features

• Genuine Epson lens, not a third party equivalent
• Wide throw ratio for short room depths and close mounting positions
• 1 to 1.4 zoom range for flexible screen filling
• Extensive lens shift on the Pro Series bodies
• Covers screen sizes from 50 up to 1000 inches

Typical Applications

• Auditoriums and lecture theatres with limited throw distance
• Museums, visitor centres and exhibition displays
• Houses of worship and event venues
• Rear projection cabinets and simulation environments

Package Includes

• 1 x Epson ELPLW05 zoom lens
• Original Epson carton

A projector body is not included.

Additional Information

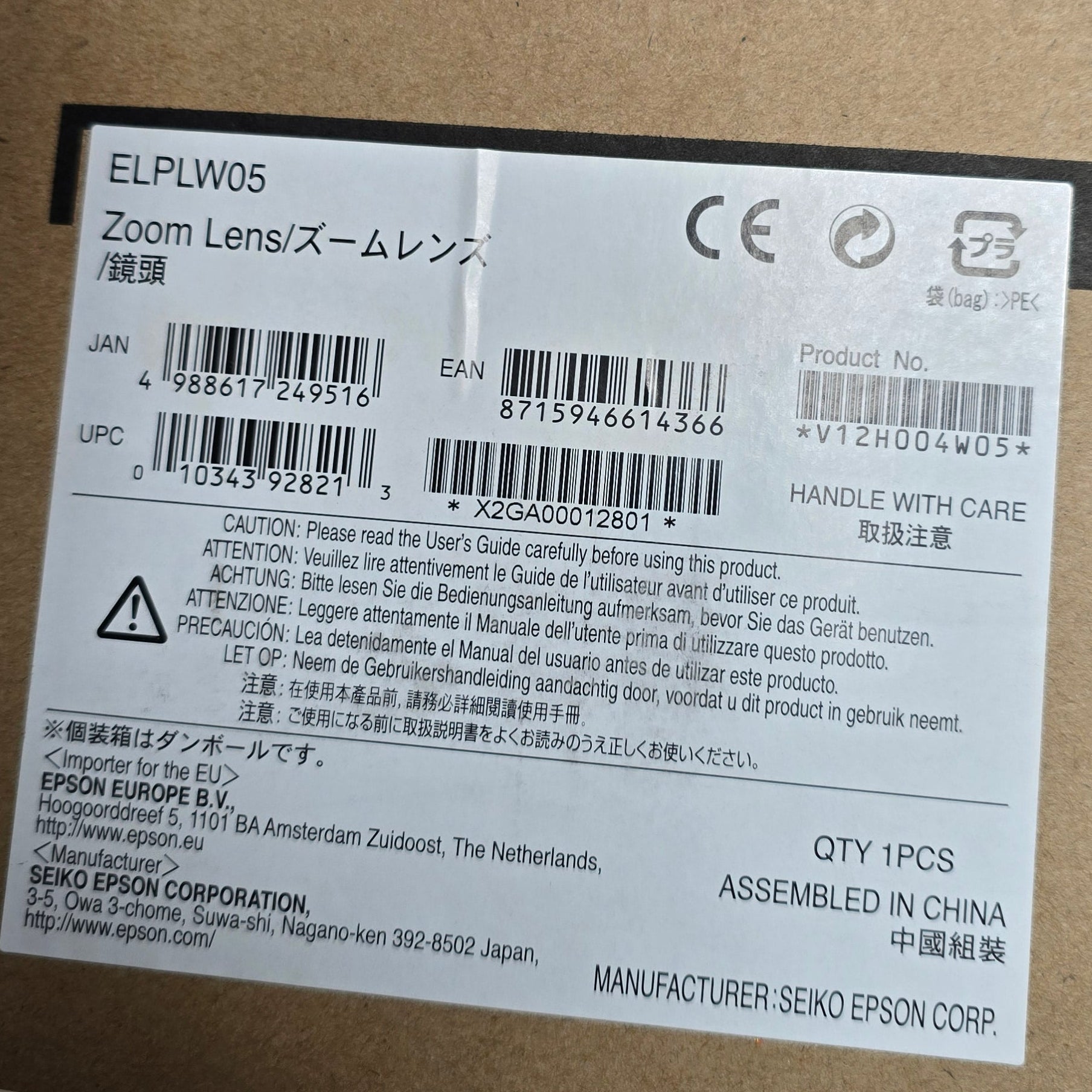

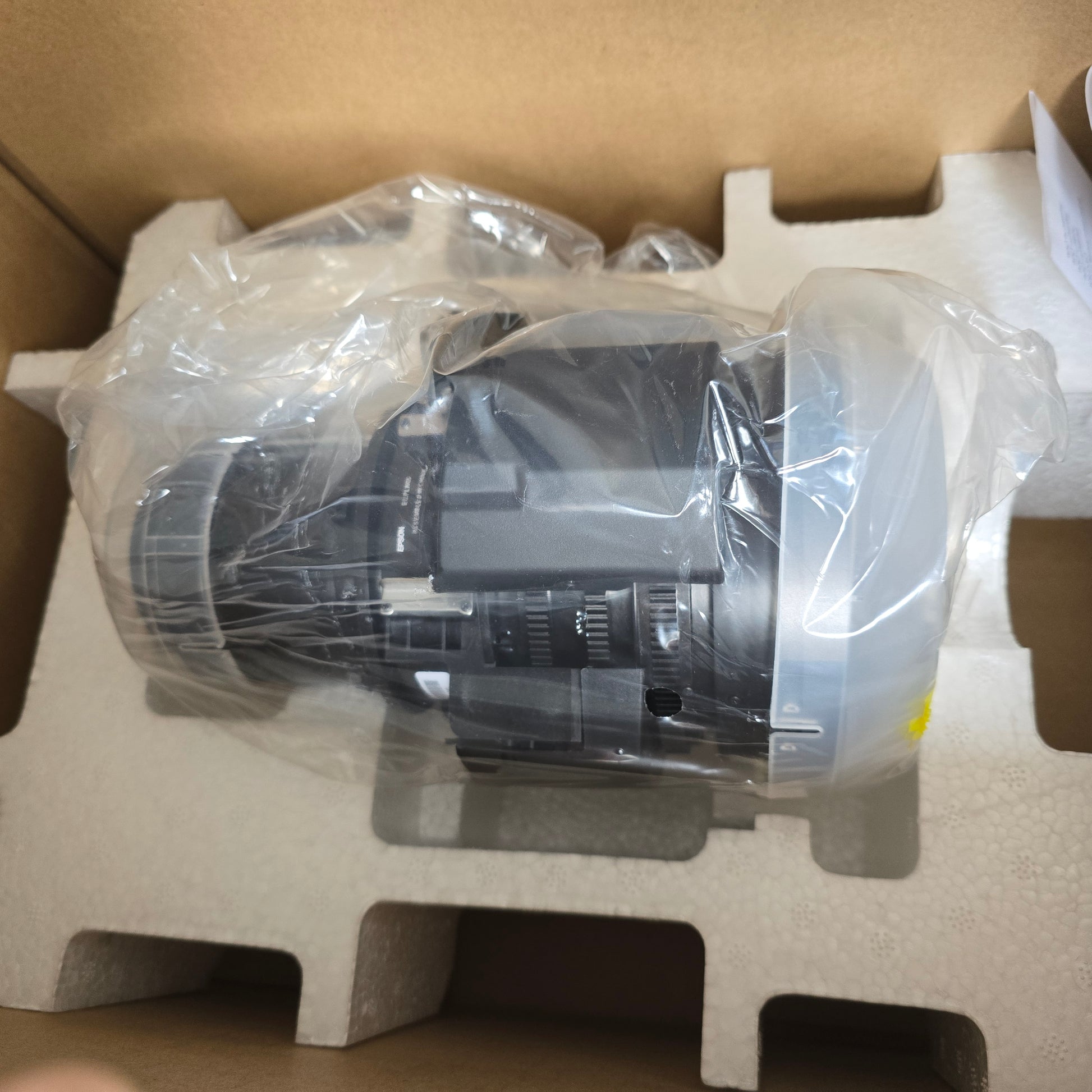

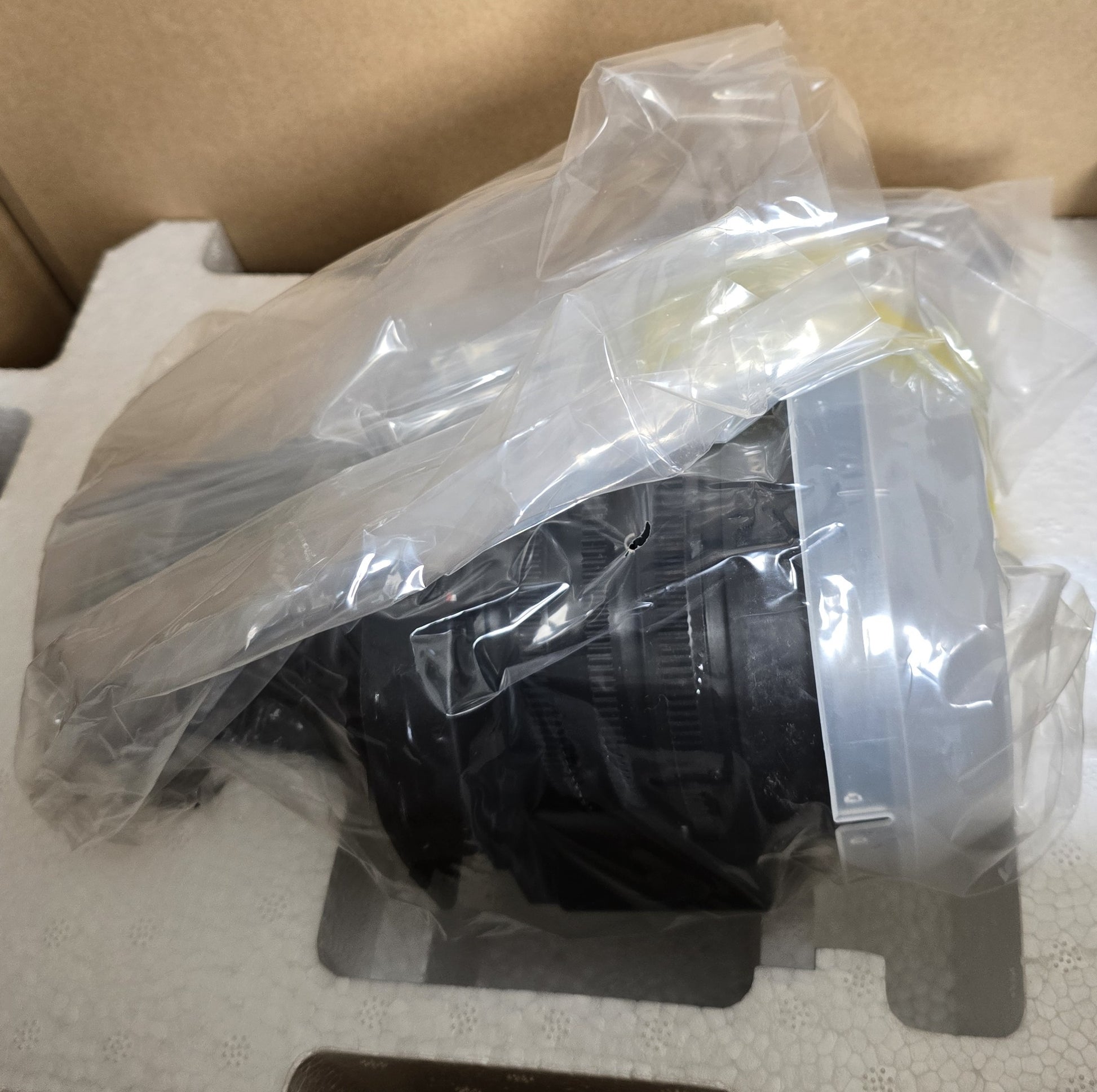

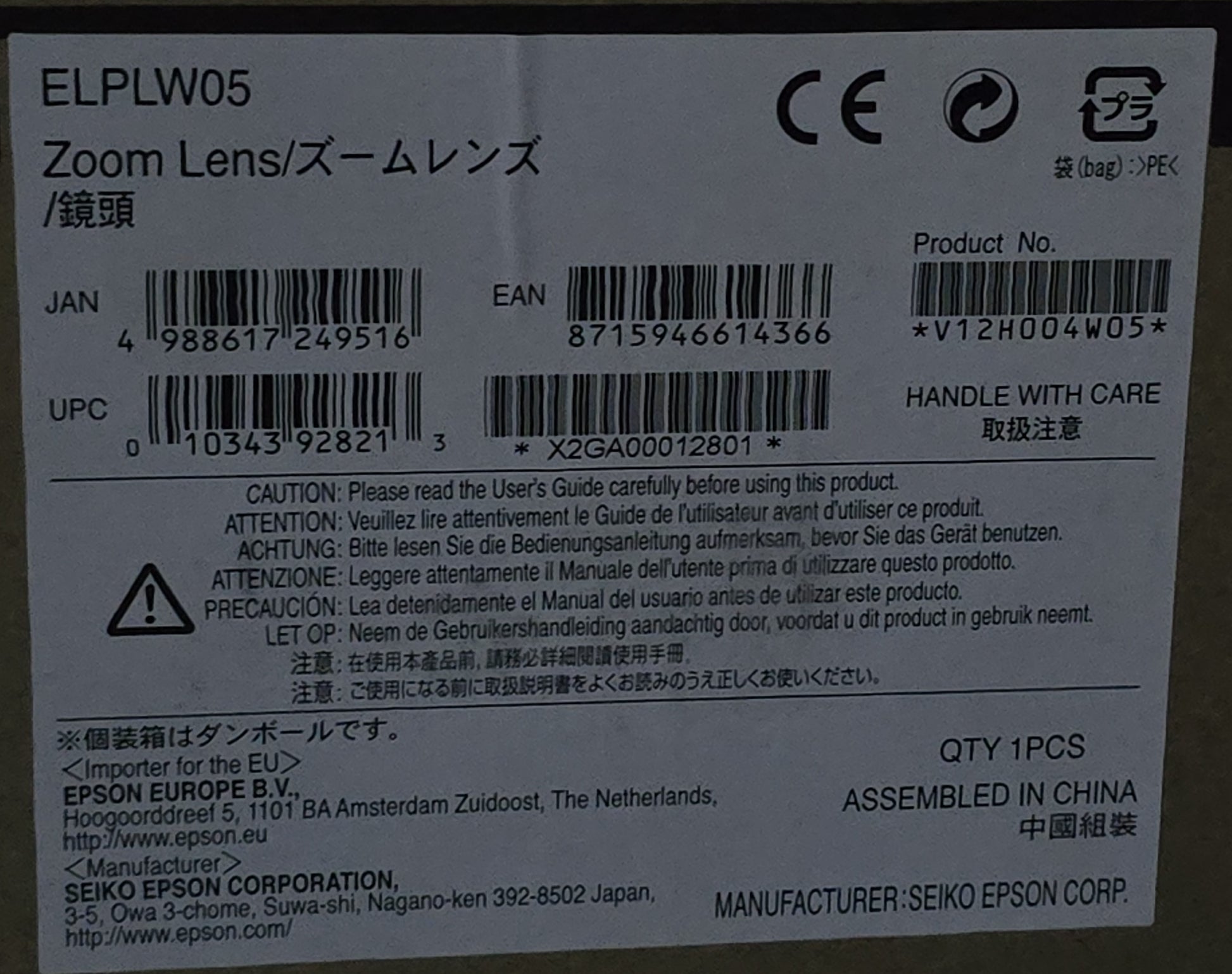

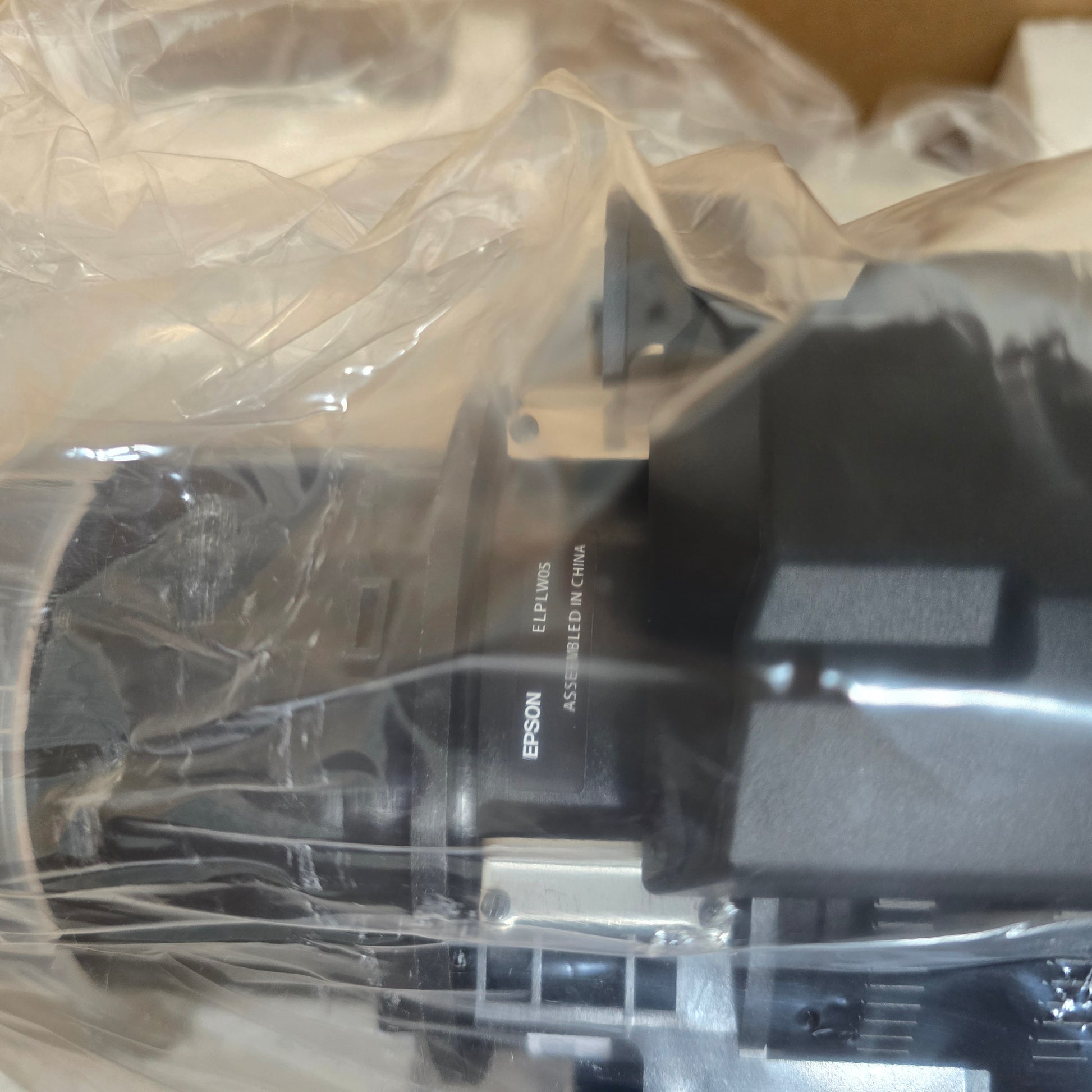

Buyers should confirm the lens is listed for their exact projector model against Epson's lens compatibility chart before purchase, since throw ratio and lens shift vary by projector class. The item is new in the manufacturer's original packaging. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
