ENTRO D0653 Standard Arm Door Closer Size 2-5 Fire Rated Silver (NEW In Box)

The ENTRO D0653 is a surface mounted hydraulic overhead door closer supplied with a standard scissor arm. ENTRO is an Australian door hardware brand and the D0653 is its adjustable power size 2 to 5 model, supplied here in the silver finish with the manufacturer order code D0653SIL. The closer uses a rack and pinion mechanism and mounts to the door leaf with the arm anchored to the frame, giving controlled closing on timber and metal doors in commercial and residential openings.

Closing speed and latching speed are independently adjustable, and an adjustable backcheck valve limits the door swing near the fully open position. Power size is set on the unit itself, so one closer covers doors from 850 mm and 40 kg through to 1250 mm and 100 kg. The unit is supplied factory preset at size 4. ENTRO states the closer has been successfully tested on fire door assemblies to AS 1905 Part 1 and carries a 25 year mechanical warranty.

Specifications

Brand: ENTRO

Model: D0653 Standard Arm Door Closer

Part Number: D0653

Alternate Part Number: D0653SIL

Product Type: Surface mounted overhead door closer, standard arm

Power Size: Adjustable 2 to 5, factory preset at size 4

Size 2: Door width to 850 mm, door mass to 40 kg

Size 3: Door width to 950 mm, door mass to 60 kg

Size 4: Door width to 1100 mm, door mass to 80 kg

Size 5: Door width to 1250 mm, door mass to 100 kg

Mechanism: Hydraulic rack and pinion

Adjustments: Closing speed, latching speed, adjustable backcheck valve

Body Dimensions: 236 mm long, 39.5 mm wide, 60 mm high

Fire Rating: Successfully tested on fire door assemblies to AS 1905 Part 1

Finish: Silver

Warranty: 25 year mechanical warranty from ENTRO

Condition: New in box

Key Features

• One closer covers power sizes 2 through 5
• Independent closing and latching speed control
• Adjustable backcheck valve
• Hydraulic rack and pinion mechanism
• Tested on fire door assemblies to AS 1905 Part 1
• Standard scissor arm supplied
• 25 year mechanical warranty

Typical Applications

• Commercial office and retail entry doors
• Fire door assemblies where a tested closer is required
• Timber and metal doors in apartment common areas
• Replacement of a failed overhead closer on an existing opening

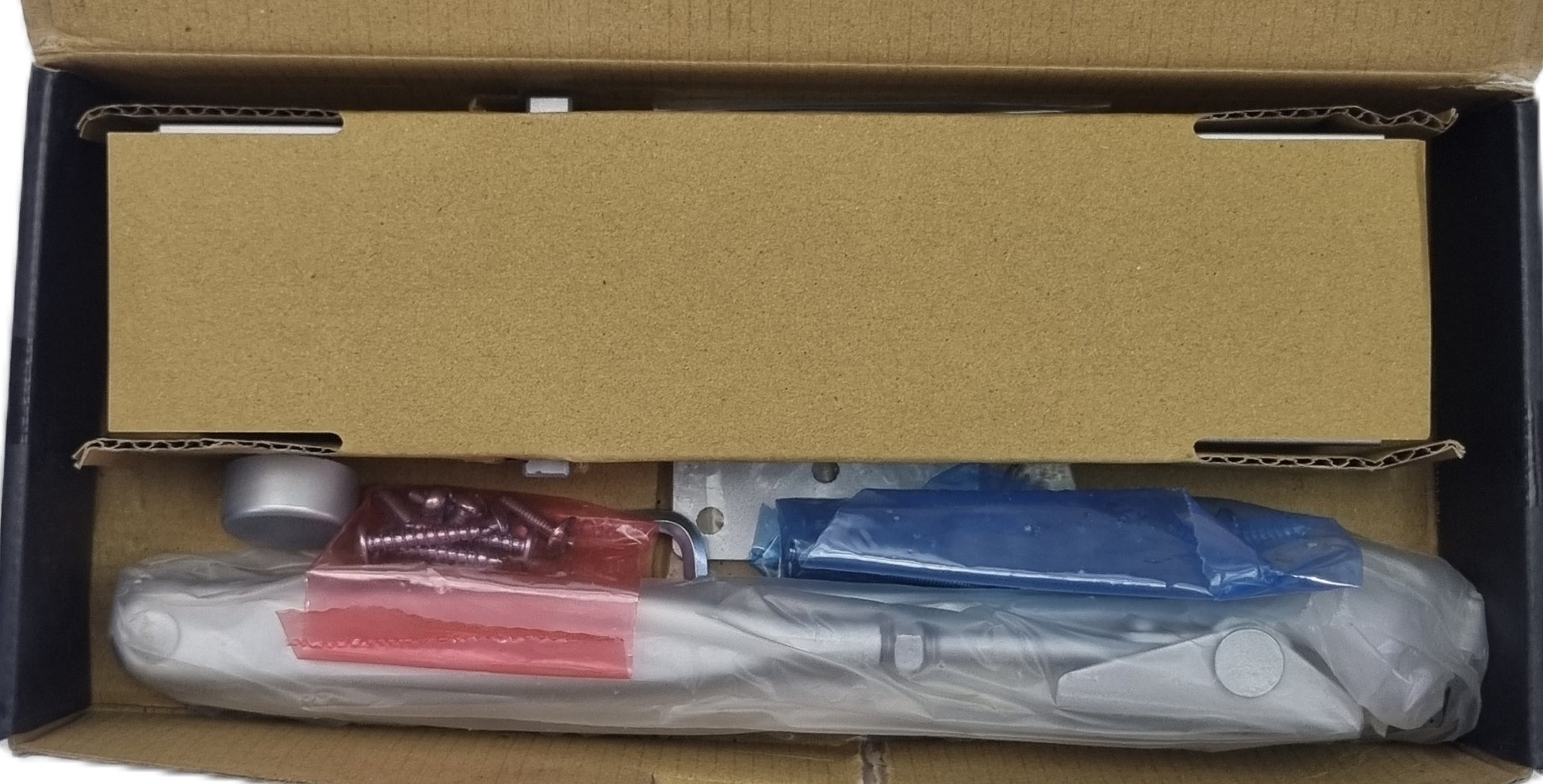

Package Includes

• One D0653 closer body in silver
• Main arm and link arm assembly
• Arm shoe bracket
• End cover cap
• Bag of fixing screws

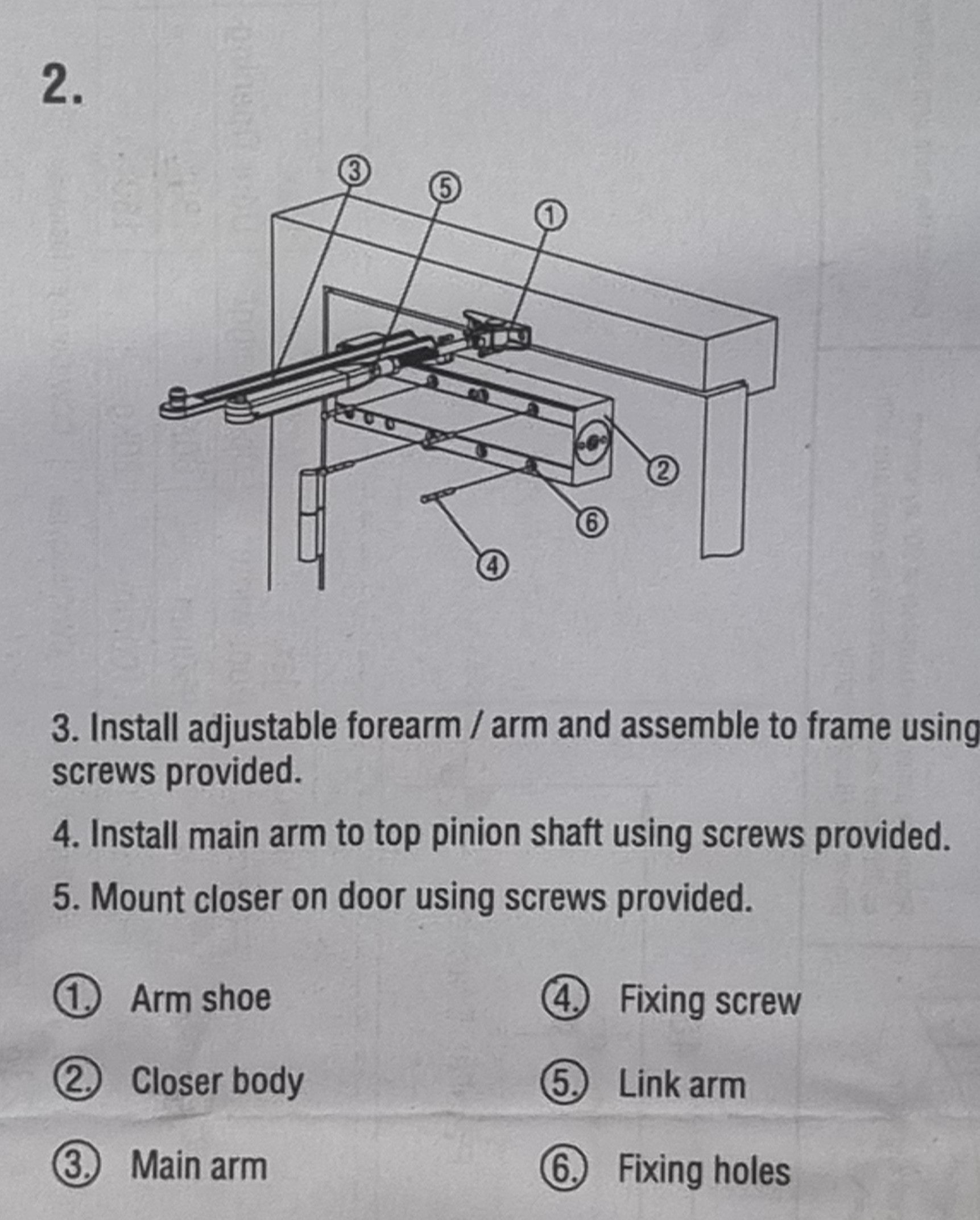

• Printed installation instruction sheet

Additional Information

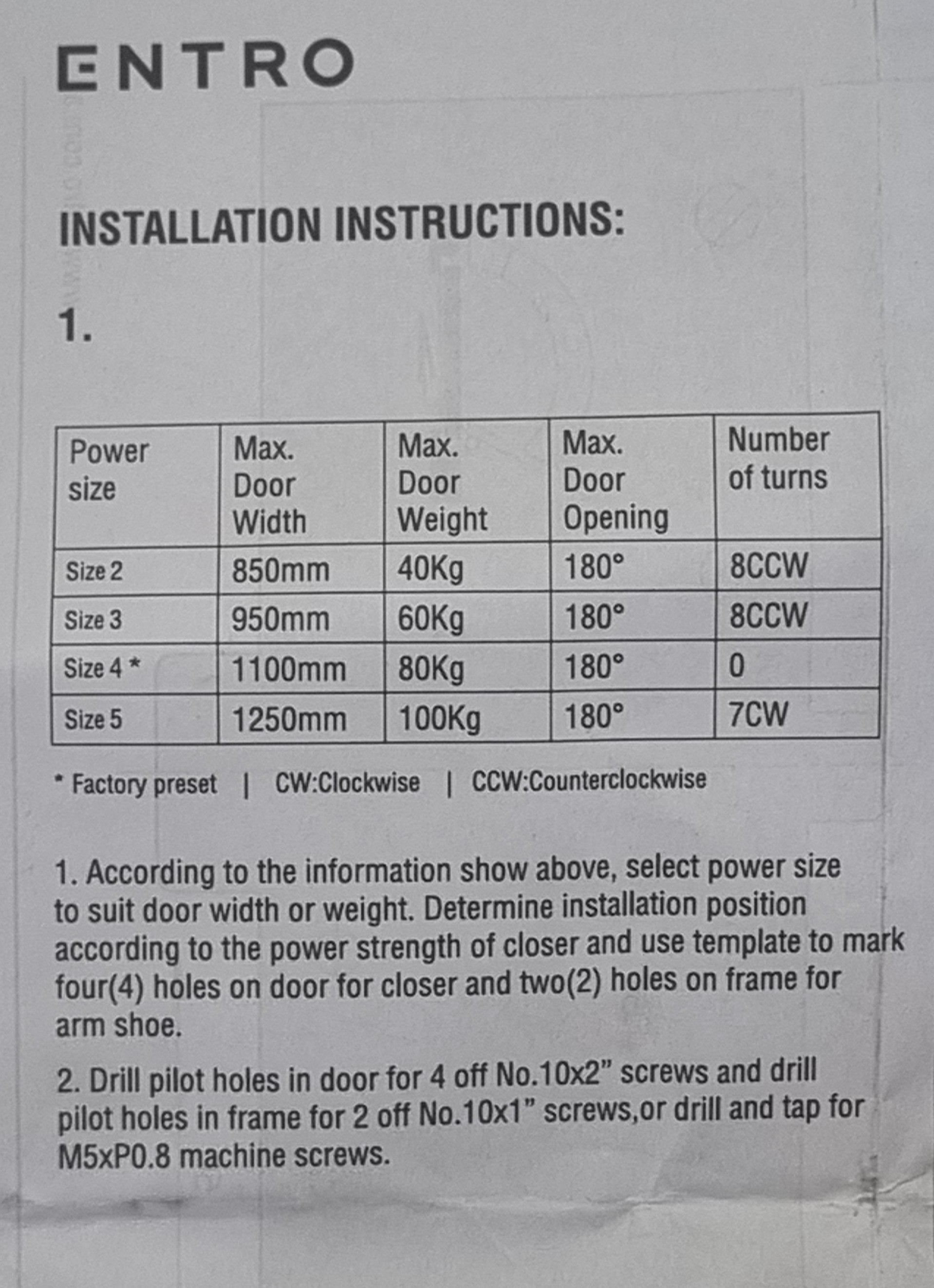

The instruction sheet supplied in this box states a maximum door opening of 180 degrees for all power sizes. The ENTRO published specification sheet states 130 degrees for size 4. If the opening angle is critical to your installation, confirm the figure with ENTRO before fitting.

The fire door test statement is quoted from ENTRO published information. Where a closer is being fitted to a fire door assembly, the installer is responsible for confirming that the complete assembly and its certification are appropriate for the opening.

No country of manufacture is marked on the packaging supplied.

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
