ENSA ENSA-PS1 Intelligent PIR Sensor Switch 240V IP65 12m Motion Detector

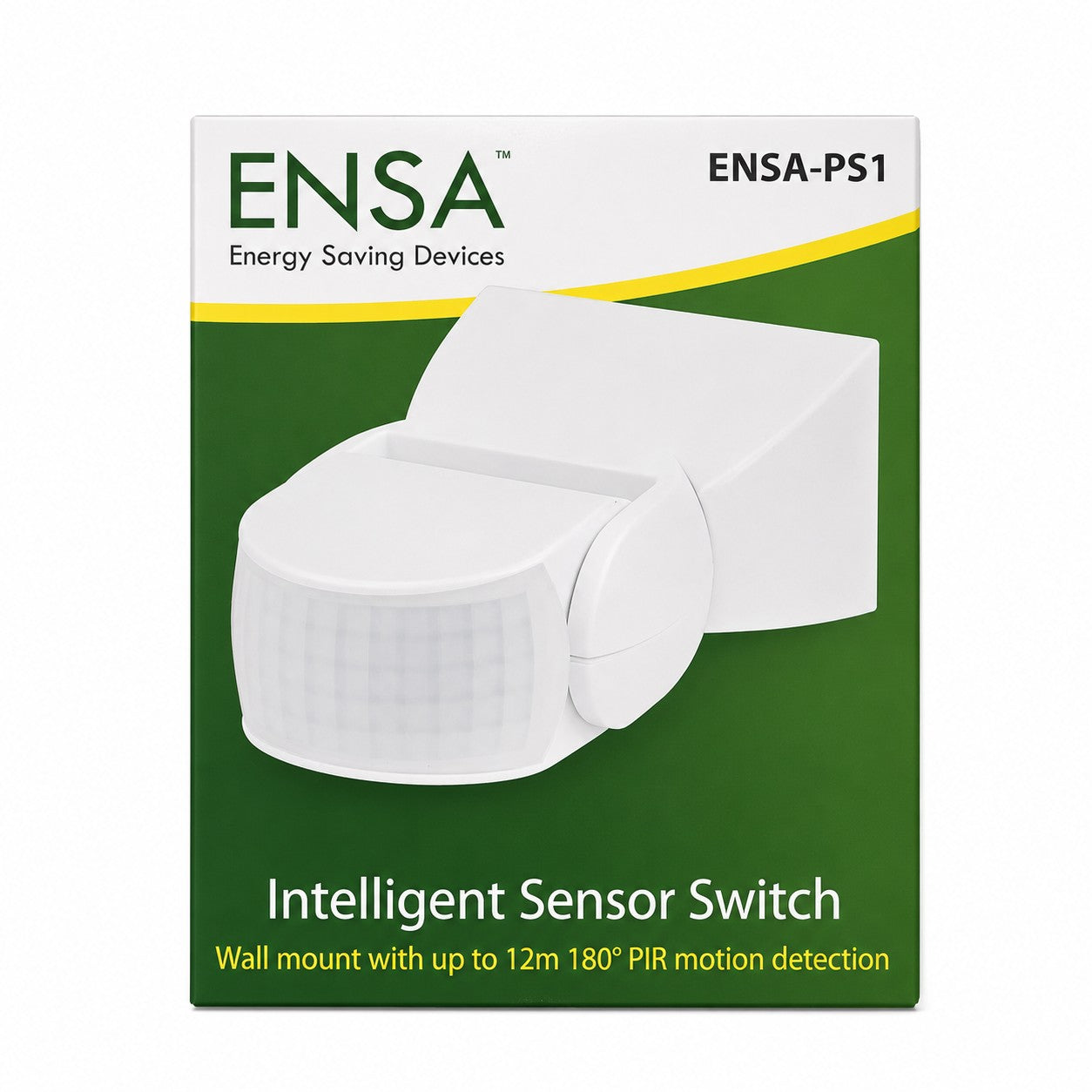

ENSA ENSA-PS1 Intelligent PIR Sensor Switch

The ENSA ENSA-PS1 is a wall-mounted PIR motion sensor switch designed to automatically control lighting based on ambient light levels and detected movement. Suitable for residential, commercial and industrial lighting applications, the sensor provides adjustable light sensitivity, motion detection and on-time delay settings to help reduce unnecessary energy consumption.

Specifications

Brand: ENSA
Model: ENSA-PS1
Part Number: ENSA-PS1
Product Type: PIR Motion Sensor Switch
Condition: New
Input Voltage: 240VAC 50Hz
Power Consumption: 0.5W
Maximum Rated Load: 1200W Resistive / 300W Inductive
Light Detection Range: 3–2000 Lux
Motion Detection Angle: 180°
Motion Detection Range: Up to 12m
Motion Detection Speed: 0.6–1.5m/s
On-Time Delay: 10 Seconds to 15 Minutes Adjustable
Ingress Protection: IP65
Operating Environment: -20°C to 40°C, <93% RH
Mounting Type: Wall Mount
Installation Height: 1.8–2.5m

Key Features

• Adjustable ambient light sensing from 3 to 2000 lux
• Passive infrared (PIR) motion detection
• 180° detection coverage
• Motion sensing range up to 12 metres
• Adjustable on-time delay from 10 seconds to 15 minutes
• IP65 weather-resistant enclosure
• Suitable for resistive and inductive lighting loads
• Designed to reduce lighting energy consumption
• Wall-mounted installation

Typical Applications

• External building lighting
• Car parks and pathways
• Warehouses
• Industrial facilities
• Security lighting systems
• Commercial buildings
• Residential outdoor lighting

Package Includes

• 1 × ENSA-PS1 Intelligent PIR Sensor Switch

Additional Information

Shipping from Sydney, Australia.
