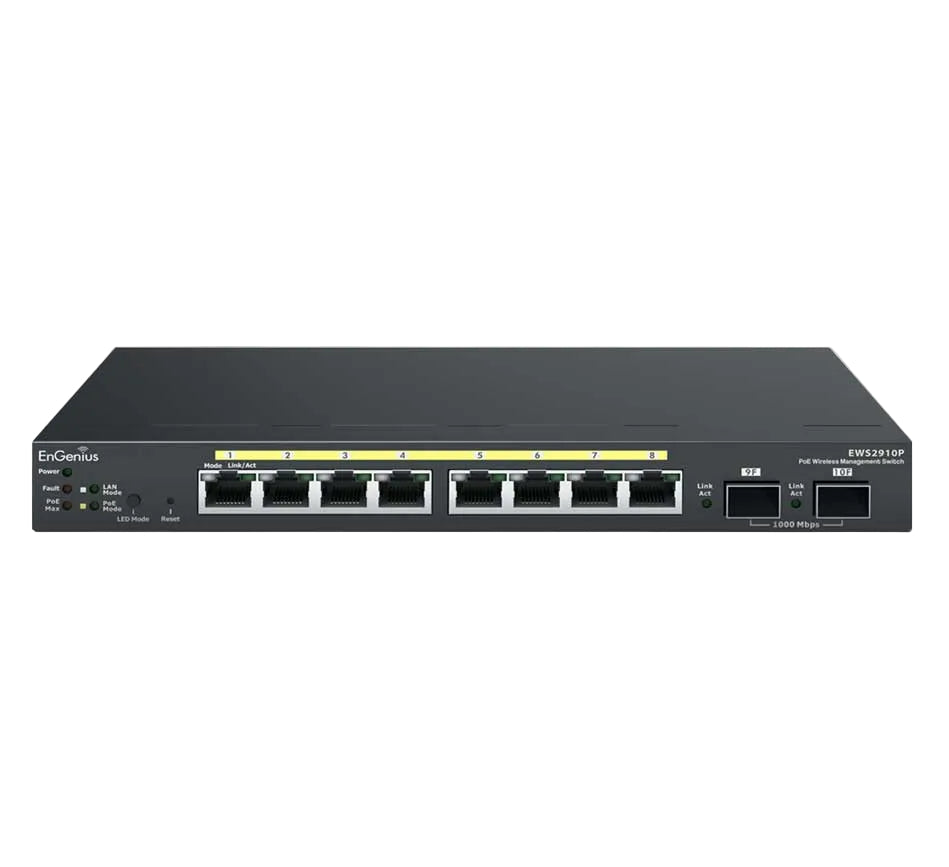

EnGenius EWS2910P 8 Port Gigabit PoE Managed Switch 2 SFP 55W (NEW In Box)

The EnGenius EWS2910P is an eight port gigabit PoE managed switch with two SFP uplinks and a built in wireless access point controller. It is part of the EnGenius Neutron platform, so the same box that powers and switches the network also manages EnGenius EWS access points without a separate controller appliance. The desktop form factor suits a small office, a classroom or a comms cupboard where a rack is not available.

All eight copper ports deliver IEEE 802.3af PoE at up to 15 W each, within a total budget of 55 W. Switching capacity is 20 Gbps with a store and forward architecture, an 8,000 entry MAC table and jumbo frame support to 9,216 bytes. Layer 2 features include STP, RSTP and MSTP, eight LACP groups, port mirroring, IGMP and MLD snooping, 802.1Q VLAN, eight QoS queues per port and a 50 entry access control list.

Specifications

Brand: EnGenius

Model: Neutron EWS2910P

Part Number: EWS2910P

Product Type: 8 port gigabit PoE managed switch with wireless AP controller

Copper Ports: 8 x 10/100/1000 Mbps RJ45

Uplinks: 2 x gigabit SFP, dual speed

PoE Standard: IEEE 802.3af on all 8 ports, up to 15 W per port

Total PoE Budget: 55 W

Switching Capacity: 20 Gbps, store and forward

MAC Table: 8,000 entries

Memory: 256 MB SDRAM, 32 MB flash, 512 KB packet buffer

Layer 2: STP, RSTP, MSTP, LACP 8 groups, port mirroring, IGMP and MLD snooping, jumbo frames to 9,216 bytes

VLAN: 802.1Q, 4,094 VLANs

QoS: 8 queues per port

Access Control List: 50 entries

AP Controller: Manages and monitors up to 20 EnGenius EWS series access points as printed on the carton

Power Input: 100 to 240 V AC 50/60 Hz 1.2 A via external adapter, 54 V DC 1.67 A output

Operating Temperature: 0 to 50 degrees C, humidity 5 to 95 percent non condensing

Form Factor: Desktop

Dimensions: 240 x 105 x 27 mm

Weight: 620 g

Firmware As Shipped: v1.07.29

Approvals: CE, FCC, RCM, RoHS, WEEE, EAC

UPC: 655216007703

Country of Manufacture: Taiwan

Condition: New in box, factory sealed

Key Features

• Eight gigabit PoE ports plus two SFP uplinks
• Built in controller for EnGenius EWS access points, no separate appliance needed
• 55 W total PoE budget across eight 802.3af ports
• Full layer 2 management including VLANs, LACP, STP and ACLs
• Jumbo frame support to 9,216 bytes
• Compact fanless desktop chassis with wall mount kit
• Carries the Australian RCM compliance mark

Typical Applications

• Small office and branch networks with PoE phones and access points
• Classrooms and training rooms
• Retail and hospitality comms cupboards
• Extending an existing EnGenius Neutron wireless deployment

Package Includes

• One EnGenius EWS2910P switch
• Power adapter and power cord
• Wall mount kit
• Quick Installation Guide
• No SFP modules are included

Additional Information

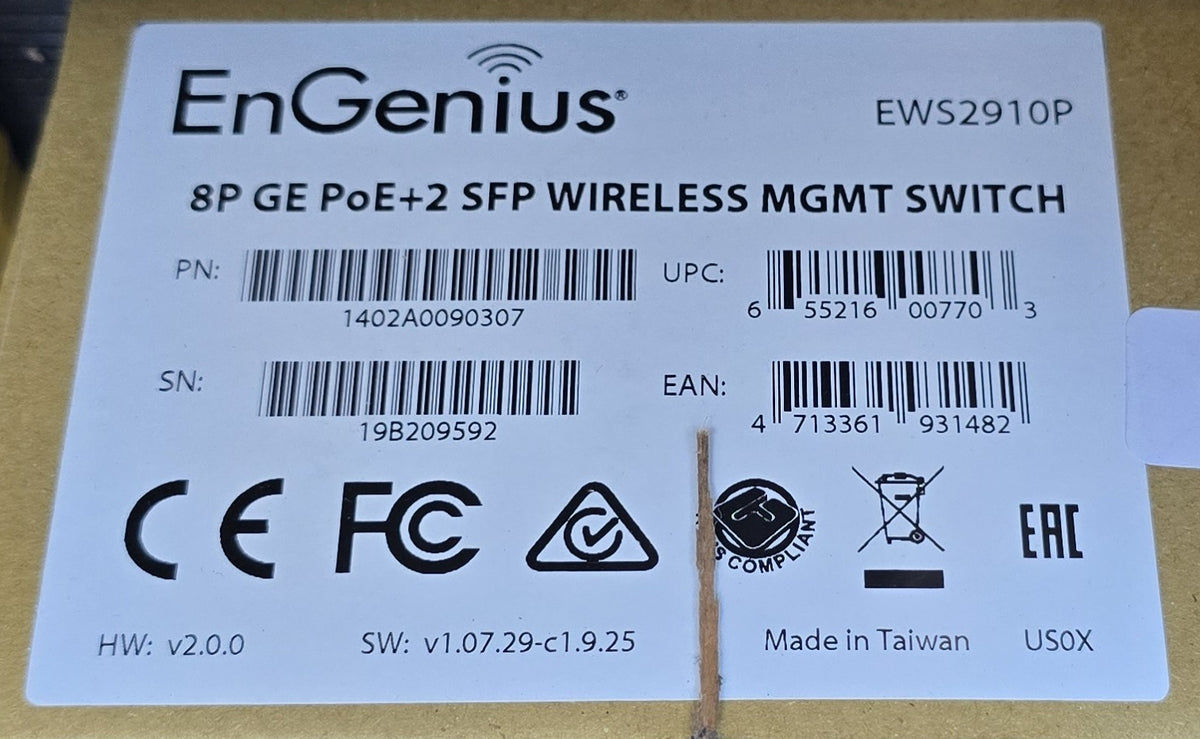

Please read this before ordering. The box is factory sealed and has not been opened, so the contents listed above are taken from the manufacturer's printed package contents panel rather than from inspection.

The carton region code is US0X, which on EnGenius stock keeping units usually denotes the North American build and a North American mains cord. Because the box is sealed this cannot be confirmed. An Australian IEC mains lead may be required. Please ask us to open and check before ordering if this matters.

This switch provides IEEE 802.3af PoE only, at 15 W per port. It is not 802.3at PoE Plus and will not power devices that require more than 15 W, which includes many current access points and pan tilt zoom cameras.

This model is discontinued by EnGenius and has been replaced by the ECS1008P. It is legacy Neutron platform hardware, not the current EnGenius Fit line, and no cloud service should be assumed. Firmware on the shelf dates from 2019. Offered as new old stock.

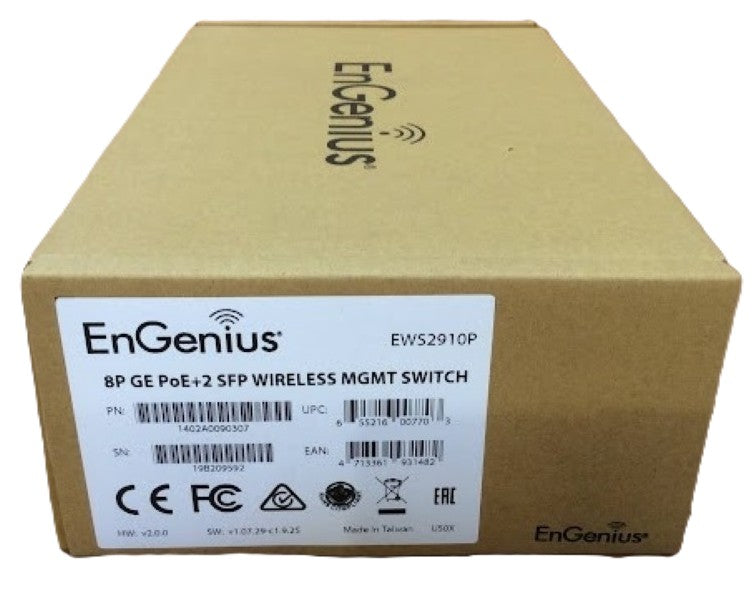

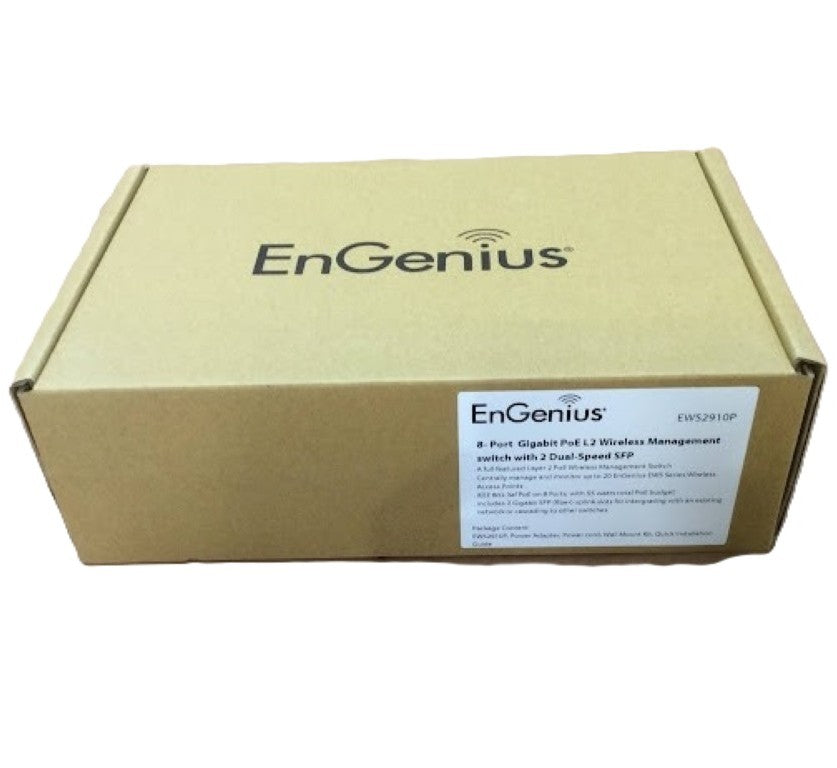

The item is new and supplied in the manufacturer's sealed box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
