EnGenius EWS1025CAM Managed MeshCam 2MP Wireless Dome IP Camera (NEW In Box)

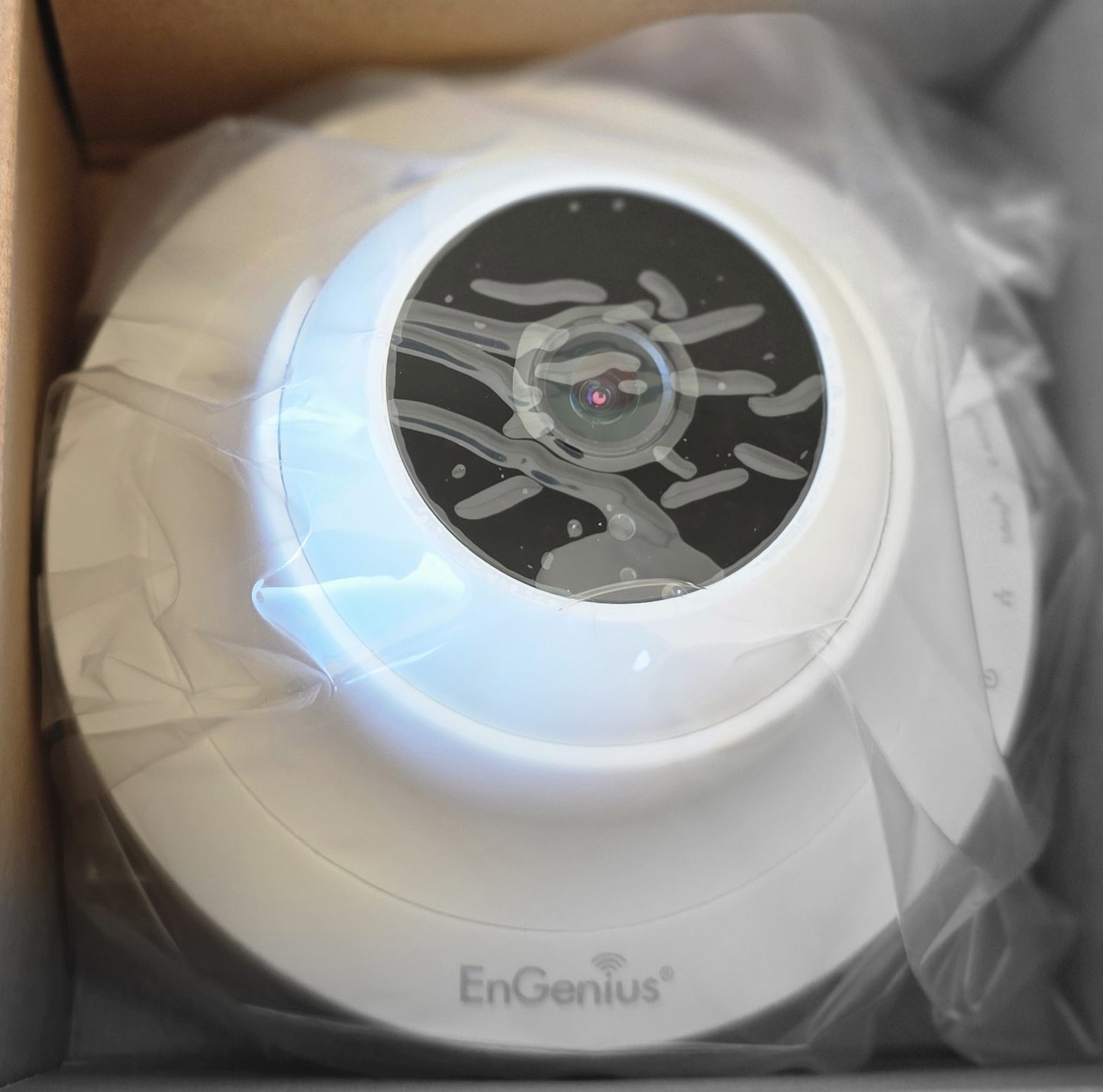

The EnGenius EWS1025CAM is an indoor dome surveillance camera that is also a dual band 802.11ac wireless access point. It is part of the EnGenius Neutron managed range, so a single device can cover a room for both video and Wi-Fi and be administered from an EnGenius EWS wireless management switch. The camera can also run standalone and is ONVIF Profile S compatible for use with third party recording software.

Video is 2 megapixel at 1920 x 1080 and 30 frames per second from a Sony 1/2.9 inch progressive scan CMOS sensor, through a fixed 2.8 mm f2.0 lens with a 120 degree diagonal field of view. Twenty four infrared LEDs with an IR cut filter give night vision to 20 metres. The wireless side is 2T2R on both bands, up to 300 Mbps at 2.4 GHz and up to 867 Mbps at 5 GHz, with internal 5 dBi antennas. The camera takes 802.3at or 802.3af PoE on its gigabit port, or 12 V DC, and has a microSD slot for local recording.

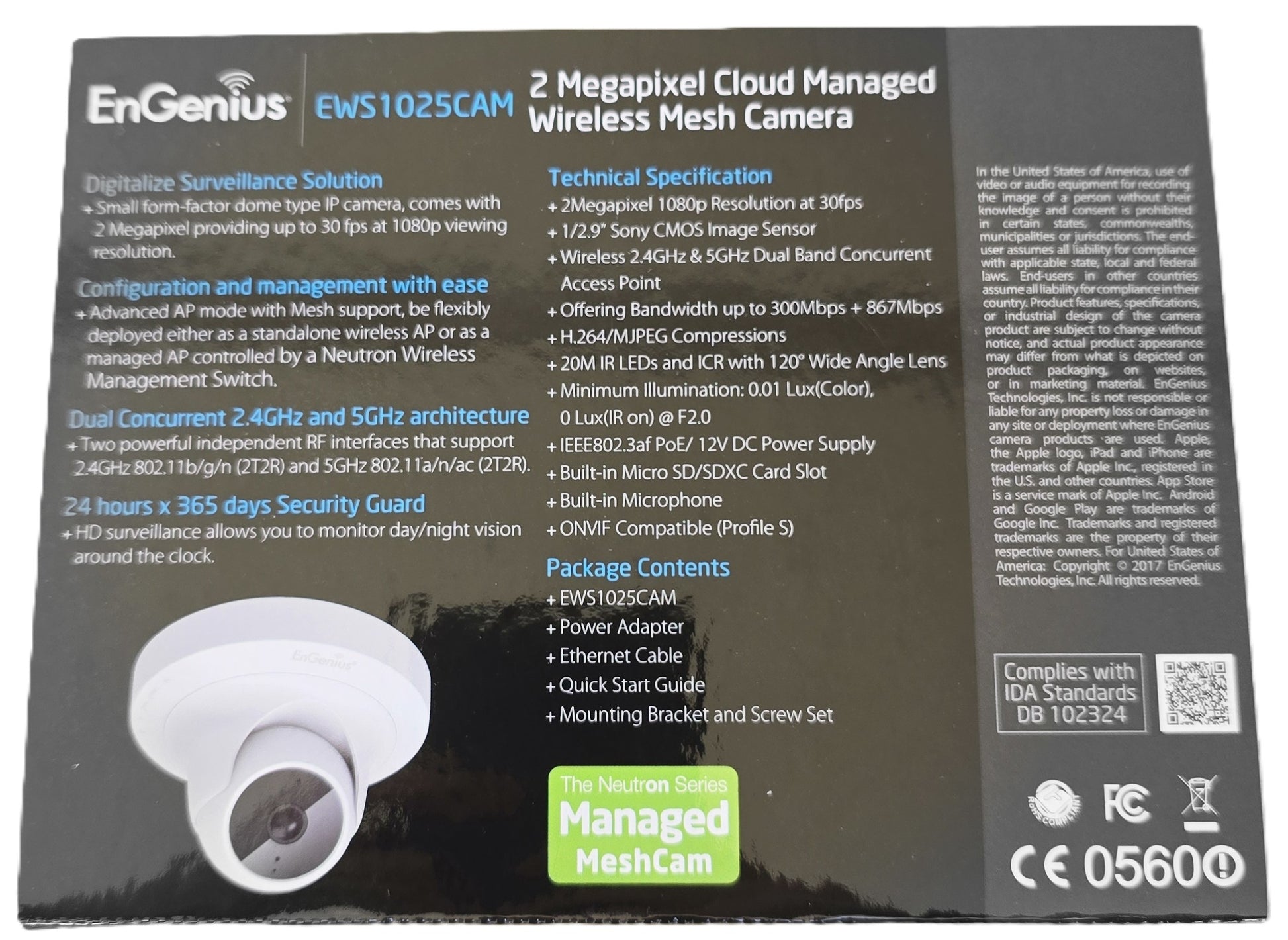

Specifications

Brand: EnGenius

Model: Neutron Managed MeshCam

Part Number: EWS1025CAM

Product Type: Indoor dome IP camera with integrated wireless access point

Resolution: 2 MP, 1920 x 1080 at 30 fps

Sensor: Sony 1/2.9 inch progressive scan CMOS

Lens: Fixed 2.8 mm, F2.0, 120 degree diagonal field of view

Night Vision: 24 IR LEDs, up to 20 m, with IR cut filter

Minimum Illumination: 0.01 lux colour, 0 lux with IR on

Compression: H.264 and MJPEG, 2 video streams

Wireless 2.4 GHz: 802.11b/g/n, 2T2R, up to 300 Mbps

Wireless 5 GHz: 802.11a/n/ac, 2T2R, up to 867 Mbps

Antennas: Internal, 5 dBi on each band

Transmit Power: Up to 21 dBm at 2.4 GHz, 19 dBm at 5 GHz

Network: 1 x Gigabit Ethernet with 802.3at/af PoE input, or 12 V DC 1.5 A

Local Storage: microSD / SDXC slot, up to 64 GB

Audio: Built in microphone

Standards: ONVIF Profile S compatible

Management: Standalone, or managed by an EnGenius Neutron EWS wireless management switch. Mesh AP mode supported

Operating Temperature: 0 to 50 degrees C, humidity up to 80 percent

Dimensions: 133.9 mm diameter x 96.8 mm high

Weight: 503 g

Approvals: CE 0560, FCC, IDA DB 102324, RoHS

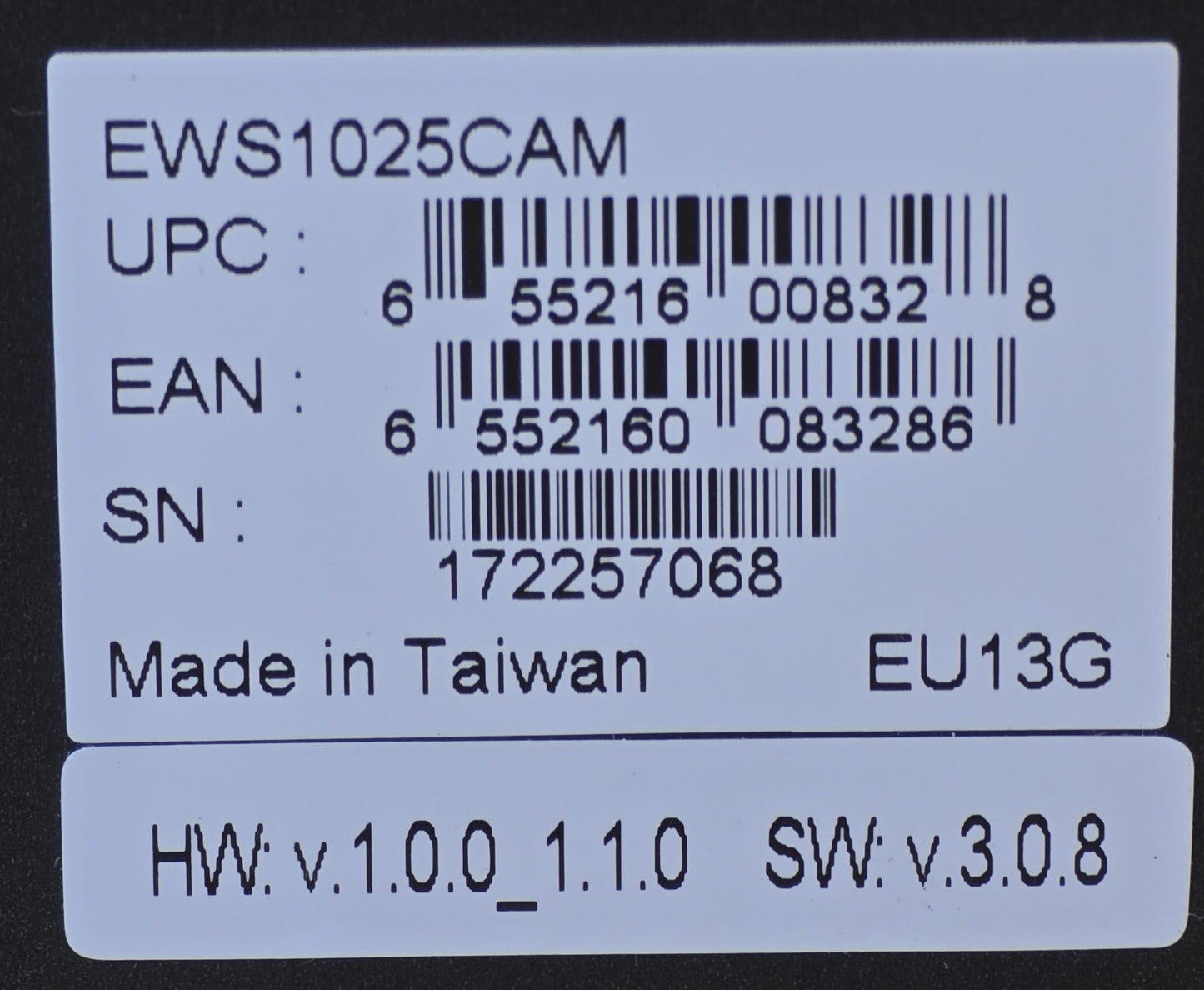

UPC: 655216008328

Country of Manufacture: Taiwan

Condition: New in box

Key Features

• Camera and dual band 802.11ac access point in one ceiling device
• Full HD 1080p at 30 fps with a Sony CMOS sensor
• 20 metre infrared night vision with IR cut filter
• 802.3at or 802.3af PoE on a single gigabit cable
• microSD slot for local recording without an NVR
• ONVIF Profile S for third party video management software
• Centrally managed by an EnGenius Neutron EWS switch

Typical Applications

• Retail floors and small offices needing camera and Wi-Fi coverage from one point
• Classrooms, clinics and waiting rooms
• Warehouses and back of house areas already cabled for PoE
• Sites extending an existing EnGenius Neutron deployment

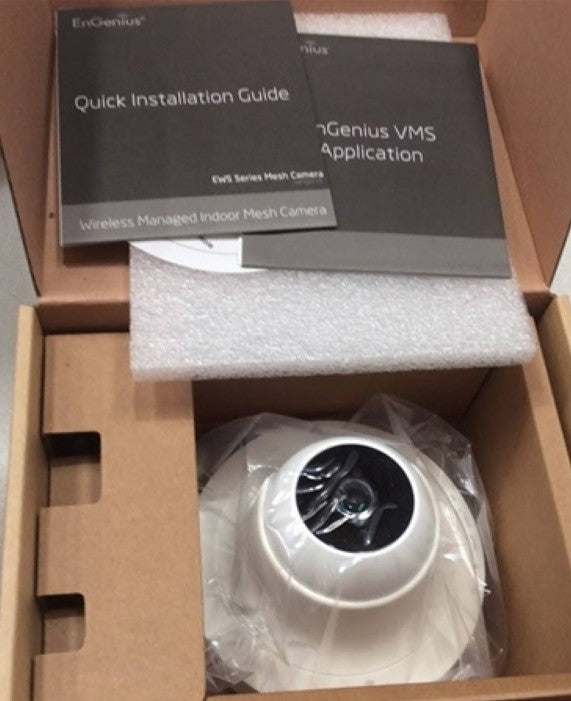

Package Includes

• One EnGenius EWS1025CAM dome camera

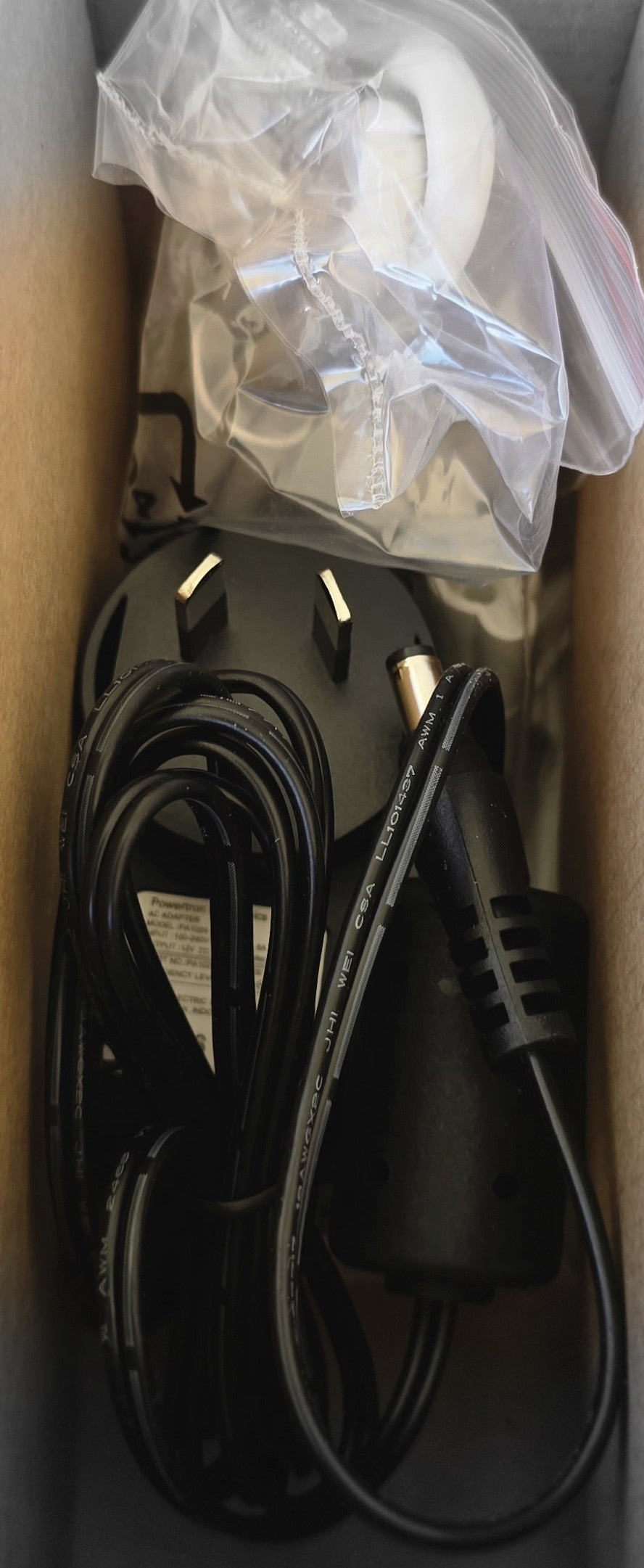

• One 12 V power adapter with an Australian AS/NZS 3112 plug
• One Ethernet patch lead
• Mounting plate and paper mounting template

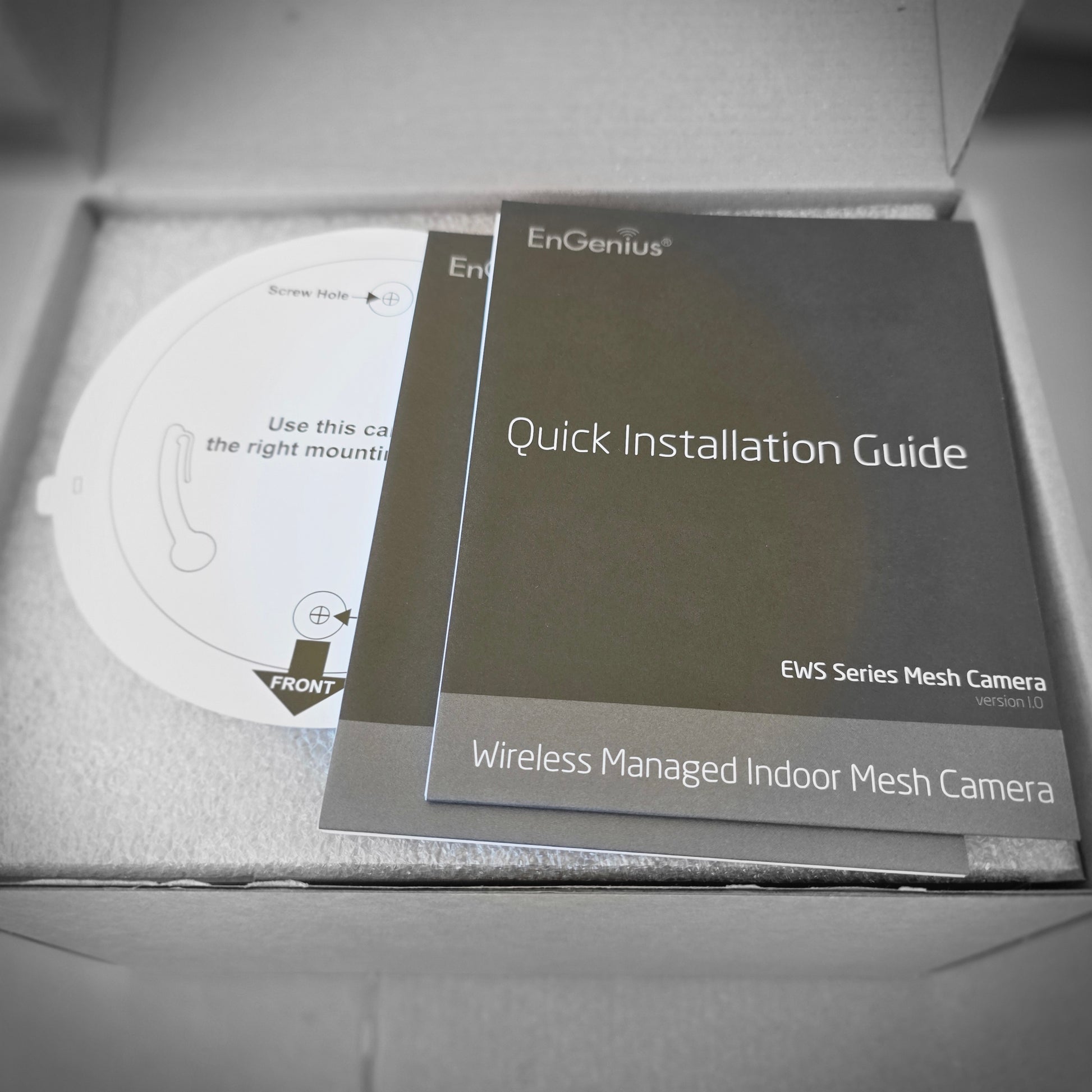

• EWS Series Mesh Camera Quick Installation Guide and EnGenius VMS leaflet
• No microSD card and no PoE injector are included

Additional Information

Please read this before ordering. This model is discontinued by EnGenius. The firmware on the shelf is from the 2017 generation and no current cloud service or ongoing firmware support should be assumed. It is offered as new old stock.

This is an indoor camera. No ingress protection rating is published, so it is not suitable for exposed outdoor mounting.

Full mesh and access point functionality is designed around an EnGenius Neutron EWS wireless management switch or controller. The camera works standalone but it is not a consumer plug and play cloud camera.

The unit photographed carries an Australian plug adapter. Please confirm the plug type with us before ordering if that matters to your installation.

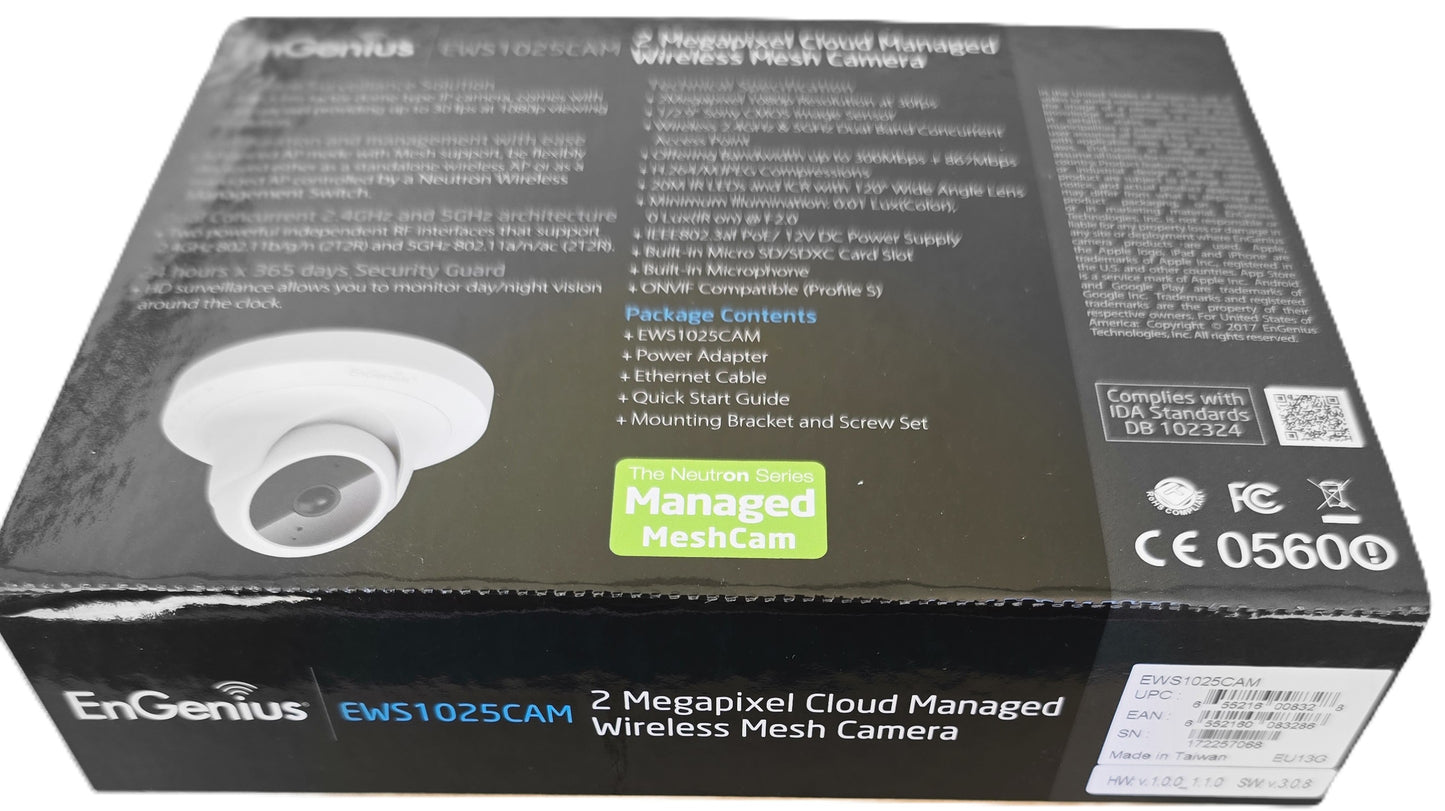

The item is new and supplied in the manufacturer's box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
