EliteControl EC-PSU2 Plug On Power Supply Battery Backup 13.8V (NEW In Box)

The EliteControl EC-PSU2 is a plug on power supply module with battery backup for the EC range of expanders, made by Arrowhead Alarm Products of Auckland, New Zealand. It mounts directly onto the expander board on headers, giving that expander its own local 13.8 V supply and standby battery instead of drawing everything from the panel.

The module accepts 15 to 24 V AC or DC from a plugpack or panel transformer and delivers a thermally protected 13.8 V DC output at 1.4 A, with a 250 mA battery charging output. Dynamic battery monitoring, AC fail monitoring and thermal output protection are built in, and the module reports battery, AC and supervision status back to the control panel. It is compatible with the EC-A2, EC-O4, EC-Z8 and the ESL OUTPUT v2 boards.

Specifications

Brand: EliteControl (Arrowhead Alarm Products)

Model: EC-PSU2

Part Number: EC-PSU2

Alternate Part Number: ESX-PSU2

Product Type: Plug on power supply module with battery backup, PCB only

Input: 15 to 24 V AC or DC

Output: 13.8 V DC, thermally protected

Output Current: 1.4 A per the manufacturer and Australian distributors. The carton is printed 1.5 A

Battery Charging Current: 250 mA

Monitoring: Dynamic battery monitoring, AC fail monitoring, thermal output protection, status reported to the control panel

Format: Plug on, mounts directly to the expander PCB via headers, no separate enclosure

Dimensions: 78 x 36 x 41 mm

Compatible With: EC-A2, EC-O4, EC-Z8, ESL OUTPUT v2

Manufacturer SKU: AAP 02001

Country of Manufacture: New Zealand

Condition: New in box

Key Features

• Gives an EC range expander its own local supply and standby battery
• 13.8 V DC output with thermal protection
• 250 mA battery charging output
• Dynamic battery monitoring and AC fail monitoring reported to the panel
• Plugs directly onto the expander board, no wiring loom to build
• Designed and made in New Zealand

Typical Applications

• Powering a remote EC-A2 door expander away from the main panel
• Adding standby battery capacity at an outbuilding or remote enclosure
• Taking load off a panel supply that is near its limit
• Maintenance and spare stock for an existing EliteControl installation

Package Includes

• One EC-PSU2 plug on printed circuit board
• No battery, no plugpack or transformer, no enclosure and no leads are included

Additional Information

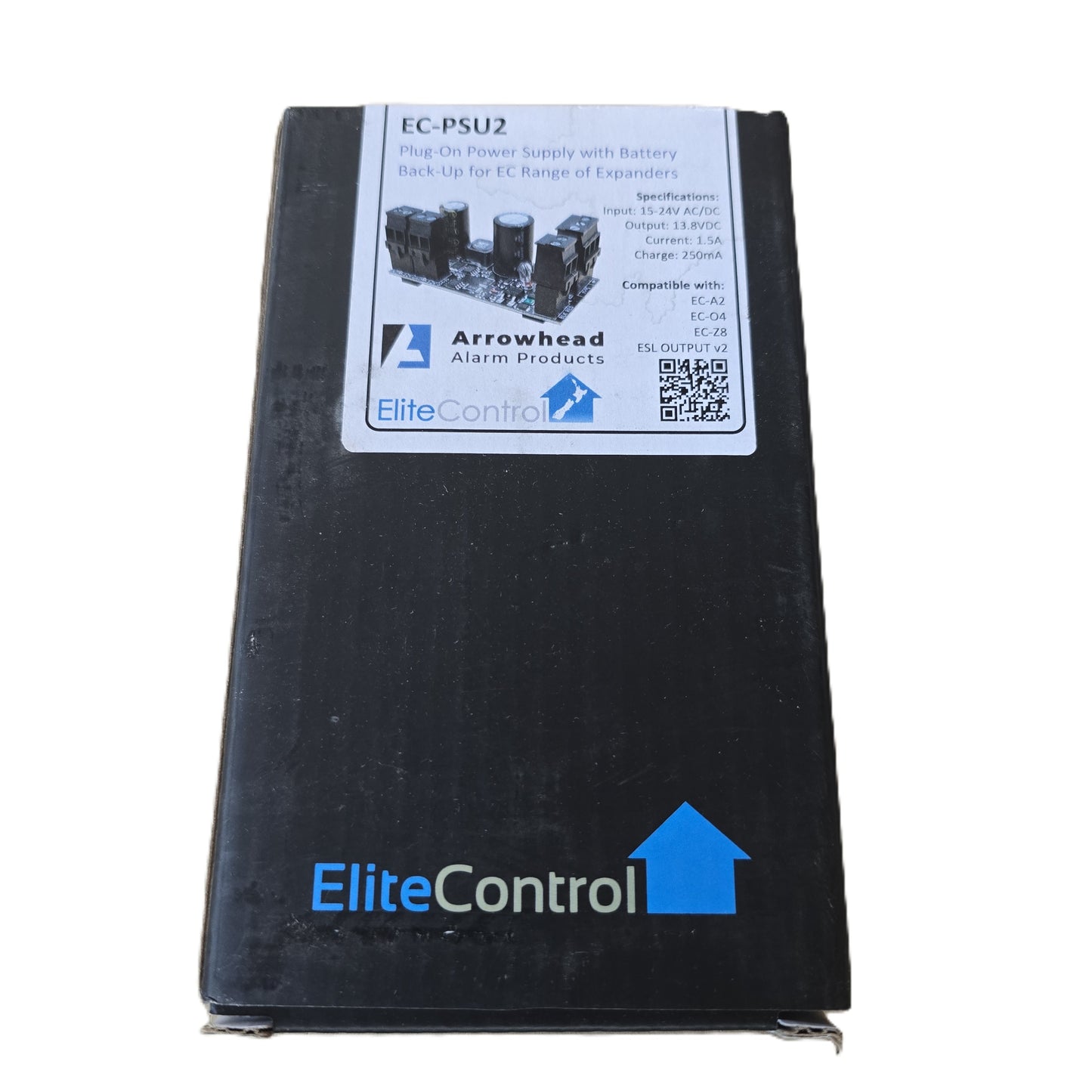

Please read this before ordering. The carton is printed 1.5 A but the manufacturer and both Australian distributors specify 1.4 A. Treat 1.4 A as the rating.

This is a plug on board only. It is not a standalone power supply and will not work on its own. It plugs onto an EC range expander, which is the EC-A2, EC-O4, EC-Z8 or ESL OUTPUT v2.

It needs a 15 to 24 V AC or DC source, typically a 16 to 18 V AC plugpack or panel transformer, and a 12 V sealed lead acid battery. Neither is supplied.

The EliteControl range has been declared end of life by Arrowhead in favour of its EliteCloud platform. Long term support and firmware are not assured. Offered as new old stock.

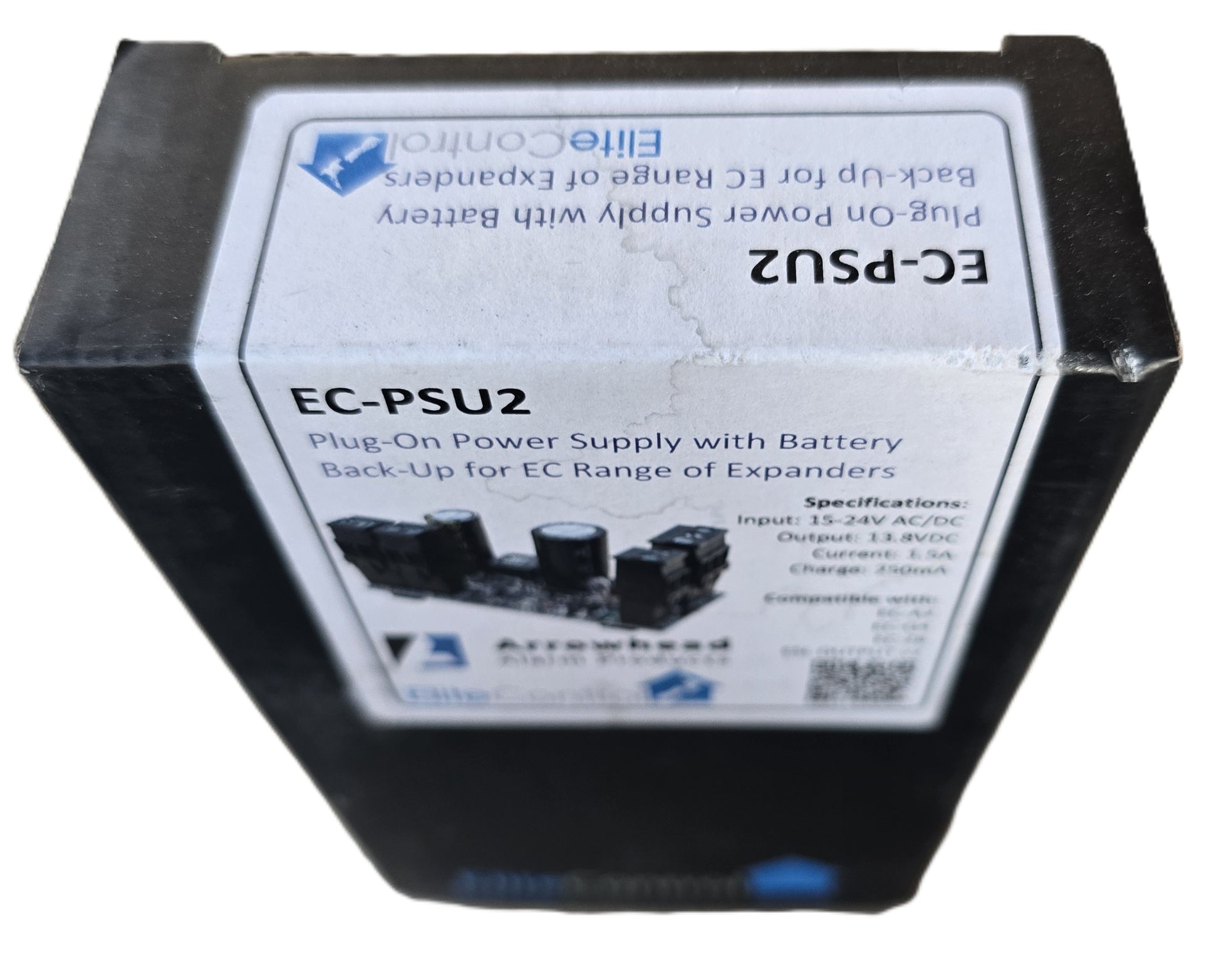

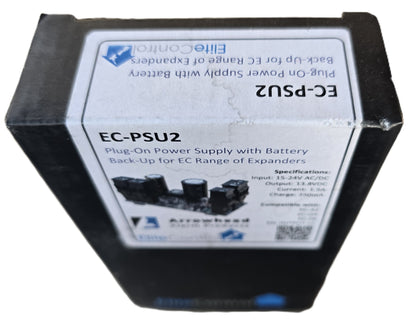

The box is sealed and shows light scuffing and a slight crease on the label from storage. Installation should be carried out by a licensed security technician.

Shipping from Sydney, Australia.
