EliteControl EC-A2 2 Door Access Control Expander for ESX ESL (NEW In Box)

The EliteControl EC-A2 is a two door access control expander module for the Elite ESX and ESL alarm systems, made by Arrowhead Alarm Products of Auckland, New Zealand. It adds card reader controlled door, garage or gate operation to an existing alarm panel without a separate access control system.

The board provides two access keypad or reader inputs in Arrowhead's proprietary Wiegand format, two relay outputs rated 2 A at 30 V DC, and two inputs that default to request to exit buttons and can be reconfigured as door or lock monitoring alarm inputs. A tamper input is switchable on ESX systems. The module connects to the panel's keypad bus over four screw terminals for 12 V, ground, clock and data, draws about 100 mA, and is addressed by DIP switches with a further switch selecting one door or two door mode.

Specifications

Brand: EliteControl (Arrowhead Alarm Products)

Model: EC-A2

Part Number: EC-A2

Product Type: Two door access control expander module, PCB only

Reader Inputs: 2 access keypad or reader inputs, proprietary Wiegand format

Relay Outputs: 2, rated 2 A at 30 V DC, for doors, garages and gates

Inputs: 2, selectable as request to exit buttons by default or as door and lock monitoring alarm inputs. 2K2 end of line resistor required either way

Tamper Input: Switchable by DIP 8, 2K2 resistor, functions on ESX only

Bus: Panel keypad bus, screw terminals 12 V, GND, CLK, DAT

Power: 12 V DC from the keypad bus on a 1.6 A fused rail. Module draws approximately 100 mA

Addressing: DIP 1 to 5 set keypad address 1 to 32. DIP 6 selects one door or two door mode. DIP 7 selects REX or standard input function

Bus Capacity: Maximum 8 keypad bus devices on ESL, up to 32 on ESX

Compatible Panels: Elite ESX with firmware 10.2.441 or later, Elite ESL and ESL-2, and Crow Runner type systems

Optional Accessory: EC-PSU2 plug on power supply for local power and battery backup

Recommended Readers: PW WIEGAND-NK, PW WIEGAND, PW WIEGAND-SK1, PW WIEGAND-SK4

Country of Manufacture: New Zealand

Condition: New in box

Key Features

• Adds two access controlled doors to an Elite ESX or ESL alarm panel
• Two 2 A relay outputs for strikes, garage doors and gates
• Two inputs configurable as request to exit or door monitoring
• Powered and addressed on the existing keypad bus, no extra cabling run
• Accepts the optional EC-PSU2 plug on power supply for battery backup
• Designed and made in New Zealand

Typical Applications

• Adding card access to a small business already running an Elite alarm panel
• Garage and gate control from an alarm keypad bus
• Two door tenancies and strata common areas
• Maintenance and spare stock for an existing EliteControl installation

Package Includes

• One EC-A2 printed circuit board
• ARR-14 quick connect loom for the keypad bus
• No readers, no power supply, no enclosure and no battery are included

Additional Information

Please read this before ordering. This board is for Elite ESX and ESL or ESL-2 panels. The current replacement, the EC-A2 REX, is not a drop in substitute and works only on EC and EC-i panels. If you have an EC or EC-i panel this board is not the right one, and if you have an ESX or ESL panel the newer EC-A2 REX will not work for you. Confirm your panel model before ordering.

ESX panels require firmware 10.2.441 or later.

Arrowhead has flagged this part as end of life and directs EliteControl customers toward its EliteCloud platform. It is offered as new old stock.

This is a bare printed circuit board. No enclosure, no readers, no power supply and no battery are included. Readers must be Arrowhead proprietary Wiegand types. 2K2 end of line resistors are required on the inputs and tamper and are not confirmed as supplied.

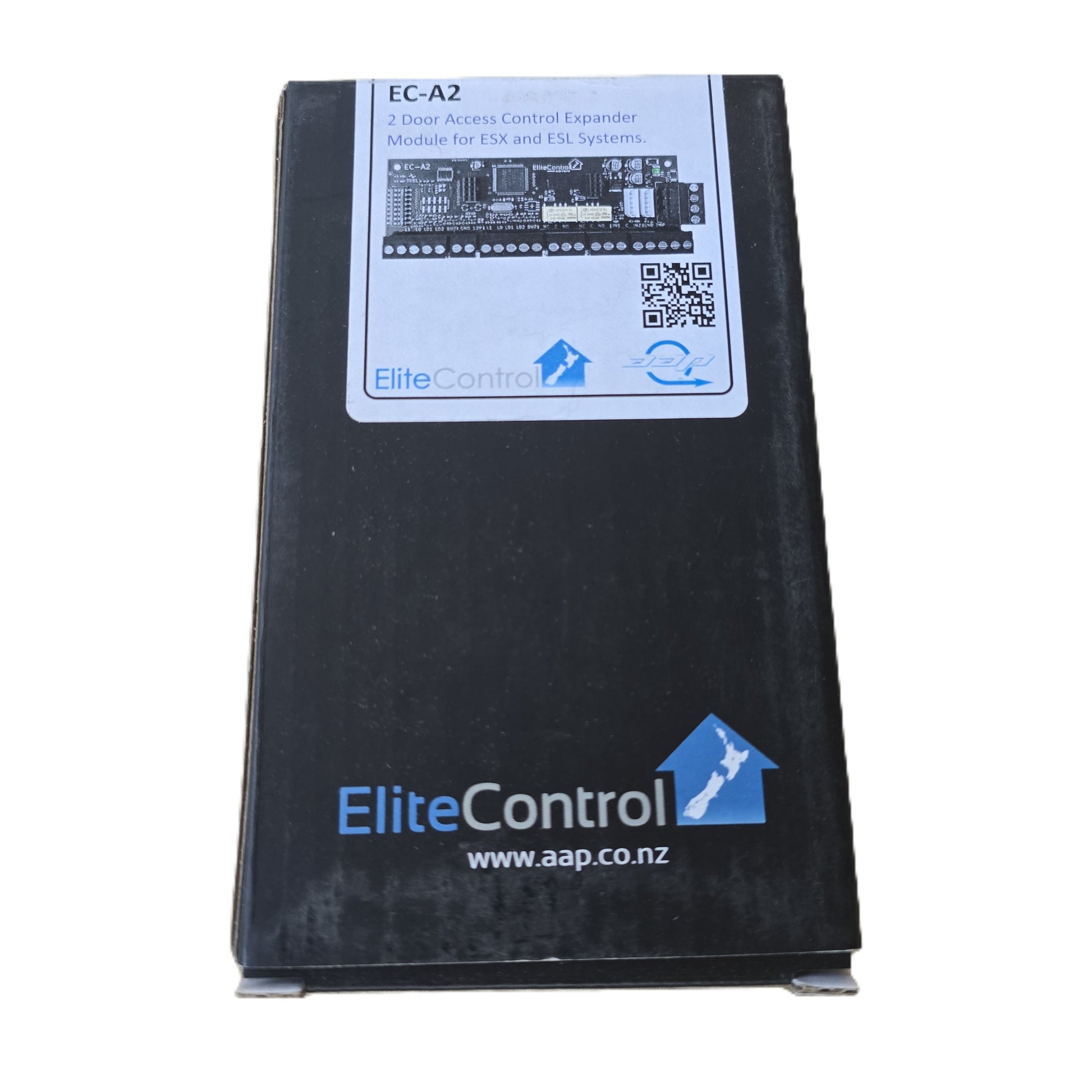

The box is sealed and shows minor scuffing and edge wear from storage. Installation should be carried out by a licensed security technician.

Shipping from Sydney, Australia.
