ElecBiz HDC-300ATE Hall Effect DC Current Sensor 300A 4V 4 Pin (Pre-owned)

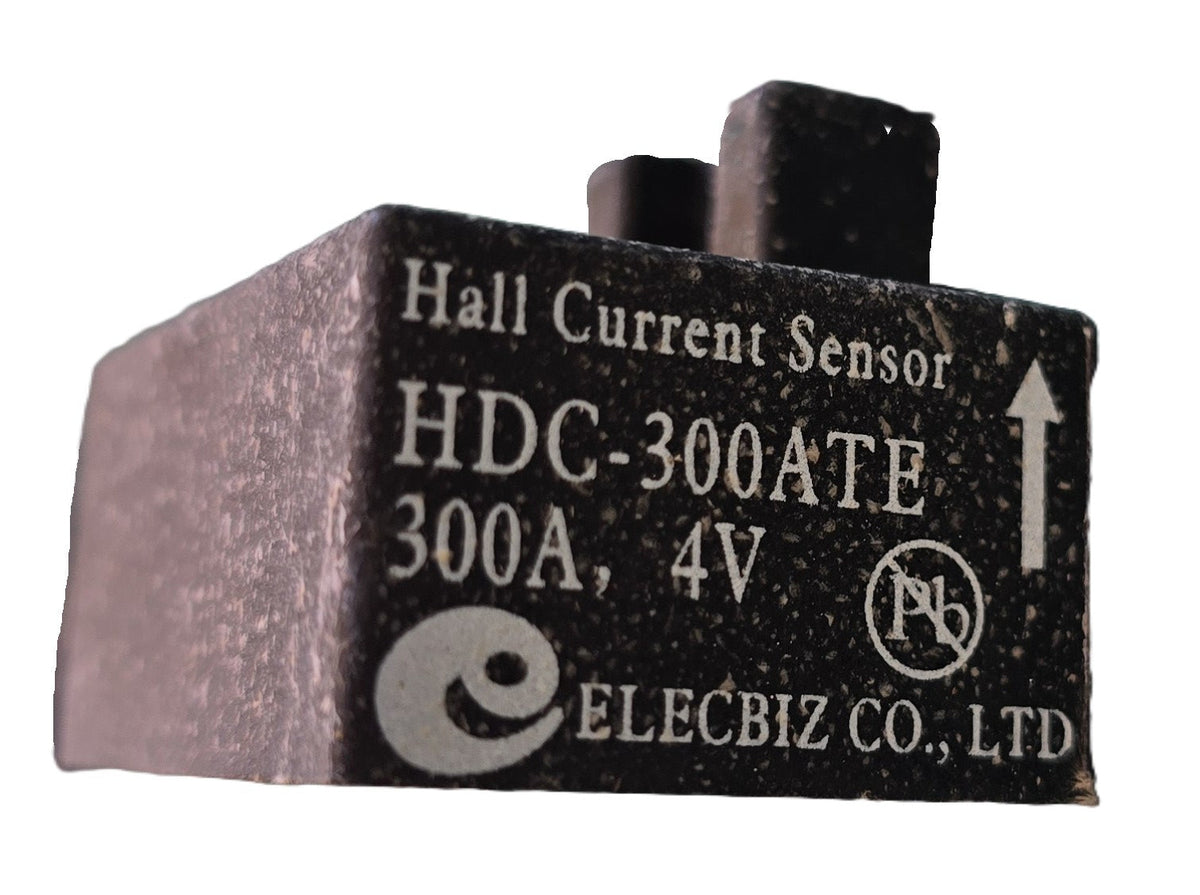

The ElecBiz HDC-300ATE is a hall effect DC current sensor made by ElecBiz Co Ltd of Korea. The body is marked 300A, 4V, meaning a 4 V output at 300 A rated input, with an arrow showing current direction, a through hole core for the conductor and a 4 pin connector for supply and output.

Sensors of this type are used for battery and load current monitoring in telecom rectifier systems. No manufacturer datasheet has been located, so the unit is described from its markings. It is a used pull, sold untested.

Specifications

Brand: ElecBiz

Model: HDC-300ATE

Part Number: HDC-300ATE

Product Type: Hall effect DC current sensor

Rated Input: 300 A DC

Output: 4 V at rated current

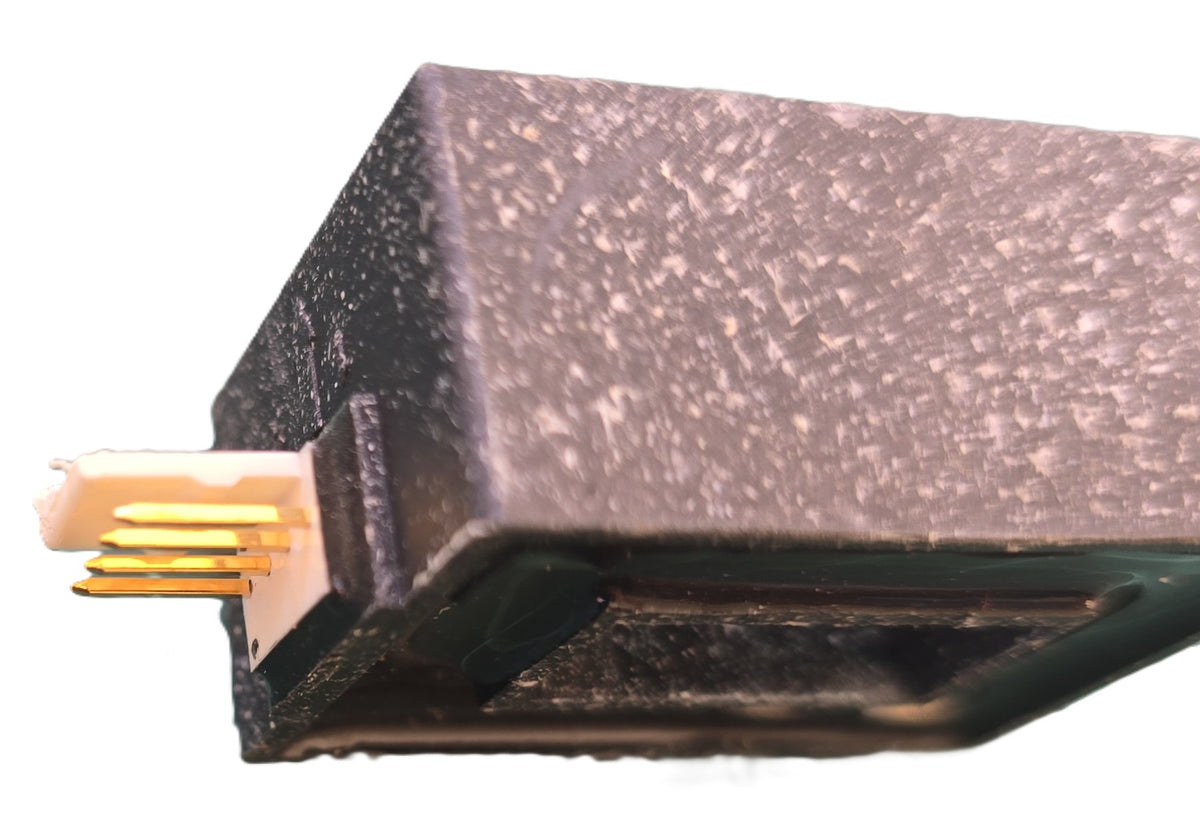

Connector: 4 pin

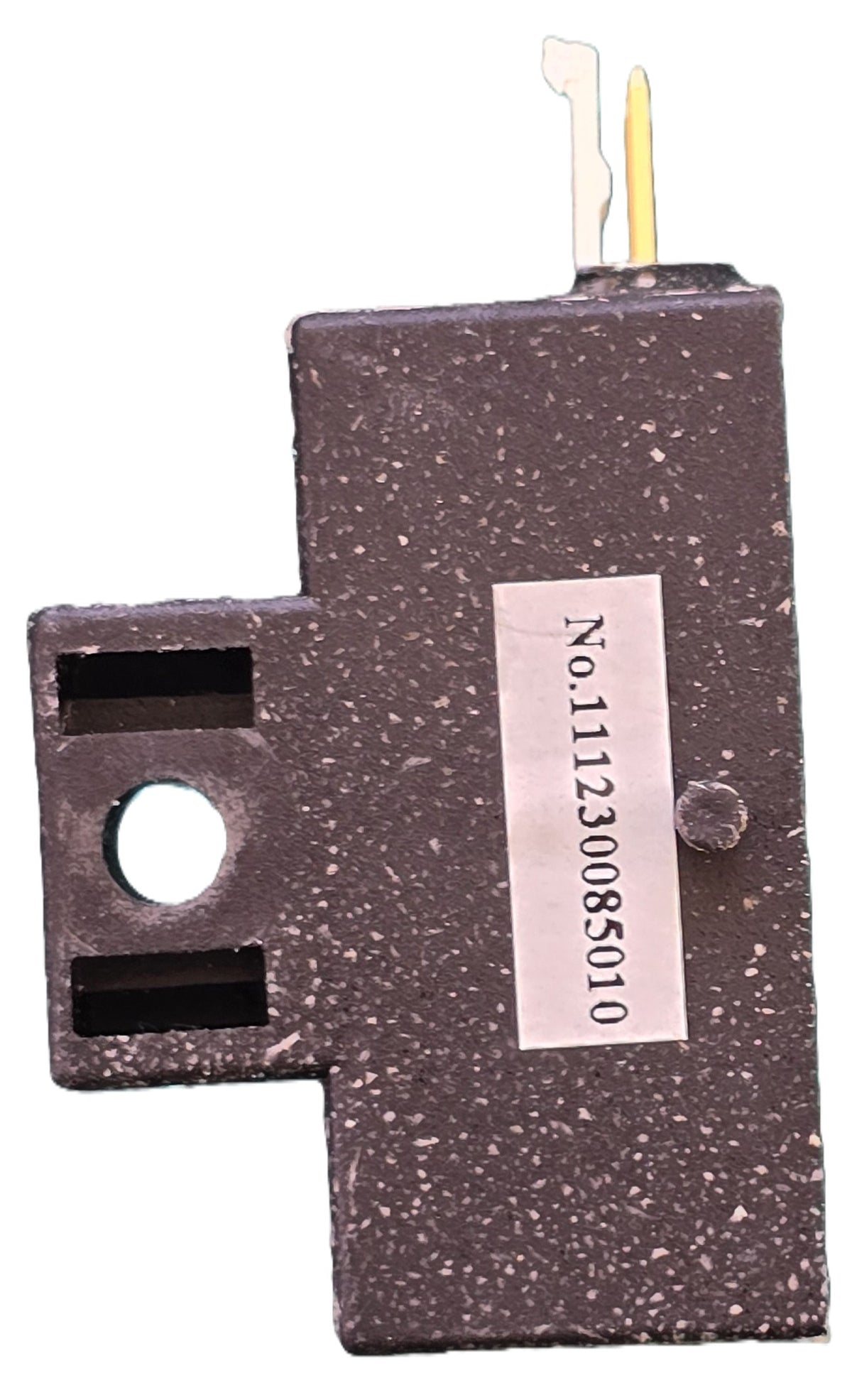

Serial: 11123008501O

Country of Origin: South Korea

Condition: Used, untested

Key Features

• Non contact hall effect measurement
• Through hole core with direction arrow
• Compact moulded body with mounting holes

Typical Applications

• Battery and rectifier current monitoring
• Replacement sensor in telecom DC power systems

Package Includes

• 1 x ElecBiz HDC-300ATE sensor

Additional Information

Supply voltage and pinout are not printed on the unit; please confirm against your equipment.

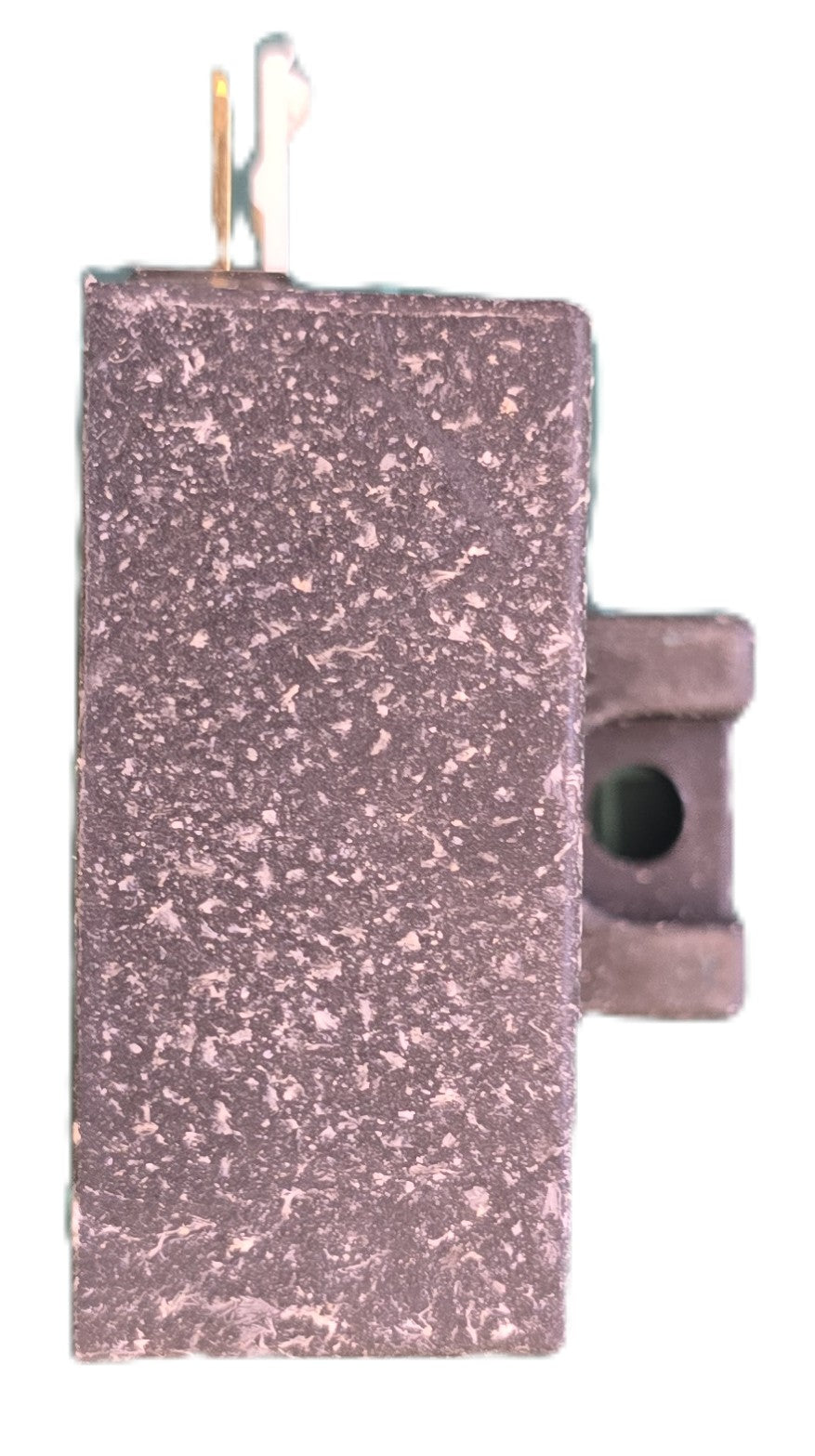

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
