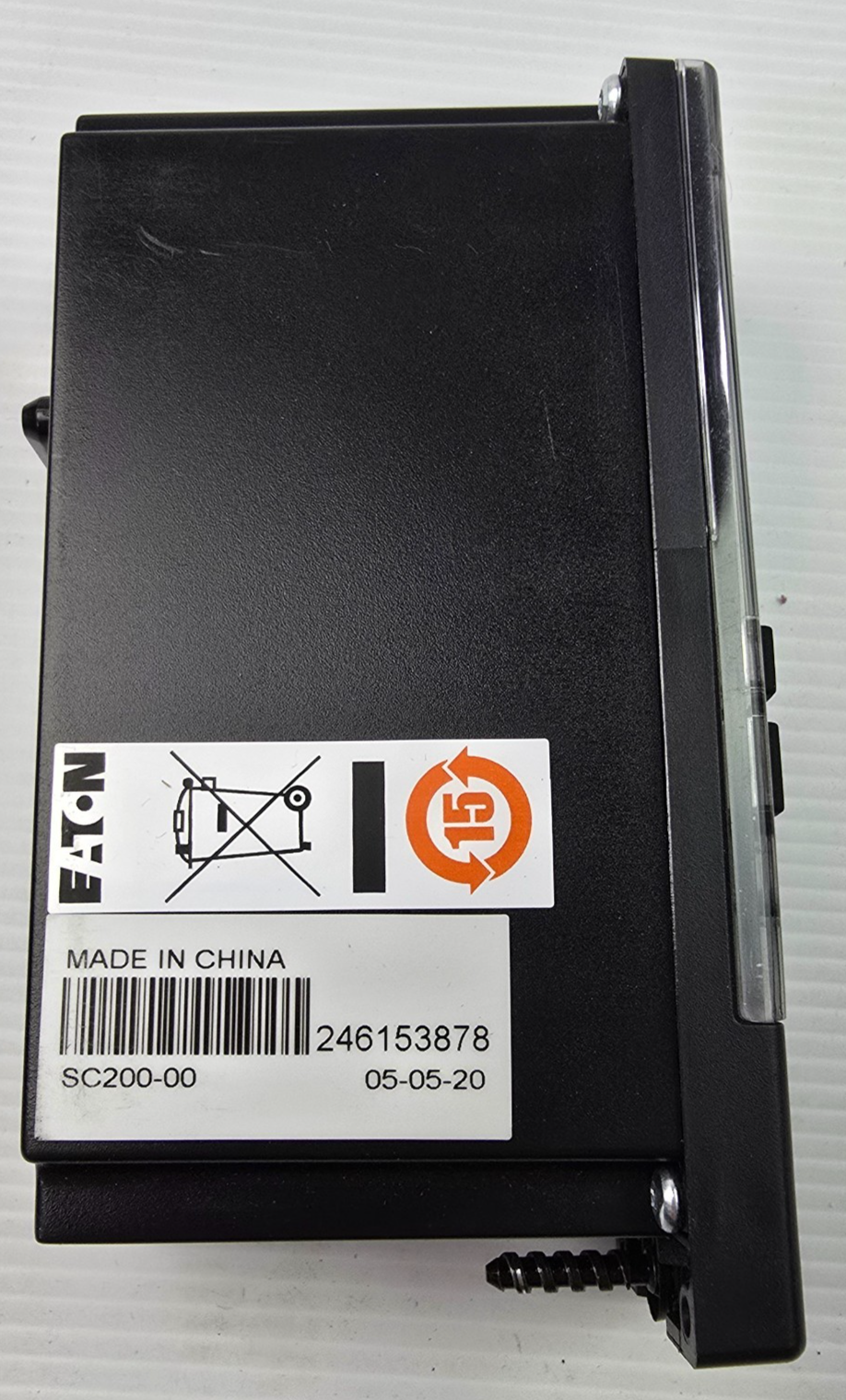

Eaton SC200-00 System Controller

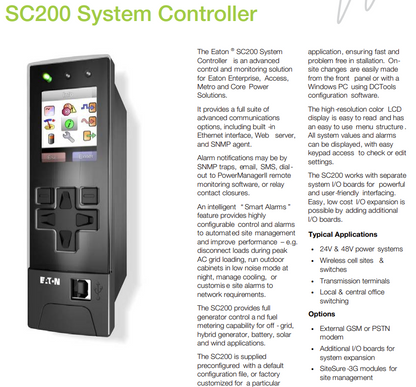

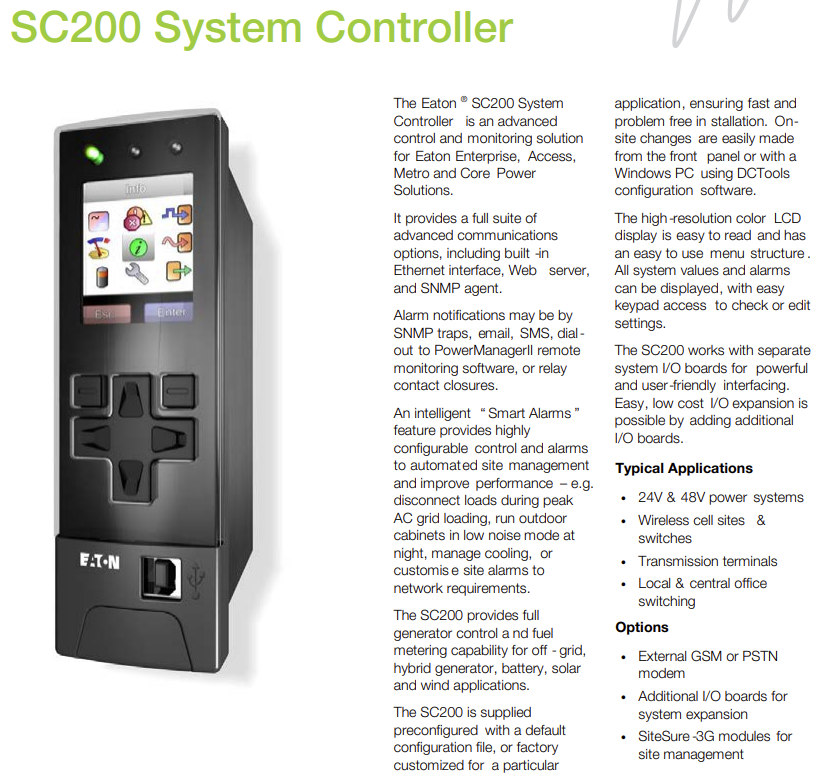

Eaton SC200 System Controller

The Eaton SC200 System Controller is an advanced control and monitoring solution for Eaton Enterprise, Access, Metro, and Core Power Solutions.

It provides a full suite of advanced communications options, including built-in Ethernet interface, Web server, and SNMP agent.

Alarm notifications may be by SNMP traps, email, SMS, dial-out to PowerManagerII remote monitoring software, or relay contact closures.

An intelligent Smart Alarms feature provides highly configurable control and alarms to automate site management and improve performance – for example, disconnecting loads during peak AC grid loading, running outdoor cabinets in low-noise mode at night, managing cooling, or customising site alarms to network requirements.

The SC200 provides full generator control and fuel metering capability for off-grid, hybrid generator, battery, solar, and wind applications.

The SC200 is supplied preconfigured with a default configuration file, or factory customised for a particular application, ensuring fast and problem-free installation. On-site changes are easily made from the front panel or with a Windows PC using DCTools configuration software.

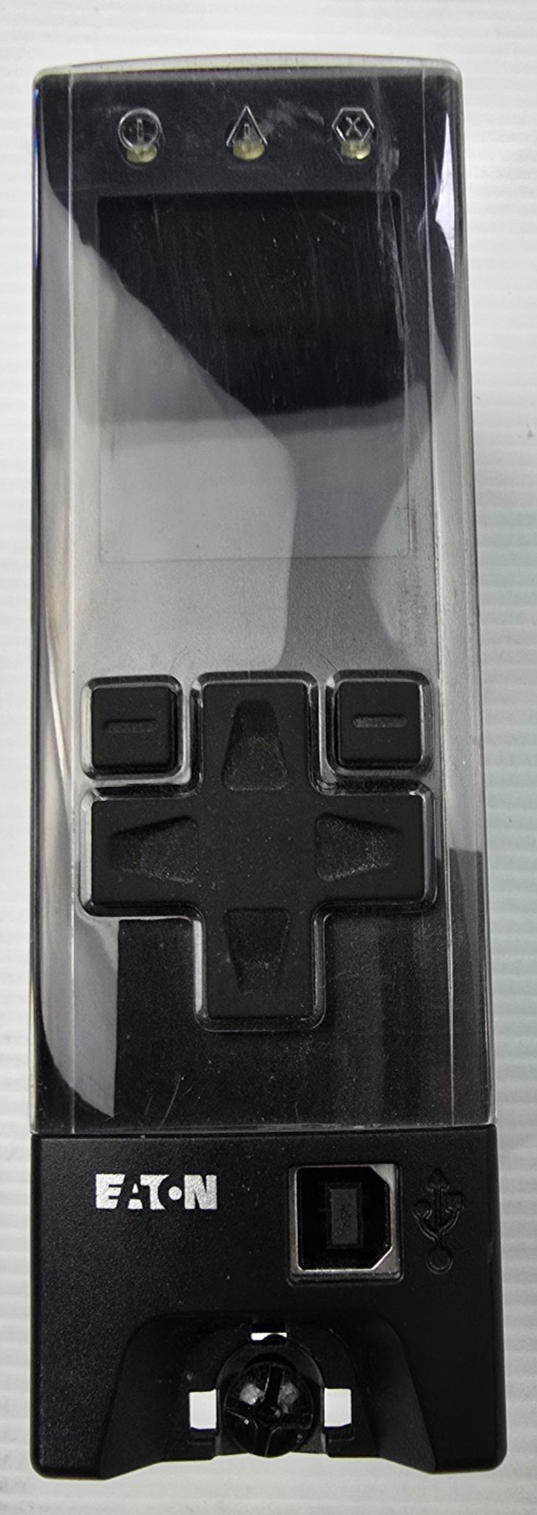

The high-resolution colour LCD display is easy to read and has a simple menu structure. All system values and alarms can be displayed, with keypad access to check or edit settings.

The SC200 works with separate system I/O boards for powerful and user-friendly interfacing. Easy, low-cost I/O expansion is possible by adding additional I/O boards.

Applications

• 24V & 48V power systems

• Wireless cell sites & switches

• Transmission terminals

• Local & central office switching

• External GSM or PSTN modem

• Additional I/O boards for system expansion

• SiteSure-3G modules for site management

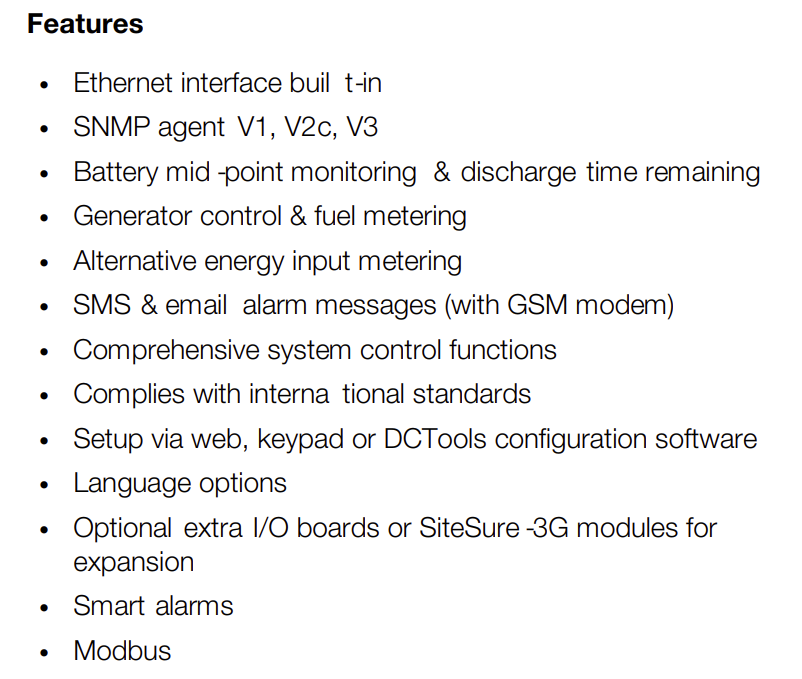

Features

• Ethernet interface built-in

• SNMP agent V1, V2c, V3

• Battery mid-point monitoring & discharge time remaining

• Generator control & fuel metering

• Alternative energy input metering

• SMS & email alarm messages (with GSM modem)

• Comprehensive system control functions

• Complies with international standards

• Setup via web, keypad or DCTools configuration software

• Language options

• Optional extra I/O boards or SiteSure-3G modules for expansion

• Smart alarms

• Modbus
