Eaton M22-LEDC LED Indicator Element 12-30V Screw Terminal (Spares Stock)

This listing is for a quantity of ten Eaton M22-LEDC LED indicator elements from the RMQ-Titan M22 modular command and signalling system. The element provides integrated LED illumination for M22 pushbuttons, indicator lights and selector switches, and mounts to the rear of the operator or lens on the standard M22 22.5 mm system.

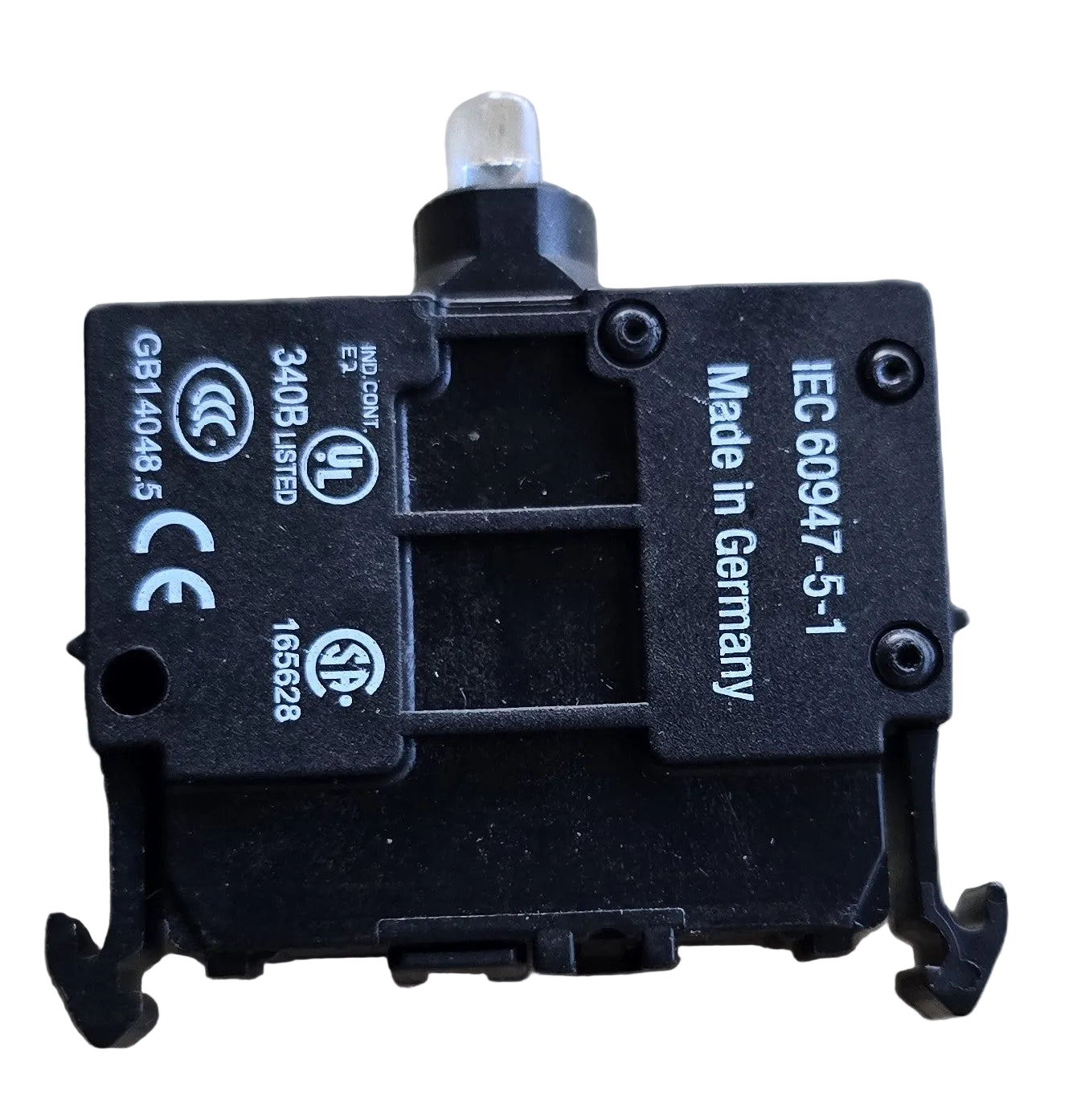

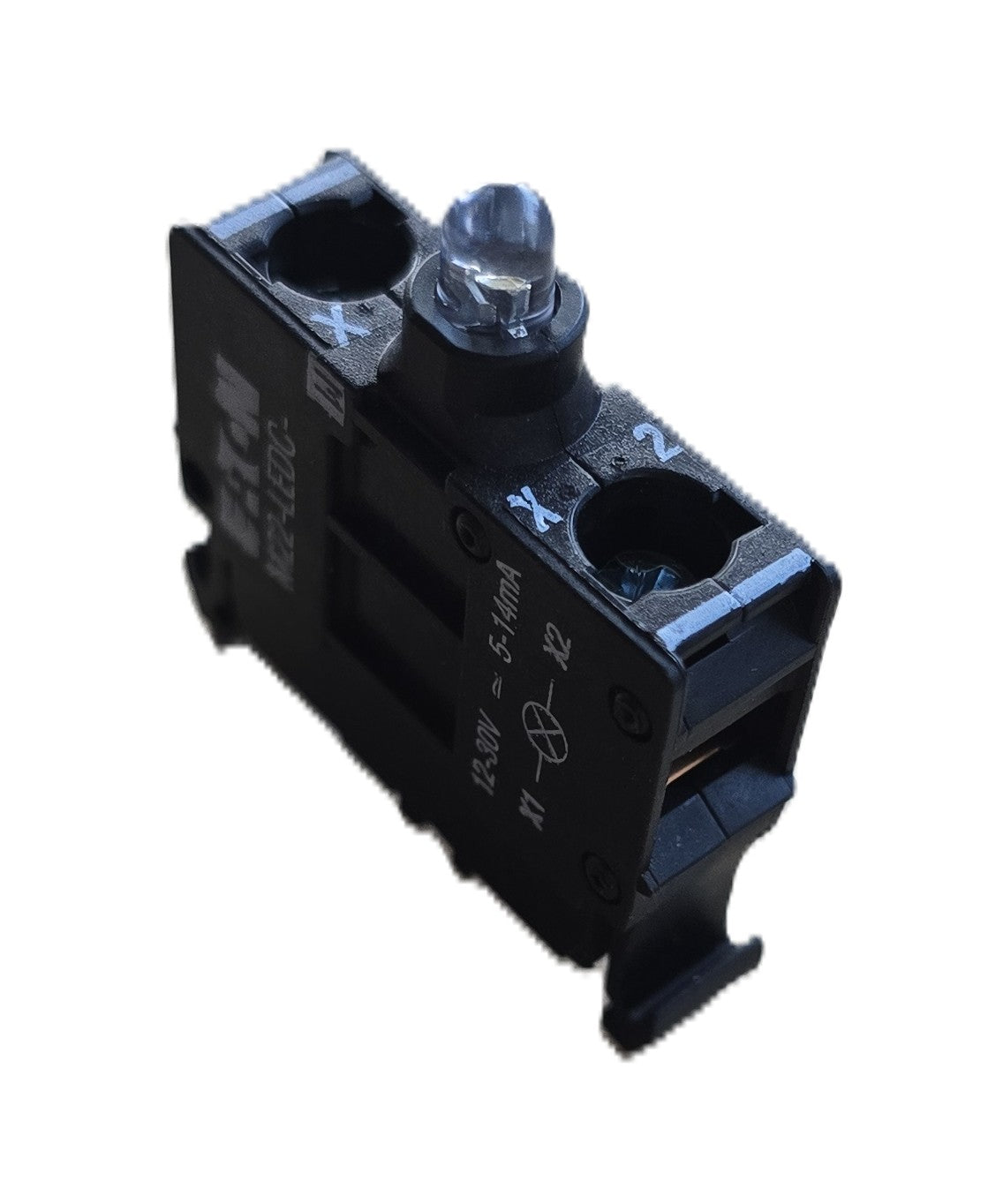

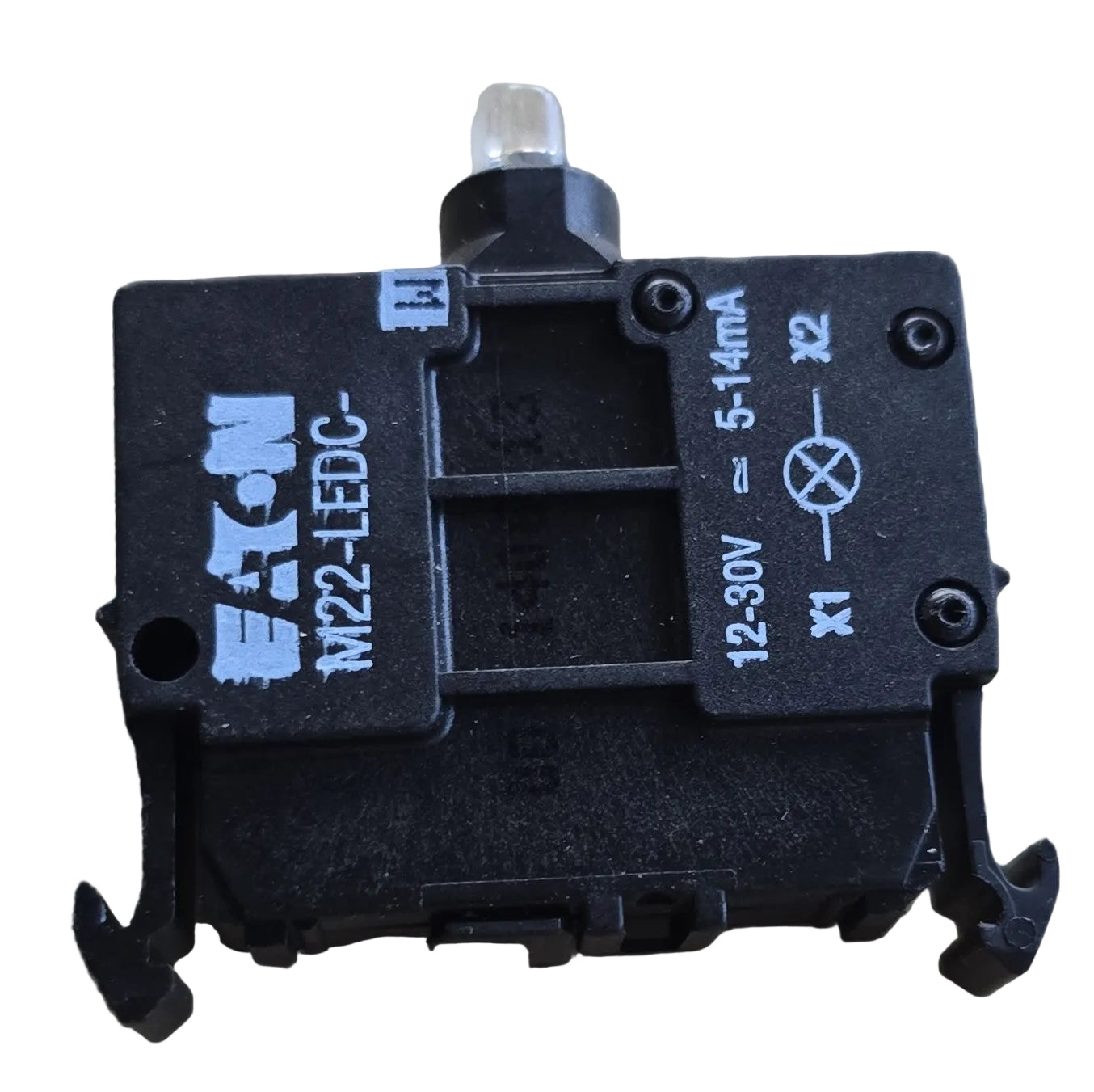

The unit is rated 12-30 V AC/DC with a current consumption of 5-14 mA and uses screw-terminal connection at terminals X1 and X2. The moulded housing carries the markings shown in the photographs and is manufactured to IEC 60947-5-1. The illumination colour and full part suffix are as shown in the photographs.

Specifications

Brand: Eaton

Model/Series: RMQ-Titan M22

Part Number: M22-LEDC

Product Type: LED indicator / illumination element

Rated Voltage: 12-30 V AC/DC

Current Consumption: 5-14 mA

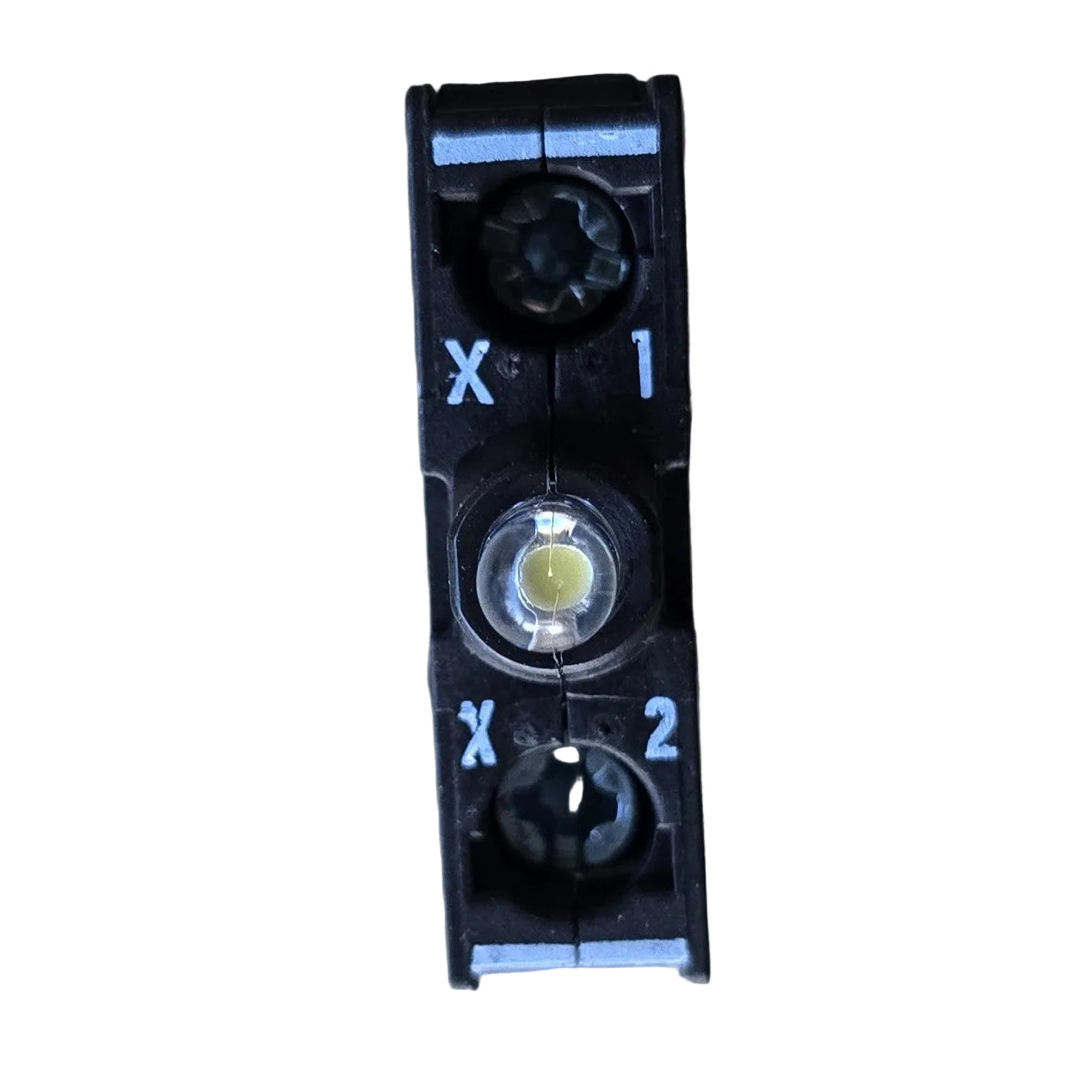

Connection: Screw terminals (X1, X2)

Mounting: Base fixing, M22 22.5 mm system

Standard: IEC 60947-5-1

Approvals: UL, CSA, CCC, CE

Country of Origin: Germany

Quantity: 10 units

Condition: Spares Stock (new old stock)

Key Features

• Integrated LED illumination element for the Eaton RMQ-Titan M22 system
• Wide operating range of 12-30 V AC/DC
• Low current consumption of 5-14 mA
• Screw-terminal connection at X1 and X2
• Compatible with M22 pushbuttons, indicator lights and illuminated selector switches
• Manufactured to IEC 60947-5-1 with UL, CSA, CCC and CE approvals

Typical Applications

• Illuminated pushbutton and indicator light stations
• Machine and plant control panels
• Operator and HMI panels
• Industrial control and automation equipment

Package Includes

• 10 x Eaton M22-LEDC LED indicator element

Additional Information

The item is new old stock and the packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
