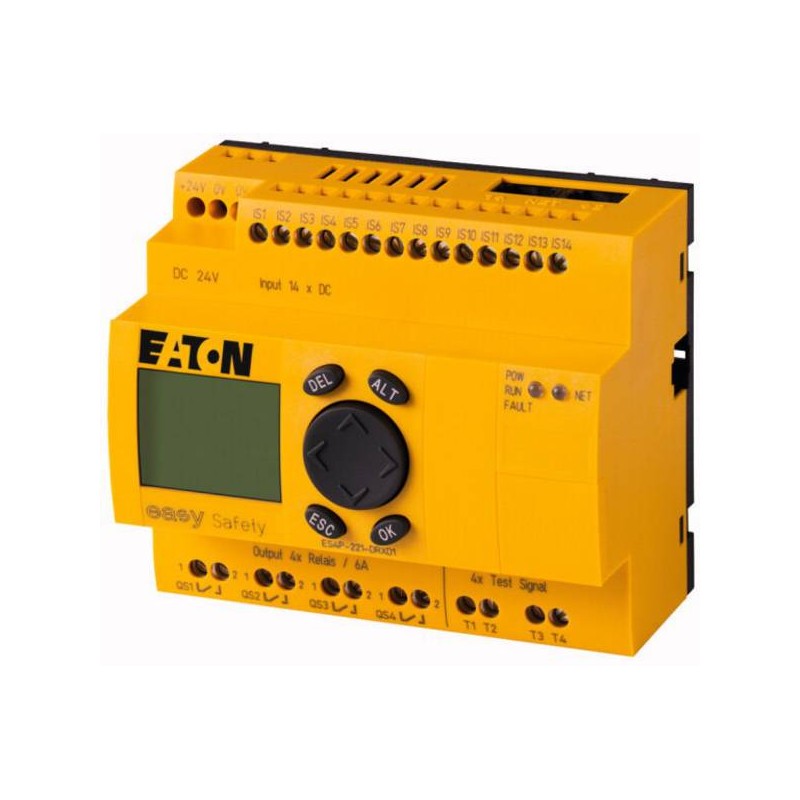

Eaton ES4P-221-DRXD1 easySafety Safety Control Relay 24V DC 111019 (NEW In Box)

Title: Eaton ES4P-221-DRXD1 Expandable Safety Control Relay 24V DC 14DI 4DO LCD Display (NEW In Box)

Brand: Eaton
Model: ES4P-221-DRXD1
Part Number: 111019
Type: Expandable Safety-Related Control Relay
Description: Eaton ES4P-221-DRXD1 is a programmable, expandable safety control relay designed for high-integrity applications in industrial automation and machinery safety. It combines both safety and standard logic functions in one compact DIN-rail module. Equipped with a backlit LCD display and keypad for parameterization, monitoring, and diagnostics. Integrated easyNet and easyLink bus systems allow flexible communication and modular expansion.
Condition: New (In Box)
Rated Operating Voltage: 24 V DC (20.4 – 28.8 V DC)
Power Consumption: 6 W
Digital Inputs: 14 Safe Inputs
Outputs: 4 Relay Outputs (6 A), 4 Test Signal Outputs
Certifications / Safety Category:
– Category 4 (EN 954-1)
– PL e (EN ISO 13849-1)
– SILCL 3 (IEC 62061)
– SIL 3 (IEC 61508)
Contact Rating: 6 A 240 V AC (B300) / 6 A 24 V DC (R300)
Interfaces: easyNet on-board / easyLink / expandable via bus module (AS-Interface, PROFIBUS-DP, CANopen, DeviceNet)
Display / Control: Integrated LCD Display and Keypad
Protection Class: IP20
Tightening Torque: 0.6 Nm
Wire Size: AWG 22 – 12
Mounting Type: DIN Rail
UPC: 4015081105298
Dimensions: 90 × 22 × 115 mm
Weight: 0.18 kg
Country of Origin: Germany
HS Code: 8536.49.00
Additional Features: Individual labeling possible via Eaton Label Editor software
